Automation and Drives SIMATIC Software STEP 7 V5.4 Highlights der neuen STEP 7 Version SIMATIC Software
2
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 2 Einführung Das neue STEP 7 V5.4 ist seit April 2006 lieferbar und löst damit STEP 7 V5.3 – seit 02.2004 im Liefereinsatz – ab. In STEP 7 V5.4 haben wir einige neue Funktionen, wie Zugriffsschutz auf Projekte: Geschützte Projekte können nur von berechtigten Personen geöffnet werden. Zum Aktivieren des Zugriffsschutzes muss zusätzlich zu STEP 7 das Produkt SIMATIC Logon auf dem Rechner installiert sein. SIMATIC Manager: Darstellung von Datum und Uhrzeit zentral einstellbar CAx-Daten Export/Import als XML-Datei für CAx Systeme (z.B. CAD- oder CAE-Systeme) HW-Konfig: Identifikationsdaten von Baugruppen lesen und schreiben PROFINET IO: IRT Erweiterungen
3
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 3 Zugriffsschutz Wenn SIMATIC Logon installiert ist, kann für jedes Projekt ein Zugriffsschutz aktiviert werden
4
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 4 Zugriffsschutz Der Administrator logt sich ein Und vergibt ein Projektpasswort für dieses Projekt
5
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 5 Zugriffsschutz Anschließend werden mit drag and drop die Benutzer in die Benutzerverwaltung für dieses Projekt eingetragen
6
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 6 Zugriffsschutz Beim öffnen eines geschützten Projektes erscheint bei installiertem SIMATIC Logon der Dialog, mit dem sich der Benutzer anmelden kann Ist SIMATIC Logon nicht installiert, kann der Anwender mit STEP 7 V5.4 das Projekt nur mit dem Projektpasswort öffnen
7
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 7 Zugriffsschutz: Änderungsprotokoll Änderungsprotokoll zum Projekt mit SIMATIC Logon
8
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 8 Zugriffsschutz: Änderungsprotokoll Änderungsprotokoll zur Station mit SIMATIC Logon
9
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 9 SIMATIC Manager Formate von Datum und Uhrzeit zentral einstellbar
10
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 10 SIMATIC Manager Redundanter FW-Download für redundante Slaves (z.B. IM 153-2)
11
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 11 CAx-Daten Export / Import CAx-Daten Export als XML-Datei für CAx Systeme (z.B. CAD- oder CAE-Systeme)
12
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 12 Hardware Konfiguration Identifikationsdaten zur Baugruppe
13
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 13 Hardware Konfiguration Das Schreiben von Identifikationsdaten ist auch für PROFIBUS DP-Anschaltungen im redundanten Betrieb möglich (über "Erreichbare Teilnehmer"). Die Anschaltung (IM) muss diese Funktion unterstützen.
14
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 14 Einfügen kopierter IO-Devices Verbessertes Hantieren beim Einfügen kopierter IO-Devices in eine andere Station
15
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 15 optische Komponenten für PROFIBUS DP Sie können bei Konfigurationen mit optischem Ring die verwendeten OLMs spezifizieren
16
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 16 PROFINET IO IRT Topologie Editor - Offline
17

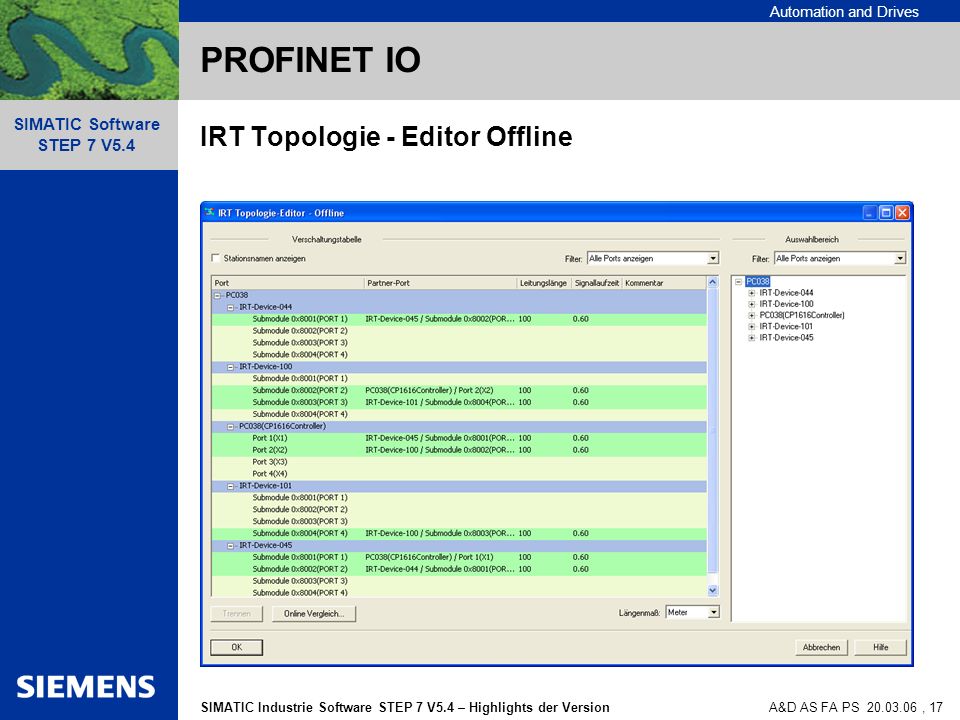

Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 17 PROFINET IO IRT Topologie - Editor Offline
18

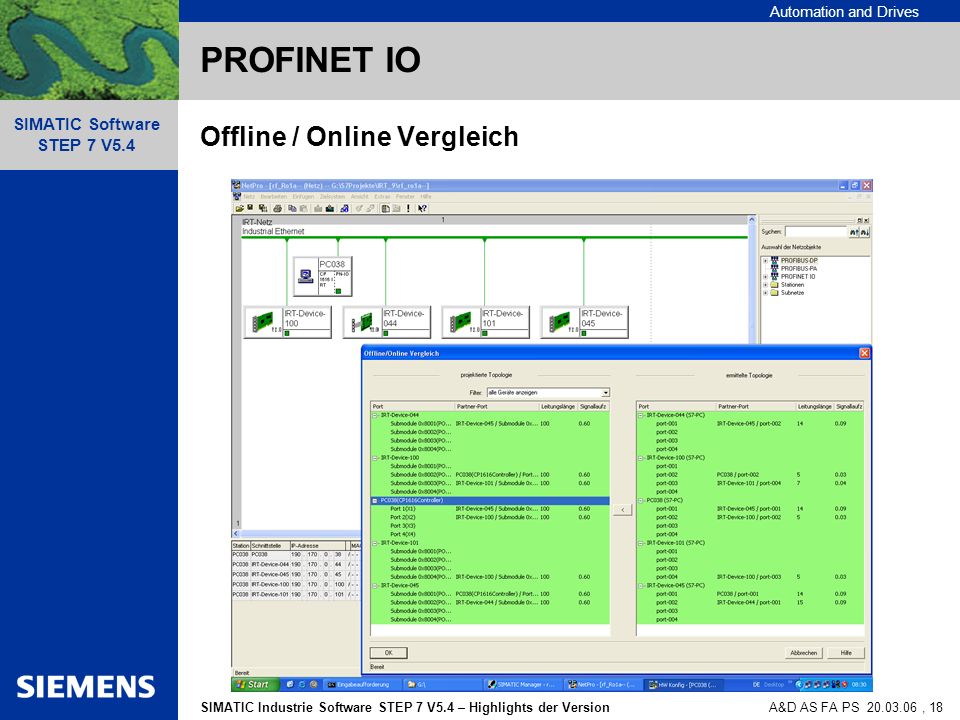

Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 18 PROFINET IO Offline / Online Vergleich
19
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 19 PROFINET IO Offline / Online Vergleich
20
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 20 PROFINET IO HW-Konfig CP1616
21
Automation and Drives SIMATIC Industrie Software STEP 7 V5.4 – Highlights der Version SIMATIC Software STEP 7 V5.4 A&D AS FA PS 20.03.06, 21 Versionierung Archivierung mit dem Optionspaket SIMATIC Version Trail
