Spezielle Aspekte der Hauptgruppenelementchemie
VO CHE.361 Spezielle Aspekte der Hauptgruppenelementchemie Teil 1: Ao.-Univ.Prof. Dr. Ferdinand Belaj Teil 2:Ao.-Univ.Prof. Dr. Harald Stüger
2
Teil 1: Niedervalente Hauptgruppenelementverbindungen
Diskussion am Beispiel der 4. Hauptgruppe: R2Si: R2Ge: R2Sn: R2Pb: höhere Carbenanaloge (Heterocarbene) Silylen Germylen Stannylen Plumbylen "nicht klassische" Mehrfachbindungssysteme R2Si=CR2 R2Si=SiR2 RSiSiR X=SiR2 Silene Disilene Disilyne Heterosilene Polysilylene -(R2Si)n- Polysilane
3
Heterocarbene Heterocarbene EH2 mit einem Zentralatom E aus der dritten oder einer höheren Periode (n > 2) liegen in einem Singulett-Grundzustand vor. pz pz py 90° s 120° sp2 px
4
Voraussetzungen für das Entstehen von Hybridorbitalen:
• Eine niedrige Promotionsenergie, die durch den Energieunterschied Es-Ep der Valenzorbitale angenähert werden kann. • Eine vergleichbare räumliche Ausdehnung der mischenden Orbitale Die Elemente höherer Perioden (n > 2) sind hybridisierungsunwillig
6
-Donorsubstituenten -Akzeptorsubstituenten
NR2; OR, Cl -Akzeptorsubstituenten aryl, vinyl, ethinyl
7
-Donorsubstituenten -Akzeptorsubstituenten
R3Si, R3Ge... -Akzeptorsubstituenten F, CF3...
8
Darstellung
9
SiCl4 + Si 2 SiCl2
12

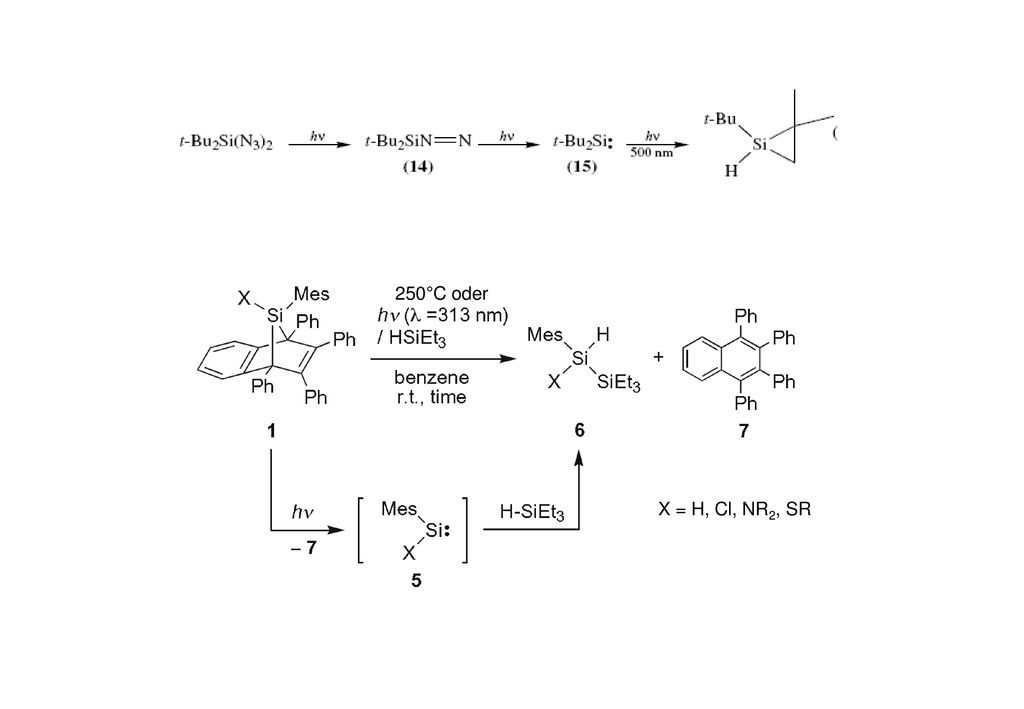

250°C oder X = H, Cl, NR2, SR
13
Additionsreaktionen Elektrophil Nucleophil
14
Me2Si: + Ph-CC-Ph Me3SiCCSiMe3
15
29
16
Insertionsreaktionen H2Si > ClH2Si > FHSi > Cl2Si > F2Si
Elektrophil Nucleophil (MeO)2Si: π-Donorwirkung verringert Reaktivität (pz nicht elektrophil genug; keine Reaktion mit R3SiH F2Si: σ-Akzeptorwirkung verringert Reaktivität (3s nicht nucleophil genug; unreaktiv H2Si > ClH2Si > FHSi > Cl2Si > F2Si
17
Komplexbildung mit n-Donoren
19
Dimerisierung/Polymerisation
20

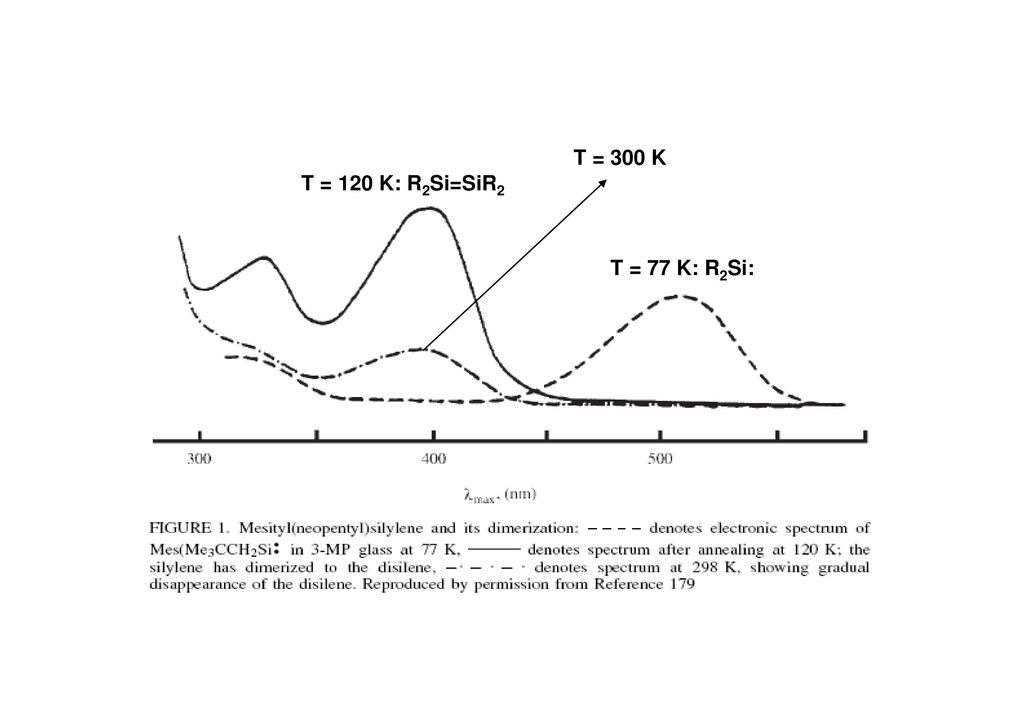

T = 300 K T = 120 K: R2Si=SiR2 T = 77 K: R2Si:
22
Stabilisierung
23
tris(trimethylsilyl)silyl hypersilyl
supersilyl Si tris(trimethylsilyl)silyl hypersilyl
25
Stabile Silylene cp*2SiCl2 1-cp*2SiI2 1-cp*SiBr3
farbloser Feststoff; thermisch stabil (FP = 171°C) cp*2SiCl2 LiC10H8/THF δ29Si = ppm Jutzi et al. 1986 erste stabile Si(II)-Verbindung R-CC-R I2 Br2 1-cp*2SiI2 1-cp*SiBr3
26
Arduengo et al. 1991 West et al. 1994 farbloser Feststoff; bei 90°C (0.01 mbar) destillierbar; bei 150 °C über Monate stabil; Zerfall erst beim FP (220°C) keine Insertion in Si-H keine Addition an PhC≡CPh keine Komplexe mit R3N δ29Si = 78 ppm
27
HOMO HOMO
28
stabil bis -20°C: Zerfall bei Raumtemperatur
West et al. 2003 stabil bis -20°C: Zerfall bei Raumtemperatur
29
West et al. 2003 farbloser Feststoff; in Lösung langsamer Zerfall bei 25°C innerhalb mehrerer Stunden δ29Si = 119 ppm
30
farbloser Feststoff; in Lösung langsamer Zerfall bei 25°C (t1/2 = 31h)
Kira et al. 1999 δ29Si = 567,4 ppm farbloser Feststoff; in Lösung langsamer Zerfall bei 25°C (t1/2 = 31h)
32
langsamer Zerfall bei 25°C (t1/2 = 20min)

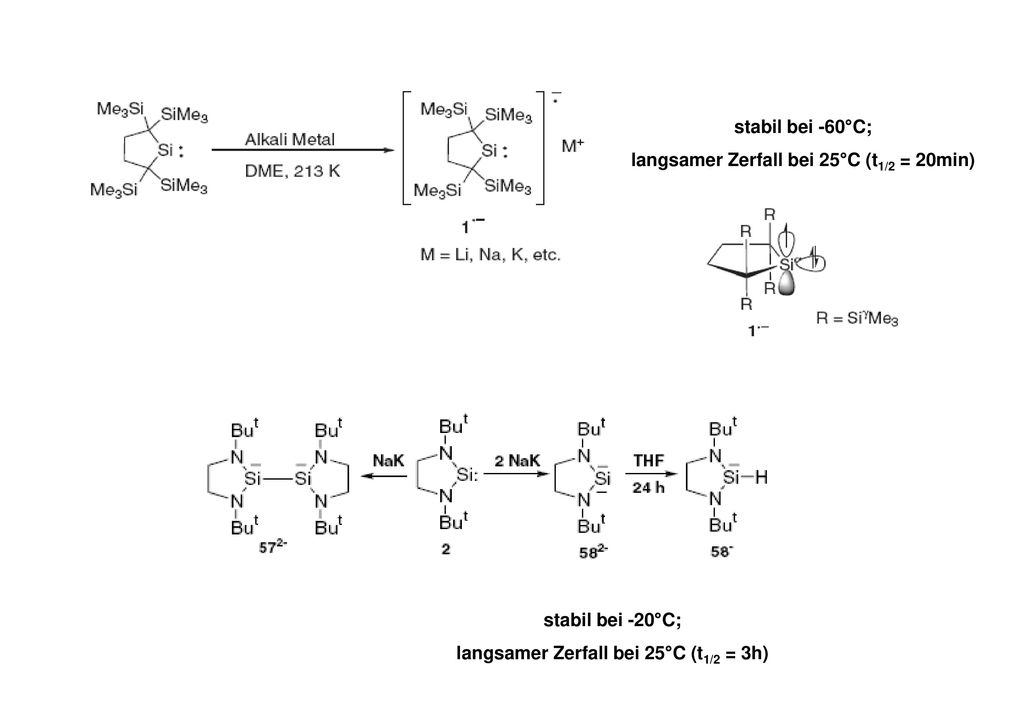

stabil bei -60°C; langsamer Zerfall bei 25°C (t1/2 = 20min) stabil bei -20°C; langsamer Zerfall bei 25°C (t1/2 = 3h)
34
Kira et al. 2007 Kira et al. 2003
35
West et al. 1994 4 δ29Si = 97,5 ppm δ29Si = 448 ppm Kira et al. 2008
36
stable at room temperature δ29Si = 19,6 ppm
Roesky et al. 2009 stable at room temperature δ29Si = 19,6 ppm Roesky et al. 2010 δ29Si = 43,2 ppm
37

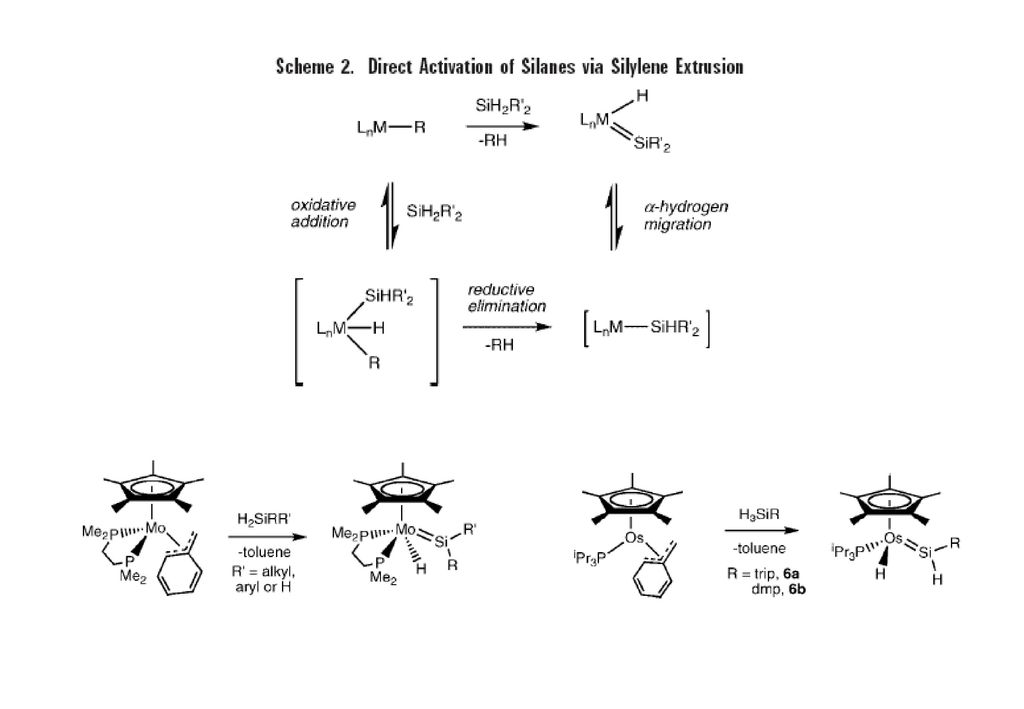

Silylenkomplexe Fischer 1964 Zybill 1987 Si tetraedrisch koordiniert
d(Fe-Si) relativ lang Fe-Si Bindung frei drehbar
38
(CN) rel. hoch d(Ru-Si) leicht verkürzt Si tetraedrisch koordiniert Tilley 1987 29Si = 95,75 ppm Tilley 1990 29Si = 250,6 ppm Tilley 1994 d(Ru-Si) = 223,8 pm Si trigonal planar 29Si = 299 ppm
39
d(Pt-Si) = 221 pm Si trigonal planar 29Si = 360 ppm 29Si = 338,5 ppm
41
Mehrfachbindungen von Elementen n 3
Geschichtliches Köhler, Michaelis, Ber. Dtsch. Chem. Ges. 1877, 10, 807 Kuchen, Buchwald, Chem. Ber. 1958, 2296 Ehrlich, Bertheim, Ber. Dtsch. Chem. Ges. 1912, 45, 756. Lloyd, Morgan, Nicholson, Ronimus, Angew. Chem. (Int. Ed.) 2005, 44, 941. Kipping, J. Chem. Soc. 1911, 27, 143 Kipping, Murray, Maltby, J. Chem. Soc., 1229, 1180
42
Doppelbindungs Regel:
Elemente jenseits der zweiten Periode des PSE bilden keine Mehrfachbindungen mit sich oder anderen Elementen. Yoshifuji 1981 Niecke 1973 Becker 1976 meanwhile..... Lappert, 1986 Lappert, 1973/1986 Cowley, 1983 West, 1981 Brook, 1981 Sekiguchi, 2004 Bickelhaupt, 1984 Appel, 1983 Pietschnig, 2004 and many more.....
43
Si=C Doppelbindungen Synthese instabiler Zwischenstufen: thermisch
254 nm CH2=CH2 photolytisch (CH3)3Si-OR thermisch 20K 300nm; 4K (Argon)
44
Synthese stabiler Systeme:
1) Photolyse von Acylsilanen Brook 1982
45
Synthese stabiler Systeme:
Wiberg 1983 2) Intramolekulare Salzeliminierung
46
3) Sila-Peterson-Reaktion
Apeloig 1996
47
4) Aus Acylsilanen und Basen
48
planar 120° 170,2 pm 176,4 pm um 16° verdrillt 360° 29Si = 144 ppm
49
Si=Si Doppelbindungen
anthracene Peddle and Roark 1972 West 1981 Synthese stabiler Systeme: Methode 1: Photolyse von Trisilanen T > 175°C Mes O2
50
R = -CH(SiMe3)2; -Si(i-pr3); SiMe(i-pr)2
Methode 2: Photolyse von Cyclotrisilanen (t-Bu)2SiCl2 Li/C10H8 Methode 3: Reduktion von 1,2-Dihalogendisilanen R = -CH(SiMe3)2; -Si(i-pr3); SiMe(i-pr)2 Methode 4: Aufbau aus Monosilanen durch „klassische“ Salzeliminierung
51
Tokitoh 2008 ΔE1/2 = 0.19 V indicates significant coupling between the two ferrocenylgroups through the Si=Si π bond
52
„Klassische“ Mehrfachbindungen
53
d(SiSi) = pm; = 42.6° NPr-i2 i-Pr2N = 18° d(SiSi) = pm "Nicht klassische" Doppelbindung: Wechselwirkung zweier Singulettbausteine; 2 σ Donorbindungen anstatt σ und π Bindung
54
CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
Es+p CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
55
CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
Es+p 2 DES-T - 2EST< E+ CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
56
CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
Es+p 2 DES-T + 2EST< E+ 2EST> E+ CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
57
CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
Es+p 2 DES-T + 2EST< E+ 2EST> E+ EST> E+ CMGT (Carter-Goddard-Malrieu-Trinquier)-Modell
58
leuchtend gelb 29Si = 63.7 ppm
blassgelb 29Si = 90 ppm leuchtend gelb 29Si = 63.7 ppm N(SiMe3)2 (SiMe3)2N orange-rot 29Si = 49.4 ppm 29Si = 90 ppm 29Si = 94.7 ppm
59
außerdem: therm. Spaltung Oxidation E/Z-Isomerisierung
60
O d(SiSi) = pm; Si = 360°
61
Weidenbruch 1997 Kira 1996, 1999
62

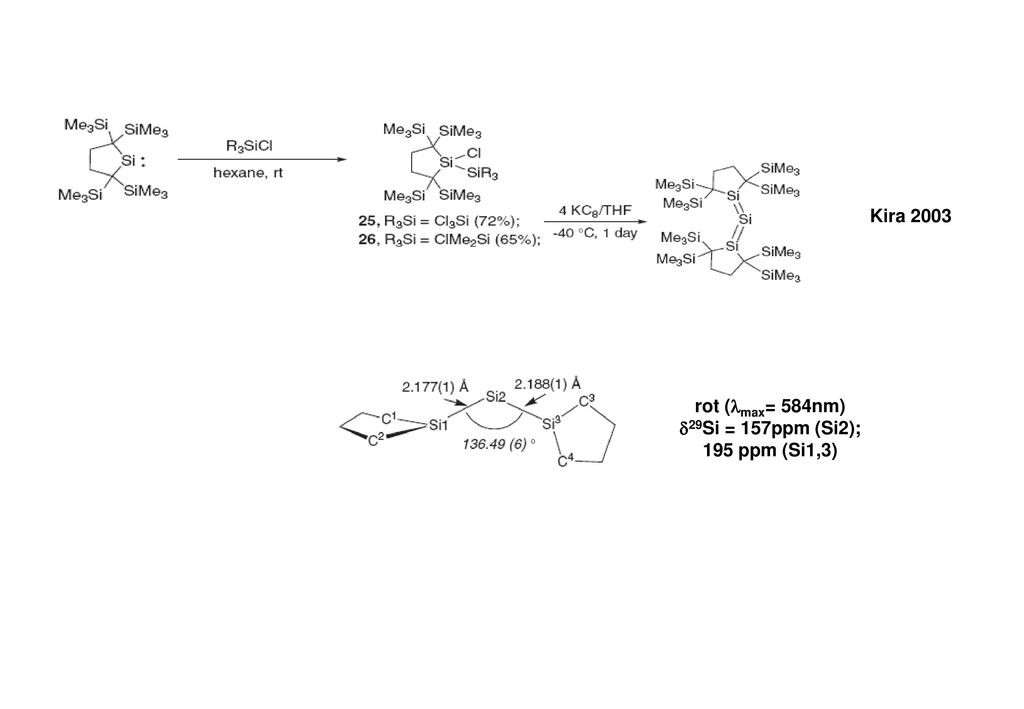

rot (max= 584nm) 29Si = 157ppm (Si2); 195 ppm (Si1,3)
Kira 2003 rot (max= 584nm) 29Si = 157ppm (Si2); 195 ppm (Si1,3)
63
Wiberg 1985 Bickelhaupt 1984
64

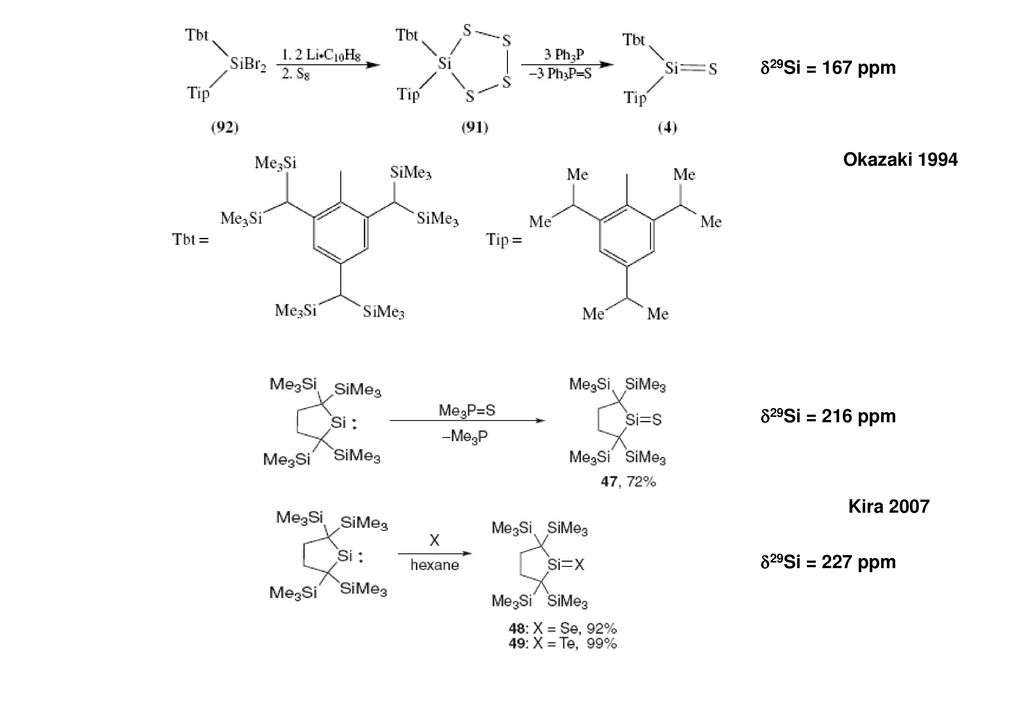

29Si = 167 ppm 29Si = 216 ppm 29Si = 227 ppm Okazaki 1994 Kira 2007
65

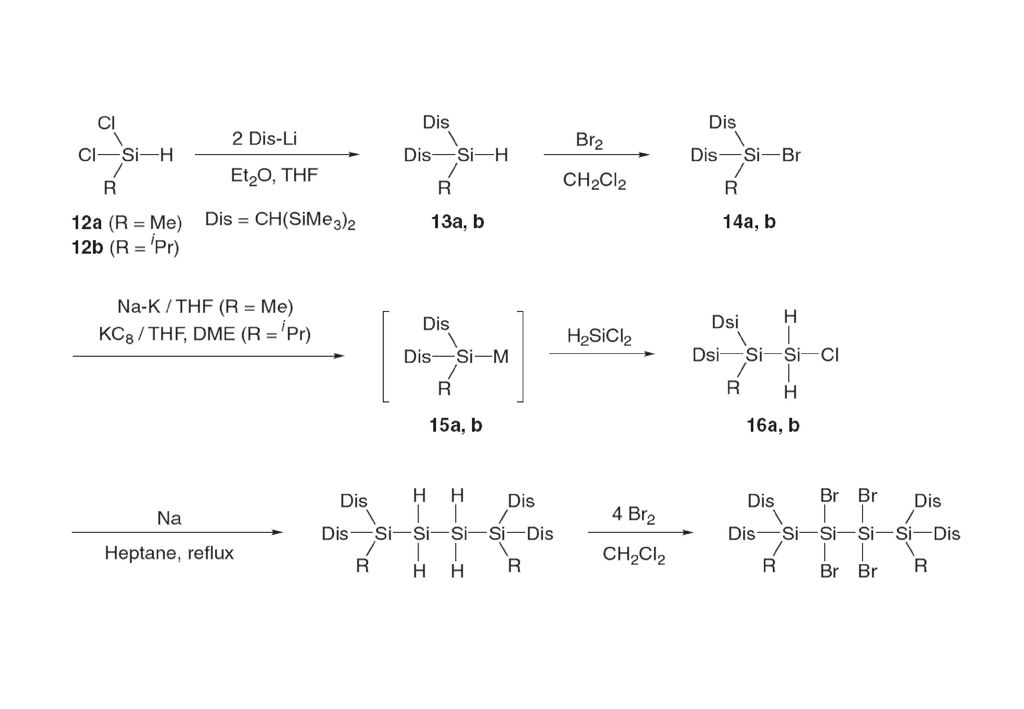

Wiberg 2002 Sekiguchi 2006
68

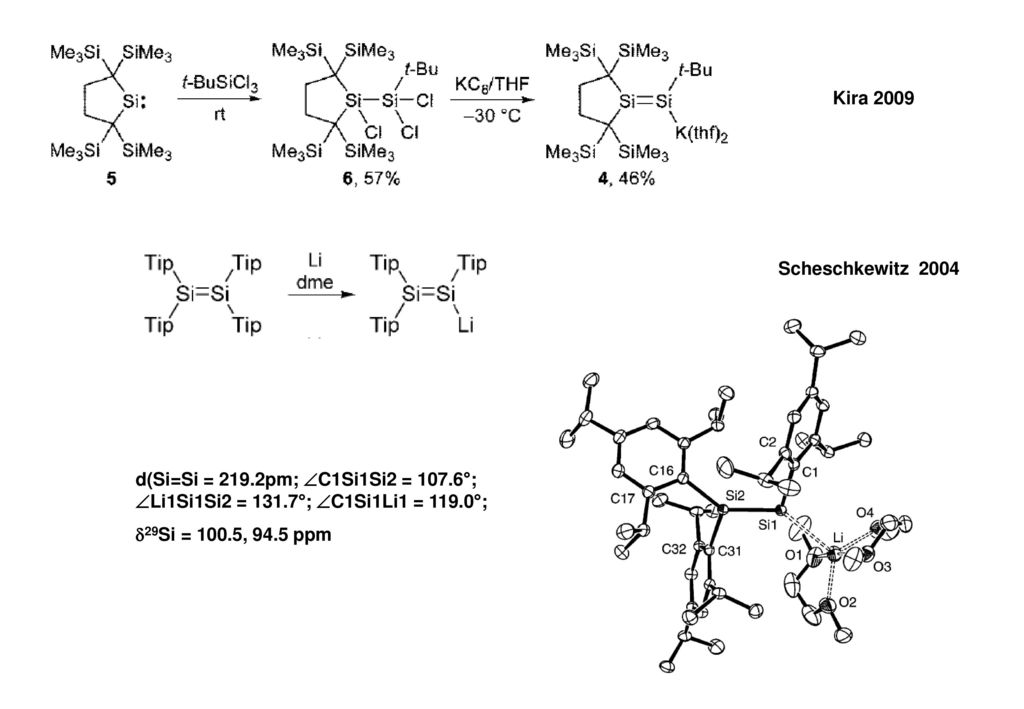

Kira 2009 Scheschkewitz 2004 d(Si=Si = 219.2pm; C1Si1Si2 = 107.6°; Li1Si1Si2 = 131.7°; C1Si1Li1 = 119.0°; d29Si = 100.5, 94.5 ppm
69
Scheschkewitz 2010 ΔE1/2 = 0.21 V
70
Sekiguchi 2011 Sekiguchi 2011
72
29Si = 170 ppm ν(Si-O) = 1157 cm-1 Filipou 2014
73
POLYSILYLENE (POLYSILANE)
Organopolysilanes linear und branched chains SinR2n+2 n < ~ 40000 monocyclic systems (SiR2)n n = 3 - ~ 40 polycyclic systems, cages functional groups Higher silicon halides und higher silicon hydrides SinX2n+2 n = 3 - 6; cyclo-(SiX2)n n = 4 - 6; high polymers (SiX2)n; (SiX)n SinH2n+2 n = ; cyclo-(SiH2)n n = 5, 6; high polymers (SiH2)n; (SiH)n organopolysilane backbone polysilanes are compounds containing the silicon-silicon bond
74
Metallorganische Chemie der 4. Hauptgruppe
Elektronegativitätsdifferenz E-C energetisch passende leere Orbitale verfügbar
75
Si-C- Bindungsspaltung
Si-C-Bindungen sind nucleophil und elektrophil spaltbar Reaktivität hängt vom Substrat und von den Substituenten am Si ab
76
Elektrophile Substitution von ungesättigten organischen Gruppen an Si
- Et3SiNu
77
Elektrophile Substitution von gesättigten organischen Gruppen
78
Si-X- Bindungsspaltung
hypervalent transition states silicon is coordinatively unsaturated nucleophilic substitution at Si occurs much more facile Chlorosilanes are valuable precursors Chlorosilanes, aminosilanes and silyl ethers hydrolytically unstable Polysilanes unstable under basic conditions
79
HOW DIFFERENT ARE SILICON AND CARBON?

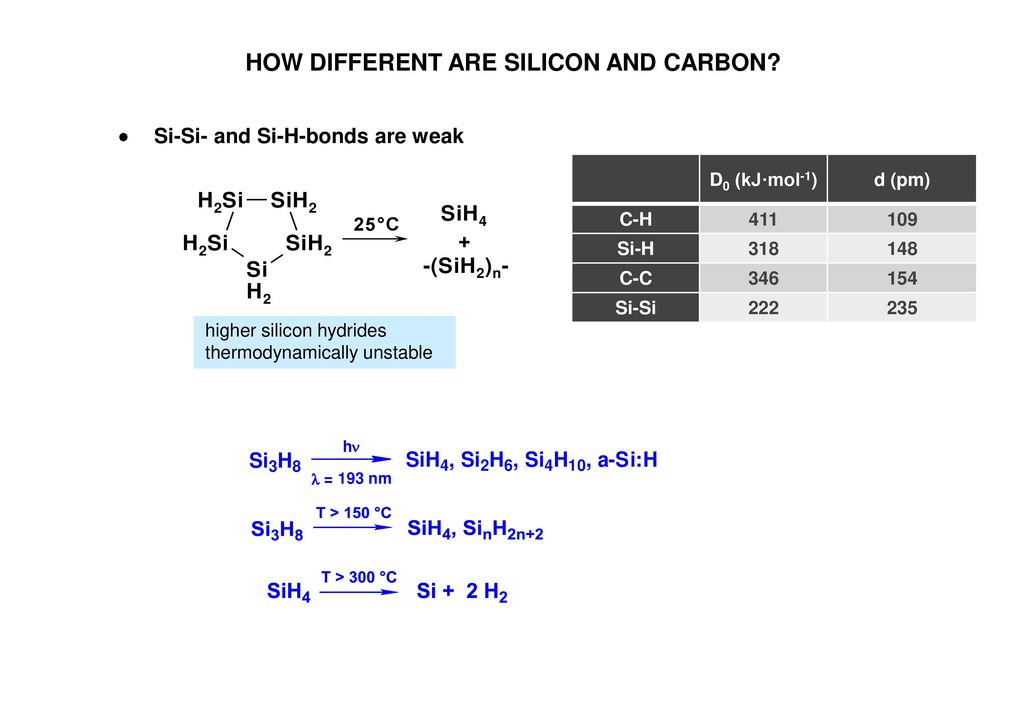

Si-Si- and Si-H-bonds are weak D0 (kJ·mol-1) d (pm) C-H 411 109 Si-H 318 148 C-C 346 154 Si-Si 222 235 higher silicon hydrides thermodynamically unstable
80
HOW DIFFERENT ARE SILICON AND CARBON?
the polarity of the Si-H bond is reversed H is a good leaving group silicon hydrides are easily oxidized and often pyrophoric in air Electro- negativity (Pauling) H 2.2 C 2.55 Si 1.9 silanes react readily with H2O and O2 silicon hydrides are pyrophoric in air and unstable upon storage in glass vessels
81
HOW DIFFERENT ARE SILICON AND CARBON?
multiple bonds to silicon are weak, while certain single bonds Si-X (X = O, Cl, F...) are unusually strong
82
BONDING IN POLYSILANES
bprim bvic bgem sp3-hybrid orbitals s-delocalization H. A. Fogarty, D. L. Casher, R. Imhof, T. Schepers, D. W. Rooklin, J.Michl, Pure Appl. Chem. 75 (2003),
83
polysilanes exhibit absorption maxima in the near UV
50 100 150 200 1350 225 275 300 250 chain length n max linear compounds somehow behave like polyenes Me(SiMe2)nMe max [nm] n = 2 198 n = 3 215 n = 4 235 n = 5 250 n = 6 260 n = 7 266 n = 8 272 n = 310
84
• = SiMe2 cyclopolysilanes resemble aromatic hydrocarbons
* transition * transition • = SiMe2 R. West, E. Carberry, Science 189 (1975), 179
85
R. West et.al., J. Am. Chem. Soc. 95 (1973) 6824
charge-transfer complex purple, max = 507nm R. West et.al., J. Am. Chem. Soc. 95 (1973) 6824 blue radical anion, electron delocalization over the whole polysilane ring radical cation, electron delocalization over the whole polysilane ring R. West et. al., J. Am. Chem. Soc. 91 (1969) 5446 J. Am. Chem. Soc. 101 (1979) 7667
86
ionization energy [eV]
polysilanes exhibit pronounced substituent effects (--hyperconjugation) max [nm] () Me3SiSiMe3 198 (8000) PhMe2SiSiMe3 231 (11000) PhMe2SiSiMe2Ph 236 (18000) Ph3SiSiPh3 246 (32000) 8.35 s + (Si-Si) 8.69 (Si-Si) 9.07 as ionization energy [eV] 9.25 (e1g) SiMe2 SiMe3 s- hyper-conjugation 10.03 s - (Si-Si) SiMe2 SiMe3 X s-n hyper-conjugation
87
polysilanes exhibit pronounced substituent effects
(-n-hyperconjugation) max [nm] () Si4Me8 302 (250) Si4Cl8 394 (50) Si4Br8 403 (50) Si4I8 424 (75) 300 400 500 absorption wavelength [nm] 394 303 E. Hengge, H. Stüger, Mh. Chem. 119 (1988) 873 R. West et.al., Angew. Chem. Int. Ed. 37 (1998) 1441 photochemical activity
88
256 nm 269 nm 290 nm (SiSi) n (O) conjugation
First absorption maxima are red shifted in siloxy derivatives 290 nm solvent: C6H12; c = 1104 M H. Stüger, G. Fürpass, K. Renger, Organometallics 24 (2005) 6374
89
bright yellow luminescent solid
some polysilanes exhibit room temperature photoluminescence 465 (C6H14) 520 (CH2Cl2) 530 (C3H7OH) c = 105 M; ex = 350 nm bright yellow luminescent solid H. Stüger, K. Renger, unpublished results Me11Si6-Ph: em (C6H12)= 340 nm Ph-CH=C(CN)2: non luminecent
90
polysilanes exhibit properties with technological potential
starting materials for Si/N-, Si/C- or metal silicide ceramics or fibers; near UV photoresists; photo and charge conducting materials, emissive layers in integrated circuits etc. properties may be tuned by variation of backbone structure and/or substituents Yajima et.al., (1976) -silicon carbide (PhMeSi)n; (hexylMeSi)n are soluble, meltable; can be used without prepyrolysis West et.al., (1982)
91
(Si-Si-bond formation)
POLYSILANE SYNTHESIS (Si-Si-bond formation) Reductive coupling of halosilanes (Wurtz type coupling) Dehydropolymerisation Kat = cp2MCl2/BuLi (M = Ti, Zr)
92
(Si-Si-bond formation)

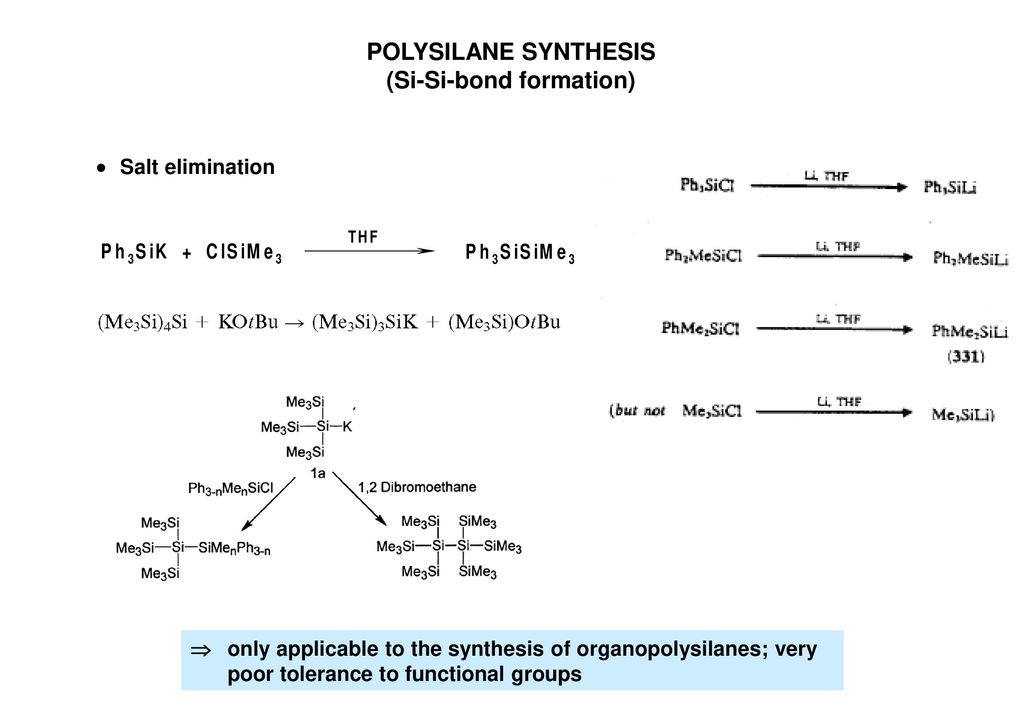

POLYSILANE SYNTHESIS (Si-Si-bond formation) Salt elimination only applicable to the synthesis of organopolysilanes; very poor tolerance to functional groups
93
POLYSILANE SYNTHESIS (Functionalization)
Halogenation of Organopolysilanes e. g. by electrophilic cleavage of Si-aryl or Si-alkyl-bonds Nucleophilic substitution of Si-X (Cl) bonds functional polysilane derivatives
94
Me2SiCl2 +
95
Higher Silicon Hydrides | Synthesis
Hydrolysis of Metal Silicides reasonable yield in a semi-technical scale (80 kg Mg2Si afford 2.8 l crude silane / day) large amounts of salt (200 kg MgCl2 from 80 kg Mg2Si) complex product mixtures tedious synthetic procedure Fehér, F.; Schinkitz, F. D.; Schaaf, J. Z. anorg. allgem. Chem. 1971, 383, 303 Universität Frankfurt, 11. November 2015
96
Silicon Hydrides | Synthesis
Hydrolysis of Metal Silicides identified by GC up to n = 15 separated by distillation and prep. GC up to n = 8 isolated and characterized by NMR up to n = 7 Hahn, J. Z. Naturforsch. 1980, 35b, 282 Universität Frankfurt, 11. November 2015
97
Silicon Hydrides | Synthesis
gas in/out electrode cooling fluid from Monosilane technical production of di- and trisilane problem: formation of considerable amounts of solid SinHm Spanier, E. J.; MacDiarmid, A. G. Inorg. Chem. 1962, 1, 432 Gokhale, S. D.; Drake, J. E.; Jolly, W. L. J. Inorg. Nucl. Chem. 1965, 27, 1911 Akhtar, M. Synth. React. Inorg. Metal-Org. Chem. 1986, 16, 729 Universität Frankfurt, 11. November 2015
98
colorless pyrophoric liquid; overall yield < 50%

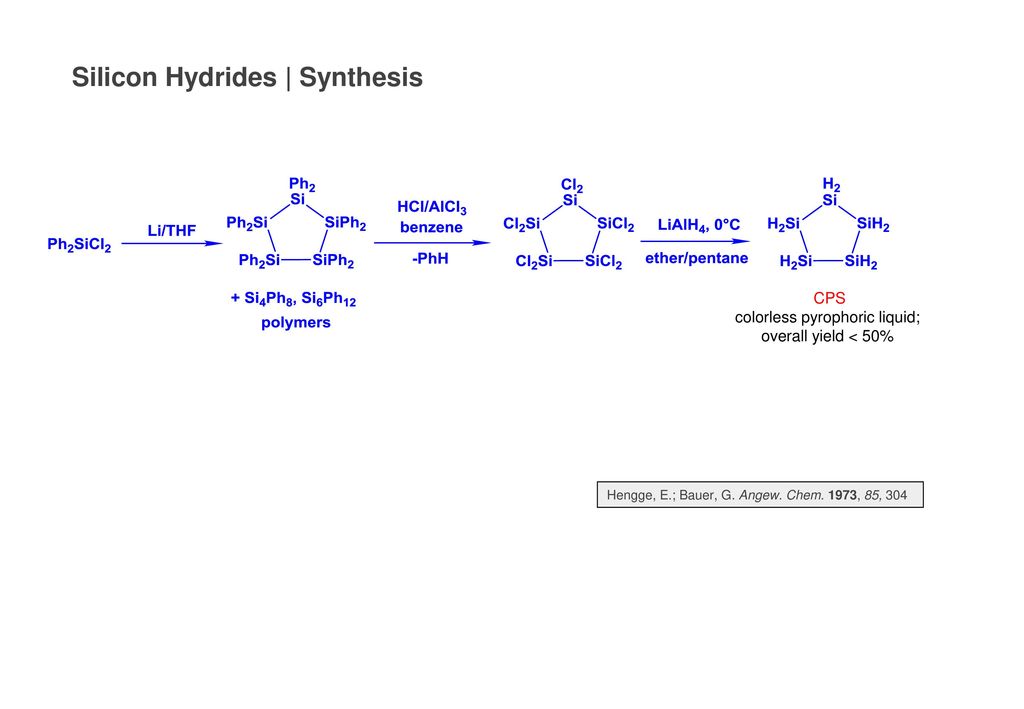

Silicon Hydrides | Synthesis CPS colorless pyrophoric liquid; overall yield < 50% Hengge, E.; Bauer, G. Angew. Chem. 1973, 85, 304
99
colorless pyrophoric liquid; overall yield up to 80%
Silicon Hydrides | Synthesis CHS colorless pyrophoric liquid; overall yield up to 80% Choi, S. B;. Kim, B. K.; Boudjouk, P.; Grier, D. G. J. Am. Chem. Soc. 2001, 123, 8117. Elangoyan, A.; Anderson, K.; Boudjouk, P.; Schulz, D. L WO 2011/094191 Tillmann, J.; Meyer, L.; Schweizer, J. I.; Bolte, M.; Lerner, H.- W.; Wagner, M.; Holthausen, M. C. Chem. Eur. J. 2014, 20, Tillmann, J.; Moxter, M.; Bolte, M.; Lerner, H. W.; Wagner, M. Inorg. Chem. 2015, 54, 9611
100
CPS, CHS and NPS easily available in large quantities
Silicon Hydrides | Synthesis NPS colorless pyrophoric liquid; overall yield < 10% Kaczmarczyk, A.; Millard, M.; Nuss, J.W.; Urry, G. J. Inorg. Nucl. Chem., 1964, 26, 421 Höfler, F.; Jannach, R. Inorg. Nucl. Chem. Letters 1973, 9, 723 Cannady, J. P.; Zhou, X. 2008, WO/2008/051328 Wieber, S.; Trocha, M.; Patz, M.; Rauleder, H.; Müh, E.; Stüger, H.; Walkner, C DE CPS, CHS and NPS easily available in large quantities
101
Silicon Hydrides | Functionalization
H.Stüger, J. Organomet. Chem. 1992, 433,11 H.Stüger, P.Lassacher, Mh. Chem. 1994, 125, 615 H.Stüger, P.Lassacher, Organosilicon Chem.2, Verlag Chemie 1998, 121
102
Silicon Hydrides | Functionalization
formation of mono- and dichlorotrisilane no decomposition products such as SiH4, SiH3CI, Si2H6 or Si2H5CI E.A.V. Ebsworth et. al., Inorg. Nucl. Chem. Lett. 1971, 7, 1077 J.E.Drake et. al., J. Chem. Soc. A 1971, 3305
103
Silicon Hydrides | Functionalization

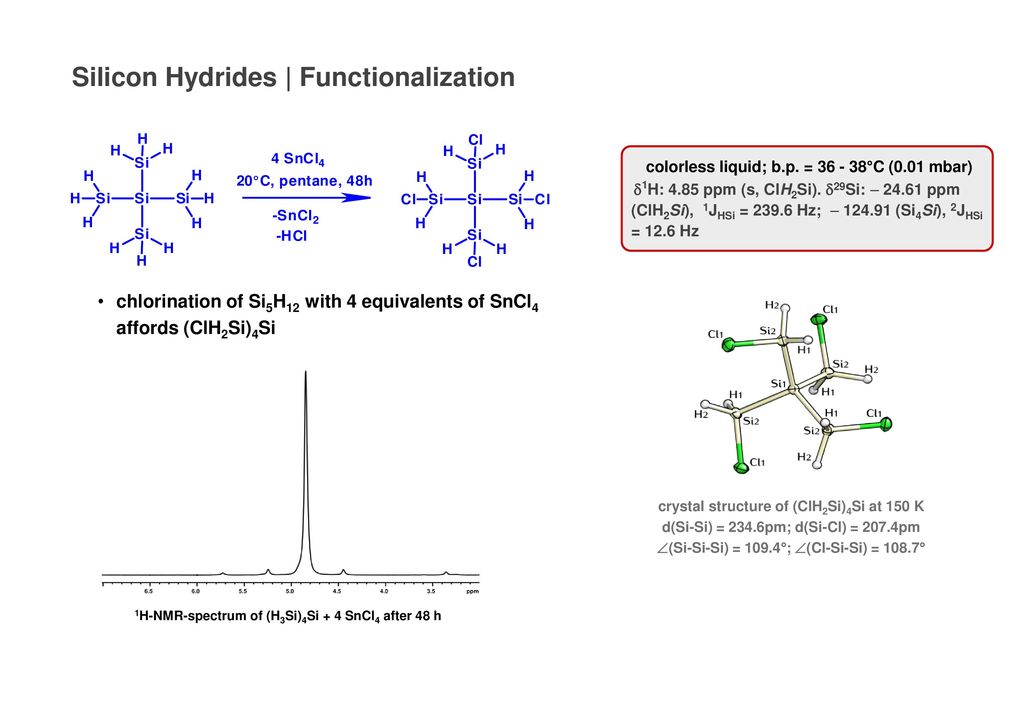

colorless liquid; b.p. = °C (0.01 mbar) 1H: 4.85 ppm (s, ClH2Si). 29Si: ppm (ClH2Si), 1JHSi = Hz; (Si4Si), 2JHSi = 12.6 Hz chlorination of Si5H12 with 4 equivalents of SnCl4 affords (ClH2Si)4Si 1H-NMR-spectrum of (H3Si)4Si + 4 SnCl4 after 48 h crystal structure of (ClH2Si)4Si at 150 K d(Si-Si) = 234.6pm; d(Si-Cl) = 207.4pm (Si-Si-Si) = 109.4°; (Cl-Si-Si) = 108.7°
104
Silicon Hydrides | Functionalization
C. Marschner, Eur. J. Inorg. Chem. 1998, 221. F. Feher, M. Krancher, Z. Naturforsch. B, 1985, 1301.
105
Silicon Hydrides | Functionalization
yellow-orange solution; decomposes at r.t. within several hours NMR data consistent with literature S. Wieber, H. Stueger, C. Walkner, DE no detectable side products works also with LiOtBu, LiN(iPr2)2 and MeLi works also in Et2O, DME, Diglyme
106
facile synthesis of NPS derivatives in multigram quantities

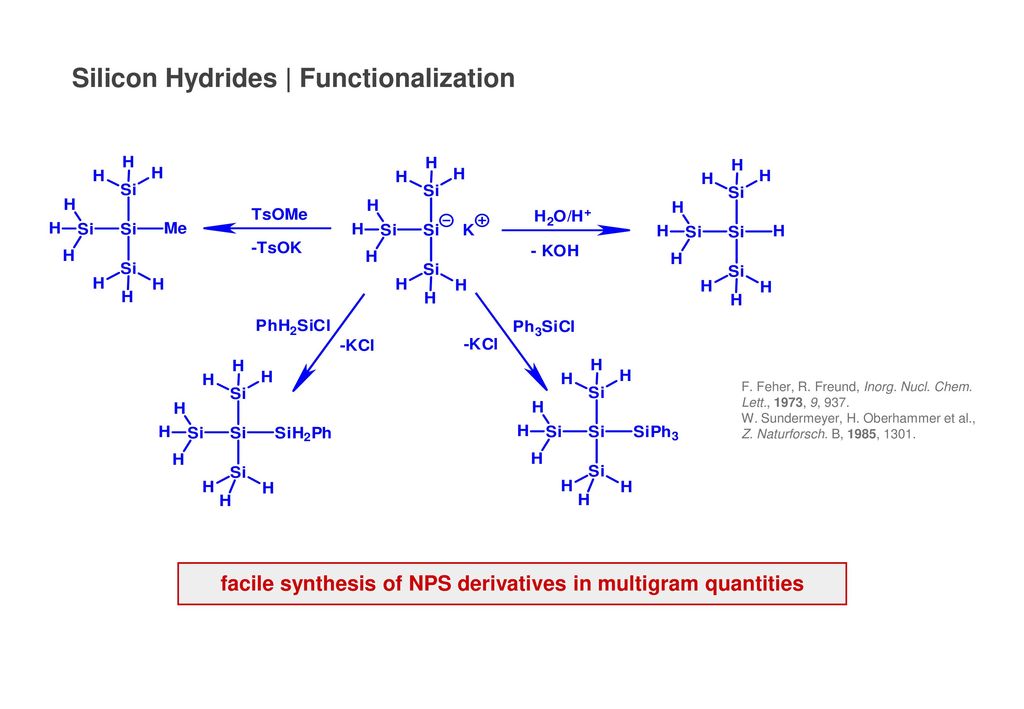

Silicon Hydrides | Functionalization F. Feher, R. Freund, Inorg. Nucl. Chem. Lett., 1973, 9, 937. W. Sundermeyer, H. Oberhammer et al., Z. Naturforsch. B, 1985, 1301. facile synthesis of NPS derivatives in multigram quantities
107
Silicon Hydrides | Application
application of higher silanes as precursor materials for liquid phase Si-film deposition in electronics industry ("printed electronics") (thin film transistor, flexible large area displays, photovoltaics etc.) processing from liquid sources desired property: decomposition prior to evaporation Shimoda, T.; Matsuki, Y.; Furusawa, M.; Aoki, T.; Yudasaka, I.; Tanaka, H.; Iwasawa, H.; Wang, D.; Miyasaka, M.; Takeuchi, Y. Nature 2006, 440, 783 Han, S.; Dai, X.; Loy, P.; Lovaasen, J.; Huether, J.; Hoey, J. M.; Wagner, A.; Sandstrom, J.; Bunzow, D.; Swenson, O. F.; Akhatov, I. S.; Schulz, D. L. J. Non-Cryst. Solids 2008, 354, 2623. Sontheimer, T.; Amkreutz, D.; Schulz, K.; Wöbkenberg, P. H.; Guenther, C.; Bakumov, V.; Erz, J.; Mader, C.; Traut, S.; Ruske, F.; Moshe Weizman, M.; Schnegg, A.; Patz, M.; Trocha, M.; Wunnicke, O.; Rech, B. Adv. Mater. Interfaces 2014,
