1 Application Infrastructure Technologies Extending OnPremise EAI to the Cloud Wilfried Mausz BSc. dataformers GmbH wm@dataformers.at Lothar Mausz dataformers GmbH lm@dataformers.at

2 Wie fangen wir an? Hybride Applikationen Application Infrastructure Technologies BizTalk Azure AppFabric Windows Server AppFabric EAI Middleware © Nestlé Nespresso AG

3 26 % Unternehmen planen Cloud-Projekte 22 % setzen Cloud Apps ein hauptsächlich Standardapplikationen (Office, Email, Collaboration) nächsten Jahren unternehmenskritische Applikationen Hybride Applikationen http://www.scribd.com/doc/34315324/Experton-Interop-in-the-Cloud-White-Paper

4 selten komplette IT in Cloud – hautsächlich Startups --> alles neu Mehrheit haben existierende heterogene IT im Haus Auslagerung in Cloud Schritt für Schritt CIOs nicht alles auf eine karte setzen Mischbetrieb zwischen On Premise und Cloud Hybride Applikationen 2 http://www.scribd.com/doc/34315324/Experton-Interop-in-the-Cloud-White-Paper

5 Software ohne große Änderung von On Premise in Cloud und retour zu migrieren – Cloudanbieter, die auch auf der OnPremise Seite vertreten sind Kommunikation zwischen Cloudapps und lokaler IT Integration Hybride Applikationen 3 http://www.scribd.com/doc/34315324/Experton-Interop-in-the-Cloud-White-Paper

6 Applikationsentwicklung vereinfachen Einheitliche, standarisierte Abstraktion für Entwickler Verteilung und Heterogenität verbergen Low-level Programmierdetails verbergen Middleware http://middleware.objectweb.org/ © Nestlé Nespresso AG

7 Windows Azure AppFabric Windows Server AppFabric BizTalk Server Application Infrastructure Technologies http://www.microsoft.com/en-us/appfabric/default.aspx

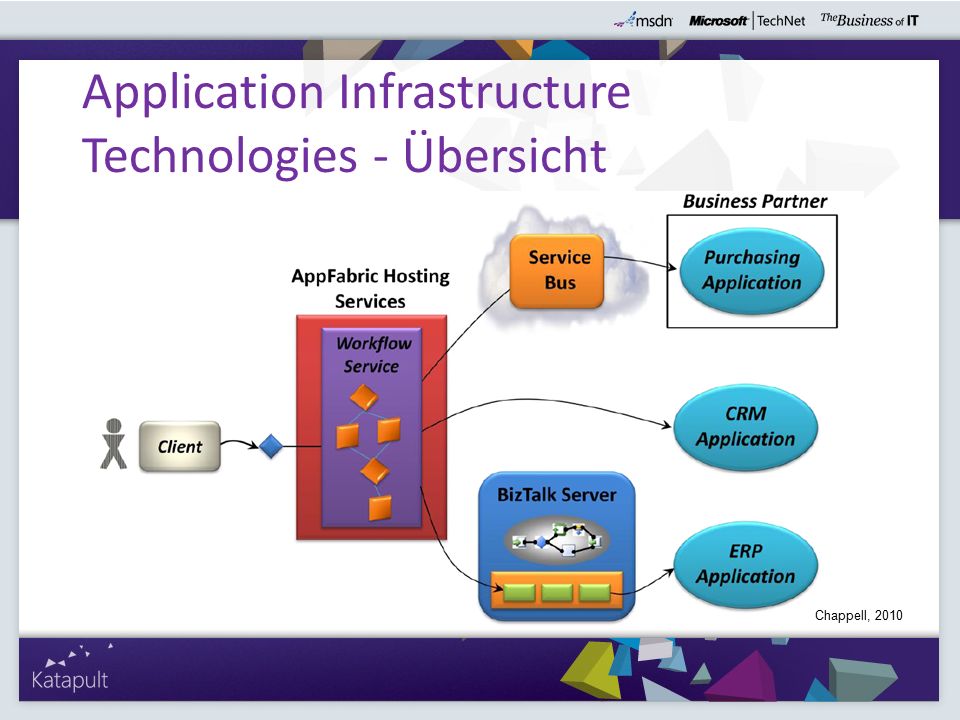

8 Application Infrastructure Technologies - Übersicht Chappell, 2010

9 … zurück zum roten Faden

10 Hybride Architektur – On Premise – Cloud Computing – EAI (lokale IT) Kommunikation zwischen On Premise und Cloud Kommunikation zwischen verschiedenen Standorten über Internet Bus Sample

11

12 EAI und B2B mit BizTalk Server

13 Architektur BizTalk http://social.technet.microsoft.com/wiki/contents/articles/biztalk-wf-wcf-better-together.aspx

14 Entwicklung mit BizTalk 2010

15 demo Sample - BizTalk existierende Lösung EAI und B2B mit BizTalk Erstellung von Schnittstellen

16 Sample © Nestlé Nespresso AG

17 Windows Azure Plattform © Nestlé Nespresso AG

18 AppFabric Service Bus Application #1 Application #2 Direct Connection facilitated by Service Bus if that is best connection mechanism. Text XML Graphics Binary Data Streaming Firewall Send Receive Exchange messages between loosely coupled, composite applications. Send Receive

19 … Lösung … vielleicht … © Nestlé Nespresso AG

20 Sample - Ziel

21 Kommunikation zwischen lokaler IT und Remote Service Hosting des Remote Service Kommunikation von Biztalk zu Azure AppFabric Kommunikation von BizTalk zu SQL Azure... nächste Schritte

22 demo Demo Azure AppFabric Einrichtung Verwendung in.NET Sample Anbindung über BizTalk © Nestlé Nespresso AG

23 Kommunikation zwischen lokaler IT und Remote Service Hosting des Remote Service Kommunikation von Biztalk zu Azure AppFabric Kommunikation von BizTalk zu SQL Azure... nächste Schritte

24 Hosting WCF Service © Nestlé Nespresso AG

25 AppFabric Caching Services AppFabric Hosting Services Windows Server AppFabric Chappell, 2010

26 Applikationsserver für WCF und WF Services IIS und WAS Nachrichtenbasiertes Starten des Service (auch nicht HTTP) Management UI und Interface AppFabric Hosting Services http://msdn.microsoft.com/en-us/library/ee677371.aspx

27 Windows Server AppFabric http://msdn.microsoft.com/en-us/library/ee677255.aspx

28 Kommunikation zwischen lokaler IT und Remote Service Hosting des Remote Service Kommunikation von Biztalk zu Azure AppFabric Kommunikation von BizTalk zu SQL Azure... nächste Schritte

29 Ein gewissen Vacuum in.NET in Bezug auf Hosting von „Mittelschicht Code Libraries“ – früher COM+ Developer in.NET mussten sich selbst darum kümmern (Windows Service) viele Features in BizTalk vorhanden diese Featues „scaled down“ für.NET AppFabric und BizTalk http://blogs.msdn.com/b/skaufman/archive/2009/11/23/appfabric-and-biztalk.aspx © Nestlé Nespresso AG

30 Kommunikation zwischen lokaler IT und Remote Service Hosting des Remote Service Kommunikation von Biztalk zu Azure AppFabric Kommunikation von BizTalk zu SQL Azure... nächste Schritte

31 SQL Azure Data Hub Lee et al., 2009

32 demo Sample BizTalk und SQL Azure Administration SQL Azure Datenbank Zugriff über Management Studio Verwendung über SQL Server Adapter

33 ... the end... © Nestlé Nespresso AG

34 Chappell D. (2010): Introducing Windows Server AppFabric Lee et al (2009): Overview of Microsoft SQL Azure Database Löwy J. (2010): Programming WCF Services http://www.scribd.com/doc/34315324/Experton-Interop-in-the-Cloud-White- Paper, 28.11.2010 http://www.scribd.com/doc/34315324/Experton-Interop-in-the-Cloud-White- Paper http://middleware.objectweb.org/, 28.11.2010 http://middleware.objectweb.org/ http://www.microsoft.com/en-us/appfabric/default.aspx, 28.11.2010 http://www.microsoft.com/en-us/appfabric/default.aspx http://social.technet.microsoft.com/wiki/contents/articles/biztalk-wf-wcf- better-together.aspx, 28.11.2010 http://social.technet.microsoft.com/wiki/contents/articles/biztalk-wf-wcf- better-together.aspx http://blogs.msdn.com/b/skaufman/archive/2009/11/23/appfabric-and- biztalk.aspx, 28.11.2010 http://blogs.msdn.com/b/skaufman/archive/2009/11/23/appfabric-and- biztalk.aspx http://msdn.microsoft.com/en-us/library/ee677371.aspx, 28.11.2010 http://msdn.microsoft.com/en-us/library/ee677371.aspx Literatur
