1 VMware vCloud Director / Connector
Rüdiger Melzer Senior Systems Engineer, Alliance Management VMware

2 Andere Darstellung der vCloud Suite
Komponenten einer kompletten, integrierten Cloud Infrastruktur vCloud Automation Center IT Service Provisionierung vFabric Application Director Cloud-fähige Applikations-Provisionierung vCenter Operations Management Suite Automatisiertes Betriebs-Management für die Cloud vCenter Site Recovery Manager Disaster Recovery Automatisierung vCloud Networking and Security Cloud Netzwerk-Verwaltung und Security vCloud Director Brücke zur Hybrid- & Public Cloud vCloud Connector Be sure to message what the customer owns today on this slide as well. vCloud Suite is a new offering comprised of several components There are three editions of the vCloud Suite – we’ll get into the details later in the presentation The vCloud Suite is based on the highest edition of vSphere, vSphere Enterprise Plus [click] Plus vCloud Director & vCloud Connector for Infrastructure-as-a-Service and Hybrid Cloud Connectivity [click] Plus vCloud Networking & Security for Cloud networking and security [click] Plus vCenter Operations Management Suite for Automated Operations Management [click] Plus vFabric Application Director for Cloud-enabled Application Provisioning [click] Plus vCenter Site Recovery Manager for Disaster Recovery Automation [click] And vCloud Automation Center for IT Service Provisioning [click] These are the components of a complete, integrated cloud infrastructure; the VMware vCloud Suite [click x 3] The vCloud Suite is sold and licensed the same as vSphere: per-CPU Since its licensed per-CPU, you have unlimited VMs of each component on each properly licensed vCloud Suite CPU The vCloud Suite is a single SKU and license; it is not a bundle and does not break apart into individual components vSphere Enterprise+ Virtualisierungs-Plattform Wird genau so lizensiert wie vSphere: pro CPU-Sockel Unlimitiertes vRAM, Unlimitierte VMs Achtung KEIN Bundle – kann nicht aufgelöst werden, um auf anderen CPUs zu laufen

3 vSphere vCenter Operations Mgmt vCloud Automation Center Application
IaaS PaaS DaaS Application Director Mgmt vCloud Director / Connector vCloud Networking and Security vCenter Site Recovery Manager vSphere Hardware vCloud Service Providers Hyper- visors Other Service Providers

4 Real Customer 2.78% of 24 hours = 40 minutes.
6.03% of 24 hours = 1 hour 16 minutes.

5 Was wir tun

6 Konsolidierung

7 Clustering VMware vSphere

8 Manage VMware vCenter Server VMware vCenter Server VMware vSphere

9 vMotion

10 Storage vMotion VMware ESX

11 vMotion von VMs, mit oder ohne Shared Storage
1 Example is enhanced vMotion Today requires shared storage SDDC is about removing physical constraints 5.1 offers a new live migration architecture - No need for shared storage - Great performance – even on metro networks Of course DRS and other capabilities build upon Enhancements to vMotion in vSphere 5.1 provide a new level of ease and flexibility for live virtual machine migrations. Prior to vSphere 5.1, both vMotion and Storage vMotion required shared storage to perform live migrations of virtual machines. (vMotion required shared storage between hosts performing the vMotion. Storage vMotion required a host to have access to the source and destination datastores.) vSphere 5.1 removes the shared storage requirement. vSphere 5.1 enables a virtual machine to change its datastore and host simultaneously, even if the two hosts don't have any shared storage in common. It allows virtual machine migration between clusters in a larger datacenter, which may not have a common set of datastores between them but also allows virtual machine migration in small environments without access to expensive shared storage equipment. vSphere 5.1 allows combining vMotion and storage vMotion into one process. This combined migration copies both the virtual machine memory and its disk over the network to the destination host. After all the memory and disk data are send over, the destination virtual machine will resume and the source virtual machine will be powered off.

12 Resource Pools CPU Pool Memory Pool Storage Pool Interconnect Pool

13 Dynamic Resource Scheduler – DRS
Resource Pool VMware ESX VMware ESX VMware ESXi Physical Servers

14 Distributed Power Management – DPM
Resource Pool VMware ESX VMware ESX VMware ESXi Power Optimized Servers Standby Host Server

15 High Availability – HA VMware ESX VMware ESX VMware ESXi Resource Pool
Operating Server Failed Server Operating Server

16 Fault Tolerance – FT VMware ESX VMware ESX VMware ESXi
Nahtloses Umschalten Kein Reboot VMware ESX VMware ESX VMware ESXi Laufender Server Ausgefallener Server Laufender Server

17 Virtualisieren Sie Ihre Business Critical Applikationen
Aktuell laufen mehr als 24 Millionen virtuelle Maschinen auf vSphere Zentrale Applikationen werden in immer größerem Maße virtualisiert betrieben MS Exchange 42% MS SQL 47% Oracle DB 28% SAP % DHCP Server Web Server Die ersten Tage der Virtualisierung From 16% workloads running Virtual in Just 3 Years later - 50%+ today numbe of VMs running percent of x86 architecture server workloads by the end of 2012, representing approximately 58 million deployed machines. VMware ESX Server VMware ESX 2.0 (July 21, 2003) VMware Infrastructure 3.0 (June 5, 2006)

18 vCloud Networking and Security
vCenter Operations Mgmt vCloud Automation Center IaaS PaaS DaaS Application Director Mgmt vCloud Director / Connector vCloud Networking and Security vCenter Site Recovery Manager vSphere Hardware vCloud Service Providers Hyper- visors Other Service Providers

19 Was ist Netzwerk Virtualisierung?
Applikation Applikation Applikation Physisches Netzwerk (Arista, Cisco, HP, Juniper, …) Netzwerk Virtualisierungs-Plattform Voraussetzung: IP Transport Virtual Network Workload L2, L3, L4-7 Netzwerk Dienste x86 / x64 Umgebung Virtual Machine Virtual Machine Virtual Machine Server Hypervisor Entkopplung Voraussetzung: x86 / x64 Physische CPU & Speicher (Fujitsu, Dell, HP, IBM,…)

20 Mobilität im Software Defined Data Center
Infrastruktur Abstraktions-Schicht VDCs are abstracted away from the infrastructure, through virtualization layers, this allows you to create VDCs anywhere using any underlying resources Physikalische Netzwerk Infrastruktur

21 Das heutige Netzwerk blockiert echte Innovation
Software Defined Data Center 1 Langsame Provisionierung Limitierte Skalierbarkeit Limitierte Mobilität Starke Hardware Abhängigkeit Betriebstechnisch aufwändig Server Virtualisierungs-Schicht - In the traditional virtualized datacenter, the virtualization layer was primarily focused on compute. While the VM’s where decoupled from the hypervisor, they were still coupled to the network As a result, many of the promises of the VDC cannot be obtained Physikalische Netzwerk Infrastruktur

22 VXLAN – Virtualisieren Sie Ihr Netzwerk
Software Defined Data Center 1 Langsame Provisionierung Limitierte Skalierbarkeit Limitierte Mobilität Starke Hardware Abhängigkeit Betriebstechnisch aufwändig Programmierbare Provisionierung Jede Art Workload an jedem Ort Freies Verschieben von Workloads Von Hardware völlig entkoppelt Betriebstechnisch effizient Netzwerk Virtualisierungs-Schicht Server Virtualisierungs-Schicht The solution, of course, if to virtualize away the network. Physikalische Netzwerk Infrastruktur

23 Availability & Site Recovery Manager
vCenter Operations Mgmt vCloud Automation Center IaaS PaaS DaaS Application Director Mgmt vCloud Director / Connector vCloud Networking and Security Availability & Site Recovery Manager vSphere Hardware vCloud Service Providers Hyper- visors Other Service Providers

24 Business Continuity Lösungen mit VMware vSphere
IT Problem VMware Lösung Applikations Abstürze Applikation ist absolut geschäfts-kritisch Applikation benötigt mehr Ressourcen Windows VMware ESXi vSphere HA Nativer MSCS Support* App-aware APIs Fault Tolerance Keine Downtime, kein Datenverlust, ununterbrochene Verfügbarkeit In addition to HA, vSphere offers a broader set of business continuity solutions unique to VMware. For application-level failures, vSphere has two methods of protecting applications. First, vSphere does support HA with Microsoft Cluster Services (MSCS). Second, there are a set of App-aware APIs that can be used in conjunction with a 3rd party tool like Symantec HA that will detect application failures and restart those VMs. For applications that are absolutely critical and cannot tolerate even a few minutes of downtime, VMware offers Fault Tolerance for zero downtime recovery of a failed VM. Microsoft has nothing similar and relies on expensive 3rd party solutions for this type of critical app. Finally, a common administrative task is addressing an app that suddenly becomes resource constrained. Well, VMware supports hot-add of both vCPU, vRAM, and hot-add and extend of virtual disks. With Hyper-V, there is no way to dynamically scale an application up (no hot-add vCPU, no hot-extend virtual disk) when demands increase. You’d have to shut down the VM, apply the additional resources, and restart the VM. This deck also does not cover VMware Site Recovery Manager (SRM) which is a complete disaster recovery planning/testing/solution tool for virtualized environments. All of these capabilities ensure that apps that are running stay up and running. Hot-Add Capacity (vCPU, vRAM) Im laufenden Betrieb aufpumpen 1 vCPU 2 GB 4 vCPU 64 GB

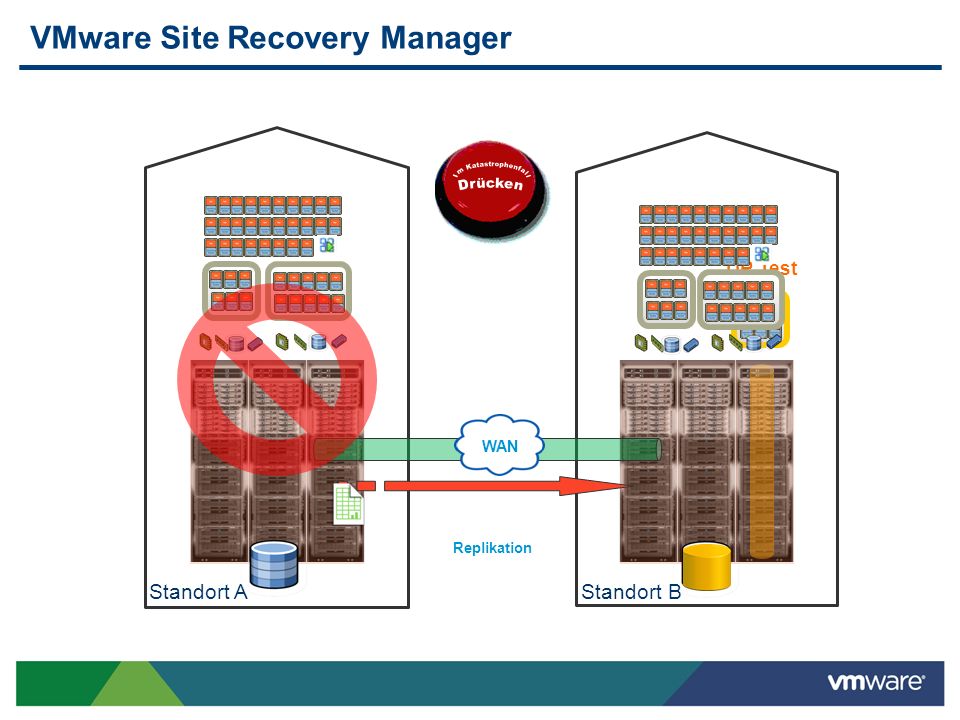

25 Im Katastrophenfall Drücken VMware Site Recovery Manager Standort A
Standort B DR Test WAN Replikation Standort A

26 Mit vSphere kann man die Verfügbarkeit stark erhöhen
Toleranzgrad bei Hardware-Ausfall 1 Standort X Standorte ununterbrochen … mit Storage Herstellern App Grid (z.B.: RAC) VMware Fault Tolerance (FT) VMware vMotion Automatischer Neustart VMware Site Recovery Manager (SRM) App Cluster (z.B.: MSCS) VMware High Availability (HA) Ungesichert 0% 10% 100% 1 vCPU VMs … vCPU VMs

27 vCloud Director & vCloud Connector
vCenter Operations Mgmt vCloud Automation Center IaaS PaaS DaaS Application Director Mgmt vCloud Director / Connector vCloud Networking and Security vCenter Site Recovery Manager vSphere Hardware vCloud Service Providers Hyper- visors Other Service Providers

28 vCloud Director verbindet Virtuelle DCs mit Ihrer Organisation
VMware vCloud Director Organisation: Marketing Organisation: Finanzen Nutzer & Richtlinien Organisation VDCs Kataloge Nutzer & Richtlinien Organisation VDCs Kataloge (Gold) (Bronze) Bereitgestellte Virtual Datacenters (Silber) VMware vCenter Server Resource Pools Datastores Port Groups I will use this one slide to explain some of the features in vCloud Director 1.0 that help deliver IaaS clouds before we dive into What’s New Click 1: This is something that most of you should be familiar with. vSphere lays the foundation to untether applications from the underlying hardware. It does this by creating resource pools, datastores and portgroups. Many of you are familiar with all the magic you have experienced in your datacenters using vSphere. Click 2: vCloud Director really then starts to pool these virtual infrastructure resources into tiered multi-tenant resources called Provider virtual datacenters. These vDCs have SLAs and cost associate with them that are indicated by Gold, Silver and Bronze. This is the base of your cloud infrastructure Click 3: Organizations and users are managed in vCloud Director and users are provided a web-based portal to access cloud resources. Policies can be set to control usage. Click 4: Embedded vShield technologies make the shared cloud environment multi-tenant and secure Click 5: Organization virtual datacenters are used to allocate resources to organizations from these shared vDCs and powerful controls allow IT to dictate how organizations consume resources in the cloud. Click 6: Content is provided through catalogs which when combined with policy and self-service access enable a cloud environment. The abstraction provides the elasticity needed to decouple the production of the infrastructure from the consumption of the infrastructure. Since consumers now consume from these logical constructs known as vDCs, they can now be serviced by a private cloud, a public cloud or even a hybrid cloud in a transparent manner. VMware vSphere Native Hardware

29 Kreieren Sie Hybrid Clouds mit dem vCloud Connector (vCC)
vCC bietet ihnen die Möglichkeit über eine Schnittstelle alles zu verwalten Public Cloud Hybrid Cloud Private Cloud Public Cloud vCloud Connector VMware has been at the forefront of the hybrid cloud movement, helping customer leverage their existing investment in vSphere. On the private cloud slide, existing vSphere customers can easily set up vCloud Director to realize the benefits of a private cloud such as self service. On the public cloud side, customers can tap into a rapidly growing ecosystem of vCloud Service Providers. And to tie it all together to create a hybrid cloud environment where customers can combine the best of private & public clouds and have the freedom to move workloads anywhere, they can use vCloud Connector. <Mouse click> vCloud Connector provides cloud users with a single pane of glass to consume hybrid cloud resources across vSphere, private cloud and public cloud Once you deploy vCloud Connector, you could use it to see, use & copy VM/templates across clouds. Its main use case is helping customers onboard to public cloud providers by moving VMs/templates from their private cloud. We built vCloud Connector for “Cloud Onboarding” instead of using SRM because this use case requires a more light weight product with minimal orchestration capabilities. With vCloud Connector, hybrid cloud is no longer a dream. It’s a reality. Public Cloud Sehen, benutzen & kopieren Sie VMs egal von wo, oder wohin

30 Application Director vCenter Operations Mgmt vCloud Automation Center
IaaS PaaS DaaS Application Director Mgmt vCloud Director / Connector vCloud Networking and Security vCenter Site Recovery Manager vSphere Hardware vCloud Service Providers Hyper- visors Other Service Providers

31 Application Lifecycle
Applikations- Blaupausen Modular automatisiert morgen heute Vorlagen App Mgmt also changing Diff apps, diff environments - separated Need consistent method to automate/manage full lifecycle für VMs händisch

32 vFabric Application Director für optimales Provisionieren
Each gray box represents a VM Template are available on the left, for example Windows instances Application service are on the right, for example SQL Server This is an alternative to blog-style app provisioning, because the elements of the application remain discrete and modular
