1
Gilt dies auch in der Mikrowelt?
Determinismus F F v m Raum-Zeit-Kurve r(t) Gilt dies auch in der Mikrowelt?
2
Elektron Ruhemasse m0= 9.1094 10-31kg
Als erstes Elementar-Teilchen entdeckt von J.J. Thomson 1897: Ruhemasse m0= kg Elementarladung e = C
3
Atom der Ordnungszahl Z
Kern Z + Elektronenhülle Z -
4

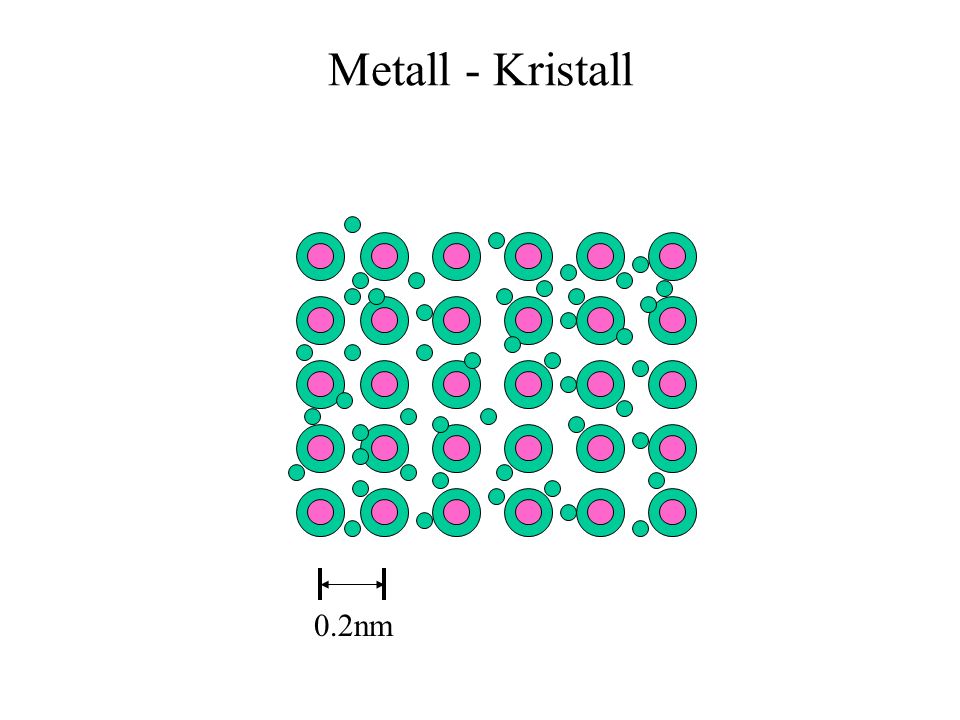

Metall - Kristall 0.2nm
5
- +
6

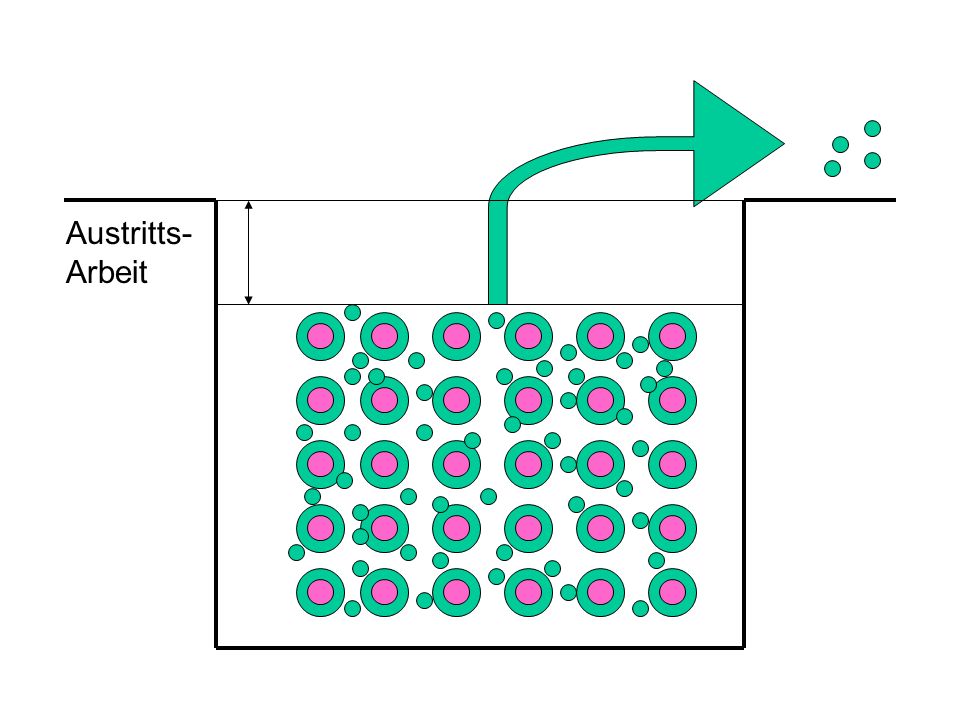

Austritts-Arbeit
7
T, E Kathode Anode Elektronenstrahl Ua - + Ekin = e Ua
8
Fokussierung eines Elektronenstrahls
Quelle Linse Objekt
9
Ablenkung eines Elektronenstrahls
Quelle - + Linse Ablenker Objekt
10
Eigenschaften des Elektronenstrahls
Trägheitslose Ablenkbarkeit Feinste Fokussierbarkeit Höchste Energiedichte cm Watt/cm2 Elektronenstrahl Lichtbogen Schweißbrenner
11
Elektronenstrahl – Bohren und Fräsen
- +
12
Bohrungsdurchmesser 4/1000 mm
13
Elektronenstrahl-Schweißen
+ A B
14
Elektronenstrahl-Schweißen
+ A B
15
Electron beam vs. TIG
16
Komplizierte Schweissnähte Gasgenerator für Airbag
Photo: Messer-Griesheim
17
Electron Beam Lithography
- + resist silicon mm
18
ENIAC 1944 Electronic Numeric Integrator and Calculator
19
Höchstintegration 10mm, 106 Komp
heute: Strukturbreiten < 1/10,000mm
20
Elektronen sind Teilchen !
Masse m Ladung e kinetische Energie e Ua lokalisierbar elektromagn. Kräfte Bahnen Newton Mechanik
21
Louis Victor Pierre Raymond Prince de Broglie, 1892 - 1987
Materiewellen Wellenlänge Impuls „Wer sich über die Quantenmechanik nicht wundert, der hat sie nicht verstanden !“ Louis Victor Pierre Raymond Prince de Broglie,
22
???? Teilchen und Wellen F v m Raum-Zeit-Kurve r(t)
Bahn: lokalisierbar m v F Raum-Zeit-Kurve r(t) ???? Welle: nicht-lokalisierbar Beugung Interferenz
23
Teilchen am Spalt
24
Welle am Spalt falsch !
25
Wellen: Beugung am Spalt
26
Wellen: Beugung am Spalt
27
Beugung am Spalt
28
Beugung am Spalt
29

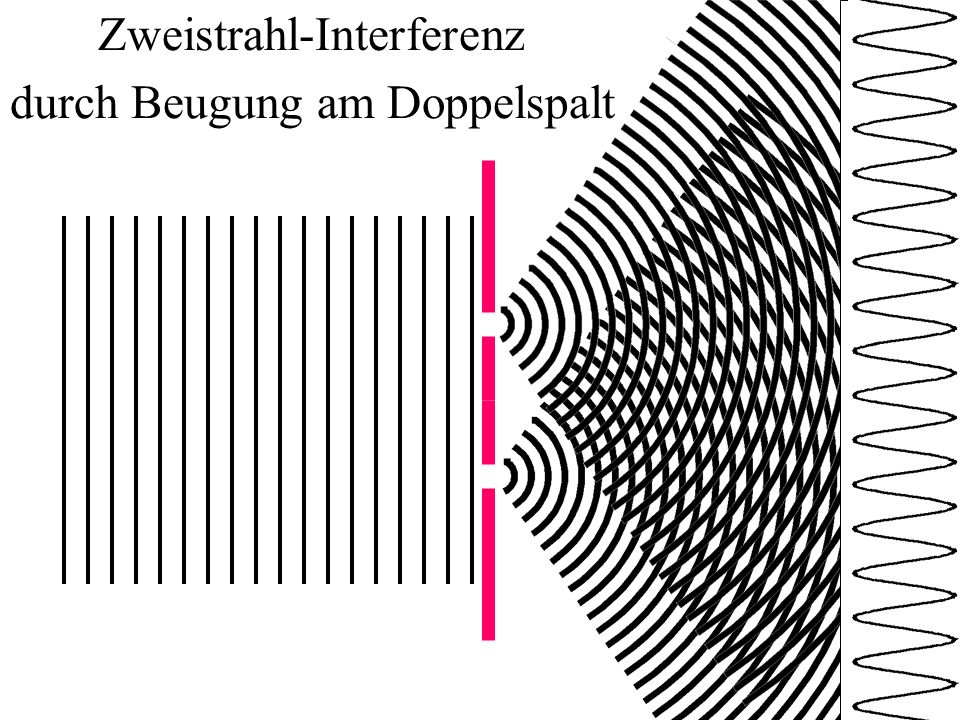

Zweistrahl-Interferenz durch Beugung am Doppelspalt
30
Fresnel biprism for light source biprism detector 1/q
interference pattern I(x)=2I0(1+cos (2qx)) with spatial frequency q:=/
31
Wellen und Teilchen: Beugung am Spalt
32
Teilchen: Beugung am Spalt
33
Teilchen: Beugung am Spalt
x p
34
Werner Heisenberg
35
Heisenbergsche Unschärfe für QM-Teilchen
x p h Ort-Impuls E t h Energie-Zeit
36
Electron Diffraction Experiment
Electron Micrograph of the slits Electron Diffraction One Slit Two Slits from: Jönsson, Z. f. Physik 161 (1961), Möllenstedt, Physica B 151 (1988)
37
Möllenstedt electron biprism
electron source biprism + detector 1/qc interference pattern I(x)=2I0(1+cos (2qcx)) with spatial frequency q:=/ ; ~Ubp
38
Electron Interferometer (1962)
40
time between impacts 1ms
Quantum Noise time of flight 1µs << time between impacts 1ms single electron interference
41
Elektronenwellen = Wahrscheinlichkeitswellen
42
de Broglie Letter to Möllenstedt
Paris, 19 June 1956 Monsieur and dear Colleague, I was extremely pleased to receive your kind letter and to learn of your beautiful experiments in which you have obtained electron interference by a method analogous to Fresnel's biprism. It was, of course, a great pleasure to see that you have obtained a new and particularly brilliant proof of the formula l= h/(mv), and I shall not fail to make known your experiments to my students. Thanking you most gratefully for your communication, I beg you to accept, Monsieur and dear colleague, the expression of my devoted sentiments, Louis de Broglie
43
Surely, you are joking Mr. Feynman
We choose to examine a phenomenon which is impossible, absolutely impossible to explain in any classical way. In reality, it contains the only mystery. We cannot make the mystery go away by explaining how it works. We will just tell you how it works. We should say right away that you should not try to set up this experiment. This experiment has never been done before. The trouble is that the apparatus would have to be made on an impossibly small scale ... We are doing a thought experiment. (The Feynman Lectures on Physics)
44
Beating of electron waves
E+E Hubert Schmid, PhD thesis, Tuebingen 1985
45
Which Way?
46
either interference or which way
E =E/h energy spectrometer interference contrast < < h/E energy resolution E >h >h/E either interference or which way
47
Elektronen sind Wellen
entweder – oder Elektronen sind Wellen Elektronen, die interferieren, sind nicht unterscheidbar Elektronen, die unterscheidbar sind, zeigen keine Interferenzerscheinung Elektronen sind Teilchen
48
Zeiss Lightmicroscopes
Robert Koch's Microscope (1880) Lightmicroscope ( 1960)
49
Abbe limit of microscopy
Objects < /2 do not affect the wave resolution > /2
50
Electron Waves non-relativistic relativistic non-relativistic
51
Philips CM20FEG (S)TEM
52
Interferogram of MgO-Crystal
53
Negatively Stained Bacteriophages
54
Dopant Profiles in a FET
amplitude Dopant Profiles in a FET diploma thesis Andreas Lenk, Dresden 2001 phase
55
Hologram of Si [110] Hologram Parameters: UF = 600 V sF = nm Cooperation: Prof. David Smith, ASU, Tempe, U.S.A.
56
Co-Phthalocyanine Ugeda et al. 1978; UA = 500 kV
57
Au – Atome in Au-Clustern
58
Silicon in (100)-orientation
0.543 nm
59
GaAs in (110)-orientation
amplitude phase GaAs in (110)-orientation
60
Louis Victor Pierre Raymond Prince de Broglie, 1892 - 1987
Materiewellen Wellenlänge Impuls „Wer sich über die Quantenmechanik nicht wundert, der hat sie nicht verstanden !“ Louis Victor Pierre Raymond Prince de Broglie,
