2 Sitz Unterschleißheim Die Kernkompetenzen der teracuda…
Gründung 2001 Sitz Unterschleißheim Die Kernkompetenzen der teracuda… Individuelle IT Konzepte Best-of-Breed Technologie für den Kunden Server&Storage HA & DR Lösungen Projektübergreifende Realisierung Umfangreiche Servicekonzepte Langzeitliche Betreuung / Betriebsführung Die teracuda wurde 2001 gegründet mit Sitz in Unterschleißheim. Wir wollen unseren Kunden intelligente iT Konzepte, Best-of-Bread Technologien anbieten. Die Projekte

3 Gartners Magic Quadrant

4 Open iSCSI SANs Powered by SAN/iQ®
An Introduction to LeftHand Networks

5 Agenda Lefthand Networks Facts Vergleich Konventioneller Storage vs. Lefthand Networks Open Storage Hardware Platformen Lefthand Networks Features Synchroner Replication (Campus SAN) Asynchronus Replication Virtual SAN Appliance VSA Demonstration Live Q&A

6 LeftHand Networks im Überblick
Führend in IP SAN Lösungen Gegründet in Boulder, Colorado USA SAN/IQ wird als erstes IP SAN vorgestellt HP kauft Lefthand für 360 Mio.US$ Über 3,000 Kunden mit Mehr als 10,000 Installationen IP SAN Software der Enterprise SAN/iQ Storage Clustering SAN/iQ Network RAID SAN/iQ Thin Provisioning SAN/iQ Snapshots SAN/iQ Remote Copy (asynch rep) SAN/iQ Multi-Site HA/DR Solution Pack (synch rep

7 Typische Storage Array Architektur
Traditioneller Storage An diesem Punkt wird bei herkömlichen Speicher-lösungen der Controller zum Flaschenhals und muß zur Erweiterung der Kapazität und der Performance teuer ersetzt werden. This is a traditional storage model. The vendor sells you a controller that connects to your network and serves storage to your servers. In this model, you add capacity by adding more JBOD to your Monolithic SAN. This however creates a performance bottleneck at the controller. This is not good.

8 LeftHand Networks Storage Nodes
NSM 2060 NSM 2120 NSM 4150 Bauform 2U 4U Plattenanzahl 6 12 15 HW RAID Levels 0, 5, 10 5, 6, 10 5, 10 Network RAID Levels 0, 2, 3, 4 Prozessoren Min 2.0 Dual Core Min 2.4 Dual Core Min 2.67 Dual Core 10GbE Ready Yes SAS Festplatten 300 15K (1.8TB) 450 15K (2.7TB) 146 15K (1.8TB) 300 15K (3.6TB) 450 15K (5.4TB) 300 15K (4.5TB) SATA Festplatten K (4.5TB) K (6.0TB) K (9.0TB) K (12.0TB) K (11.25TB)

9 Besser durch Design: SAN/iQ Architektur
Skalierbare Storage Nodes LeftHand’s Unterschiede: Echter Storage Cluster Echte Virtualisierung des Speichers Vereinfachung des Managements Skaliert nach Performance und Kapazität Hochverfügbar durch “Network RAID” Multi-site SAN In contrast, LeftHand has taken a different approach When the company was founded, the company focused on the N in SAN, that’s right, the Network. We did not just take JBOD and add a few ethernet ports LeftHand has a vision of Data living on the network, Data being accessed over the network and data being mobile across the networks As such, LeftHand made different design decisions. We, in fact, feel that our open iSCSI SANs are “Better by Design”, and it is this approach that enables our SHARP benefits. The decision to focus on the N in SAN led us to architect a solution that is Modular, not Monolith and is Truly clustered. As you can see from the diagram, we also build a SAN using a Disk Array and a Controller. However, we use them in a single systems. An enterprise Class x87 industry standard server. Now, when you add capacity, you are adding not only capacity, but additional CPU cycles, network bandwidth and cache. BTW, you are also adding another controller for redundancy. Now, let’s take a look at SAN/iQ specific features True Clustered Storage – as I mentioned earlier during our Performance disussion, we are truly clustered and will load-balance/stripe across all available spindles Highly virtualized for Management – because SAN/iQ is a distributed, clustered Storage Software plaform, the management paradigm is the same whether you have 2 nodes, 10 nodes or 20 nodes; whether you are at a single location, two locations or multiple locations. Being Network centric in our design enables the safe, efficient management of your entire SAN, no matter where located Scalable Capacity and Performance – we have already covered this Always on line volumes – this is a key high-availability feature. SAN/iQ maintains a database of all data blocks and their current location. This enables us to realize our vision of data mobility. With the SAN/iQ management console, you can move a volume from one system/cluster to another (for example, you are adding capacity to your SAN with an higher performing NSM). The data volume can be moved in the management console with a simple drag and drop. While the volume is moving in the background, SAN/iQ still knows which data blocks are on the old systems and which are on the new systems. Therefore, it can continue to serve data while moving it! The end user/application has no idea the data is moving. When the data move is complete, the end users only sees improved response time!!!! We have talked about Campus SAN and Network RAID already. So, these are features that are unique to SAN/iQ and LeftHand Networks open iSCSI SANs. What about features that are available in the industry…

10 SAN/iQ - Open iSCSI Storage
Presentation Title SAN/iQ - Open iSCSI Storage VI3 Cluster Virtualized Cluster iSCSI Cluster Open Management Software x86 Based Storage and Server Platforms Intel-Based Storage Platforms Standards-Based Hardware Platform So, I mentioned the term “open iscsi storage”. What do we need by “open”. (CLICK) Well, LeftHand SAN/iQ is software that provides the intelligence for clustering and managing an iSCSI SAN. We place our SAN/iQ software on Standards-Based Hardware Platforms We leave the hardware to the hardware vendors Not only does this give you non-proprietary hardware, but it drives down the price by making the hardware vendors compete for your business. We allow it to communicate open protocol, iSCSI. Copyright © 2005 LeftHand Networks corporate presentation. All rights reserved.

11 Die Lefthand Networks Features
LeftHand SAN Skalierbare Performance Ultra Hochverfügbare Daten Enterprise Klasse Feature-Set Synchrone Spiegelung/Replication Asynchrone Spiegelung/Replication Thin Provisioning Snapshots Storage LUNs

12 Echtes Storage Clustering
Der SAN/iQ Cluster beinhaltet alle kritischen Komponenten Kapazität Prozessoren GigE Ports (2 Pro Einheit) Batterie gepufferter Schreib Cache

13 Der Storage wächst mit Ihrem Business
On-line Erweiterungen Erhöhung der Kapazität Online Keine Offline Upgrades Es entsteht ein heterogenener Cluster Rebuildrate einstellbar

14 Migration von SAN Storage ohne Downtime
On-line Daten Migration Daten werden nach Ihrem Terminplan migriert Einfache Vorgehensweise Alles bleibt hochverfügbar Vermeidung von geplanter Downtime SAS Storage Cluster SATA Storage Cluster

15 “Beyond The Box” Datenschutz
PATENTIERTES Netzwerk RAID Schützt Daten im Cluster Datensicherheit auf LUN-Ebene keine Replikation 2-Wege Replikation 3-Wege Replikation 4-Wege Replikation Hochverfügbar Schutz gegen Ausfall von Storage Modulen Alle Daten bleiben verfügbar Nur geringer Einfluß auf die Performance A B C D A C D A B D A B C B C D A D A B B C C D

16 Datenschutz über mehrere Standorte (synchroner Spiegel, incl. SAN/IQ)
Campus SAN Daten bleiben verfügbar selbst bei: Ausfall eines Standortes Naturkatastrophen Wartungsarbeiten Mögliche Standorte: Racks Zimmer Brandabschnitte Gebäude Anforderung an das Netzwerk: Gigabit Verbindungen ~2 Millisekunden Latenzzeit A A A D D D B B B C C C A A A B B B C C C D D D

17 Campus SAN & VMware HA/DRS: Komplette HA
Virtualisierungstechnologien VMware OS und Applicationen Schutz gegen Serverausfall LeftHand Networks VM und Datenspeicher Schutz gegen Speichermodul Ausfall Komplette Hochverfügbarkeit Kein Single Point of Failure ESX Server LeftHand Storage Module Mehrere Standorte Virtual Machines Virtual Machines ESX SERVER ESX SERVER A A A D D D B B B C C C A A A B B B C C C D D D

18 Failover und Failback Lösung

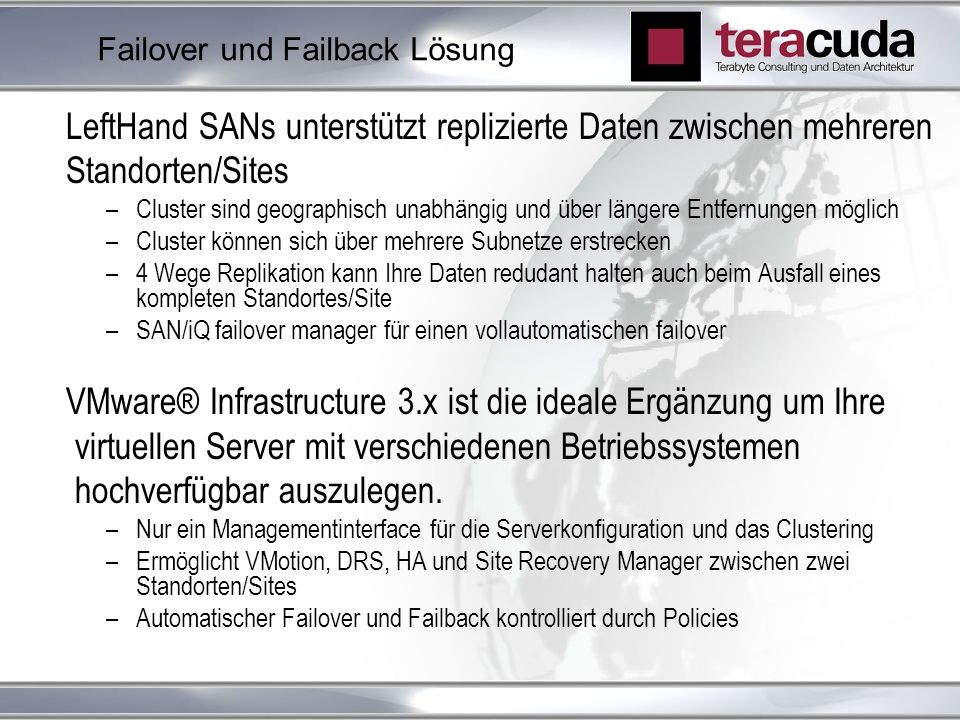

LeftHand SANs unterstützt replizierte Daten zwischen mehreren Standorten/Sites Cluster sind geographisch unabhängig und über längere Entfernungen möglich Cluster können sich über mehrere Subnetze erstrecken 4 Wege Replikation kann Ihre Daten redudant halten auch beim Ausfall eines kompleten Standortes/Site SAN/iQ failover manager für einen vollautomatischen failover VMware® Infrastructure 3.x ist die ideale Ergänzung um Ihre virtuellen Server mit verschiedenen Betriebssystemen hochverfügbar auszulegen. Nur ein Managementinterface für die Serverkonfiguration und das Clustering Ermöglicht VMotion, DRS, HA und Site Recovery Manager zwischen zwei Standorten/Sites Automatischer Failover und Failback kontrolliert durch Policies

19 Kundeninstallation eines Campus SANs

20 Asynchrone Spiegelung
Remote Copy Asynchrone Replikation auf Volumen Basis Zeitgesteuert oder Manuel Thin Provisioned Einfache Einrichtung Bandbreiten Management Failover / Failback Wizard 1:00pm 11:00am 3:00pm 1:00pm 3:00pm 11:00am

21 Vermeidung von ungenutztem Festplattenspeicher
Thin Provisioning 2.0 Effektive Kapazitätsausnutzung Kein Management notwendig Keine Vorreservierung von Speicher Speicherbelegung nur durch echte Daten Ein-/Ausschaltbar durch Auswahlknopf

22 Vereinfachte Datensicherung und Wiederherstellung
Snapshots Zeitgesteuert oder Ad Hoc Platzsparend Thin Provisioned Keine Reservierung von Speicherplatz Möglichkeiten Rollback eines Volumens Wiederherstellung einzelner Volumen Server Mount Granulare Datenwiederherstellung Vereinfachung des Backups Mounten des Volumens am Backup Server 11:00am 1:00pm 1:00pm 3:00pm Live Data

23 Hochverfügbarkeit für Server & Storage mit ESX
Virtuelle SAN Appliance (VSA) Hochverfügbarkeit für Server & Storage mit ESX SAN/iQ Cluster mit ESX: Hoch verfügbarer Storage mit mehreren ESX Systemen Shared Storage für VMs Im Falle eines ESX Ausfalls: SAN/iQ Volumes bleiben online VMware HA hält die VMs online Virtuelle Platform SAN/iQ läuft als virtuelle Maschine auf ESX Virtualisiert die internen Festplatten des ESX Servers Voll ausgestattetes virtuelles iSCSI SAN Bis zu 2 TByte Daten A C A B B C LeftHand VSA LeftHand VSA LeftHand VSA

24 VSA als Remote Office / Branch Office Replikations Client

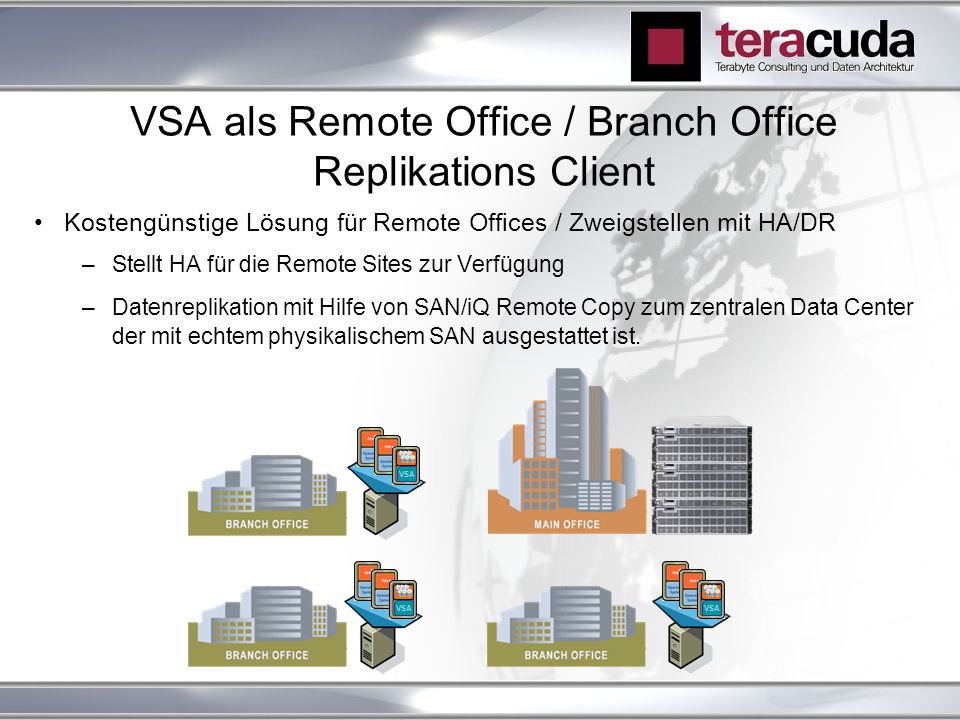

Kostengünstige Lösung für Remote Offices / Zweigstellen mit HA/DR Stellt HA für die Remote Sites zur Verfügung Datenreplikation mit Hilfe von SAN/iQ Remote Copy zum zentralen Data Center der mit echtem physikalischem SAN ausgestattet ist. VSA VSA VSA 24

25 3,000+ zufriedene Kunden & Tendenz stark steigend..
Gesundheits- wesen Medien / Telekommunikation Industrie / Handel Universitäten Finanzen Growing number of enterprise customers include Alcoa, Comcast, Pfizer, Time Warner, and Verizon. Satisfied customer base is growing rapidly and across all industries. Transport / Versorgung

26 Und nun die VSA Live Demo…!
