CAE Elektronik Proprietary Information and/or Confidential SEMINARVORTRAG Karsten Seelert COALITION BATTLE MANAGEMENT LANGUAGE 1
2
CAE Elektronik Proprietary Information and/or Confidential Gliederung Einleitung Motivation Geschichte Aufgabenbereich von C-BML Konzept der 5W‘s Grammatik Tasking-Grammar Reporting-Grammar Inhalt und Struktur des Informationsaustausches Fazit COALITION BATTLE MANAGEMENT LANGUAGE 2
3
CAE Elektronik Proprietary Information and/or Confidential EINLEITUNG 3
4
CAE Elektronik Proprietary Information and/or Confidential Motivation Erweitern der HLA-Schnittstelle in GESI Empfangen und bearbeiten von Befehlen Erstellen und senden von Berichte Benutzung von C-BML als Kommunikationsstandard EINLEITUNG 4
5
CAE Elektronik Proprietary Information and/or Confidential Geschichte Gründen der 2004 SISO C-BML Study Group Entstehung der C-BML Production Development Group im Jahre 2006 Entwicklung in 3 Phasen aufgeteilt Phase 1, Datenmodell Phase 2, Grammatik Phase 3, Ontologie Veröffentlichung des Phase 1 Standard von SISO am 31. Oktober 2013 EINLEITUNG 5
6
CAE Elektronik Proprietary Information and/or Confidential Aufgabenbereich Kommunikation von gekoppelten Systemen auf militärischer Basis Befehl Bericht Anfrage EINLEITUNG 6 BefehlshaberEinheit 2. Befehlshaber Bericht Befehl Anfrage
7
CAE Elektronik Proprietary Information and/or Confidential Aufgabenbereich Natürliche Sprache nicht eindeutig Homonyme „Mine“ „Himmel“ Beispiel „Mein Kompaniechef fährt mit seinem Jaguar in den Urlaub“ EINLEITUNG 7
8
CAE Elektronik Proprietary Information and/or Confidential KONZEPT DER 5 W‘S 8
9
CAE Elektronik Proprietary Information and/or Confidential Konzeptmodell Fundamentaler Bestandteil von C-BML sind die 5 W‘s Wer Wird Befehligt eine Aktion auszuführen Angefragt eine Aktion Auszuführen Wurde Beobachtet oder hat eine Aktion ausgeführt Ziel einer auszuführenden Aktion Was Beschreibt eine auszuführende Aktion Beschreibt eine zu berichtende Auswirkung oder geschehene Aktion oder Ereignis Wann Zeitrahmen, zur Ausführung einer Aktion Beschreibt wann eine Aktion oder ein Ereignis aufgetreten ist INHALT UND STRUKTUR DES INFORMATIONSAUSTAUSCHES 9
10

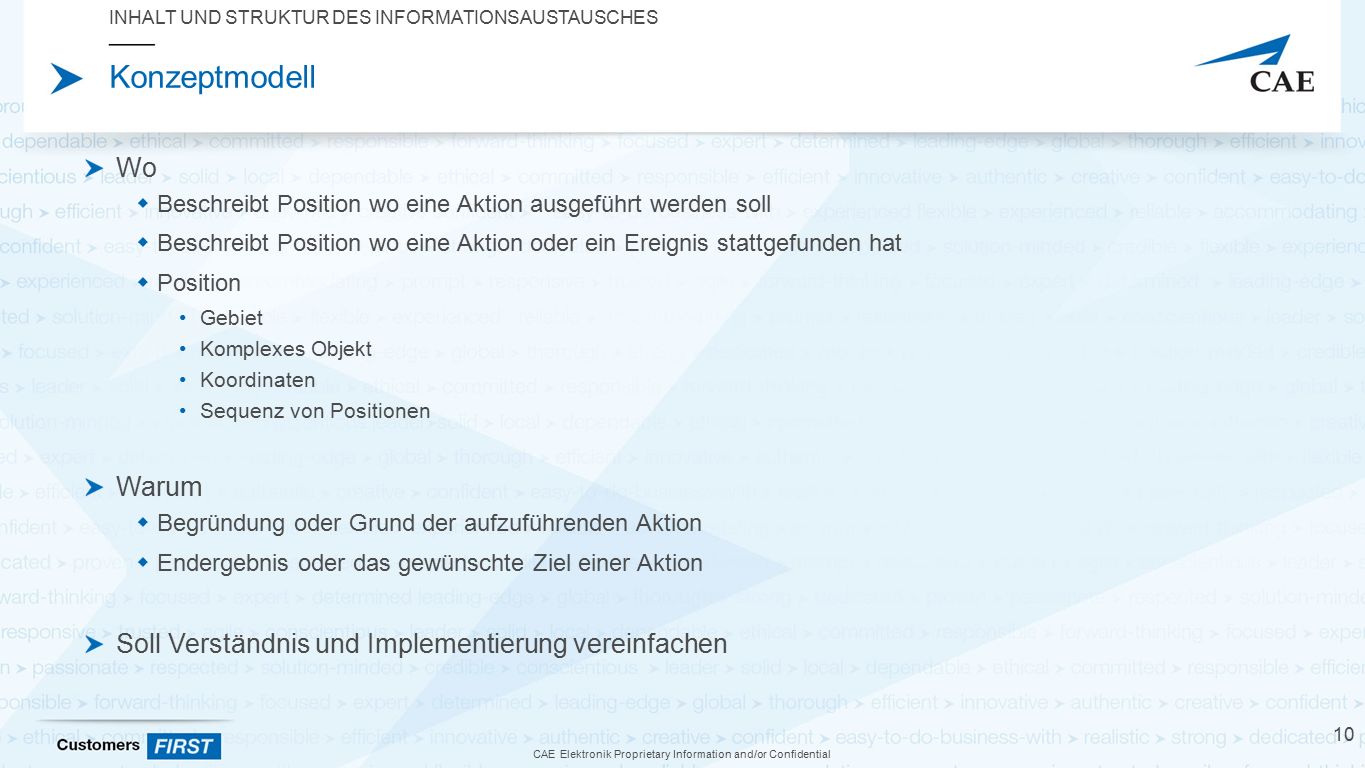

CAE Elektronik Proprietary Information and/or Confidential Konzeptmodell Wo Beschreibt Position wo eine Aktion ausgeführt werden soll Beschreibt Position wo eine Aktion oder ein Ereignis stattgefunden hat Position Gebiet Komplexes Objekt Koordinaten Sequenz von Positionen Warum Begründung oder Grund der aufzuführenden Aktion Endergebnis oder das gewünschte Ziel einer Aktion Soll Verständnis und Implementierung vereinfachen INHALT UND STRUKTUR DES INFORMATIONSAUSTAUSCHES 10
11
CAE Elektronik Proprietary Information and/or Confidential GRAMMATIK 11
12
CAE Elektronik Proprietary Information and/or Confidential Grammatik Darstellung von C-BML Äußerungen Wird in Phase 2 standardisiert GRAMMATIK 12
13
CAE Elektronik Proprietary Information and/or Confidential Tasking-Grammar Grammatikregel: Verb Tasker Taskee (Affected | Action) Where Start-When (End-When) (Why) Label (Mod)* GRAMMATIK 13 Beispiel: March MND-West(SP) M_BDE13(NL) to ControlPoint2 start at Phase1A label_3_11 Dient als Grundgerüst für Reporting-Grammar Erteilen von Befehlen Wer Was Wann Wo Warum
14

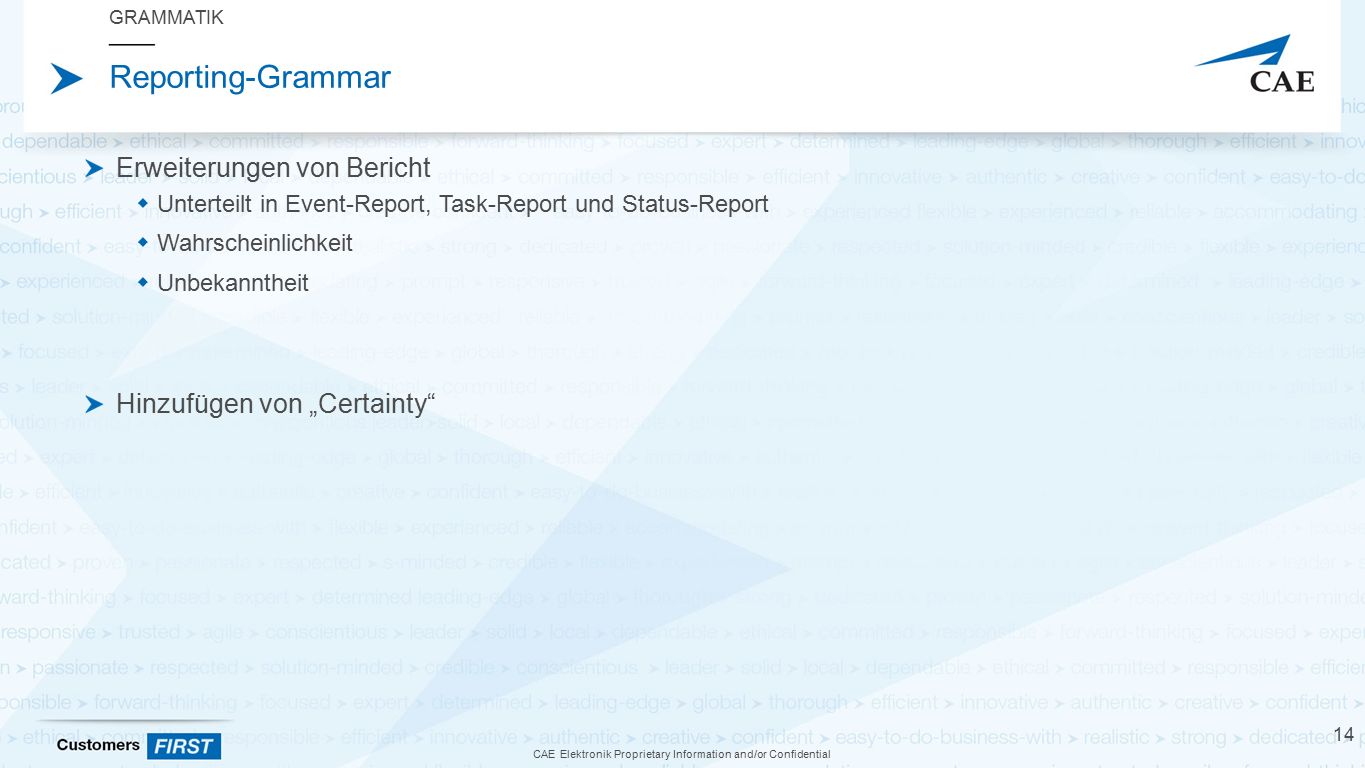

CAE Elektronik Proprietary Information and/or Confidential Reporting-Grammar Erweiterungen von Bericht Unterteilt in Event-Report, Task-Report und Status-Report Wahrscheinlichkeit Unbekanntheit Hinzufügen von „Certainty“ GRAMMATIK 14
15
CAE Elektronik Proprietary Information and/or Confidential Event-Report Ereignisse die nicht von Menschen organisiert worden sind GRAMMATIK 15 Grammatikregel: EVerb (Affected | Action) Where When Certainty Label (Mod)* Beispiel: Flood at ControlPoint2 at now fact label-er-1 Wer Was Wann Wo Warum
16
CAE Elektronik Proprietary Information and/or Confidential Task-Report Beschreibt eine Tätigkeit der eigenen oder einer weiteren Einheit GRAMMATIK 16 Grammatikregel: Verb Executer (Affected | Action) Where When (Why) Certainty Label (Mod)* Beispiel: Ambush team hostile sniper label-en-1 PTL at ControlPoint3 at now fact label-tr-1 Executer Theme (Label) Hauptausrüstung Einheitstyp Name Count Hostility Equipment_type Size Hostility Unit_type Taskee Agent (Label) Wer Was Wann Wo Warum
17
CAE Elektronik Proprietary Information and/or Confidential Status-Report Informationen bezüglich Einheiten oder Materials GRAMMATIK 17 Grammatikregel: Hostility Regarding (Identification Status- Value) Where When Certainty Label (Mod)* Beispiel: Own status-material 2 Dingo immobilized at ControlPoint3 at now fact label-sr-1 Wer Was Wann Wo Warum
18
CAE Elektronik Proprietary Information and/or Confidential INHALT UND STRUKTUR DES INFORMATIONSAUSTAUSCHES 18
19
CAE Elektronik Proprietary Information and/or Confidential Inhalt und Struktur des Informationsaustausches Verwenden von XML-Schema Definiert Struktur und Inhalt von XML-Dokumenten Unterteil in 2 Namespaces jc3iedm cbml COALITION BATTLE MANAGEMENT LANGUAGE 19
20
CAE Elektronik Proprietary Information and/or Confidential Inhalt und Struktur des Informationsaustausches Namespace: jc3iedm Schnittstelle zwischen C-BML und JC3IEDM Beschreibt Verwendbare Enumerationen für C-BML Definiert einfache Datentypen Namespace: cbml Grundlage für Austausch von C-BML Äußerungen COALITION BATTLE MANAGEMENT LANGUAGE 20
21

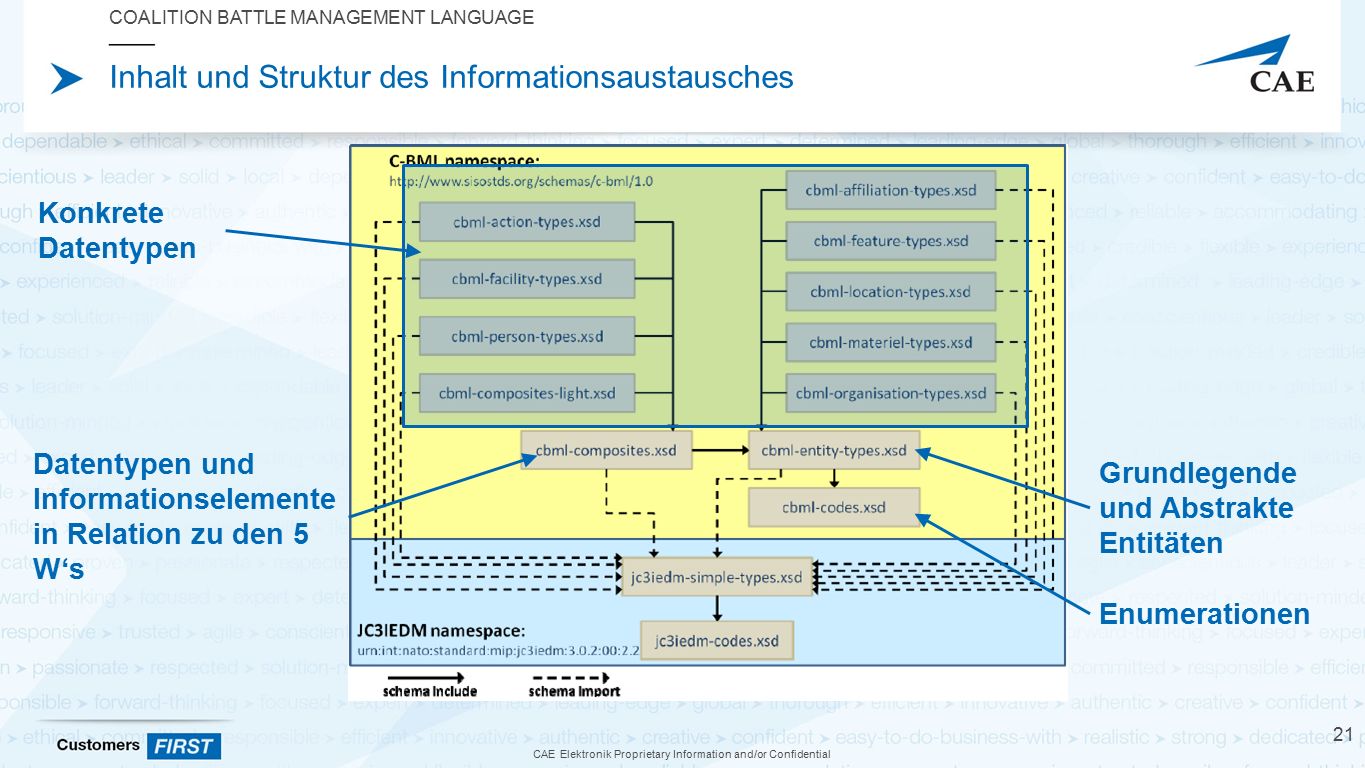

CAE Elektronik Proprietary Information and/or Confidential Inhalt und Struktur des Informationsaustausches COALITION BATTLE MANAGEMENT LANGUAGE 21 Enumerationen Grundlegende und Abstrakte Entitäten Datentypen und Informationselemente in Relation zu den 5 W‘s Konkrete Datentypen
22
CAE Elektronik Proprietary Information and/or Confidential FAZIT 22
23

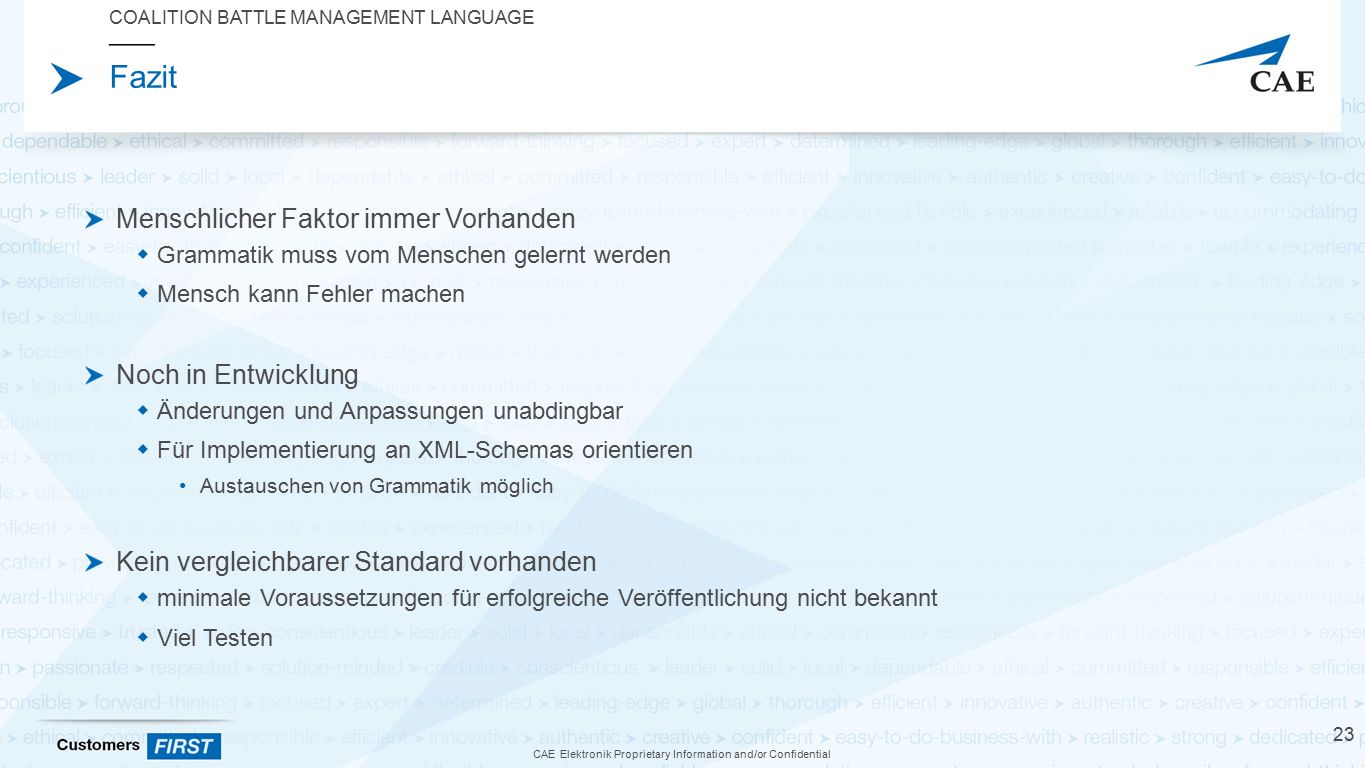

CAE Elektronik Proprietary Information and/or Confidential Fazit Menschlicher Faktor immer Vorhanden Grammatik muss vom Menschen gelernt werden Mensch kann Fehler machen Noch in Entwicklung Änderungen und Anpassungen unabdingbar Für Implementierung an XML-Schemas orientieren Austauschen von Grammatik möglich Kein vergleichbarer Standard vorhanden minimale Voraussetzungen für erfolgreiche Veröffentlichung nicht bekannt Viel Testen COALITION BATTLE MANAGEMENT LANGUAGE 23
24
CAE Elektronik Proprietary Information and/or Confidential Quellen NATO Science Technology Organization (Hrsg.): Coalition Battle Management Language (C-BML). NATO Science Technology Organization, Februar 2012 Ruiz, Jose ; Desert, David ; Hubervic, Antony ; Guillou, Patrice ; Jansen, Roger ; Reus, Nico de ; Henderson, Henk ; Fauske, Kjell M. ; Olsson, Lennart: BML and MSDL for multi-level simulations Schade, Dr. U. ; Frey, Dr. M.: Battle Management Language Bundeswehr (BML Bw) Generelle Anmerkungen/ Informationen zum BML GUI / FGAN-FKIE. 2007. – Forschungsbericht Schade, Dr. U. ; Hieb, Dr. M.: Battle Management Language: A Grammar for Specifying Reports / Simulation Interoperability Standards Organization. 2007. – Paper 07-SIW-036 Simulation Interoperability Standards Organization (Hrsg.): Coalition BML Study Group Final Report. SISO-REF-016-2006-V1.0. Simulation Interoperability Standards Organization, Juli 2003 Simulation Interoperability Standards Organization (Hrsg.): Standard for Coalition Battle Management Language (CBML) Phase 1. Version 1.0. Simulation Interoperability Standards Organization, October 2013 COALITION BATTLE MANAGEMENT LANGUAGE 24
25
CAE Elektronik Proprietary Information and/or Confidential Fragen ? COALITION BATTLE MANAGMENT LANGUAGE 25
26
CAE Elektronik Proprietary Information and/or Confidential THANK YOU 26
