Praktikum: Zeitabhängiger Mehrwegkanal Effekte erfahren durch Simulation
2

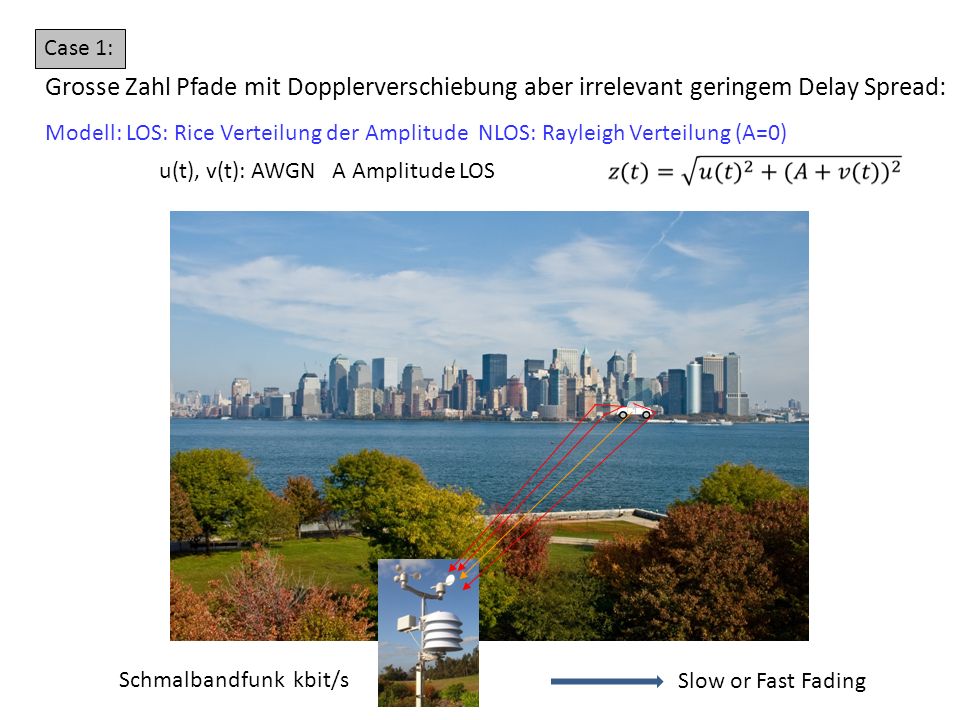

Grosse Zahl Pfade mit Dopplerverschiebung aber irrelevant geringem Delay Spread: Modell: LOS: Rice Verteilung der Amplitude NLOS: Rayleigh Verteilung (A=0) Slow or Fast Fading u(t), v(t): AWGN A Amplitude LOS Schmalbandfunk kbit/s Case 1:
3
Anzahl Pfade mit Delay Spread aber irrelevant kleinen Dopplerverschiebungen Tapped Delay Line Modell Flat or Frequency-Selective Fading Τ_i Delay, a_i Amplitude Breitbandfunk Mbit/s Case 2:
4
4 Wirkung Doppler (Bewegung) und Delay (Mehrweg) Doppler Shift Sum of both t f Delay e -j t m(t)cos( t) m(t)cos( t) + m(t)cos(( + d )t) == Zeros: f 0 = k/2 , k odd Sum of both t f H, H h f H fdfd t h =0 f H, =0
5
Symboldauer: Slow Fast Fading f m = max. Doppler T symbol < T c Slow Fading T symbol > T c Fast Fading Channel x Wichtig für die AGC (Pegelregelung) Dauer für 1 Symbol: Mass der Dinge: Kohärenzzeit T c Slow Fast Frequency Time
6
Symbol x Time Frequency Time Symbol x Frequency Symbolbandbreite: Flat Frequency-Selective Fading Flat Frequency-Selective B symbol < B c Flat B symbol > B c Selective Bandbreite für 1 Symbol: Wichtig für die Symbol Detektion
