1 MPEG-4 3D Inhalterstellung am Beispiel eines 3D-Benutzerhandbuchs für Kfz
FV/SLM-Benzler

2 „Tool Chain“ for Content Creation Demonstration
Overview Introduction MPEG-4 Systems BIFS „Tool Chain“ for Content Creation Demonstration FV/SLM-Benzler

3 2.Application demonstration in an automotive environment

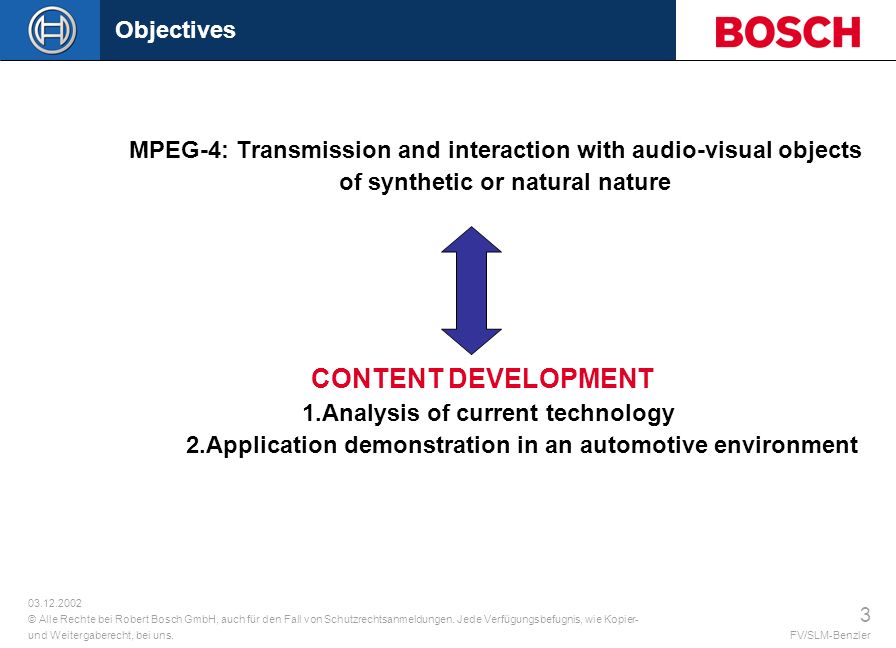

Objectives MPEG-4: Transmission and interaction with audio-visual objects of synthetic or natural nature CONTENT DEVELOPMENT 1.Analysis of current technology 2.Application demonstration in an automotive environment FV/SLM-Benzler

4 BIFS (BINARY FORMAT FOR SCENES): Scene Description
MPEG-4 Systems OBJECT COMPOSITION TECHNOLOGY: Description of relationship between A/V Objects that constitute a scene BIFS (BINARY FORMAT FOR SCENES): Scene Description Attributes of media objects (A/V properties) Structure of scene graph Pre-defined spatio-temporal changes Triggered spatio-temporal changes OD´s (OBJECT DESCRIPTORS): relationship between the Elementary Streams pertinent to each object FV/SLM-Benzler

5 MPEG-4 Systems Scene Description: BIFS (Binary Format for Scenes)
MPEG-4 Scene BIFS Scene graph FV/SLM-Benzler

6 BIFS (Binary Format for Scenes)
Scene objects and spatio-temporal relationships Pre-defined set of 2D and 3D primitives nodes and fields Natural and synthetic audio-visual objects and their attributes The BIFS-Anim protocol: stream animations of node parameters. Animation of the content; Interactive behavior of individual objects by linking event source fields to event sink fields between different nodes. The BIFS-Command protocol: stream scene change insert scene replace nodes delete fields FV/SLM-Benzler

7 BIFS TEXT TO MPEG-4 FORMAT MP4 Format: MP4Tool
M4P Format: M4PGen and BifsEnc MPEG-4 Browser BT Format: Scene Descr. Initial OD OD´s MP4 Tool MP4 BIFS Text Scene Descr. BifsEnc HHI Player BIF M4PGen M4P SCR File: Initial OD OD´s FV/SLM-Benzler

8 Description of the „Tool Chain“ used for MPEG-4 3-D Content Creation
FV/SLM-Benzler

9 OBJECT/ANIMATION/TEXTURE
Tool Chain VRML EDIT TEXT EDITOR 3D to VRML 3D modeller VRML 3D MODELLING VRML/MPEG-4 COMMON NODES 3D Nodes and BIFS-Anim OBJECT/ANIMATION/TEXTURE COORDINATES Browser BIF VRML2BIFS BIFS text HHI Player M4P M4PGen SCR MPEG-4 NODES TEXT EDITOR BIFS EDIT BIFS text BIFS-Com MP4Tool MP4 MPEG-4 Browser BIFS text SCR BIFS text SCR 2D Nodes 2D Authoring Tool M4PGen BifsEnc M4P BIF HHI Player FV/SLM-Benzler

10 Combination of 2D and 3D primitives BIFS-Anim
Demonstration No javascript Combination of 2D and 3D primitives BIFS-Anim BIFS-Commands in Conditional nodes and Update frames Limitations: Not all nodes implemented in Browsers Time-stamping on cascade of REPLACE ROUTE commands Display and semantic differences between Browsers 2D Authoring Tool: pixelMetrics Mp4Tool: limited node ID´s FV/SLM-Benzler

11 MPEG-4 3D Inhalterstellung am Beispiel eines 3D-Benutzerhandbuchs für Kfz
