Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 1 Vorlesung 6+7 Roter Faden: 1.Cosmic Microwave Background radiation (CMB) 2.Akustische Peaks 3.Universum.

Ähnliche Präsentationen

Präsentation zum Thema: "Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 1 Vorlesung 6+7 Roter Faden: 1.Cosmic Microwave Background radiation (CMB) 2.Akustische Peaks 3.Universum."—  Präsentation transkript:


2 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 1 Vorlesung 6+7 Roter Faden: 1.Cosmic Microwave Background radiation (CMB) 2.Akustische Peaks 3.Universum ist flach 4.Baryonic Acoustic Oscillations (BAO) 5.Energieinhalt des Universums

3 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 2 Zum Mitnehmen Temperaturentwicklung im frühen Universum: T = (3c 2 /8 aG) 1/4 1/ t = 1,5 10 10 K (1s/t) = 1,3 MeV (1s/t) Nach der Rekombination der Protonen und Elektronen zu neutralem Wasserstoff wird das Universum transparent für Photonen und absolut dunkel bis nach 200 Myr Sterne entstehen (dark ages) Die nach der Rekombination frei entweichende Photonen sind heute noch beobachtbar als kosmische Hintergrundstrahlung mit einer Temperatur von 2.7 K Es gilt: T 1/S für Strahlung und relativ. Materie (E>10mc 2 ) 1/S 1+z (gilt immer) T 1/ t (wenn Strahlung und relat. Materie dominiert, gilt nicht heute, denn zusätzliche Exp. durch Vakuumenergie) Hiermit zu jedem Zeitpunkt Energie oder Temperatur mit Dreisatz im frühen Universum zu berechnen, wenn man weiß: zum Zeitpunkt der Rekombination: (Trec=3000 K) = 380.000 yr =(z=1100)

4 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 3 Nach Stefan-Boltzmann: Str T 4 Es gilt auch: Str N E 1/S 4 Daher gilt für die Temperatur des Strahlung: T 1/S Hiermit kann man die Fríedmann Gl. umschreiben als Funkt. von T! Es gilt: dT d(1/S) oder S/S -T/T und 1/S 2 T 2 Im strahlungsdominierten Universum kann man schreiben: (S/S) 2 = (T/T) 2 = 8 GaT 4 /3c 2 ( Str =aT 4 >> m und k/S 2 und ) Lösung dieser DG: T = (3c 2 /8 aG) 1/4 1/ t = 1,5 10 10 K (1s/t) = 1,3 MeV (1s/t) In Klartext: 1 s nach dem Urknall ist die Temperatur gefallen von der Planck Temperatur von 10 19 GeV auf 10 -3 GeV Temperaturentwicklung des Universums Entkoppelung der CMB bei T= 0,3 eV = 3000 K oder t = 3.10 5 yr oder z = S 0 /S = T/T 0 = 3000 / 2.7 = 1100

5 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 4 Nach Rekombination FREE STREAMING der Photonen

6 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 5 Last Scattering Surface (LSS)

7 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 6 The oval shapes show a spherical surface, as in a global map. The whole sky can be thought of as the inside of a sphere. Patches in the brightness are about 1 part in 100,000 = a bacterium on a bowling ball = 60 meter waves on the surface of the Earth.

8 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 7 Temperatur-Fluktuationen = Dichtefluktuationen WMAP vs COBE 45 times sensitivity WMAP ΔT/T 200uK/2.7K

9 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 8 The Universe is approximately about 13.7 billion years old, according to the standard cosmological Big Bang model. At this time, it was a state of high uniformity, was extremely hot and dense was filled with elementary particles and was expanding very rapidly. About 380,000 years after the Big Bang, the energy of the photons had decreased and was not sufficient to ionise hydrogen atoms. Thereafter the photons decoupled from the other particles and could move through the Universe essentially unimpeded. The Universe has expanded and cooled ever since, leaving behind a remnant of its hot past, the Cosmic Microwave Background radiation (CMB). We observe this today as a 2.7 K thermal blackbody radiation filling the entire Universe. Observations of the CMB give a unique and detailed information about the early Universe, thereby promoting cosmology to a precision science. Indeed, as will be discussed in more detail below, the CMB is probably the best recorded blackbody spectrum that exists. Removing a dipole anisotropy, most probably due our motion through the Universe, the CMB is isotropic to about one part in 100,000. The 2006 Nobel Prize in physics highlights detailed observations of the CMB performed with the COBE (COsmic Background Explorer) satellite. Cosmology and the Cosmic Microwave Background From Nobel prize 2006 announcement

10 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 9 The discovery of the cosmic microwave background radiation has an unusual and interesting history. The basic theories as well as the necessary experimental techniques were available long before the experimental discovery in 1964. The theory of an expanding Universe was first given by Friedmann (1922) and Lemaître (1927). An excellent account is given by Nobel laureate Steven Weinberg (1993). Around 1960, a few years before the discovery, two scenarios for the Universe were discussed. Was it expanding according to the Big Bang model, or was it in a steady state? Both models had their supporters and among the scientists advocating the latter were Hannes Alfvén (Nobel prize in physics 1970), Fred Hoyle and Dennis Sciama. If the Big Bang model was the correct one, an imprint of the radiation dominated early Universe must still exist, and several groups were looking for it. This radiation must be thermal, i.e. of blackbody form, and isotropic. Early work From Nobel prize 2006 announcement

11 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 10 The discovery of the cosmic microwave background by Penzias and Wilson in 1964 (Penzias and Wilson 1965, Penzias 1979, Wilson 1979, Dicke et al. 1965) came as a complete surprise to them while they were trying to understand the source of unexpected noise in their radio-receiver (they shared the 1978 Nobel prize in physics for the discovery). The radiation produced unexpected noise in their radio receivers. Some 16 years earlier Alpher, Gamow and Herman (Alpher and Herman 1949, Gamow 1946), had predicted that there should be a relic radiation field penetrating the Universe. It had been shown already in 1934 by Tolman (Tolman 1934) that the cooling blackbody radiation in an expanding Universe retains its blackbody form. It seems that neither Alpher, Gamow nor Herman succeeded in convincing experimentalists to use the characteristic blackbody form of the radiation to find it. In 1964, however, Doroshkevich and Novikov (Doroshkevich and Novikov 1964) published an article where they explicitly suggested a search for the radiation focusing on its blackbody characteristics. One can note that some measurements as early as 1940 had found that a radiation field was necessary to explain energy level transitions in interstellar molecules (McKellar 1941). Following the 1964 discovery of the CMB, many, but not all, of the steady state proponents gave up, accepting the hot Big Bang model. The early theoretical work is discussed by Alpher, Herman and Gamow 1967, Penzias 1979, Wilkinson and Peebles 1983, Weinberg 1993, and Herman 1997. First observations of CMB CN=Cyan

12 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 11 Following the 1964 discovery, several independent measurements of the radiation were made by Wilkinson and others, using mostly balloon-borne, rocket-borne or ground based instruments. The intensity of the radiation has its maximum for a wavelength of about 2 mm where the absorption in the atmosphere is strong. Although most results gave support to the blackbody form, few measurements were available on the high frequency (low wavelength) side of the peak. Some measurements gave results that showed significant deviations from the blackbody form (Matsumoto et al. 1988). The CMB was expected to be largely isotropic. However, in order to explain the large scale structures in the form of galaxies and clusters of galaxies observed today, small anisotropies should exist. Gravitation can make small density fluctuations that are present in the early Universe grow and make galaxy formation possible. A very important and detailed general relativistic calculation by Sachs and Wolfe showed how three-dimensional density fluctuations can give rise to two-dimensional large angle (> 1°) temperature anisotropies in the cosmic microwave background radiation (Sachs and Wolfe 1967). Further observations of CMB

13 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 12 Because the earth moves relative to the CMB, a dipole temperature anisotropy of the level of ΔT/T = 10 -3 is expected. This was observed in the 1970s (Conklin 1969, Henry 1971, Corey and Wilkinson 1976 and Smoot, Gorenstein and Muller 1977). During the 1970-tis tehe anisotropies were expected to be of the order of 10 -2 – 10 -4, but were not observed experimentally. When dark matter was taken into account in the 1980-ties, the predicted level of the fluctuations was lowered to about 10 -5, thereby posing a great experimental challenge. Dipol Anisotropy Explanation: two effects compensate the temperature anisotropies: DM dominates the gravitational potential after str << m so hot spots in the grav. potential wells of DM have a higher temperature, but photons climbing out of the potential well get such a strong red shift that they are COLDER than the average temperature!

14 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 13 Because of e.g. atmospheric absorption, it was long realized that measurements of the high frequency part of the CMB spectrum (wavelengths shorter than about 1 mm) should be performed from space. A satellite instrument also gives full sky coverage and a long observation time. The latter point is important for reducing systematic errors in the radiation measurements. A detailed account of measurements of the CMB is given in a review by Weiss (1980). The COBE story begins in 1974 when NASA made an announcement of opportunity for small experiments in astronomy. Following lengthy discussions with NASA Headquarters the COBE project was born and finally, on 18 November 1989, the COBE satellite was successfully launched into orbit. More than 1,000 scientists, engineers and administrators were involved in the mission. COBE carried three instruments covering the wavelength range 1 μm to 1 cm to measure the anisotropy and spectrum of the CMB as well as the diffuse infrared background radiation: DIRBE (Diffuse InfraRed Background Experiment), DMR (Differential Microwave Radiometer) and FIRAS (Far InfraRed Absolute Spectrophotometer). COBEs mission was to measure the CMB over the entire sky, which was possible with the chosen satellite orbit. All previous measurements from ground were done with limited sky coverage. John Mather was the COBE Principal Investigator and the project leader from the start. He was also responsible for the FIRAS instrument. George Smoot was the DMR principal investigator and Mike Hauser was the DIRBE principal investigator. The COBE mission

15 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 14 For DMR the objective was to search for anisotropies at three wavelengths, 3 mm, 6 mm, and 10 mm in the CMB with an angular resolution of about 7°. The anisotropies postulated to explain the large scale structures in the Universe should be present between regions covering large angles. For FIRAS the objective was to measure the spectral distribution of the CMB in the range 0.1 – 10 mm and compare it with the blackbody form expected in the Big Bang model, which is different from, e.g., the forms expected from starlight or bremsstrahlung. For DIRBE, the objective was to measure the infrared background radiation. The mission, spacecraft and instruments are described in detail by Boggess et al. 1992. Figures 1 and 2 show the COBE orbit and the satellite, respectively. The COBE mission

16 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 15 COBE was a success. All instruments worked very well and the results, in particular those from DMR and FIRAS, contributed significantly to make cosmology a precision science. Predictions of the Big Bang model were confirmed: temperature fluctuations of the order of 10 -5 were found and the background radiation with a temperature of 2.725 K followed very precisely a blackbody spectrum. DIRBE made important observations of the infrared background. The announcement of the discovery of the anisotropies was met with great enthusiasm worldwide. The COBE success

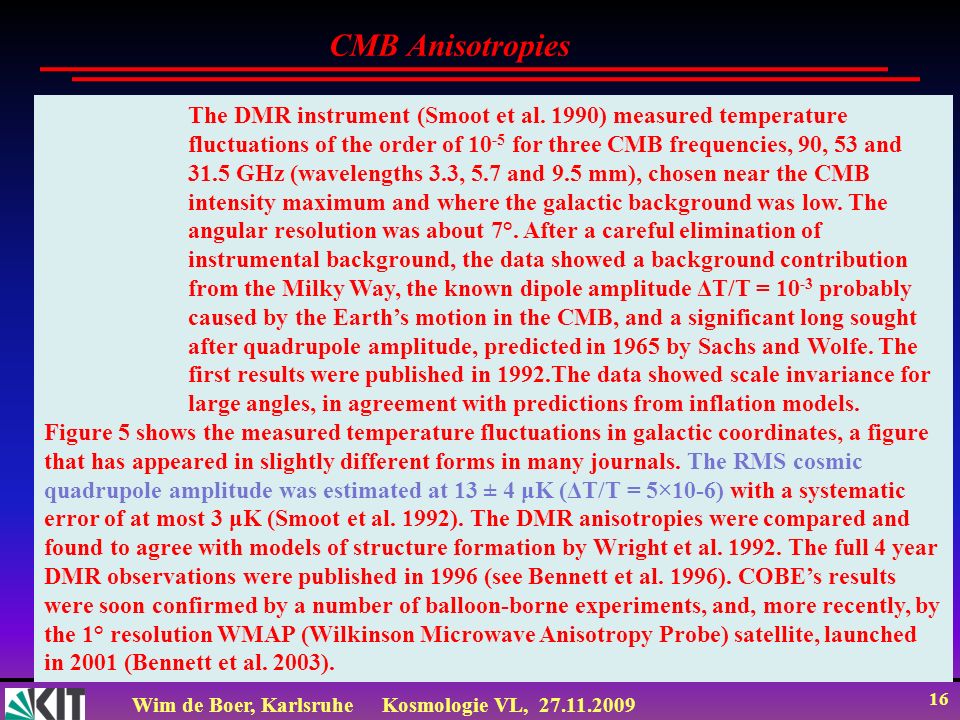

17 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 16 The DMR instrument (Smoot et al. 1990) measured temperature fluctuations of the order of 10 -5 for three CMB frequencies, 90, 53 and 31.5 GHz (wavelengths 3.3, 5.7 and 9.5 mm), chosen near the CMB intensity maximum and where the galactic background was low. The angular resolution was about 7°. After a careful elimination of instrumental background, the data showed a background contribution from the Milky Way, the known dipole amplitude ΔT/T = 10 -3 probably caused by the Earths motion in the CMB, and a significant long sought after quadrupole amplitude, predicted in 1965 by Sachs and Wolfe. The first results were published in 1992.The data showed scale invariance for large angles, in agreement with predictions from inflation models. Figure 5 shows the measured temperature fluctuations in galactic coordinates, a figure that has appeared in slightly different forms in many journals. The RMS cosmic quadrupole amplitude was estimated at 13 ± 4 μK (ΔT/T = 5×10-6) with a systematic error of at most 3 μK (Smoot et al. 1992). The DMR anisotropies were compared and found to agree with models of structure formation by Wright et al. 1992. The full 4 year DMR observations were published in 1996 (see Bennett et al. 1996). COBEs results were soon confirmed by a number of balloon-borne experiments, and, more recently, by the 1° resolution WMAP (Wilkinson Microwave Anisotropy Probe) satellite, launched in 2001 (Bennett et al. 2003). CMB Anisotropies

18 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 17 The 1964 discovery of the cosmic microwave background had a large impact on cosmology. The COBE results of 1992, giving strong support to the Big Bang model, gave a much more detailed view, and cosmology turned into a precision science. New ambitious experiments were started and the rate of publishing papers increased by an order of magnitude. Our understanding of the evolution of the Universe rests on a number of observations, including (before COBE) the darkness of the night sky, the dominance of hydrogen and helium over heavier elements, the Hubble expansion and the existence of the CMB. COBEs observation of the blackbody form of the CMB and the associated small temperature fluctuations gave very strong support to the Big Bang model in proving the cosmological origin of the CMB and finding the primordial seeds of the large structures observed today. However, while the basic notion of an expanding Universe is well established, fundamental questions remain, especially about very early times, where a nearly exponential expansion, inflation, is proposed. This elegantly explains many cosmological questions. However, there are other competing theories. Inflation may have generated gravitational waves that in some cases could be detected indirectly by measuring the CMB polarization. Figure 8 shows the different stages in the evolution of the Universe according to the standard cosmological model. The first stages after the Big Bang are still speculations. Outlook

19 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 18 The young Universe was fantastically bright. Why? Because everywhere it was hot, and hot things glow brightly. Before we learned why this was: collisions between charged particles create photons of light. As long as the particles and photons can thoroughly interact then a thermal spectrum is produced: a broad range with a peak. The thermal spectrums shape depends only on temperature: Hotter objects appear bluer: the peak shifts to shorter wavelengths, with: pk = 0.0029/TK m = 2.9 10 6 /T nm. At 10,000K we have peak = 290 nm (blue), while at 3000K we have peak = 1000 nm (deep orange/red). Lets now follow through the color of the Universe during its first million years. As the Universe cools, the thermal spectrum shifts from blue to red, spending ~80,000 years in each rainbow color. At 50 kyr, the sky is blue! At 120 kyr its green; at 400 kyr its orange; and by 1 Myr its crimson. This is a wonderful quality of the young Universe: it paints its sky with a human palette. Quantitatively: since peak ~ 3 10 6 /T nm, and T ~ 3/S K, then peak ~ 10 6 / S nm. Notice that today, S = 1 and so peak = 10 6 nm = 1 mm, which is, of course, the peak of the CMB microwave spectrum. The colour of the universe

20 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 19 Hotter objects appear brighter. There are two reasons for this: More violent particle collisions make more energetic photons. Converting pk ~ 0.003/T m to the equivalent energy units, it turns out that in a thermal spectrum, the average photon energy is ~ kT. So, for systems in thermal equilibrium, the mean energy per particle or per photon is ~kT. Faster particles collide more frequently, so make more photons. In fact the number density of photons, nph T 3. Combining these, we find that the intensity of thermal radiation increases dramatically with temperature Itot = 2.2 10 -7 T 4 Watt /m 2 inside a gas at temperature T. At high temperatures, thermal radiation has awesome power – the multitude of particle collisions is incredibly efficient at creating photons. To help feel this, consider the light falling on you from a noontime sun – 1400 Watt/m 2 – enough to feel sunburned quite quickly. Lets write this as Isun. Float in outer space, exposed only to the CMB, and you experience a radiation field of I 3K = 2.2 10 -7 2.7 4 = 10 W/m 2 = 10 -8 Isun – not much! Here on Earth at 300K we have I 300K ~ 1.8 kW/m 2 (fortunately, our body temperature is 309K so you radiate 2.0 kW/m 2, and dont quickly boil!). A blast furnace at 1500 C (~1800K) has I 1800K = 2.3 MW/m 2 = 1600 Isun (you boil away in ~1 minute). At the time of the CMB (380 kyr), the radiation intensity was I 3000K = 17 MW/m 2 = 12,000 Isun – you evaporate in 10 seconds. In the Suns atmosphere, we have I 5800K = 250 MW/m 2 = 210,000 Isun. Thats a major citys power usage, falling on each square meter. Radiation in the Suns 14 million K core has: I = 8 10 21 W/m 2 ~ 10 19 Isun (you boil away in much less than a nano-second). Light Intensity

21 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 20 Warum ist die CMB so wichtig in der Kosmologie? a)Die CMB beweist, dass das Universum früher heiß war und das die Temperaturentwicklung verstanden ist b) Alle Wellenlängen ab einer bestimmten Länge (=oberhalb den akustischen Wellenlängen) kommen alle gleich stark vor, wie von der Inflation vorhergesagt. c) Kleine Wellenlängen (akustische Wellen) zeigen ein sehr spezifisches Leistungsspektrum der akustischen Wellen im frühen Universum, woraus man schließen kann, dass das Universum FLACH ist und die baryonische Dichte nur 4-5% der Gesamtdichte ausmacht.

22 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 21 Lösung: Druck gering: δ=ae bt, d.h. exponentielle Zunahme von δ (->Gravitationskollaps) Druck groß: δ=ae ibt, d.h. Oszillation von δ (akustische Welle) Definiere: δ=Δρ/ρ Newton: F=ma δ``+ (Druck-Gravitation) δ=0 Warum akustische Wellen im frühen Universum? FGFG P F=ma Rücktreibende Kraft: Gravitation Antreibende Kraft: Photonendruck

23 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 22 Photonen, Elektronen, Baryonen wegen der starken Kopplung wie eine Flüssigkeit behandelt ρ, v, p Dunkle Materie dominiert das durch die Dichtefluktuationen hervorgerufene Gravitationspotential Φ δρ/δt+ (ρv)=0 (Kontinuitätsgleichung = Masse-Erhaltung)) v+(v )v = - (Φ+p/ρ) (Euler Gleichung = Impulserhaltung) ² Φ = 4πGρ (Poissongleichung =klassische Gravitation) erst nach Überholen durch den akustischen Horizont H s = c s H -1, (c s = Schallgeschwindigkeit) können die ersten beiden Gleichungen verwendet werden Lösung kann numerisch oder mit Vereinfachungen analytisch bestimmt werden und entspricht grob einem gedämpftem harmonischen Oszillator mit einer antreibenden Kraft Mathematisches Modell Tiefe des Potentialtopfs be- stimmt durch dunkle Materie

24 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 23 T / T Entwicklung der Dichtefluktuationen im Universum Man kann die Dichtefluktuationen im frühen Univ. als Temp.-Fluktuationen der CMB beobachten!

25 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 24 c) it then falls back in again to make a second compression rarefaction compression dim bright a)gas falls into valleys, gets compressed, & glows brighter rarefaction compression dim bright b) it overshoots, then rebounds out, is rarefied, & gets dimmer the oscillation continues sound waves are created the oscillation continues sound waves are created Gravity drives the growth of sound in the early Universe. The gas must also feel pressure, so it rebounds out of the valleys. We see the bright/dim regions as patchiness on the CMB. The first sound waves

26 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 25 Akustische Wellen im frühen Universum Überdichten am Anfang: Inflation

27 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 26 http://astron.berkeley.edu/~mwhite/sciam03_short.pdf Druck der akust. Welle und Gravitation verstärken die Temperaturschwankungen in der Grundwelle (im ersten Peak)

28 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 27 Druck der akust. Welle und Gravitation wirken gegeneinander in der Oberwelle ( im zweiten Peak)

29 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 28 Mark Whittle University of Virginia Viele Plots und sounds von Whittles Webseite http://www.astro.virginia.edu/~dmw8f See also: full presentation

30 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 29 Akustische Wellen im frühen Universum Überdichten am Anfang: Inflation Bь Clarinet Modern Flute piano range Joe Wolfe (UNSW) Flute power spectra

31 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 30 Lineweaver 1997 peak trough Sky Maps Power Spectra We see the CMB sound as waves on the sky. Use special methods to measure the strength of each wavelength. Shorter wavelengths are smaller frequencies are higher pitches

32 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 31 many waves of different sizes, directions & phases all superimposed Sound waves : red/blue = high/low gas & light pressure Water waves : high/low level of water surface Sound waves in the sky This slide illustrates the situation. Imagine looking down on the ocean from a plane and seeing far below, surface waves. The patches on the microwave background are peaks and troughs of distant sound waves.

33 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 32 This distribution has a lot of long wavelength power and a little short wavelength power Power (Leistung) pro Wellenlänge)

34 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 33 silentSurely, the vacuum of space must be silent ? Not for the young Universe: Shortly after the big bang ( eg @ CMB: 380,000 yrs ) spread out evenlyall matter is spread out evenly (no stars or galaxies yet) smallerUniverse is smaller everything closer together (by ×1000) density is much higherthe density is much higher (by ×10 9 = a billion) 7 trillion photons & 7000 protons/electrons per cubic inch all at 5400ºF with pressure 10 -7 (ten millionth) Earths atm. There is a hot thin atmosphere for sound waves There is a hot thin atmosphere for sound waves unusual fluid intimate mix of gas & light sound waves propagate at ~50% speed of light Sound in space !?!

35 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 34 While the universe was still foggy, atomic matter was trapped by light's pressure and prevented from clumping up. In fact, this high-pressure gas of light and atomic matter responds to the pull of gravity like air responds in an organ pipe – it bounces in and out to make sound waves. This half-million year acoustic era is a truly remarkable and useful period of cosmic history. To understand it better, we'll discuss the sound's pitch, volume, and spectral form, and explain how these sound waves are visible as faint patches on the Cosmic Microwave Background. Perhaps most bizarre: analyzing the CMB patchiness reveals in the primordial sound a fundamental and harmonics – the young Universe behaves like a musical instrument! We will, of course, hear acoustic versions, suitably modified for human ears. Big Bang Akustik http://astsun.astro.virginia.edu/~dmw8f/teachco/

36 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 35 Since it is light which provides the pressure, the speed of pressure waves (sound) is incredibly fast: vs ~ 0.6c! This makes sense: the gas is incredibly lightweight compared to its pressure, so the pressure force moves the gas very easily. Equivalently, the photon speeds are, of course, c – hence vs ~ c. In summary: we have an extremely lightweight foggy gas of brilliant light and a trace of particles, all behaving as a single fluid with modest pressure and very high sound speed. With light dominating the pressure, the primordial sound waves can also be thought of as great surges in lights brilliance. After recombination, photons and particles decouple; the pressure drops by 10 -9 and sound ceases. The acoustic era only lasts 400 kyr, and is then over. Akustik Ära

37 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 36 A too-quick answer might be: of course theres sound, it was a big bang after all, and the explosion must have been very loud. This is completely wrong. The big bang was not an explosion into an atmosphere; it was an expansion of space itself. The Hubble law tells us that every point recedes from every other – there is no compression – no sound. Paradoxically, the big bang was totally silent! How, then, does sound get started? Later well learn that although the Universe was born silent, it was also born very slightly lumpy. On all scales, from tiny to gargantuan, there are slight variations in density, randomly scattered, everywhere – a 3D mottle of slight peaks and troughs in density. Well learn how this roughness grows over time, but for now just accept this framework. The most important component for generating sound is dark matter. Recall that after equality ( m = r at 57 kyr) dark matter dominates the density, so it determines the gravitational landscape. Where the sound comes from?

38 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 37 Everywhere, the photon-baryon gas feels the pull of dark matter. How does it respond? It begins to fall towards the over-dense regions, and away from the under-dense regions. Soon, however, its pressure is higher in the over-dense regions and this halts and reverses the motion; pushing the gas back out. This time it overshoots, only to turn around and fall back in again. The cycle repeats, and we have a sound wave! The situation resembles a spherical organ pipe: gas bounces in and out of a roughly spherical region. [One caveat: falling in and bouncing out of the regions is only relative to the overall expansion, which continues throughout the acoustic era.] Notice there is a quite different behavior between dark matter and the photon-baryon gas. Because the dark matter has no pressure (it interacts with nothing, not even itself), it is free to clump up under its own gravity. In contrast, the photon-baryon gas has pressure, which tries to keep it uniform (like air in a room). However, in the lumpy gravitational field of dark matter, it falls and bounces this way and that in a continuing oscillation. Where the sound comes from?

39 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 38 Consider listening to a concert on the radio: Bow+string microphone & amplifier & antenna ariel & amplifier speakers sound radio waves sound yourears Concert hall Listener few 100 miles few µsec delay gravity + hills/valleys sound wavesglow telescope computer speakers sound light sound yourears microwaves Big Bang Listener very long way ! 14 Gyr delay ! How does sound get to us ?

40 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 39 any Since looking in any direction looks back to the foggy wall all we see the wall in all directions. entire sky the entire sky glows with microwaves all around us the flash from the Big Bang is all around us! Near Far Now red-shift Then Big Bang Far Near Then red-shift Now Big Bang The Big Bang is all around us !

41 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 40 Akustische Peaks von WMAP

42 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 41 Lineweaver 2003 Frequency (in Hz) A 220 Hz CMB Sound Spectrum Click for sound acoustic non-acoustic

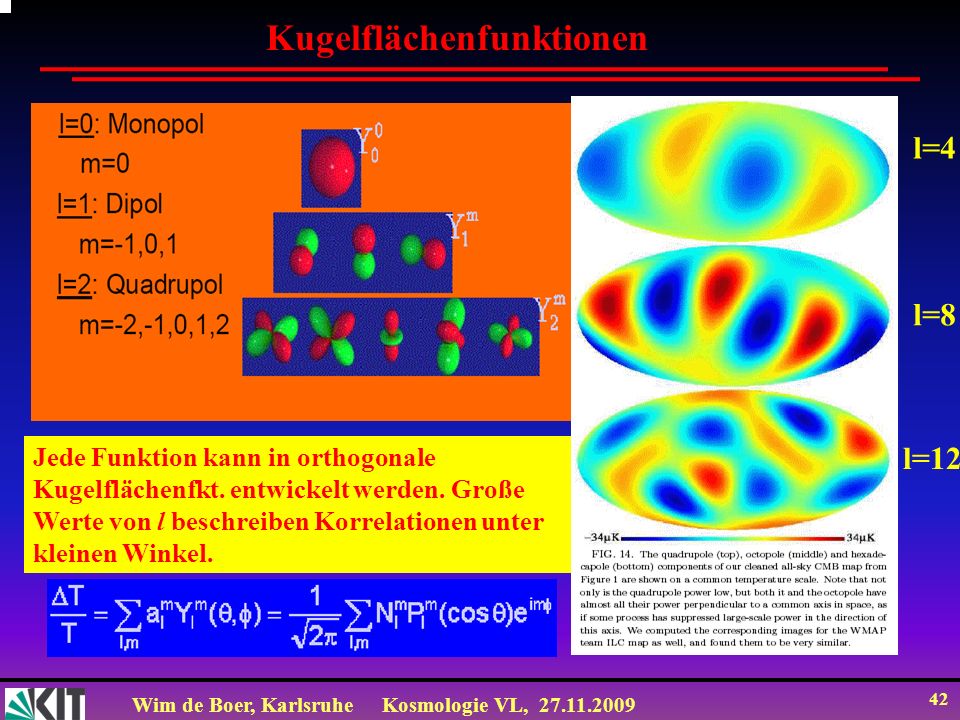

43 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 42 Kugelflächenfunktionen Jede Funktion kann in orthogonale Kugelflächenfkt. entwickelt werden. Große Werte von l beschreiben Korrelationen unter kleinen Winkel. l=4 l=8 l=12

44 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 43 Temperaturverteilung ist Funktion auf Sphäre: ΔT(θ,φ) bzw. ΔT(n) = ΔΘ(n) T T n=(sinθcosφ,sinθsinφ,cosθ) Autokorrelationsfunktion: C(θ)= | n 1 -n 2| =(4π) -1 Σ l=0 (2l+1)C l P l (cosθ) P l sind die Legendrepolynome: P l (cosθ) = 2 -l d l /d(cos θ) l (cos²θ-1) l. Die Koeffizienten C l bilden das Powerspektrum von ΔΘ(n). mit cosθ=n1n2 Vom Bild zum Powerspektrum

45 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 44 Das Leistungsspektrum (power spectrum) ω = vk = v 2 /λ

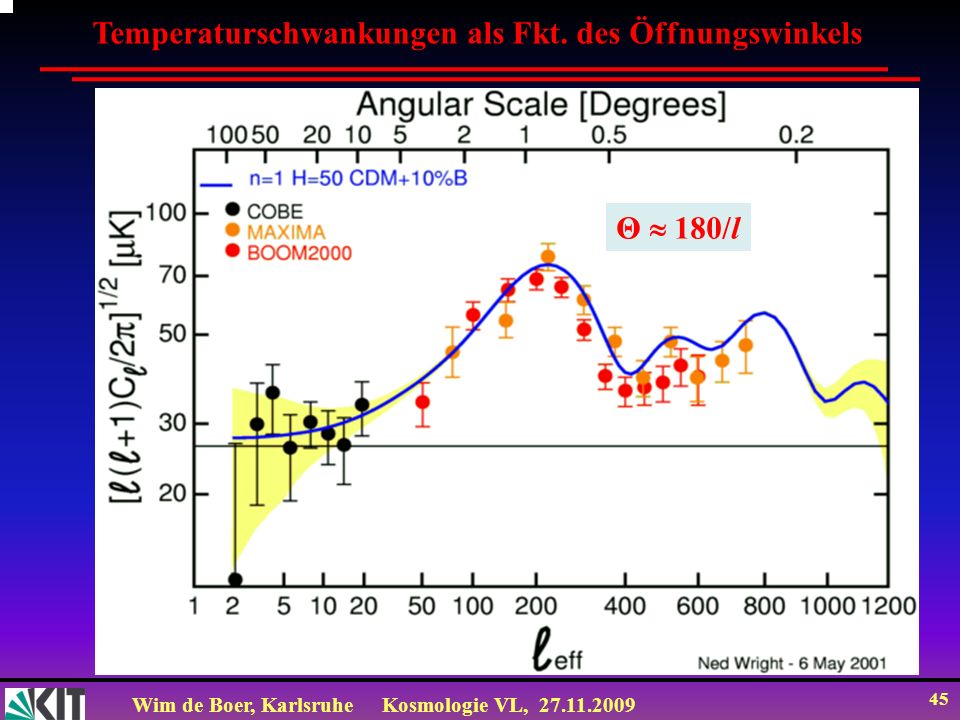

46 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 45 Temperaturschwankungen als Fkt. des Öffnungswinkels Θ 180/l

47 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 46 Position des ersten Peaks Berechnung der Winkel, worunter man die maximale Temperaturschwankungen der Grundwelle beobachtet: Maximale Ausdehnung einer akust. Welle zum Zeitpunkt trec: c s * trec (1+z) Beobachtung nach t 0 =13.8 10 9 yr. Öffnungswinkel θ = c s * t rec * (1+z) / c*t 0 Mit (1+z)= 3000/2.7 =1100 und trec = 3,8 10 5 yr und Schallgeschwindigkeit c s =c/ 3 für ein relativ. Plasma folgt: θ = 0.0175 = 1 0 (plus (kleine) ART Korrekt.) Beachte: c s 2 dp/d = c 2 /3, da p= 1/3 c 2 Raum-Zeit x t Inflation Entkopplung max. T / T unter 1 0 nλ/2=c s t r

48 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 47 Präzisere Berechnung des ersten Peaks Vor Entkopplung Universum teilweise strahlungsdominiert. Hier ist die Expansion t 1/2 statt t 2/3 in materiedominiertes Univ. Muss Abstände nach bewährtem Rezept berechnen: Erst mitbewegende Koor. und dann x S(t) Abstand < trek: S(t) c d = S(t) c dt/S(t) = 2ct rek für S t 1/2 Abstand > trek: S(t) c d =S(t) c dt/S(t) = 3ct rek für S t 2/3 Winkel θ = 2 * c s * t rec * (1+z) / 3*c*t 0 = 0.7 Grad Auch nicht ganz korrekt, denn Univ. strahlungsdom. bis t=50000 a, nicht 380000 a. Richtige Antwort: Winkel θ = 0.8 Grad oder l=180/0.8=220

49 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 48 Temperaturanisotropie der CMB

50 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 49 Position des ersten akustischen Peaks bestimmt Krümmung des Universums!

51 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 50 Present and projected Results from CMB See Wayne Hu's WWW-page: http://background.uchicago.edu/~whu/ Verhältnis peak1/peak2-> Baryondichte Position erster Peak-> Flaches Univ.

52 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 51 Open : Ω= 0.8 Flat : Ω= 1.0 Closed: Ω=1.2 Low pitch High pitch Long wavelength Short wavelength Geometry of the Universe

53 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 52 8% atoms 4% atoms 2% atoms Low pitchHigh pitch Long wavelengthShort wavelength Atomic content of the Universe

54 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 53 = x/S(t) = x(1+z) Raum-Zeit x t = t / S(t) = t (1+z) Conformal Space-Time (winkelerhaltende Raum-Zeit) conformal=winkelerhaltend z.B. mercator Projektion x t t From Ned Wright homepage

55 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 54 CMB polarisiert durch Streuung an Elektronen (Thompson Streuung) Kurz vor Entkoppelung: Streuung der CMB Photonen. Nachher nicht mehr, da mittlere freie Weglange zu groß. Lange vor der Entkopplung: Polarisation durch Mittelung über viele Stöße verloren. Nach Reionisation der Baryonen durch Sternentstehung wieder Streuung. Erwarte Polarisation also kurz nach dem akust. Peak (l = 300) und auf großen Abständen (l < 10)

56 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 55 Entwicklung des Universums

57 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 56 If it is not dark, it does not matter Woher kennt man diese Verteilung?

58 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 57 Beobachtungen: Ω=1, jedoch Alter >>2/3H 0 Alte SN dunkler als erwartet

59 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 58 Erste Evidenz für Vakuumenergie

60 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 59 SNIa compared with Porsche rolling up a hill SNIa data very similar to a dark Porsche rolling up a hill and reading speedometer regularly, i.e. determining v(t), which can be used to reconstruct x(t) =v(t)dt. (speed distance, for universe Hubble law) This distance can be compared later with distance as determined from the luminosity of lamp posts (assuming same brightness for all lamp posts) (luminosity distance, if SN1a treated as standard candles with known luminosity) If the very first lamp posts are further away than expected, the conclusion must be that the Porsche instead of rolling up the hill used its engine, i.e. additional acceleration instead of decelaration only. (universe has additional acceleration (by dark energy) instead of decelaration only)

61 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 60 SN1a originates from double star and explodes after reaching Chandrasekhar mass limit SN Type 1a wachsen bis Chandrasekhar Grenze Dann Explosion mit konstanter Leuchtkraft

62 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 61 Zeit Perlmutter 2003 Abstand

63 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 62 Vergleich mit den SN 1a Daten SN1a empfindlich für Beschleunigung, d.h. - m CMB empfindlich für totale Dichte d.h. + m = ( SM + DM )

64 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 63 Let's consider what happens to a point- like initial perturbation. In other words, we're going to take a little patch of space and make it a little denser. Of course, the universe has many such patchs, some overdense, some underdense. We're just going to focus on one. Because the fluctuations are so small, the effects of many regions just sum linearly. The relevant components of the universe are the dark matter, the gas (nuclei and electrons), the cosmic microwave background photons, and the cosmic background neutrinos. Akustische Baryon Oszillationen I: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html

65 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 64 Akustische Baryon Oszillationen II: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html Now what happens? The neutrinos don't interact with anything and are too fast to be bound gravitationally, so they begin to stream away from the initial perturbation. The dark matter moves only in response to gravity and has no intrinsic motion (it's cold dark matter). So it sits still. The perturbation (now dominated by the photons and neutrinos) is overdense, so it attracts the surroundings, causing more dark matter to fall towards the center. The gas, however, is so hot at this time that it is ionized. In the resulting plasma, the cosmic microwave background photons are not able to propagate very far before they scatter off an electron. Effectively, the gas and photons are locked into a single fluid. The photons are so hot and numerous, that this combined fluid has an enormous pressure relative to its density. The initial overdensity is therefore also an initial overpressure. This pressure tries to equalize itself with the surroundings, but this simply results in an expanding spherical sound wave. This is just like a drum head pushing a sound wave into the air, but the speed of sound at this early time is 57% of the speed of light! The result is that the perturbation in the gas and photon is carried outward:

66 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 65 Akustische Baryon Oszillationen III: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html As time goes on, the spherical shell of gas and photons continues to expand. The neutrinos spread out. The dark matter collects in the overall density perturbation, which is now considerably bigger because the photons and neutrinos have left the center. Hence, the peak in the dark matter remains centrally concentrated but with an increasing width. This is generating the familiar turnover in the cold dark matter power spectrum. Where is the extra dark matter at large radius coming from? The gravitational forces are attracting the background material in that region, causing it to contract a bit and become overdense relative to the background further away

67 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 66 Akustische Baryon Oszillationen IV: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html The expanding universe is cooling. Around 400,000 years, the temperature is low enough that the electrons and nuclei begin to combine into neutral atoms. The photons do not scatter efficiently off of neutral atoms, so the photons begin to slip past the gas particles. This is known as Silk damping (ApJ, 151, 459, 1968). The sound speed begins to drop because of the reduced coupling between the photons and gas and because the cooler photons are no longer very heavy compared to the gas. Hence, the pressure wave slows down.

68 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 67 Akustische Baryon Oszillationen V: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html This continues until the photons have completely leaked out of the gas perturbation. The photon perturbation begins to smooth itself out at the speed of light (just like the neutrinos did). The photons travel (mostly) unimpeded until the present-day, where we can record them as the microwave background (see below). At this point, the sound speed in the gas has dropped to much less than the speed of light, so the pressure wave stalls.

69 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 68 Akustische Baryon Oszillationen VI: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html We are left with a dark matter perturbation around the original center and a gas perturbation in a shell about 150 Mpc (500 million light- years) in radius. As time goes on, however, these two species gravitationally attract each other. The perturbations begin to mix together. More precisely, both perturbations are growing quickly in response to the combined gravitational forces of both the dark matter and the gas. At late times, the initial differences are small compared to the later growth.

70 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 69 Akustische Baryon Oszillationen VII: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html Eventually, the two look quite similar. The spherical shell of the gas perturbation has imprinted itself in the dark matter. This is known as the acoustic peak. The acoustic peak decreases in contrast as the gas come into lock- step with the dark matter simply because the dark matter, which has no peak initially, outweighs the gas 5 to 1.

71 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 70 Akustische Baryon Oszillationen VIII: http://cmb.as.arizona.edu/~eisenste/acousticpeak/acoustic_physics.html At late times, galaxies form in the regions that are overdense in gas and dark matter. For the most part, this is driven by where the initial overdensities were, since we see that the dark matter has clustered heavily around these initial locations. However, there is a 1% enhancement in the regions 150 Mpc away from these initial overdensities. Hence, there should be an small excess of galaxies 150 Mpc away from other galaxies, as opposed to 120 or 180 Mpc. We can see this as a single acoustic peak in the correlation function of galaxies. Alternatively, if one is working with the power spectrum statistic, then one sees the effect as a series of acoustic oscillations. Before we have been plotting the mass profile (density times radius squared). The density profile is much steeper, so that the peak at 150 Mpc is much less than 1% of the density near the center.

72 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 71 One little telltale bump !! A small excess in correlation at 150 Mpc.! SDSS survey (astro-ph/0501171) 150 Mpc. (Einsentein et al. 2005) 150 Mpc =2c s t r (1+z)= akustischer Horizont

73 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 72 2-point correlation of density contrast The same CMB oscillations at low redshifts !!! SDSS survey (astro-ph/0501171) 150 Mpc. (Einsentein et al. 2005) 105 h -1 ¼ 150 Akustische Baryonosz. in Korrelationsfkt. der Dichteschwankungen der Materie!

74 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 73 http://arxiv.org/PS_cache/arxiv/pdf/0803/0803.0732v2.pdf Neueste WMAP Daten (2008)

75 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 74 http://wmap.gsfc.nasa.gov/resources/camb_tool/index.html WMAP analyzer tool

76 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 75 http://nedwww.ipac.caltech.edu/level5/March08/Frieman/Frieman4.html Combined results http://arxiv.org/PS_cache/arxiv/pdf/0804/0804.4142v1.pdf

77 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 76 Neueste WMAP Daten (2008)

78 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 77 Zum Mitnehmen Die CMB gibt ein Bild des frühen Universums 380.000 yr nach dem Urknall und zeigt die Dichteschwankungen T/T, woraus später die Galaxien entstehen. Die CMB zeigt dass 1.das das Univ. am Anfang heiß war, weil akustische Peaks, entstanden durch akustische stehende Wellen in einem heißen Plasma, entdeckt wurden 2. die Temperatur der Strahlung im Universum 2.7 K ist wie erwartet bei einem EXPANDIERENDEN Univ. mit Entkopplung der heißen Strahlung und Materie bei einer Temp. von 3000 K oder z=1100 (T 1/(1+z !) 3. das Univ. FLACH ist, weil die Photonen sich seit der letzten Streuung zum Zeitpunkt der Entkopplung (LSS = last scattering surface) auf gerade Linien bewegt haben (in comoving coor.)

79 Wim de Boer, KarlsruheKosmologie VL, 27.11.2009 78 If it is not dark, it does not matter Zum Mitnehmen
