Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs Welcome
2
Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs task netlist from Synopsys (.v) use Cadence –determine f - including pads and wiring to the pads –optimizing on f use Synopsys –determine resulting P
3
Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs correction of my latest statements wallace tree not as bad performance as I thought Carry Save Multiplier more performance (f) consumes too much power WTM for further simulations
4
Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs Cadence guide of Hagen timing analysis –decrease period to 3.75ns –WTM consumes 36.7 µW (f=267MHz) –frequency per energy: 4,84 10 20 Hz/J
5

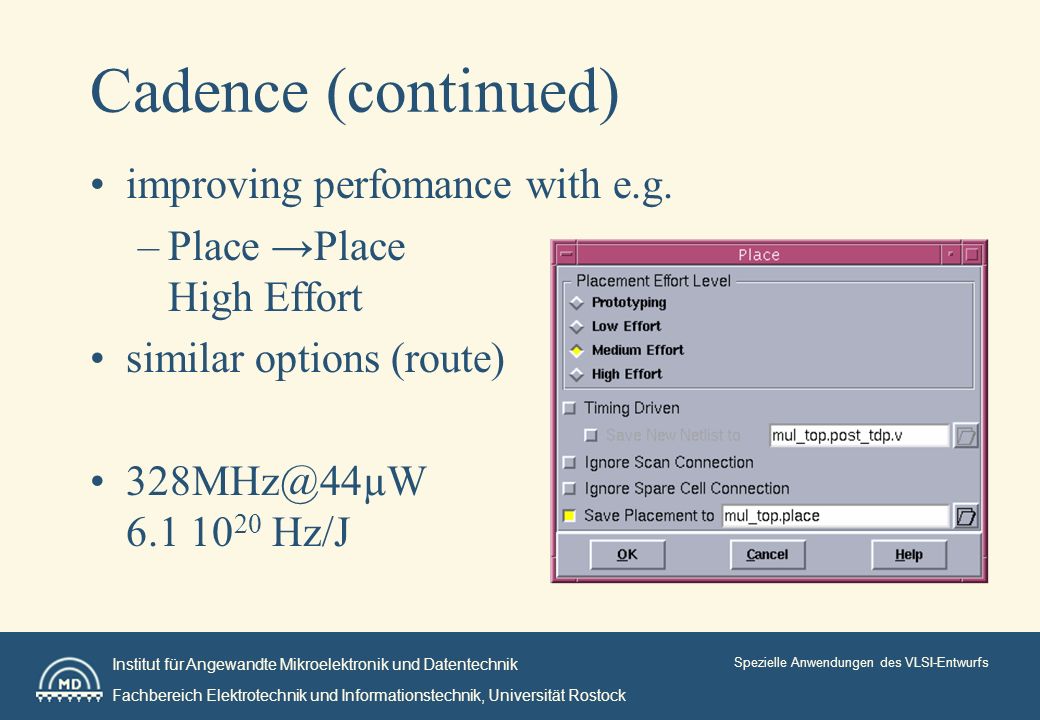

Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs Cadence (continued) improving perfomance with e.g. –Place Place High Effort similar options (route) 328MHz@44µW 6.1 10 20 Hz/J
6
Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs Problems multitude of menus and options at Cadence (RTFM) no experiences with Cadence TIME
7
Institut für Angewandte Mikroelektronik und Datentechnik Fachbereich Elektrotechnik und Informationstechnik, Universität Rostock Spezielle Anwendungen des VLSI-Entwurfs Thank you for your attention
