0 Dell EqualLogic Storage Lösungen
Martin Thies Sales Engineer Dell

1 Datenwachstum eröffnet neue Möglichkeiten…
Neue Anwendungs-möglichkeiten Informierte Entscheidungen Bringt „Mensch und Prozess“ näher

2 …aber das Management bringt Herausforderungen
Storage Herausforderungen unserer Kunden aus dem Mittelstand Steigende Kompexität 12% Datenwachstum 46% Steigende Kosten 26%

3 EqualLogic Architektur
The architects of the Dell EqualLogic PS Series rethought storage from the ground up, taking smart principles from elsewhere in the computing world and applying them to the product. virtualization, IP networking, and page-based data movement are a few examples. Beyond technology design, also rethought the business principles that made buying, expanding and improving traditional shared storage difficult and painful. The result is a storage experience that impresses product reviewers and award judges, but more importantly empowers and delights customers.

4 Verwandeln Sie den Storage-Lifecycle
Kaufen/ Ersetzen Kaufen Erweitern Austauschen Betreiben Erweitern Befreien Sie sich von bisherigen “rip-and-replace Zyklen” … … und wählen Sie ein Storage das Ihre Investition nachhaltig schützt.

5 Dual next-generation controllers
Dell EqualLogic PS-Series Performance and end-to-end hardware reliability Next generation dual controllers 6GB SAS back end Up to 16 GB cache 4 x 1GBit or 2 x 10GBit iSCSI One - 10/100 Ethernet management port Support for 7.2K NL-SAS, 10K SAS, 15K SAS and SSD drives 12, 14, 24 and 48-drive options Enclosure monitoring system Component status Disk drive health Temperature Hotswap drive carriers The PS6000/PS6500 arrays are using the same proven chassis design that we have with the PS5000/PS5500 arrays. We are just enhancing the arrays with more I/O ports and cache. The PS4000 offers the same end-to-end hardware reliability, however, only available in SAS and SATA drives. Redundant power supplies and fans Dual next-generation controllers

6 PS Series Architektur Pages RAID RAID 10, 50 or 5 Disks
Exchange SQL Archive Switched Gb Ethernet Exchange Archive SQL Storage Pool 1 Disks RAID EqualLogic (SAS) RAID 10, 50 or 5 Pages 2 N 6

7 Automatisches und transparentes Load Balancing zwischen Arrays
PS Series Architektur Exchange SQL Archive Switched Gb Ethernet Exchange Archive SQL Storage Pool 1 EqualLogic (SSD) RAID 10, 50 or 5 Pages 2 2 3 RAID RAID 10, 50 or 5 4 4 Disks EqualLogic (SAS) N Automatisches und transparentes Load Balancing zwischen Arrays 7

8 PS Series Architektur EqualLogic (SSD) RAID 10, 50 or 5
Exchange SQL Archive Switched Gb Ethernet Exchange Archive SQL Storage Pool 1 EqualLogic (SSD) RAID 10, 50 or 5 RAID 10, 50 or 5 EqualLogic (SATA) Pages 2 2 3 RAID RAID 10, 50 or 5 4 4 Disks EqualLogic (SAS) N 8

9 Automatisches und transparentes Load Balancing zwischen Arrays
PS Series Architektur Exchange SQL Archive Switched Gb Ethernet Exchange Archive SQL Storage Pool 1 EqualLogic (SSD) RAID 10, 50 or 5 RAID 10, 50 or 5 EqualLogic (SATA) Pages 2 RAID 3 RAID 10, 50 or 5 4 Disks 5 EqualLogic (SAS) N Automatisches und transparentes Load Balancing zwischen Arrays 9

10 EqualLogic Load Balancers
The NLB (Network Load Balancer) manages the assignment of individual iSCSI connections to Ethernet ports on the group members EqualLogic MPIO extends network load balancing end to end host <-> array port The CLB (Capacity Load Balancer) manages the utilization of the disk capacity in the pool Free Space balancing manages dynamic space usage between arrays The APLB (Automatic Performance Load Balancer) manages the distribution of high I/O data within the pool. The Hybrid Array Load Balancer manages the distribution of high I/O data within a hybrid array. Multi-member pools

11 Network Load Balancer

12 EQUALLOGIC – CONNECTION LOAD BALANCING
Die Server kennen nur die eine virtuelle Gruppen-IP-Adresse Switch Intelligente Netzwerkauswahl Peer Storage Member IP Adressen Je nach Workload wird die Nutzung der verfügbaren Ports angepaßt – ohne Eingriff durch einen Administrator und ohne Einfluß auf Anwendungen 12

13 Automatic Performance Load Balancing

14 Automatic Performance Load Balancer
Automatically operates when there are multiple members in a pool APLB is designed to minimize response time for all pool members Arrays are optimized in pool by trading hot and cold data Trigger: significant latency differences between members The APLB operates in near real time Data exchanges occur as frequently as every 2 minutes APLB can adjust the distribution of data and free space as conditions change Once the CLB has created and populated a volume slice, all pages in that slice are subject to the APLB The goal of the APLB is to maximize response time from all members in a pool by exchanging hot and cold pages between members. Page swaps are triggered by significant latency differences between members The APLB operates in near real time, with page exchanges occurring as frequently as every 2 minutes This ensures that the APLB can adjust the distribution of pages as conditions change in the pool

15 How does each of the Load Balancers work
How does each of the Load Balancers work? Automatic Performance Load Balancer Data Movement Automation is based on the POOL… Data is moved through SAN infrastructure Data reside on arrays based on: Capacity balancing Access frequency vs. Array latency Member01 SAN Member02 Vol2 Pool Latency: 10 ms Latency: 40 ms Latency: 20 ms EQL Group

16 Tiering within an Array

17 Hybrid Operation Two unique technologies
1st Balancing Technology: Fast shifting within the array of hot and cold data between HDD and SSD drives Hot data is monitored, and can be quickly shifted from HDD to SSD Balancer can start reacting with 10 seconds of workload shift 2nd Technology: Write cache extension / accelerator (shock absorber) A portion of SSD is used as a controller write cache extension Dramatically increases the size of the write cache I/Os are later played back to the normal storage The total usable capacity of the storage array is the sum of HDD and SSD (after RAID & shock absorber) Hybrids use exclusively a RAID type call “Accelerated R6”

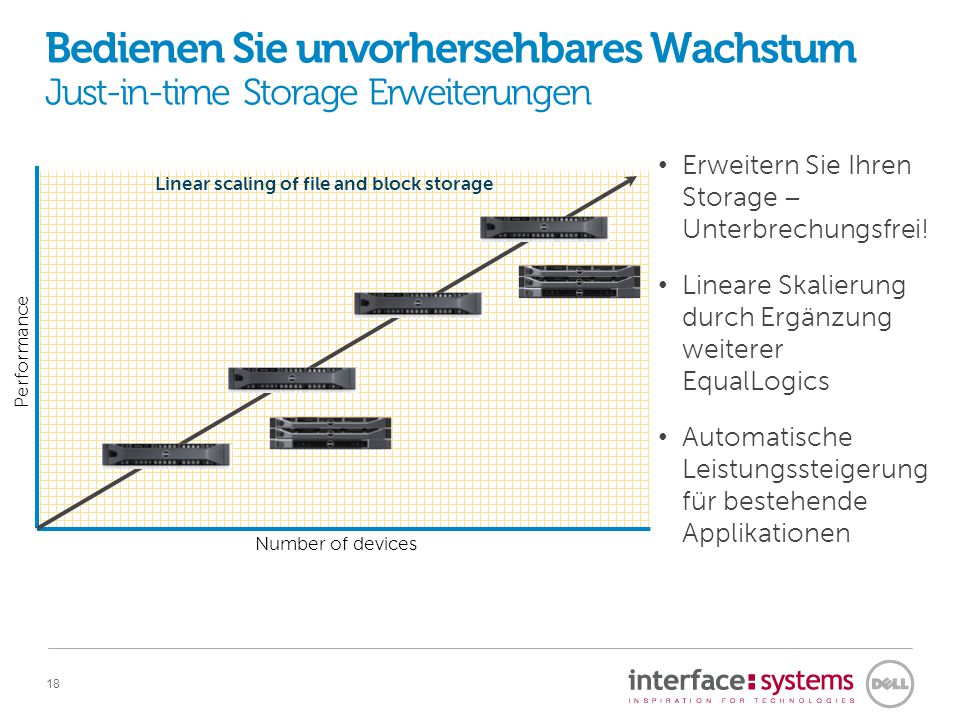

18 Bedienen Sie unvorhersehbares Wachstum Just-in-time Storage Erweiterungen
Erweitern Sie Ihren Storage – Unterbrechungsfrei! Lineare Skalierung durch Ergänzung weiterer EqualLogics Automatische Leistungssteigerung für bestehende Applikationen Linear scaling of file and block storage Performance Number of devices

19 EqualLogic Virtualisierung & Automatisierung

20 Simplify storage deployment
Einfache Installation durch EqualLogic Host Integration Software Integration und Support für Ihre MS Windows, MS Hyper-V, VMware ESX or Linux Umgebung. Inbetriebnahme bei Installation und Erweiterung in ca. 20 Minuten (nach Einbau und Verkabelung) *Results are based on Dell employee experiences and may vary by user.

21 Intuitive Bedienung mit dem EqualLogic Group Manager
Block- und Filedienste über eine GUI verwalten Intuitive Bedienung Java-basierte Web- Umgebung Aktivieren und verwalten von data protection features Richtlinienbasierte Zugriffssteuerung

22 Zentrale Performanceüberwachung und Fehleranalyse mit SAN Headquarters
Verwalten Sie eine oder mehrere EqualLogic Gruppen Echtzeit Performancemonitoring und Trends Zugriff auf historische Performancedaten für Reporting und Troubleshooting Analysieren Sie Storageveränderungen bevor Sie diese durchführen

23 Zuverlässiger Schutz Ihrer Daten Improve business continuity
Description Use cases Feature Space-efficient, point-in-time view of a volume Rapid recovery for corruption or accidental deletion Snapshot Full copy of an entire volume Test environments, reporting servers Clone Full copy of a volume stored remotely and updated with changes Disaster recovery, centralized backup Replica Creation of space-efficient copies from a volume template Virtual desktops, development environments Thin Clone Leverage snapshots and clones to protect data locally Integrate with backup applications Consider thin clones for specialized data distribution requirements Offsite data protection with replication

24 EqualLogic OS & Anwendungs-integration

25 Verwalten Sie Ihren Storage direkt aus dem Betriebssystem
EqualLogic NAS Gateway Application Servers Client Desktops Corporate LAN Pool of Storage IP Storage Network EqualLogic Block Storage

26 Effizienzsteigerung Durch Microsoft Windows Integration
Nahtlose Anbindung des Storages an Ihre Microsoft Windows® Umgebung Automatisierte Installation durch Remote Setup Wizard Schützen Sie Ihre Daten mit dem Auto-Snapshot Manager for Microsoft® Höchste Performance und Verfügbarkeit durch Multipath I/O (MPIO) Verwalten Sie Dell EqualLogic Storage mit dem Microsoft System Center via Dell Management Packs Verwalten Sie Server und Storage mit den Dell EqualLogic PowerShell CLI tools

27 Schützen Sie Microsoft Apps & Hyper-V Daten Auto Snapshot Manager/Microsoft
Sichern und Wiederherstellen von SharePoint, SQL Server, Exchange Server und Hyper-V Daten Nutzt EqualLogic snapshots, clones & replication Nutzt Zeitpläne für kontinuierlichen Schutz

28 Produktivitäts-Boost in VMware Umgebungen Virtual Storage Manager (VSM) for VMware
Schnelle und einfache Verwaltung von Dell EqualLogic storage in VMware® Umgebungen EqualLogic Verwaltung im VMware vCenter und vSphere Web client Verwalten Sie alle VMFS Datastores in einem Kontext Schützen Sie Ihre Daten mit EqualLogic Smart Copies, Smart Clones und Thin Replication Volle Unterstützung für Vstorage APIs for Storage Awareness (VASA) Bereitstellung und Verwaltung von Virtual Desktop Umgebungen VMware admins can provision, monitor and manage storage from vCenter. Enables the Vmware admin to monitor and manage storage supporting the virtual deployments. Automates several tasks in storage provisioning, simplifying operation and improving productivity.

29 Optimized Performance Streamlined Management
Extend Linux benefits from servers to storage With EqualLogic Host Integration Tools for Linux Leverage EqualLogic support for Red Hat Enterprise Linux 5.5 & 6.0 Deploy storage natively from a Linux host with Remote Setup Wizard CLI Automate storage management from within your Linux environment Increase bandwidth, improve performance and reduce network latency with multipath I/O Optimized Performance Multipath I/O (MPIO) Host Performance and Configuration Tuning Suite Streamlined Management Remote Setup Wizard Command Line Interface

30 EqualLogic storage & Dell solutions

31 Einfacher Betrieb, Anwendungsintegration und kalkulierbare Kosten mit EqualLogic:
Investitionssicherheit Virtualisierung & Automatisierung Betriebssystem- & Anwendungsintegration 31

32 Skalierbarer Storage für Ihre Umgebung:
PS6500/6510 Powerful. Virtual. Data Center End-to-end 10GbE 10x bandwidth per port Enterprise scalability: up to 2.3PB Ideal for heavy sequential workloads Hybrid arrays in both 1GbE/PS6500ES and 10GbE/PS6510ES PS6210 Performance & efficiency simplified for the real world Next-generation 10GbE arrays Faster, more powerful controller Highly virtualized Scale capacity & performance 10GbE capability All Flash and Hybrid SAN for data-intensive and VDI environments PS6100 Performance for business responsiveness Highly virtualized Scale capacity & performance 10GbE capability Self-optimized performance Options for intelligent tiering Hybrid SAN for VDI deployments PS 4100/4110 Entry Level – advanced functionality Remote office Pay as you grow scalability Designed for virtualization Ideal for smaller SAN deployments 10GbE capability PS-M4110 Blade Array One streamlined data center powered by EqualLogic Converged storage, servers and networking Highly scalable 10GbE Ease of management Ideal for general purpose small-medium consolidated loads Dell™ EqualLogic™ PS6210 Series arrays which brings a new level of performance to service more of your most demanding applications, while delivering the simplicity of the EqualLogic management experience. Dell Fluid File System™ (FluidFS) v3 on EqualLogic FS76X0 decreases the capacity needed to store common enterprise data by up to 48% by deduplicating and compressing redundant data when it’s no longer needed. In addition, FluidFS v3 furthers advanced protocol support, enables 1GbE to 10GbE upgrade of FS Series hardware to increase bandwidth and simplify networking and cabling, and adds more third-party certifications, growing the ecosystem of solutions that are tested and supported by the FS series products. Based on May 2013 internal Dell analysis of the FS8600 NAS appliance with Fluid Data Reduction, using real-world home share environment comprised of Office files (21%), .GZ (19%) and .flate (19%) files, among others. FS7600/7610 Scale-out NAS unified storage with Fluid File v3 Single interface to manage file and block data Scale-out file architecture File dedupe and compression 1GbE and 10GbE SAN and client networks Flexible pool of file & block Massive share capacities for flexibility Includes file-level snapshots and replication 32 Dell Confidential

33 55% Press and media praise for Dell EqualLogic
“For SMBs and midmarket buyers who need their storage to be flexible…… the PS6110XS is an industry leading solution.” Dell EqualLogic was selected by IT professionals as the 2013 Market Leader for iSCSI Storage Improves TCO by up to 55% Lower software costs Better management tools Approximately 96% of customers would recommend EqualLogic Dell EqualLogic PS6110XS iSCSI SAN 33 Dell Confidential

34 What’s new

35 PS Series Firmware 7.0 Overview

36 PS Series Host software portfolio

37 Vielen Dank Das Team der interface systems und Dell stehen Ihnen jederzeit zur Verfügung 37

38 Vielen Dank! Martin Thies Sales Engineer
