1 TERRA Storage: The next Generation Referent: Thomas Elsing

2 TERRA Storage:Anforderungen Vorhandene Serverlandschaft soll durch eine virtualisierte Lösung ersetzt werden: LAN

3 TERRA Storage:Lösungen 4x 6Gb SAS 4x 8Gb FC TERRA SAN 3000er Serie: iSCSI: 1 & 10Gbit/s, FC 8GBit/s und SAS 3 & 6 Gbit/s TERRA SAN 4000er Serie: FC 8GBit/s und SAS 6 Gbit/s TERRA SAN 5000er Serie: iSCSI 10Gbit/s, FC 8GBit/s

4 TERRA Storage: Das Portfolio Für jede Anforderung die passende Lösung 4x 6Gb SAS 4x 8Gb FC RAID Celeron 1.8GHz 2GB Cache 3400 MBps Read 2900 MBps Write Series Interface Software Performance Max Drives NEUNEU NEUNEU

5 TERRA Storage: Positionierung

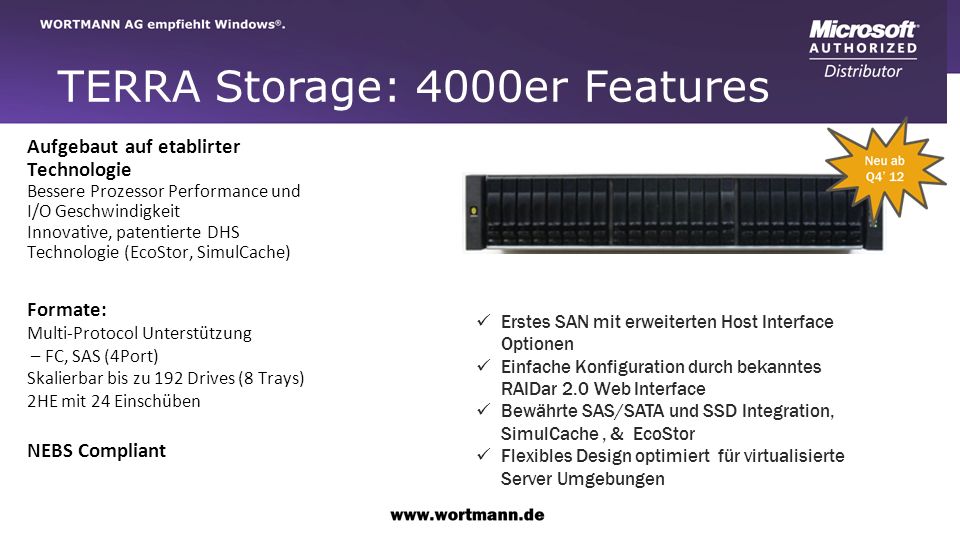

6 TERRA Storage: 4000er Features Aufgebaut auf etablirter Technologie Bessere Prozessor Performance und I/O Geschwindigkeit Innovative, patentierte DHS Technologie (EcoStor, SimulCache) Formate: Multi-Protocol Unterstützung – FC, SAS (4Port) Skalierbar bis zu 192 Drives (8 Trays) 2HE mit 24 Einschüben NEBS Compliant Erstes SAN mit erweiterten Host Interface Optionen Einfache Konfiguration durch bekanntes RAIDar 2.0 Web Interface Bewährte SAS/SATA und SSD Integration, SimulCache, & EcoStor Flexibles Design optimiert für virtualisierte Server Umgebungen

7 TERRA Storage: 5000er Features Formate: 48 Laufwerke (SSD & HDD) Skalierbar bis zu 224 TB Netto Kapazität Skalierbar bis zu 240 Drives in 10 Chassis Multi-protocol support 8Gb FC (4-Port) 10Gb iSCSI (4-Port) 2U24 (Add-on JBOD Avail.) Patentierte Technologie EcoStor TM : Battery-Free Protection SimulCache low latency cache mirroring Optionale DMS Software AssuredSNAP AssuredCopy Assured Remote Die NEUE REALStor Software Automated Tiered Storage (Patent Pending) Automatically moving frequently accessed data to fast storage & less frequently accessed data to lower tier Real time Autonomic Fine grain block movement Thin Provisioning Only dedicate storage space to volume when needed. AutoPooling Automatically creates pools of storage Fast Rebuild Minimize exposure time to running with unprotected data

8 TERRA Storage: Next Generation Features Automated Tiered Storage Automatically get the best blend of performance and capacity from storage for the lowest cost Thin Provisioning Allows users to buy storage when needed, as it is used Quick Rebuild Minimizes exposure time to running with unprotected data due to drive failures Auto Pooling Automatically create pools of storage eliminating the need to specify RAID levels and low level configuration details AssuredSnap Makes logical copies of your data to secure, restore and backup your data Assured Copy Complete volume copy of data protects against data corruption or volume failure Assured Remote Scheduling copies of changed data across long distance Set up your system to automatically make snapshots and volume copy

9 Datenzugriffe lassen nach Daten werden herabgestuft Datenzugriffe werden mehr Daten werden hochgestuft Ankommende Daten Performance SSD Standard 10K HDD Archiv 7K HDD TERRA Storage: Autotiering Funktion

10 TERRA Storage: Im Vergleich TERRA SAN 5000EMCIBMCompellent Page size: 4MB1GB 256MB (Default, options range from 16MB to 8GB) 2MB (Default, options range from 512KB to 4MB) Analysis occurs: ContinuouslyOnce per hourNot publishedContinuously Migration occurs: ContinuouslyOnce per day Maximum data movement: 16MB/s110MB/s30MB/sNot published Migration managed: Automatically by the system By user-defined window or on- demand Automatically by the system By user-defined window or on- demand Performance impact of migration: Insignificant, Minimal Significant, EMC advises migration during off-hours Insignificant, Minimal Compellent claims no impact on application performance

11 TERRA Storage:MS Storage Server 2012 WorkgroupStandard NAS Segments Entry level 50 Users Scale Up Continuous Availability Architecture / Maximum MemoryX64 – 32GBX64 – 2TB Active Directory Lightweight Dir ServiceYes CPU Sockets / VMs1 + 02 + 2 HW RAIDYes Disks6, No external SASUnlimited iSCSI Software TargetYes File sharing (SMB/NFS)Yes BitLockerYes Data DeduplicationNoYes Hyper-VNoYes BranchCache – Hosted CacheNoYes ClusteringNoYes DHCP, DNS & WINSNoYes Active Directory ( DC, Certificate, Federation, Rights Management), Application Server, Network Policy, Terminal Services, WDS, Fax Server No Funktionen und Zuverlässigkeit wie sie sonst nur in Rechenzentren verfügbar waren stehen jetzt allen Kunden zu Verfügung.

12 TERRA Storage: NAS Systeme TERRA NAS 5030: 2HE mit 24x 2,5 HDD basierend auf dem Microsoft® Windows® Storage Server2012 Hochskalierbare Storage Lösung (max. 5 Shelf`s) bis zu 14,4TB pro System möglich (brutto) bis zu 10 x 1GBit oder 4 x 10GBit Ports in max. 10 Minuten einsatzbereit Keine CALs nötig iSCSI Target enthalten Snapshots und Shadow Copies nahtlose Active Directory Integration Management über Webbrowser NEUNEU

13 TERRA Storage: NAS Systeme II TERRA NAS 2030 Powered by Microsoft Storage Server2012 inkl. iSCSI Target 2HE 8x HDD (S-ATA, SAS ca. 60-90MB/s) Chenbro RM21508B inkl. red. Netzteile TERRA NAS 4030 (werden auslaufen) Powered by Microsoft Storage Server2012 inkl. iSCSI Target 4HE 16x HDD (S-ATA, SAS ca. 60-90MB/s) Chenbro RM41416B inkl. red. Netzteile
