1 EN/FAD 109 0015 Ericsson GmbH EDD/ Information im 21. Jahrundert muss Erwünscht Relevant Erreichbar Schnell Kostenlos!?

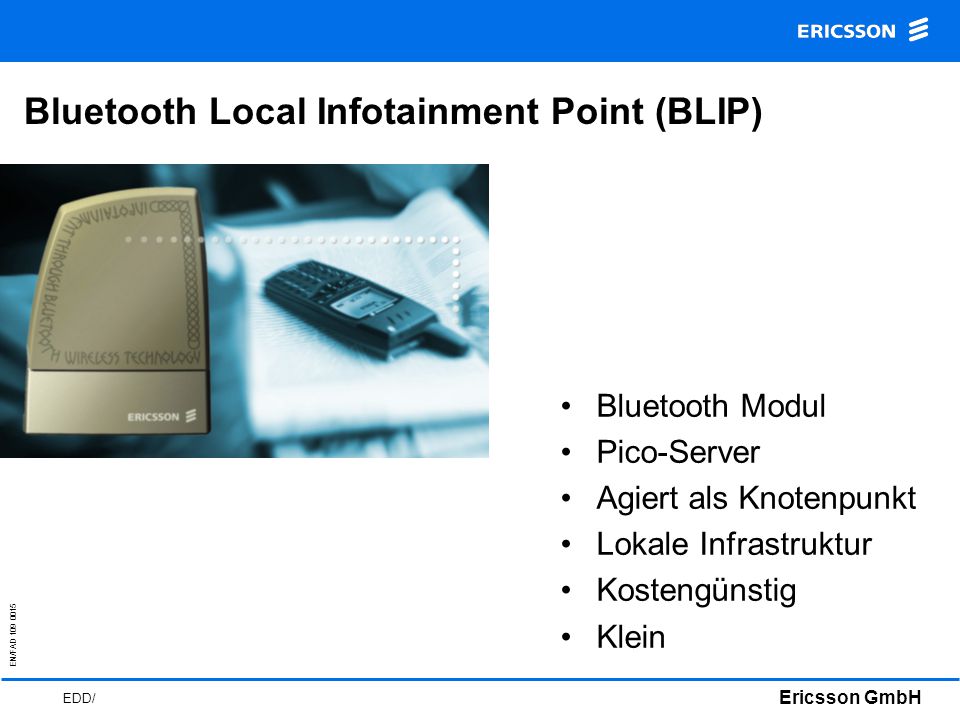

2 EN/FAD 109 0015 Ericsson GmbH EDD/ Bluetooth Local Infotainment Point (BLIP) Bluetooth Modul Pico-Server Agiert als Knotenpunkt Lokale Infrastruktur Kostengünstig Klein

3 EN/FAD 109 0015 Ericsson GmbH EDD/ Anwendungen Werbung Shopping Bezahlung Personen Kontrolle Fernsteuerung Sicherheit Logistik Industrie T68 BLIP

4 EN/FAD 109 0015 Ericsson GmbH EDD/ blip Technical specification Overview Stand-alone processing and data storage capacity Ethernet interface for connection to LAN Embedded Linux operating system Open software platform enabling 3rd party development Basic functionality of a Infotainment Access Point including Web and WAP server Convenient size, can be mounted standing, lying or on wall High quality design

5 EN/FAD 109 0015 Ericsson GmbH EDD/ blip Technical specification Capacity Memory: 2 Mbyte RAM, 2 Mbyte FLASH Processing: ARM7 TDMI based 32-bit RISC at 22.5 MHz Bluetooth™ Interface Range: ~10 metres (Class 2,0 dBm) Frequency: ISM band (2.4 GHz) 79 frequency hops Antenna: Internal 2.4 GHz Bluetooth™ antenna

6 EN/FAD 109 0015 Ericsson GmbH EDD/ blip Technical specification Hardware Interface Ethernet: RJ-45 (10-baseT) 10 Mbps interface Serial: RS232 with speed settings up to 115200 bps Software Platform Platform based on µClinux/µC-Libc Ericsson Bluetooth™ Host Stack WAP and Web server

7 EN/FAD 109 0015 Ericsson GmbH EDD/ blip Technical specification Basic applications Infotainment Access Point including Web and WAP server based on LAN access profile Maintenance Tool for updating data and applications for monitoring blip network
