1 SUCONET-K-Slave Integration of SUCONET-K Slave in XSystem
XIOC-SER Moeller GmbH Seite - 1

2 XIOC-SER Suconet-K Slave
Product- History Moeller GmbH Seite - 2

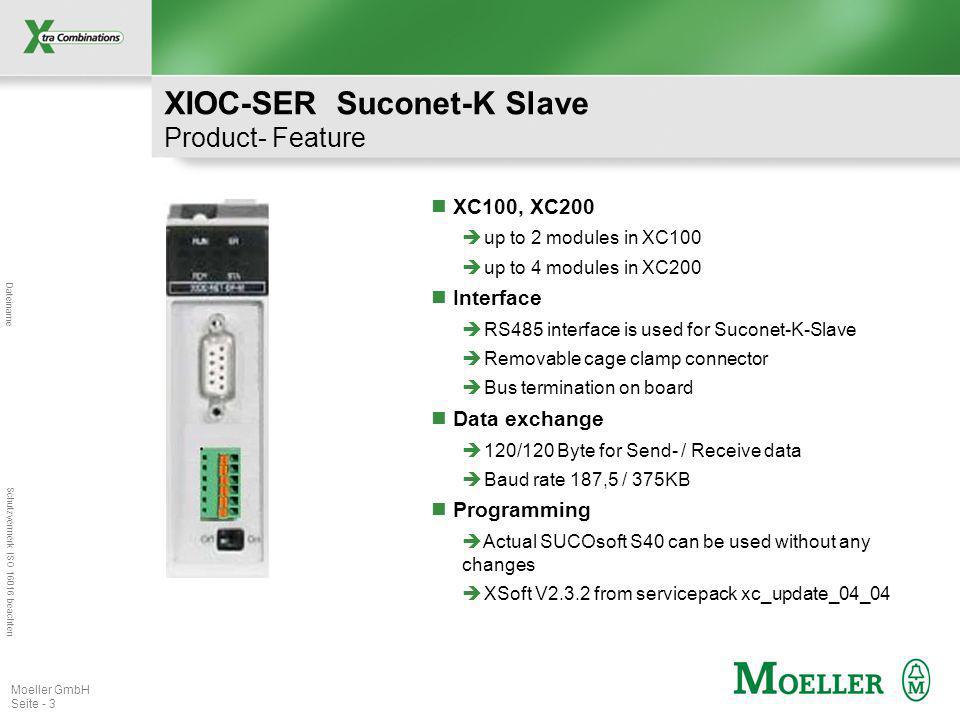

3 XIOC-SER Suconet-K Slave
Product- Feature XC100, XC200 up to 2 modules in XC100 up to 4 modules in XC200 Interface RS485 interface is used for Suconet-K-Slave Removable cage clamp connector Bus termination on board Data exchange 120/120 Byte for Send- / Receive data Baud rate 187,5 / 375KB Programming Actual SUCOsoft S40 can be used without any changes XSoft V2.3.2 from servicepack xc_update_04_04 Moeller GmbH Seite - 3

4 XIOC-SER Suconet-K Slave System- Feature
PS4-201,341,416 All Suconet-K1/K Master can be used Compact PLC PS4 Modular PLC PS416 XC100,200 with XIOC-NET-SK-M SUCONET-K Identification Generic Identification A0EF is used Next step: Identification can be set by user. Every SUCONET Station can be simulated by XC100 / XC200 EM4-201 XC100, XC200 XIOC-SER Moeller GmbH Seite - 4

5 XIOC-SER Suconet-K Slave Configuration SUCOSOFT
Moeller GmbH Seite - 5

6 XIOC-SER Suconet-K Slave Configuration XSOFT
Moeller GmbH Seite - 6

7 XIOC-SER Suconet-K Slave Programming
Sucosoft XSoft Moeller GmbH Seite - 7

8 XIOC-SER Suconet-K Slave Application example (1)
Extension of existing PS4 solution with XSystem Add new technology functions EM4-201 XC100, XC200 Moeller GmbH Seite - 8

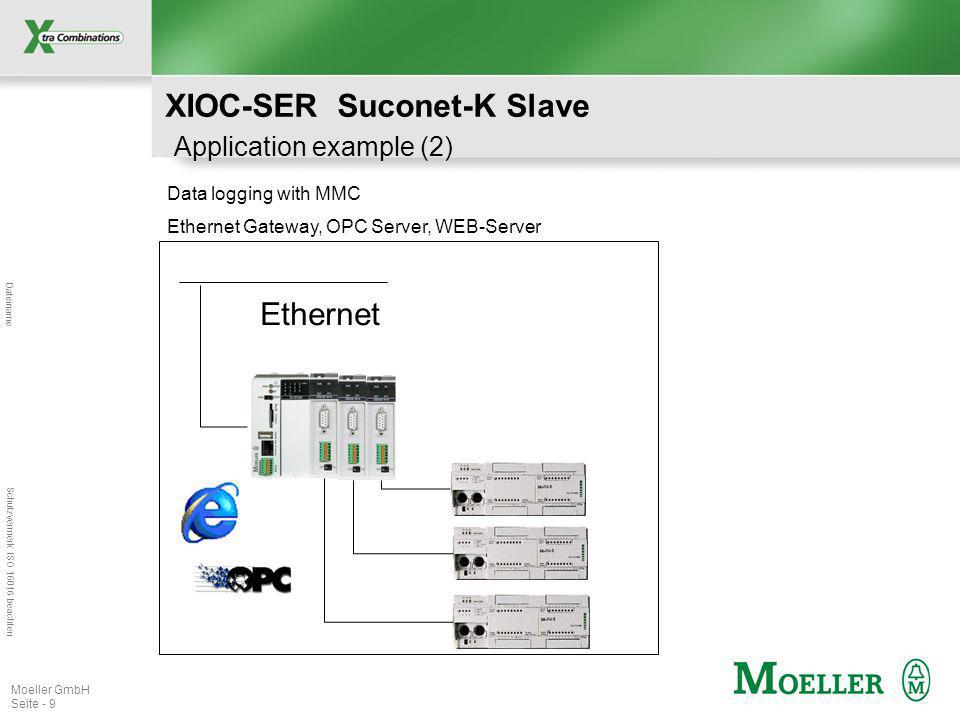

9 XIOC-SER Suconet-K Slave Application example (2)
Data logging with MMC Ethernet Gateway, OPC Server, WEB-Server Ethernet Moeller GmbH Seite - 9

10 XIOC-SER Suconet-K Slave Technical Data
Article number: List price: € LE4-501-BS1*: € PS416-NET-400*: 419€ * No pure slave module for PS4/PS416 available Moeller GmbH Seite - 10

11 XIOC-SER Suconet-K Slave Precondition
PS4,416 : all SUCOSOFT 4.x, 5.x XC100: Version >= 02, Firmware >= 2.10 XC200 Version >=04, Firmware >= 1.02 XSoft V xc_update_04_04 Documentation: XIOC-Signal modules AWB Funktion blocks for XSOFT AWB Moeller GmbH Seite - 11
