1 All Rights Reserved © Alcatel-Lucent 2006, ##### OmniAccess WAN OA700 Hauke Heinecke

2 All Rights Reserved © Alcatel-Lucent 2006, ##### 2 | Presentation Title | Month 2006 Was ist falsch?

3 All Rights Reserved © Alcatel-Lucent 2006, ##### 3 | Presentation Title | Month 2006 OmniAccess 700 Unified Services Gateway Value Propositions Reduces cost and complexity of managing enterprise and branch office networks Unified services gateway for enterprise and branch offices Simple deployment - both network, voice & security services on one platform Modular addition of new services on an as-needed basis Modular system design for fast recovery Unparalleled high availability to support mission-critical applications Non-disruptive service upgrades & configuration changes Insulation of system from failure of any one service Comprehensive management, always accessible platform Easy addition of new services via remote upgrades Easy expansion into new branch sites – ship chassis, remotely configure & provision services Highly secure infrastructure with ability to respond rapidly to new security threats Easy addition of new security containment measures & other services via remote upgrades Open platform to enable integration of customer and partner applications as needed

4 All Rights Reserved © Alcatel-Lucent 2006, ##### 4 | Presentation Title | Month 2006 OmniAccess 700 Unified Services Gateway Services Gateway Family Unified services Security services (firewall, IDS/IPS, VPN) Voice services (SIP ALG, QoS) Network services (switching, routing, QoS) Branch office services (DNS, DHCP, etc) 100% remote accessibility Maximum availability Purpose-built to simplify enterprise operations OA780OA740OA720

5 All Rights Reserved © Alcatel-Lucent 2006, ##### 5 | Presentation Title | Month 2006 OmniAccess 700 Service Gateway Powerful Software Architecture Services Applications HW IFs Application Interface Lifeline Management Networking: DNS RADIUS SSL VPN WAN Opt.: Web Cache Compression New Apps: 3 rd Party Custom Open Source T1/E1 Storage Router Firewall VPN QoS IDS/IPS AV ModuLive OS V.35/X.21 ADSLISDN Gig E

6 All Rights Reserved © Alcatel-Lucent 2006, ##### 6 | Presentation Title | Month 2006 Router Switching ModuLive OS FirewallIDS / IPSVPN Router Switching FirewallIDS / IPSVPN VoIP Monolithic Operating System Modular, always-live operating system Start / stop individual software modules Real-time service addition w/o disruption Insulate system from failure of any service One failure or upgrade = all services down Traditional Router OmniAccess 700 Modularity = major advantage in managing services Modularity = major advantage in managing services OmniAccess 700 Unified Services Gateway Purpose-Built Architecture --> ModuLive Operating System IDS / IPS VoIP Monolithic OS is high risk for multiple services down

7 All Rights Reserved © Alcatel-Lucent 2006, ##### 7 | Presentation Title | Month 2006 Data Plane 1 st Generation Early 90s Data plane limits performance & mgmt access Mgmt Plane Control Plane Data Plane 3 rd Generation OmniAccess today Full separation of data & mgmt traffic, accessible even if main processing unavailable 2 nd Generation Late 90s Data performance improved, mgmt still tied to data paths Control Plane Data Plane OmniAccess 700 Unified Services Gateway Purpose-Built Architecture --> Lifeline Management Framework

8 All Rights Reserved © Alcatel-Lucent 2006, ##### 8 | Presentation Title | Month 2006 High Performance Multi-Service Support with: OnePass Packet Processing Firewall Security Routing Packet Egress 4 Packet Ingress OmniAccess 700 USG Single Packet Inspection Routing Firewall Security Routing (again) Packet Ingress Packet Egress 5 Traditional Branch Office Routers Multiple Packet Inspections By inspecting packets only once, processor efficiency increases and latency remains virtually the same no matter how many services are active

9 All Rights Reserved © Alcatel-Lucent 2006, ##### 9 | Presentation Title | Month 2006 OmniAccess 780 System - Release 2.2 (Hardware) Features High-speed PCI-Express switching backplane ~900Kpps forwarding engine High-redundancy management plane with Lifeline remote manageability Built-in 2 GE ports Redundant power option System Modules SE - Services Engine SF – Switching Fabric Interface Modules 8 port 10/100/1000 Ethernet switch card 4 port T1/E1 (channelized & unchannelized) 4 ports USP (X.21/V.35)

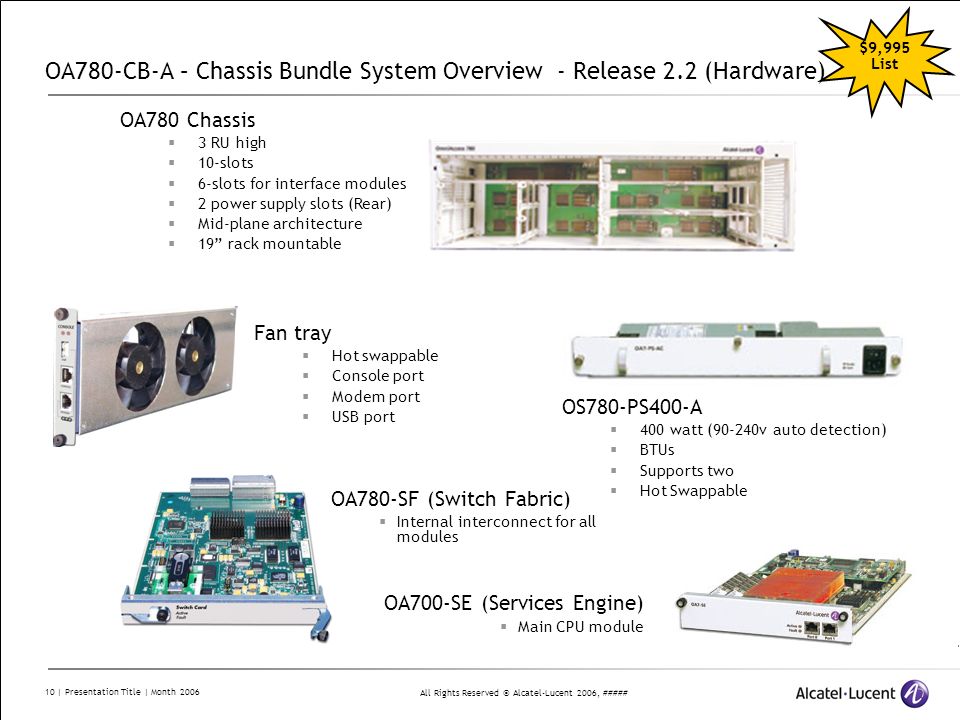

10 All Rights Reserved © Alcatel-Lucent 2006, ##### 10 | Presentation Title | Month 2006 OA780-CB-A – Chassis Bundle System Overview - Release 2.2 (Hardware) Fan tray Hot swappable Console port Modem port USB port OA780-SF (Switch Fabric) Internal interconnect for all modules OA700-SE (Services Engine) Main CPU module OA780 Chassis 3 RU high 10-slots 6-slots for interface modules 2 power supply slots (Rear) Mid-plane architecture 19 rack mountable OS780-PS400-A 400 watt (90-240v auto detection) BTUs Supports two Hot Swappable $9,995 List

11 All Rights Reserved © Alcatel-Lucent 2006, ##### 11 | Presentation Title | Month 2006 OmniAccess 740 System - Release 2.2 (Hardware) Features PCI-Express based high-speed switching backplane ~900Kpps forwarding engine Switching fabric integrated into backplane Built-in 2 GE ports System Modules SE - Services Engine Interface Modules 8 port 10/100/1000 Ethernet switch card 4 port T1/E1 (channelized & unchannelized) 4 port USP (X.21/V.35)

12 All Rights Reserved © Alcatel-Lucent 2006, ##### 12 | Presentation Title | Month 2006 OA740-CB-A – Chassis Bundle System Overview - Release 2.2 (Hardware) OA700-SE (Services Engine) Main CPU module $4,995 List OA740 Chassis 1 RU high 4-sots 2-slots for interface modules Single internal AC power supply 19 rack mountable

13 All Rights Reserved © Alcatel-Lucent 2006, ##### 13 | Presentation Title | Month 2006 OA7-T1E1-4 (4-Port T1/E1) Channelized T1 and E1 Unchannelized T1 and E1 Fractional T1 and E1 RJ-45 connections HDLC, PPP and Frame Relay Encapsulations: MLFR, MLPPP, HDLC OA7-USP-4 (Universal Serial Port) 4 ports on 2 connectors V.35, X.21 interfaces Protocol selection via interface cable OA700-SE (Service Engine) 2 GHz Opteron CPU Memory 512MB expandable to 1GB On board 2 port 10/100/1000 Copper Ethernet interfaces Local Mgmt CPU controls/monitors Opteron Requires a minimum of one in an OA780 or OA740 Consumes 2 slots in the chassis OA7-GE-8 (L2 Ethernet Switch) 8 ports of 10/100/1000 Layer 2 switching RJ-45 connections Common System and Interface Modules - Release 2.2 (Hardware)

14 All Rights Reserved © Alcatel-Lucent 2006, ##### 14 | Presentation Title | Month 2006 OnePass packet processing – Guaranteed performance ModuLive - Modular software platform for in-service upgrades Lifeline management framework – Maximum availability Network services Routing: RIP, OSPF, BGP, GRE for IP, VRRP, PIM LAN switching: 802.1Q VLANs, STP, PVST+, Integrated Routing & Bridging (IRB) WAN: PPP, MLPPP, Frame Relay, MLFR, HDLC, and Ethernet System: DHCP Relay/Client, DNS client, TFTP/FTP, Telnet QOS: Hierarchical Queuing, Rate limiting, Shaping, RED, WRED, DSCP/TOS marking Security Stateful FW: Stateful packet inspection, Attack detection, NAT, DDOS, ALGs, ACLs, 128K sessions IPSec VPN: Site-to-Site, 3DES, AES, PKI, NAT traversal, 2.5K VPN tunnels IDS/IPS: Detection, Prevention modes, Automatic Signature updates, Group-based IDS/IPS VoIP ALGs: SIP, NOEv3 – Dynamic pinhole mgmt QoS: Strict priority queuing, DSCP (EF) classification & marking OmniAccess 700 USG: Release 2.2 (Software)

15 All Rights Reserved © Alcatel-Lucent 2006, ##### Die Gesamtlösung

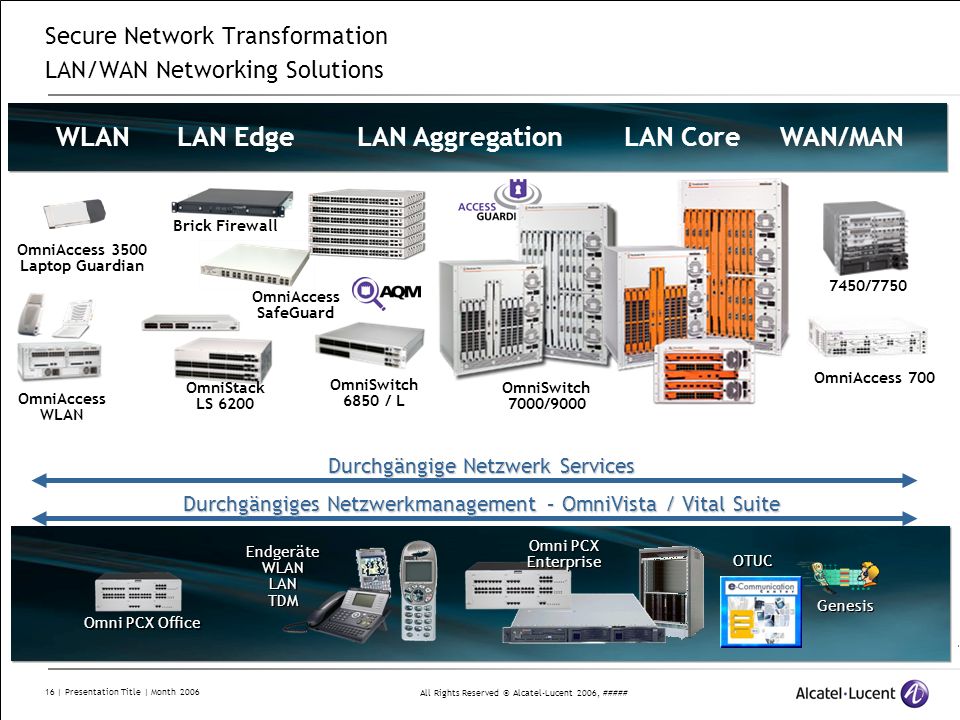

16 All Rights Reserved © Alcatel-Lucent 2006, ##### 16 | Presentation Title | Month 2006 OmniSwitch 6850 / L OmniAccess 700 OmniAccess WLAN 7450/7750 OmniStack LS 6200 OmniSwitch 7000/9000 LAN CoreWAN/MANWLANLAN AggregationLAN Edge Secure Network Transformation LAN/WAN Networking Solutions OmniAccess 3500 Laptop Guardian Brick Firewall OmniAccess SafeGuard Durchgängige Netzwerk Services Durchgängige Netzwerk Services Durchgängiges Netzwerkmanagement – OmniVista / Vital Suite Durchgängiges Netzwerkmanagement – OmniVista / Vital Suite Genesis Omni PCX Enterprise Omni PCX Office Endgeräte WLAN LAN TDM Endgeräte WLAN LAN TDM OTUC

17 All Rights Reserved © Alcatel-Lucent 2006, ##### 17 | Presentation Title | Month 2006 Konvergente Wired & Wireless Lösung Kosteneinsparung Niedriger CAPEX und OPEX Geringer Platzverbrauch Geringer Stromverbauch Geringe Installationsdauer Key Points Am besten skalierbare IPT-Lösung am Markt Sehr hohe Portdichte Einzigartiges POE Management Hohe Skalierbarkeit OmniSwitches verfügen über sehr hohe Portdichten + 10 Gigabit Ethernet Uplinks. Damit reduzieren sie die Komplexität im Netzwerk OmniPCX Enterprise: 15K Benutzer, 100K Benutzer bei Vernetzung Blade Center Unterstützung für Sprache und alle relevante Anwendungen Weniger Stromverbrauch und Klimatisierungsaufwand POE: Automatische Erkennung von IP-Telefonen, WLAN Access Points OmniSwitch 9000 entsprechen US Green Standarts durch bis zu 60% weniger Energieverbauch Einfachste Administration

18 All Rights Reserved © Alcatel-Lucent 2006, ##### 18 | Presentation Title | Month 2006 Wired & Wireless Convergence Solutions Always On Erweiterte Sicherheit und Verfügbarkeit Services Always On 100% Sicher Key Points Bell Labs Expertise in Sicherheitsthemen Sicherste IP Telephony Lösung (Miercom 06) Einziges Softphone mit VLAN partitioning Verfügbarkeit 5x9 Verfügbarkeit für Realtime Dienste wie IPT, Video Kompromisslose Redundanz LAN/WAN: Ausgefeiltes Backup Konzept: Media Gateway Backup, PCS, Hotswap, MPLS Protection Selbstheilende Komponenten, z.B. WLAN Sicherheit 802.1X Authentifzierung: Telefon mit Multi-Session Unterstützung im OmniSwitch Dynamic Pinholing Unterstützung der FW, Voice/data VLAN Unterstützung, Partition Management, Softphone mit VLAN Support ITU X.805 framework, Common Criteria certification MPLS

19 All Rights Reserved © Alcatel-Lucent 2006, ##### 19 | Presentation Title | Month 2006 Wired & Wireless Convergence Solutions Easy to Manage Einfachste Verwaltung und geringere TCO Vereinfachung Zentralisierung Key Points Führende IP-Address Management Lösung Multivendor Unterstützung/VitalQIP & VitalSuite Einfache QOS & Security Verwaltung OmniVista Einfachstes Management, z.B. QoS und Access Listen Zentraler Kommunikationsserver Gemeinsame Verwaltung des Netzwerks für alle Dienste End-to-End Management Lösung Zentralisierte IP Adress Verwaltung – VitalQIP Zentralisierte Performance Überwachung – VitalSuite Zentralisierte Verwaltung von verteilten VPN und Firewall Lösungen - Brick

20 All Rights Reserved © Alcatel-Lucent 2006, ##### 20 | Presentation Title | Month 2006 Wired & Wireless Convergence Solutions Converged Services Konvergente Mobility Lösung Komplett Services Benutzer erkennung Key Points FMC voll in OmniPCX Enterprise integriert Erste SIP dual mode Mobilitätslösung Zentralisierte WLAN Lösung mit Ultra-Thin AP WLAN Netzwerk mit Unterstützung für Sprache Zentralisierte und skalierbare Voice & Data WLAN Lösung Integrierte Firewall und Authentifizierungsserver (AAA) Voice aware WLAN Infrastruktur: Schnelles hand over, e QOS, ARP proxy, zentralisiertes CAC, Powersaving Modi Fixed/Mobile Lösung Kompletter Telefonieservice für jedes Endgerät: WiFi, DECT, GSM Dual mode GSM/SIP WiFi, Partnerschaft mit Nokia Benutzer- und Geräte Lokalisierung

21 All Rights Reserved © Alcatel-Lucent 2006, ##### 21 | Presentation Title | Month 2006 Alcatel-Lucent Wired und Wireless konvergente Lösungen als ONE STOP SHOPPING Kosten Optimierung Einfach zu managen Always On Konvergente Dienste Alles aus einer Hand Höchste Skalierbarkeit Höchste Verfügbarkeit Geringer Energieverbrauch Durchgehende Möbilitätslösung Sicherste Lösung End-to-End Management Internet Standards

22 All Rights Reserved © Alcatel-Lucent 2006, ##### 22 | Presentation Title | Month 2006
