Cisco Switches für kleine und mittlere Unternehmen (SMB)

Cisco Switches für kleine und mittlere Unternehmen (SMB)

Agenda Switching das Herzstück des Netzwerkes
Cisco Switches für kleine und mittlere Unternehmen Hello. Thank you for joining me today to learn about Switching and Routing solutions and programs for Small and Medium sized customers. This presentation will cover the following: Current SMB market trends and how this can provide opportunities for you to call on your customers to start a conversation about infrastructure upgrades as well as a review of the market opportunity and SMB IT priorities. I will review the current SMB portfolio of SMB switches, routers, and network management tools. Next I will share the Cisco differentiators that will help you strengthen your value proposition to customers as well as the programs available to help you close deals. Finally, I will review customer successes and provide you with follow up links for selling tools and resources.

Switching das Herzstück des Netzwerkes

Der Geschäftsbetrieb im Wandel
Interaktives Geschäft Kollaborations- tools Changing the Way We Work, Changing the Way We Live The emergence of new technology is changing how business is performed today. For example: Collaboration tools like Groove for Microsoft Office 2007, Instant Messenger, Meetingplace, and other Desktop Collaboration suites are allowing people to communicate real time. IP Communications started the trend towards rich media services like video on demand, video conferencing, and advanced voice applications, all operating over the LAN The Web 2.0 phenomenon is delivering a new generation of web-based communities and hosted services — such as social networking sites, wikis and blogs — which facilitate collaboration and sharing between users. The evolution of the wireless LAN into a corporate productivity tool allows anytime connection and moving quickly on its heels are new applications like wireless mobility and fixed mobile convergence. All of these tools have led to a more connected and competitive business And this unprecedented level of connectivity is compounded by a global business environment where every moment is “now time”. Video on Demand Wireless Mobility Web 2.0

SMB-Kunden erledigen Geschäfte online
Anwendungen Internet- präsenz Kommunikation Bestands- führung Because of this shift in business operations, SMBs are beginning to understand the critical nature of deploying a solid network infrastructure. They are placing a significant piece of their business online whether its engaging in ecommerce, managing inventory with networked suppliers, creating a web site for marketing and information purposes, communicating via or using the network for internal communications and applications – the network is frequently the backbone for a majority of SMBs. Kollaboration e-Commerce

Switching

Cisco Lösungen für kleine und mittlere Unternehmen
Technologien & Produkte Routing Switching Security Wireless Unified Communications

Moderne Switches können viel für Unternehmen leisten
Power-over-Ethernet (PoE) Keine aufwendige Verlegung von Stromleitungen (Telefone, Access Points) Integrierte Sicherheit Zugangskontrollen Verschlüsselung Authentifizierung Einfache Konfiguration und Fehlersuche für geringe Gesamtkosten der Lösung Intelligente Dienste Bandbreiten-optimierung durch Quality of Service 8

Cisco Switches für kleine und mittlere Unternehmen

Cisco SMB Switches mit fester Konfiguration
Full Layer 3 Routing Cisco Catalyst 3750 Stapelbarer Switch der Enterpriseklasse Bis zu neun Switches als logische Einheit Fast- und Gigabit-Ethernet-Konfigurationen Intelligente Layer 3/4-Services Cisco Catalyst 3560 Festkonfigurierte Switches der Enterprise-Klasse Fast- und Gigabit-Ethernet-Konfigurationen Intelligente Layer 3/4-Services ideal für die Integration neuer Anwendungen in die LAN-Infrastruktur (IP-Telefone, Wireless-Zugangspunkte, Videoüberwachung) Preis-Leistung Layer 2 Intelligente Services Cisco Catalyst 2960 Festkonfigurierte Standalone-Switches Fast Ethernet und Gigabit Ethernet Anschlüsse für erweiterte LAN Dienste für Unternehmen mittlerer Größe und Niederlassungen Über GUI verwaltet Cisco Catalyst Express 500 Standalone, Managed Fast Ethernet und Gigabit Ethernet Anschlüsse Speziell für Unternehmen bis 250 Benutzern Funktion, Flexibilität, Skalierbarkeit 10

Cisco Catalyst Express 500/ 520 Serie

Cisco Catalyst Express 500 Switches
Geeignet für: Kleine und mittlere Unternehmen mit bis zu 250 Benutzern Merkmale: Stand-alone Layer 2 Switch mit fester Konfiguration Fast Ethernet und Gigabit Ethernet Power over Ethernet Robuste Sicherheit zum Schutz von Netzwerkverkehr Einfache Implementierung, Verwaltung und Fehlerbehandlung mit Cisco Network Assistant The Cisco® Catalyst® Express 500 Series Switches are a family of fixed-configuration, standalone managed Ethernet devices that provide the reliability, security, scalability, and rich feature set that growing businesses need in an affordable, easy-to-use platform. Designed and priced specifically for organizations with up to 250 employees, the solutions provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity, integrated security, quality-of-service (QoS) and Power-over-Ethernet (PoE) features to support advanced IP communications and wireless LAN applications. Combined with a user-friendly GUI that simplifies deployment, management, and troubleshooting, the Cisco Catalyst Express 500 Series provides an ideal LAN solution for SMBs. The switches are easily configured with the Cisco Network assistant and are protected by the Cisco Limited lifetime warranty and free Cisco IOS software updates. Idealer Einsteigerswitch für Unternehmen mit bis zu 250 Mitarbeitern

Cisco Catalyst 500 Express Serie Modellübersicht
WS-CE500-24TT WS-CE500-24LC 24 Fast Ethernet Ports 2 Gigabit Ethernet BASE-T Uplink Ports 24 Fast Ethernet 4 mit PoE 2 Dual-Purpose Gigabit Ethernet Uplink Ports (BASE-T oder SFP) WS-CE500-24PC WS-CE500-24TT 370 Watts of power dedicated to support Power over Ethernet PDs – no external P/S needed 24 port switch: 15.4 W can be delivered simultaneously on all 24 ports 48 port switch: 24 ports at 15.4 W or 48 ports at 7.7 W IEEE 802.3af only requires that a switch deliver power on one port Above and beyond this requirement can be a key differentiator Number of devices a switch can support Without the added cost and space of an external device Key point when making Power over Ethernet switch decision 24 Fast Ethernet Ports (alle mit PoE) 2 Dual-Purpose Gigabit Ethernet UplinkPorts (BASE-T oder SFP) 8 Gigabit BASE-T Ports 4 Dual-Purpose 10/100/1000 Uplink Ports (BASE-T oder SFP) 13

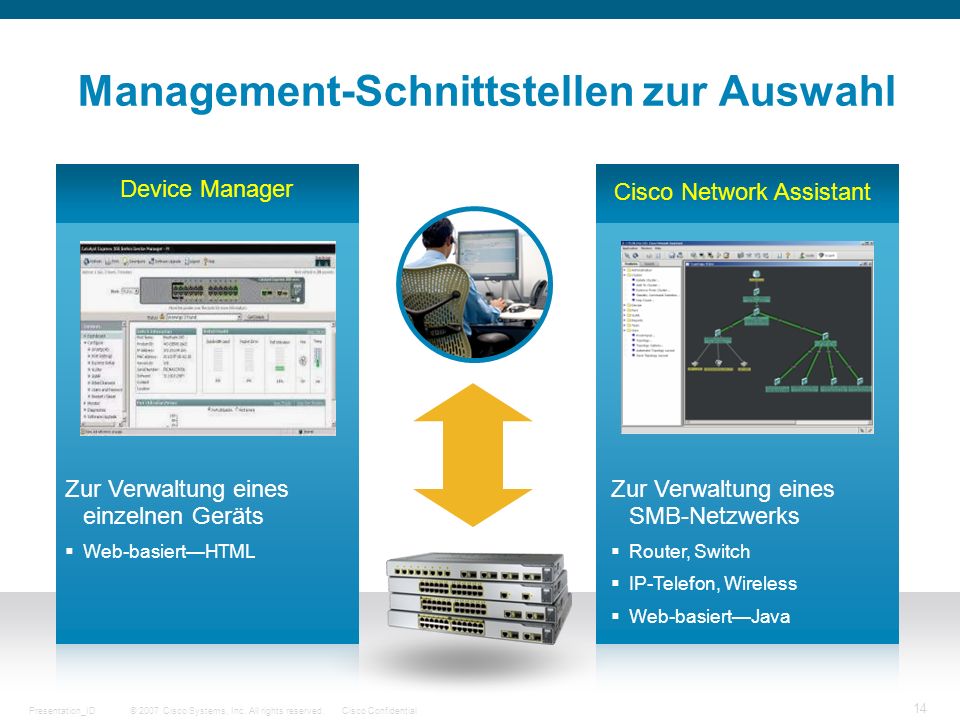

Management-Schnittstellen zur Auswahl
Device Manager Cisco Network Assistant You can easily manage the Cisco Catalyst Express 500 Series switches with either the Device Manager or Cisco Network Assistant, both of which are GUI-based. You can use the Device Manager embedded in the switch to perform initial setup and configuration of a single switch. The straightforward GUI allows you to assign IP addresses, configure virtual LANs (VLANs), and assign roles to switch ports using Cisco Smartports technology. Or you can use Cisco Network Assistant to centrally configure and manage the entire network. Cisco Network Assistant is a Java-based PC application that, is ideal for managing multiple network devices, including switches, routers, and wireless access points. Zur Verwaltung eines einzelnen Geräts Web-basiert—HTML Zur Verwaltung eines SMB-Netzwerks Router, Switch IP-Telefon, Wireless Web-basiert—Java

Intuitive Konfiguration von SMB-Netzwerken
Zentrales Management Einfache Anwendung mit Cisco Network Assistant Topologieansichten Verwaltung mehrerer Switches Merkmale Schieber zum Einstellen der Sicherheitsebene Troubleshooting Advisor Cisco Smartport-Rollen Kostenloser Download Cisco® Network Assistant is a PC-based network management application optimized for wired and wireless LANs for businesses that have 40 or fewer switches and routers. Cisco Network Assistant simplifies configuration, management, troubleshooting, and ongoing optimization of Cisco networks. The application provides a centralized network view through a user friendly GUI. It includes the Cisco Smartports Advisor, which detects connected Cisco devices and can automatically configure any device on the network—and even optimize QoS to simplify the deployment of IP communications and wireless LAN solutions. The program allows network administrators to easily apply common services, generate inventory reports, synchronize passwords, and employ features across Cisco switches, routers, and access points. Lastly, Cisco Network Assistant is available as a free download from Intuitive Konfiguration von SMB-Netzwerken

Cisco Catalyst Express 520 Switches
Geeignet für: Cisco Smart Business Communications System (SBCS) Merkmale/Highlights: Fast Ethernet und Gigabit Ethernet Power over Ethernet Leichte Integration mit SBCS Einfache Implementierung, Verwaltung, Fehlerbehandlung mit Cisco Configuration Assistant Cisco Catalyst® Express 520 Series Switches are a family of fixed-configuration, Layer 2 managed Ethernet switches that provide the reliability, scalability, and rich feature set SMBs need in a cost-effective, easy-to-manage platform. The Cisco Catalyst Express 520 Series was designed to integrate the Cisco Smart Business Communication System. You can quickly deploy and configure all the Cisco Catalyst Express 520 Series using Cisco Configuration Assistant. The switches are also protected by the Cisco Limited lifetime warranty and free Cisco IOS software updates. Ideal für kleine Unternehmen, die das Cisco Smart Business Communications System verwenden

Cisco Smart Business Communications System
Komplettes System von Sprach-, Daten-, Video, Sicherheits- und Wireless-Netzwerkprodukten und -anwendungen Speziell für kleine Unternehmen konzipiert (8-48 User) Speziell hergestellte Business-Kommunikationslösung, die leicht zu implementieren und anzuwenden ist The, Cisco Smart Business Communications System is a complete system of advanced voice, data, video, and wireless networking solutions designed specifically for SMBs At the heart of the solution is an intelligent IP network. Cisco offers a suite of proven, industry-leading products for wired and wireless voice and data communications. It also includes an all-in-one, simple, smart, and affordable unified communications solution designed specifically for growing businesses. All products are designed to work together to be easy to deploy and operate, and can be centrally managed with the Cisco configuration Assistant. Bessere Kommunikation, besseres Geschäft

Intuitive Konfiguration des SBCS
Einfache Anwendung mit dem Cisco Configuration Assistant Konfiguriert alle Geräte im SBCS Verwaltung mehrerer Geräte Besondere Merkmale Mehrere Netzwerkansichten Schieber zum Einstellen der Sicherheitsebene Troubleshooting Advisor Zusätzliche Smartport-Rollen Netzwerkberichte In 8 Sprachen erhältlich Kostenloser Download Cisco Configuration Assistant provides easy-to-use GUIs and embedded Cisco Smartports technology to eliminate the complexity that typically accompanies configuration and simplify the management, troubleshooting, and ongoing optimization of the Cisco Smart Business communication System. The tool can configure all Smart Business Communications System routers, switches, wireless access points, and Cisco Unified Communications call routing and voic systems in the network, allowing you to quickly deploy and centrally manage the entire office network. After the network is deployed, Cisco Configuration Assistant can generate status reports, synchronize passwords, troubleshoot the network, and upgrade software across all Cisco network devices. It is available in 8 different languages and may be downloaded for free at Vereinfacht die Konfiguration, Implementierung und Verwaltung von SBCS-Lösungen

Cisco Catalyst 520 / 500 Cisco Configuration Assistant Fast Ethernet
Express 520G-24TC Switches für das Smart Business Communications System Cisco Catalyst Express PC Cisco Catalyst Express LC Cisco Catalyst Express TT Cisco Catalyst Express 520-8PC Cisco Configuration Assistant Fast Ethernet Fast Ethernet mit Power over Ethernet Gigabit Switches für kleine und mittlere Unternehmen Services, Skalierbarkeit, Lebensdauer Cisco Catalyst Express 500G-12TC Cisco Catalyst Express PC Cisco has designed a series switches to meet the networking requirements of small and medium sized businesses. The Cisco Catalyst Express 500 Series includes four models The three Fast Ethernet switches are optimized for desktop, IP telephony, and wireless access point connectivity and The 12-port Gigabit Ethernet switch provides an ideal solution for switch aggregation and server connectivity. Next, the Cisco Catalyst Express 520 Series includes 5 models. There are 4 Fast Ethernet models provide a secure, high-performance platform for use with the Cisco Smart Business Communication System. The 24-port Gigabit Ethernet switch provides high speed connectivity for switch aggregation or server connectivity. Cisco Catalyst Express LC Cisco Catalyst Express TT Cisco Network Assistant Fast Ethernet mit Power over Ethernet Fast Ethernet Gigabit

Cisco Catalyst 2960 Serie

Cisco Catalyst 2960 Switches
Positionierung: Für mittelgroße Unternehmen und Außenstellen Features/Highlights: Festkonfigurierte Standalone-Switches Fast Ethernet und Gigabit Ethernet Anschlüssen 8, 24 und 48 Port Modelle Erweiterte LAN Dienste (Intelligente Dienste z.B. Quality of Service, Integrierte Sicherheit, hohe Verfügbarkeit, optional Power-over Ethernet) Einfache Konfiguration und Fehlersuche für geringe Gesamtkosten der Lösung (CNA) The Cisco® Catalyst® Express 500 Series Switches are a family of fixed-configuration, standalone managed Ethernet devices that provide the reliability, security, scalability, and rich feature set that growing businesses need in an affordable, easy-to-use platform. Designed and priced specifically for organizations with up to 250 employees, the solutions provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity, integrated security, quality-of-service (QoS) and Power-over-Ethernet (PoE) features to support advanced IP communications and wireless LAN applications. Combined with a user-friendly GUI that simplifies deployment, management, and troubleshooting, the Cisco Catalyst Express 500 Series provides an ideal LAN solution for SMBs. The switches are easily configured with the Cisco Network assistant and are protected by the Cisco Limited lifetime warranty and free Cisco IOS software updates.

Catalyst 2960 LAN Base Serie Catalyst 2960 LAN Lite Serie Fast Ethernet und Gigabit Ethernet in 8-, 24- und 48-Port-Konfigurationen Für Unternehmen mittlerer Größe sowie für Niederlassungen Power-over-Ethernet Erweiterte Quality of Service, Sicherheit und Verfügbarket Fast Ethernet in 24- und 48-Port-Konfigurationen Einstiegsnetzwerke für Kabelschränke und kleine Filialen Grundlegende Quality of Service, Sicherheit und Verfügbarket Catalyst 2960 Switches können zwischen LAN Base und LAN Lite Software nicht auf- oder abgerüstet werden. 22

Cisco Catalyst 2960 LAN Base Serie — Modellübersicht
Catalyst® PC-L Catalyst LT-L Catalyst 2960PD-8TT-L PoE Neu Neu Neu 8 10/100/1000 Ports 1 10/100/1000 PoE Input Port Kompakte Form, kein Lüfter 24 10/100 Ports alle PoE 2 dual-purpose Uplink Ports 24 10/100 Ports (8 PoE Ports) 2 10/100/1000 Uplink Ports Catalyst® 2960G-24TC-L Catalyst 2960G-48TC-L Catalyst 2960G-8TC-L Gigabit 7 10/100/1000 Ports 1 dual-purpose Uplink Port Kompakte Form, kein Lüfter 20 10/100/1000 Ports 4 dual-purpose Uplink Ports 44 10/100/1000 Ports 4 dual-purpose Uplink Ports Catalyst TC-L Catalyst TC-L Catalyst TC-L Fast Ethernet 8 10/100 Ports 1 dual-purpose Uplink Port Kompakte Form, kein Lüfter 370 Watts of power dedicated to support Power over Ethernet PDs – no external P/S needed 24 port switch: 15.4 W can be delivered simultaneously on all 24 ports 48 port switch: 24 ports at 15.4 W or 48 ports at 7.7 W IEEE 802.3af only requires that a switch deliver power on one port Above and beyond this requirement can be a key differentiator Number of devices a switch can support Without the added cost and space of an external device Key point when making Power over Ethernet switch decision 24 10/100 Ports 2 dual-purpose Uplink Ports 48 10/100 ports 2 dual-purpose Uplink Ports Catalyst TT-L Catalyst TT-L Software LAN Base Image Intelligente Services der Enterpriseklasse: Hohe QoS, verbesserte Sicher- heit, hohe Verfügbarkeit 24 10/100 Ports 2 10/100/1000 Uplink Ports 48 10/100 Ports 2 10/100/1000 Uplink Ports 23

Cisco Catalyst 2960 LAN Lite Serie — Modellübersicht
Fast Ethernet Catalyst TC-S Catalyst TC-S 24 10/100 Ports 2 Dual-Purpose Uplink Ports 48 10/100 Ports 2 Dual-Purpose Uplink Ports Catalyst S Software LAN Lite Image New 370 Watts of power dedicated to support Power over Ethernet PDs – no external P/S needed 24 port switch: 15.4 W can be delivered simultaneously on all 24 ports 48 port switch: 24 ports at 15.4 W or 48 ports at 7.7 W IEEE 802.3af only requires that a switch deliver power on one port Above and beyond this requirement can be a key differentiator Number of devices a switch can support Without the added cost and space of an external device Key point when making Power over Ethernet switch decision Grundlegende QoS, Sicherheit und Verfügbarkeit mit Schwerpunkt auf Benutzerfreundlichkeit und geringerer Total Cost of Ownership 24 10/100 Ports 24

Features/Highlights: Festkonfigurierte Switches der Enterprise-Klasse Fast Ethernet und Gigabit Ethernet Intelligente Layer 3/4-Services Power-over-Ethernet Einfache Konfiguration und Fehlersuche für geringe Gesamtkosten der Lösung (CNA) Ideal für die Integration neuer Anwendungen in die LAN-Infrastruktur (IP-Telefone, Wireless-Zugangspunkte, Videoüberwachung) Netzwerkweit intelligente Services: Leistungsstarke QoS (Quality of Service) Rate Limiting ACLs (Access Control Lists) Multicast Management Hochleistungsfähiges IP Routing The Cisco® Catalyst® Express 500 Series Switches are a family of fixed-configuration, standalone managed Ethernet devices that provide the reliability, security, scalability, and rich feature set that growing businesses need in an affordable, easy-to-use platform. Designed and priced specifically for organizations with up to 250 employees, the solutions provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity, integrated security, quality-of-service (QoS) and Power-over-Ethernet (PoE) features to support advanced IP communications and wireless LAN applications. Combined with a user-friendly GUI that simplifies deployment, management, and troubleshooting, the Cisco Catalyst Express 500 Series provides an ideal LAN solution for SMBs. The switches are easily configured with the Cisco Network assistant and are protected by the Cisco Limited lifetime warranty and free Cisco IOS software updates.

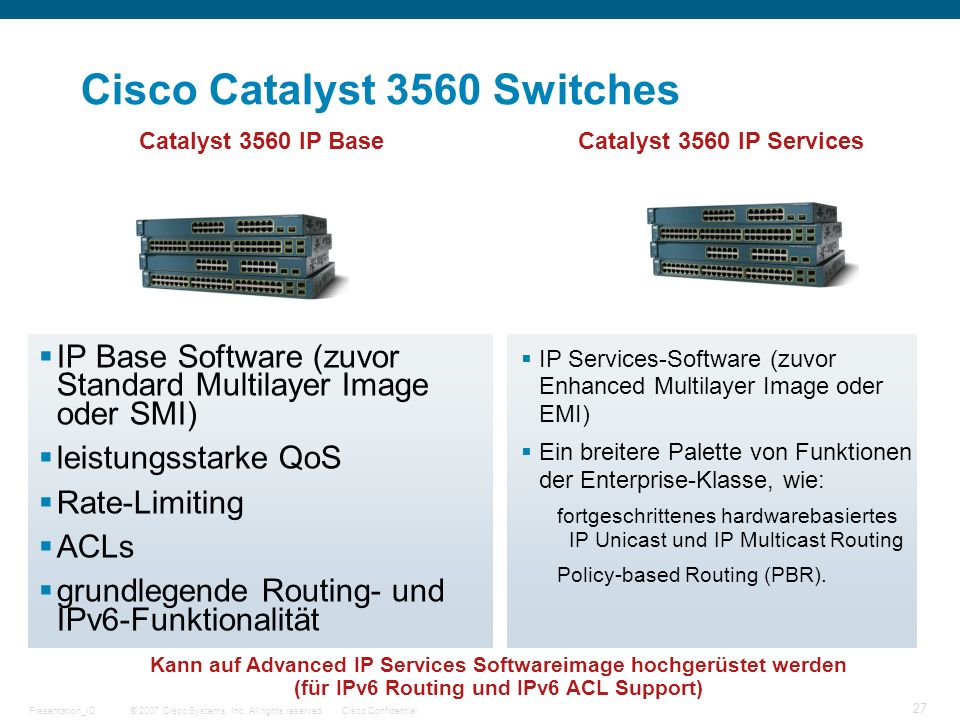

Catalyst 3560 IP Base Catalyst 3560 IP Services IP Base Software (zuvor Standard Multilayer Image oder SMI) leistungsstarke QoS Rate-Limiting ACLs grundlegende Routing- und IPv6-Funktionalität IP Services-Software (zuvor Enhanced Multilayer Image oder EMI) Ein breitere Palette von Funktionen der Enterprise-Klasse, wie: fortgeschrittenes hardwarebasiertes IP Unicast und IP Multicast Routing Policy-based Routing (PBR). Kann auf Advanced IP Services Softwareimage hochgerüstet werden (für IPv6 Routing und IPv6 ACL Support) 27

Cisco Catalyst 3560 Modellübersicht
WS-C PS-E WS-C PS-S WS-C TS-E Festkonfig. Switch der Enterprise-Klasse, 24 10/100 Ports mit PoE und 2 SFP Gigabit Ethernet Ports, IP Services Image Festkonfig. Switch der Enterprise-Klasse, 24 Ethernet 10/100 Ports mit PoE und 2 SFP Gigabit Ethernet Ports, IP Base Image Festkonfigurierter Switch der Enterprise-Klasse, 24 10/100 Ports und 2 SFP Gigabit Ethernet Ports, IP Services Image WS-C TS-S WS-C PS-E WS-C PS-S Festkonfig. Switch der Enterprise-Klasse, 24 Fast Ethernet 10/100 Ports und 2 SFP Gigabit Ethernet Ports, IP Base Image Festkonfig. Switch der Enterprise-Klasse, 48 10/100 Ports mit PoE und 4 SFP Gigabit Ethernet Ports, IP Services Image Festkonfigurierter Switch der Enterprise-Klasse, 48 10/100 Ports mit PoE und 4 SFP Gigabit Ethernet Ports, IP Base Image WS-C TS-E WS-C TS-S WS-C3560G-24PS-S Festkonfig. Switch der Enterprise-Klasse, 48 Ethernet 10/100 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Festkonfig. Switch der Enterprise-Klasse, 48 Fast Ethernet 10/100 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image Festkonfigurierter Switch der Enterprise-Klasse, 24 10/100/1000 Ports PoE und 4 SFP Gigabit Ethernet Ports, IP Base Image 28

WS-C3560G-24TS-E WS-C3560G-24TS-S WS-C3560G-48PS-E Festkonfigurierter Switch der Enterprise-Klasse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Festkonfigurierter Switch der Enterprise-Klasse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image Festkonfig. Switch der Enterprise-Klasse, 48 10/100/1000 Ports mit PoE und 4 SFP GigabitEthernet Ports, IP Services Image WS-C3560G-48PS-S WS-C3560G-48TS-E WS-C3560G-48TS-S Festkonfig. Switch der Enterprise-Klasse, 48 10/100/1000 Ports mit PoE und 4 SFP Gigabit Ethernet Ports, IP Base Image Festkonfigurierter Switch der Enterprise-Klasse, 48 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Festkonfigurierter Switch der Enterprise-Klasse, 48 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image 29

Konfigurationen: Cisco Catalyst PC: 8 Ethernet 10/100 Ports mit PoE und 1 Dual Purpose (10/100/1000 und SFP) Port Cisco Catalyst TS: 24 Ethernet 10/100 ports und 2 SFP ports Cisco Catalyst TS: 48 Ethernet 10/100 ports und 4 SFP ports Cisco Catalyst PS: 24 Ethernet 10/100 Ports mit PoE und 2 SFP Ports Cisco Catalyst PS: 48 Ethernet 10/100 Ports mit PoE und 4 SFP Ports Cisco Catalyst 3560G-24TS: 24 Ethernet 10/100/1000 Ports und 4 SFP Ports Cisco Catalyst 3560G-48TS: 48 Ethernet 10/100/1000 Ports und 4 SFP Ports Cisco Catalyst 3560G-24PS: 24 Ethernet 10/100/1000 Ports mit PoE und 4 SFP Ports Cisco Catalyst 3560G-48PS: 48 Ethernet 10/100/1000 Ports mit PoE und 4 SFP Ports Fast Ethernet Gigabit

Positionierung: Stapelbar, feste Konfiguration Bis zu 9 Switches können mit der StackWise Technologie als logische Einheit verbunden werden Fast- und Gigabit-Ethernet-Konfigurationen Power over Ethernet Intelligente Layer 3/4-Services der Enterpriseklasse Einfache Konfiguration und Fehlersuche für geringe Gesamtkosten der Lösung (CNA) The Cisco® Catalyst® Express 500 Series Switches are a family of fixed-configuration, standalone managed Ethernet devices that provide the reliability, security, scalability, and rich feature set that growing businesses need in an affordable, easy-to-use platform. Designed and priced specifically for organizations with up to 250 employees, the solutions provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity, integrated security, quality-of-service (QoS) and Power-over-Ethernet (PoE) features to support advanced IP communications and wireless LAN applications. Combined with a user-friendly GUI that simplifies deployment, management, and troubleshooting, the Cisco Catalyst Express 500 Series provides an ideal LAN solution for SMBs. The switches are easily configured with the Cisco Network assistant and are protected by the Cisco Limited lifetime warranty and free Cisco IOS software updates.

Catalyst 3750 IP Base Catalyst 3750 IP Services IP Base Software (zuvor Standard Multilayer Image oder SMI) leistungsstarke QoS Rate-Limiting ACLs grundlegende Routing- und IPv6-Funktionalität IP Services-Software (zuvor Enhanced Multilayer Image oder EMI) Ein breitere Palette von Funktionen der Enterprise-Klasse, wie: fortgeschrittenes hardwarebasiertes IP Unicast und IP Multicast Routing Policy-based Routing (PBR). Kann auf Advanced IP Services Softwareimage hochgerüstet werden (für IPv6 Routing und IPv6 ACL Support) 33

WS-C PS-E WS-C PS-S WS-C TS-E Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100 Ports mit PoE und 2 SFP Gigabit Ethernet Ports, IP Services Image Stapelbarer Switch für Untern. mittlerer Grösse, 24 10/100 Ports mit PoE und 2 SFP Gigabit Ethernet Ports, IP Base Image Stapelbarer Switch für Unternehmen mittlerer Grösse, 24 10/100 Ports und 2 SFP Gigabit Ethernet Ports, IP Services Image WS-C TS-S WS-C PS-E WS-C PS-S Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100 Ports und 2 SFP Gigabit Ethernet Ports, 1 Rack Unit, IP Base Image Stapelbarer Switch für Untern. mittl. Grösse, 48 10/100 Ports mit PoE und 4 SFP Gigabit Ethernet Ports, IP Services Image Stapelbarer Switch für Unternehmen mittl. Grösse, 48 10/100 Ports mit PoE und 4 SFP Gigabit Ethernet Ports, IP Base Image WS-C TS-E WS-C TS-S WS-C3750G-12S-E Stapelbarer Switch für Unternehmen mittlerer Grösse, 48 10/100 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Stapelbarer Switch für Unternehmen mittlerer Grösse, 48 10/100 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image Stapelbarer Switch für Unternehmen mittlerer Grösse , 12 SFP Gigabit Ethernet Ports, IP Services Image 34

WS-C3750G-12S-S WS-C3750G-16TD-E WS-C3750G-16TD-S Stapelbarer Switch für Unternehmen mittlerer Grösse, 12 SFP Gigabit Ethernet Ports, IP Base Image End of sale End of sale WS-C3750G-24PS-E WS-C3750G-24PS-S WS-C3750G-24T-E Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100/1000 Ports mit PoE und 4 SFP Gigabit Eth.Ports, IP Services Image Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100/1000 Ports mit PoE und 4 SFP Gigabit Eth. Ports, IP Base Image Stapelbarer Switch für Unternehmen mittlerer Grösse, 24 10/100/1000 Ports, IP Services Image WS-C3750G-24T-S WS-C3750G-24TS-E WS-C3750G-24TS-E1U Stapelbarer Switch für Unternehmen mittlerer Grösse, 24 10/100/1000 Ports, IP Base Image Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Stapelbarer Switch für Untern. mittl. Grösse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image 35

WS-C3750G-24TS-S WS-C3750G-24TS-S1U WS-C3750G-48PS-E Stapelbarer Switch für Unternehmen mittlerer Grösse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image Stapelbarer Switch für Untern. mittlerer Grösse, 24 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image Stapelbarer Switch für Untern. mittl. Grösse, 48 10/100/1000 Ports mit PoE und 4 SFP Gigabit Eth.Ports, IP Services Image WS-C3750G-48PS-S WS-C3750G-48TS-E WS-C3750G-48TS-S Stapelbarer Switch für Untern. mittl. Grösse, 48 10/100/1000 Ports mit PoE und 4 SFP Gigabit Eth. Ports, IP Base Image Stapelbarer Switch für Untern. mittlerer Grösse, 48 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Services Image Stapelbarer Switch für Unternehmen mittlerer Grösse, 48 10/100/1000 Ports und 4 SFP Gigabit Ethernet Ports, IP Base Image 36

Konfigurationen: Cisco Catalyst TS: 24 Ethernet 10/100 Ports und 2 SFP Ports Cisco Catalyst TS: 48 Ethernet 10/100 Ports und 4 SFP Ports Cisco Catalyst PS: 24 Ethernet 10/100 Ports mit PoE und 2 SFP Ports Cisco Catalyst PS: 48 Ethernet 10/100 Ports mit PoE und 4 SFP Ports Cisco Catalyst FS: 24 Ethernet 100BASE-FX Ports und 2 SFP Ports Cisco Catalyst 3750G-24T: 24 Ethernet 10/100/1000 Ports Cisco Catalyst 3750G-24TS: 24 Ethernet 10/100/1000 Ports und 4 SFP Ports; 1.5RU Cisco Catalyst 3750G-24TS-1U: 24 Ethernet 10/100/1000 Ports und 4 SFP Ports; 1 RU Cisco Catalyst 3750G-48TS: 48 Ethernet 10/100/1000 Ports und 4 SFP Ports Cisco Catalyst 3750G-24PS: 24 Ethernet 10/100/1000 Ports mit PoE und 4 SFP Ports Cisco Catalyst 3750G-48PS: 48 Ethernet 10/100/1000 Ports mit PoE und 4 SFP Ports Cisco Catalyst 3750G-12S: 12 SFP Ports Cisco Catalyst 3750G-24WS: 24 Ethernet 10/100/1000 Ports mit PoE und 2 SFP Ports mit Support für bis zu 50 Access Points pro Switch und 200 Access Points pro Stack Fast Ethernet Gigabit Ethernet

Redundant Power System 2300
Vorteile Erhöhte Netzwerkverfügbarkeit Unterbrechungsfreie Notstromversorgung von Netzwerkgeräten Modulare Stromversorgung und Lüfter bieten Flexibilität und bessere Verfügbarkeit Management- und Konfigurationsmöglichkeiten erlauben es dem Benutzer, Richtlinien zur Ausfallsicherung zu bestimmen und zu implementieren Leichtere Benutzung Sechs RPS-Konnektoren—Bis zu 2 Switches aktiv gesichert Nahtloser Übergang zu RPS 2300 bei Ausfall der Stromversorgung des Switches RPS 2300 und Switch können separate AC-Quellen haben Verbesserte Modularität Verwendet die gleichen 1150W- und 750W-Netzteile wie die Cisco Catalyst 3750E und 3560E Switches Austauschbares Lüftermodul Hinweis: Die Catalyst 2960 LAN Lite Switches und Catalyst 2960 Compact Switches besitzen keine RPS-Unterstützung. Die Catalyst 2960 PoE Switches benötigen CAB-2300-E= , der es dem Benutzer erlaubt, das RPS über den Switch zu verwalten. 38

Cisco Switches für kleine und mittlere Unternehmen (SMB)
