1 Building Technologies SiPass integrated

2 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 2 November 2004 Overview SiPass™ Product Family SiPass networked SiPass standalone SiPass integrated The SiPass range of products are all compatible. You can install one system and then when your business grows expand the access system without the need to rewire or reinstall existing components.

3 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 3 November 2004 SiPass integrated Product Description Fully feature integrated access control for large and demanding applications Main Features Fully encrypted Ethernet architecture Powerful access controller with flexible I/O options Virtually unlimited card holders and controllers Photo Imaging and Card Printing Fully integrated digital and analogue video from Siemens Global and Timed Anti-Passback Visitor & Elevator Management Extended software options Dial-up Controllers and Workstations Languages: DE, EN, ES, FR, NL, PL Dual reader interface CCTV Integration Network architecture I/O Boards

4 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 4 November 2004 SiPass is a Windows based client-server host application that performs a wide variety of access control, identification and security functions SiPass offers a fully distributed architecture SiPass uses a MSDE or MS-SQL integrated database to store all application critical data Network based controller provides flexible I/O and powerful peer-to-peer operation SiPass integrated – Overview

5 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 5 November 2004 Server Requirements: - Intel based Computer - Windows XP (SP1), 2000 (SP3), Server 2003 (SP3) - SQL SERVER 2000 or MSDE (SP3) The SiPass Server hosts the primary security database that allows the system to be correctly managed. SiPass integrated – Industry standard server requirements

6 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 6 November 2004 SiPass integrated – System Architecture SiPass Client workstation SiPass Server ACC In reader Exit reader OPM ACC DRI OPMIPM DRI WAN/LAN ACC Each ACC controls access for up to 64 doors RS485

7 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 7 November 2004 All data in your security system is protected from unauthorized users gaining access. Fully encrypted logon using a unique user name and password for verification or Windows authenticated logon using the integrated Windows login SiPass integrated – Secure single logon

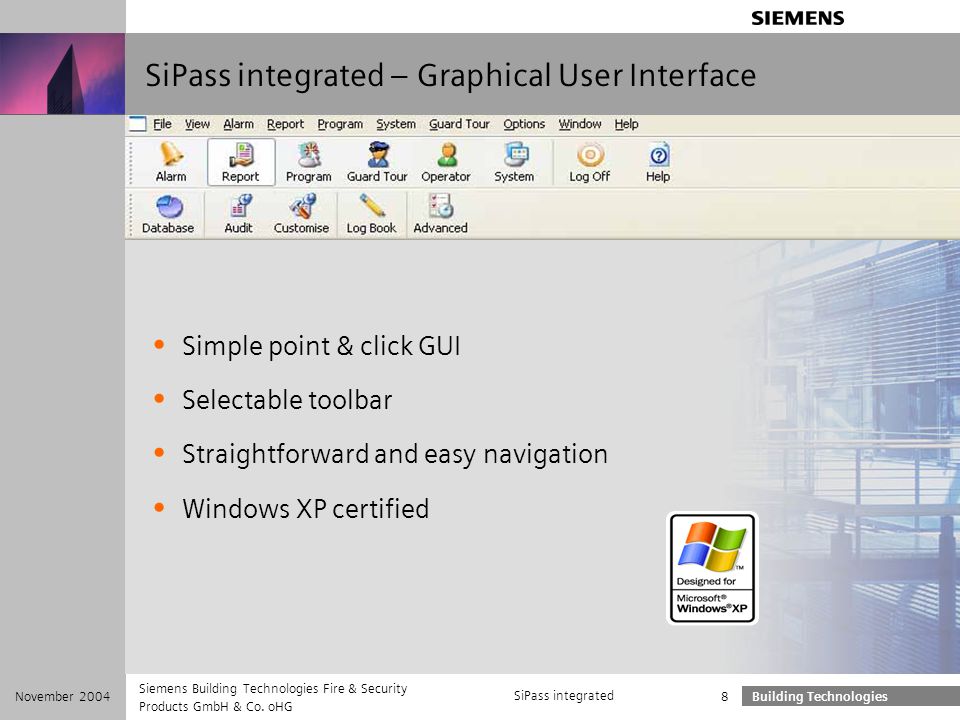

8 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 8 November 2004 Simple point & click GUI Selectable toolbar Straightforward and easy navigation Windows XP certified SiPass integrated – Graphical User Interface

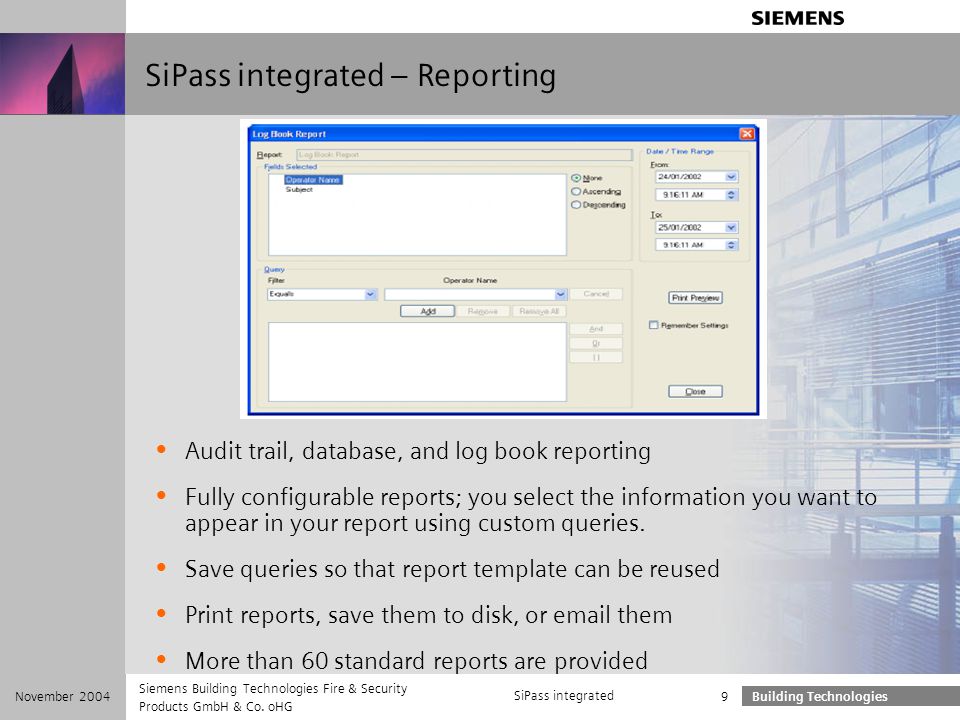

9 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 9 November 2004 Audit trail, database, and log book reporting Fully configurable reports; you select the information you want to appear in your report using custom queries. Save queries so that report template can be reused Print reports, save them to disk, or them More than 60 standard reports are provided SiPass integrated – Reporting

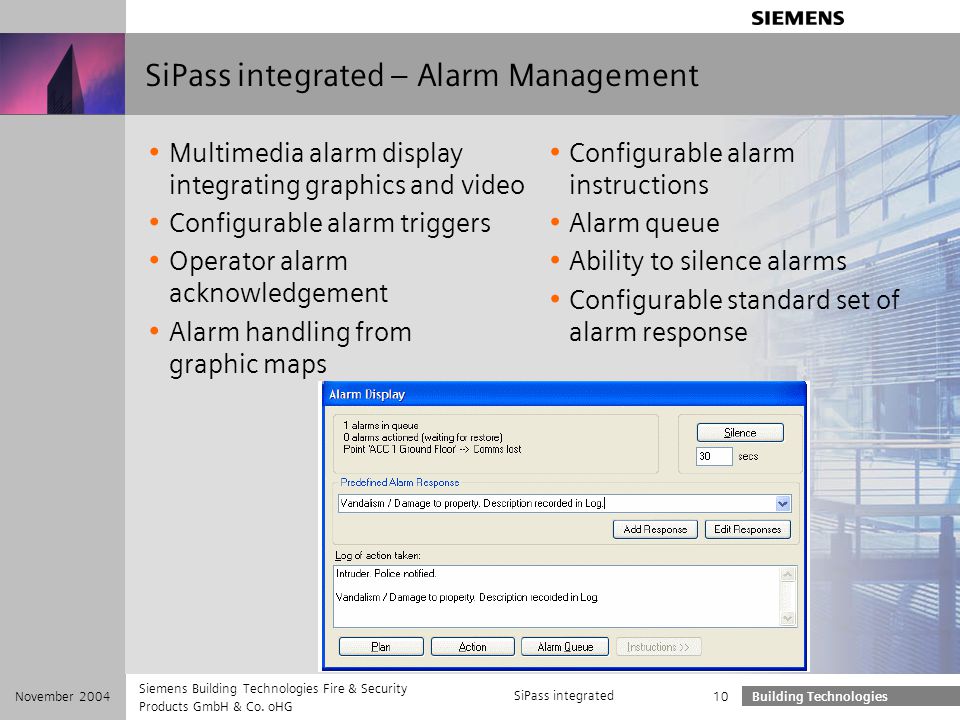

10 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 10 November 2004 Multimedia alarm display integrating graphics and video Configurable alarm triggers Operator alarm acknowledgement Alarm handling from graphic maps Configurable alarm instructions Alarm queue Ability to silence alarms Configurable standard set of alarm response SiPass integrated – Alarm Management

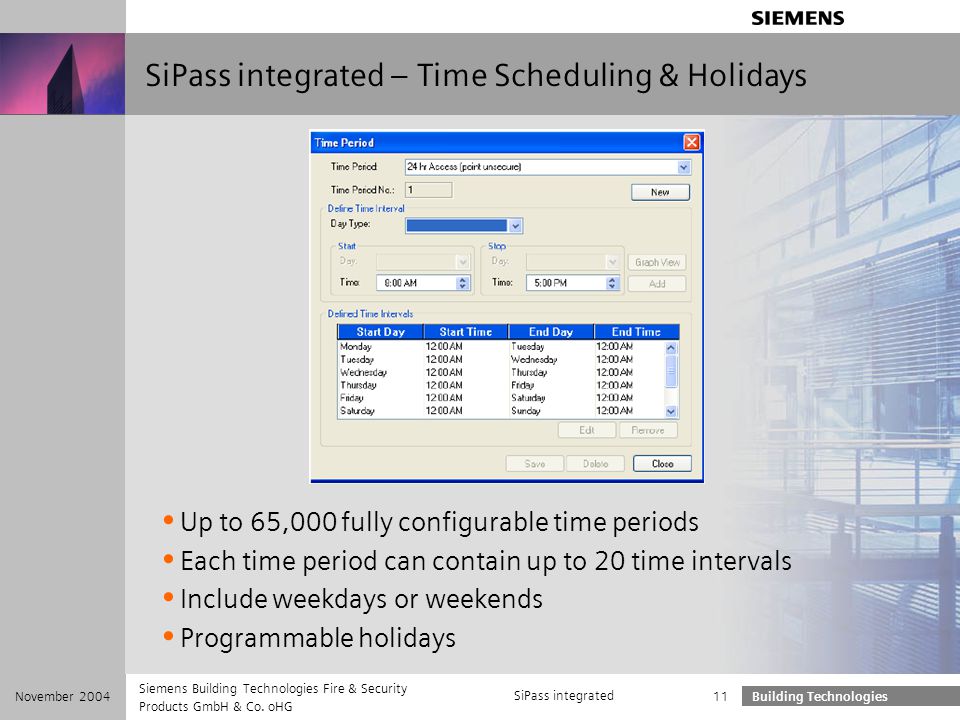

11 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 11 November 2004 Up to 65,000 fully configurable time periods Each time period can contain up to 20 time intervals Include weekdays or weekends Programmable holidays SiPass integrated – Time Scheduling & Holidays

12 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 12 November 2004 SiPass integrated – Backup and Restore SiPass provides all the tools necessary to manage your valuable access control and security system data, allowing you to restore critical information in case of emergency. Backup database, audit trail, and log book records Select specific database components to be backed up Restore backed up files Purge the audit trail and log book

13 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 13 November 2004 SiPass integrated – Online help Pressing F1 displays the help system Step by step instructions for performing all tasks Full search capability across topics

14 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 14 November 2004 SiPass integrated –SISTORE MX/AX DVR Interface Management of multiple DVR units Viewing of live images from any SiPass client Configurable event task routines to trigger the recording process Single click playback from the SiPass Audit Trail of recorded images from any client Control of recording process directly from SiPass graphic displays Database partitioning that extends to individual DVR units and cameras Support for PTZ and fixed camera solutions

15 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 15 November 2004 SiPass allows you to combine the CCTV features with your access control system. High level communications (bidirectional interface) Interfaces with the following switchers: - SIMATRIX SYS - SIMATRIX SIMATRIX 648 Automatic CCTV events in direct response to alarm conditions CCTV specific buttons on graphic maps Configuration of presets, patterns, and sequences SiPass integrated – CCTV SIMATRIX Matrix Switcher Interface RS232 SIMATRIX SYS, 164, 648

16 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 16 November 2004 SiPass integrated – Dial-up controller Remote ACC controllers can be connected via dial-up modem. SiPass server can initiate connection on: Operator request Time schedule triggered Host Event Task Time Period / Periodical Check ACC controller can initiate connection on: Audit Trail event buffer almost full Lost or corrupt database Alarm events RS232 Telephone network SiPass Server ACC RS232

17 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 17 November 2004 Many office buildings contain staff from different businesses. Each business has their own security needs but a single access system is required. SiPass can be easily configured to handle Multiple-tenant facilities. In a multi-tenant environment, tenants retain ownership of their own security system Tenants can use their own access credential regardless of the credential used in the base building Ability to use cards with the same card number but with different facility codes or card technologies Provides an ideal path for system migration SiPass integrated – Tenant Management

18 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 18 November 2004 Monitor and control movement via elevators Elevators should not be a security weak spot Controlled via SiPass I/O boards Each AFO5100 supports up to 16 floors Fire override function Capability : 64 Banks (Group of elevators that service the same set of floors) 255 Elevators per controller 255 Floors per system Crossover floors supported Unique time schedules for each floor Simple configuration using on-screen wizards SiPass integrated – Low-Level Elevator Management RS485Ethernet AFO5100 Floor Floor 1-16 Elevator 1 AFO5100 DRI

19 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 19 November 2004 SiPass integrated – Anti-Passback (APB) Anti-Passback provides a higher level of security by preventing access card misuse. SiPass APB tracks cardholders and ensures for example they can not re-enter a room until they have exited – ensuring the card is not “lent” to another person. Main features and benefits: APB areas define spaces a person can enter or exit APB areas may reside within other APB areas (sub-areas) View a summary of cardholders in individual APB areas Detailed information about ABP activity included in the audit trail Guards can reset APB areas or individual cardholders Can limit the number of cardholders per Area e.g. Car parking, secure spaces

20 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 20 November 2004 SiPass integrated – Timed Anti-Passback (APB) SiPass Timed APB is a simple way of delivering many benefits of full APB but without the need to install Entry and Exit readers in all ABP areas. Main features and benefits: Once a card has entered a APB area it cannot re-enter that area for a defined period of time. Prevents a card from being “lent” to another person Ideal for high traffic areas where exit readers are not practical E.g. public entry areas in secure buildings such as national monuments

21 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 21 November 2004 SiPass integrated – Door Configuration with flexible I/O In reader Door lock Door frame Aux input Out reader Aux output REX REX-Button DRI Battery backup + - PSU

22 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 22 November 2004 SiPass integrated – Dual Reader Interface ADD5100 Supports the most common reader technologies Support for all readers with CerPass protocol (i.e. ARxx8x-xx, ARxx3x-xx) Support for both entry (IN) and exit (OUT) readers Power supply for connected readers Monitoring of a door contact input Monitoring of a request-to-exit device Monitoring of up to 3 auxiliary input devices Control of a door lock/strike (relay driven)

23 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 23 November 2004 SiPass integrated – Input Point Module AFI Internally supplied inputs Supervision of input wires 4 general purpose outputs (relay driven) Local “tamper” input Local “alarm” output Fire override input Fire override output (relay driven) Connection for wiring to an ACC Field Level Network (FLN) channel

24 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 24 November 2004 SiPass integrated – Output Point Module AFO opto-isolated inputs (externally supplied) 16 relay outputs Local “tamper” input Local “alarm” output 2 Fire override inputs 2 Fire override outputs (relay driven) Connection for wiring to an ACC Field Level Network (FLN) channel

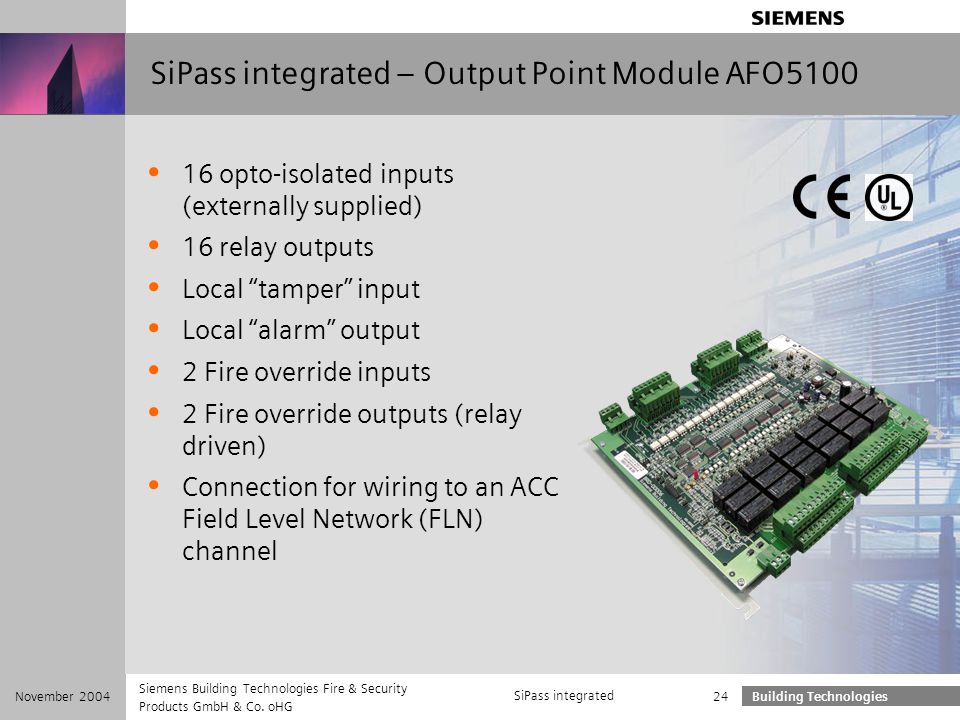

25 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 25 November 2004 SiPass integrated – Advanced Central Controller AC5100 Access Control Engine 32-bit Processor 64MB onboard RAM Low Power Consumption 21 Diagnostic LED’s 10/100MB Ethernet onboard Up to 1,000,000 cardholders AES Encryption between ACC and SiPass Server Peer-to-peer APB and event tasks Flash ROM download (firmware updating) 4 x RS-485 FLN ports RS-232 diagnostic port RS-232 device port Tamper input and alarm output Real-time clock battery

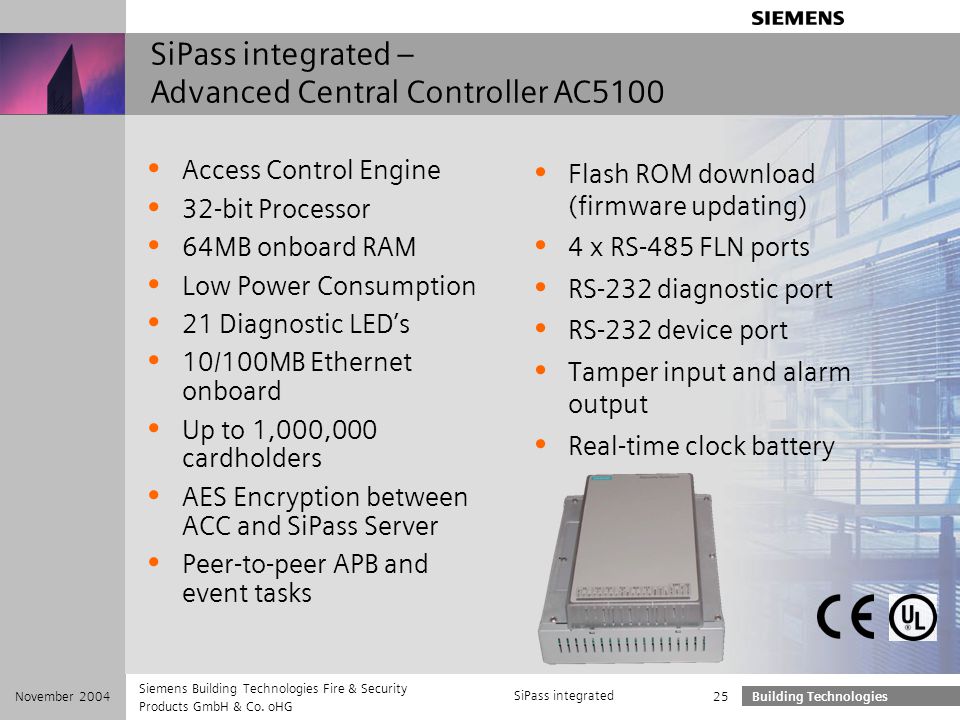

26 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 26 November 2004 Readers for most common card technologies available Readers for connection to door controllers Winner of IF Design Award 2001 SiPass supports a range of compatible Siemens Readers

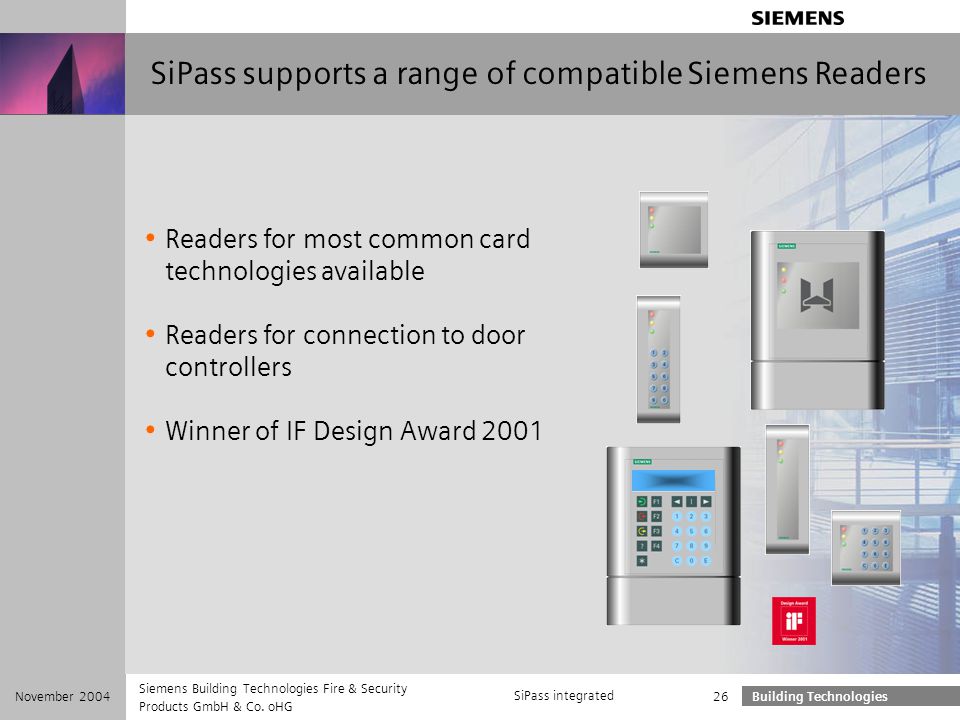

27 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 27 November 2004 Integrated Fingerprint Reader (AR6332-BI) Fingerprint reader in mullion reader design Full integration in SiPass Identification or verification with PIN Up to 450 patterns Download of the patterns via LAN

28 Siemens Building Technologies Fire & Security Products GmbH & Co. oHG Siemens PPT- Farbpalette. Bitte mit Pipette Farbe auswählen. PPT Back-Button Bitte Kopieren und an gewünschter Stelle einsetzen. Verlinkung über > Aktionsein- stellungen. Building Technologies SiPass integrated 28 November 2004 SiPass The perfect solution for Access Control, from one door up to a global enterprise. Summary
