1 Automation leicht gemacht.
SNAP PAC System Automation leicht gemacht.

2 OPTO 22: SNAP PAC System –Programmable Automation Controllers-
Die Komplettlösung: Hardware Controller Buskoppler E/As Software Steuerung Visualisierung / HMI Datenaustausch Training Schulung Videos Produkt Support Prozesssteuerung Automatisierung Achsensteuerung Datenaustausch Vernetzung Remote Überwachung Datenerfassung und vieles mehr! Opto 22’s solution is the SNAP PAC System. The SNAP PAC System integrates hardware, software, training, and product support into a system package. This system has the flexibility to do most automation tasks, including data acquisition, control, and process monitoring. In the next few minutes, I will explain what Opto 22’s SNAP PAC System is and how it addresses our common wants.

3 OPTO 22: SNAP PAC System –Programmable Automation Controllers-
Now, the software runs and communicates with SNAP PAC hardware. PAC Control strategies run on SNAP PAC controllers. Opto 22 currently offers two types of controllers: the SNAP PAC S-series and the SNAP PAC R-series. The SNAP PAC S-series are standalone controllers. This series of controllers is good for distributed automation systems, systems with high point counts, and systems needing legacy support. The SNAP PAC R-series are rack-mounted controllers. These controllers are good for systems involving cell control, remote I/O, and data acquisition systems.

4 OPTO 22: SNAP PAC System –Programmable Automation Controllers-
Now, the software runs and communicates with SNAP PAC hardware. PAC Control strategies run on SNAP PAC controllers. Opto 22 currently offers two types of controllers: the SNAP PAC S-series and the SNAP PAC R-series. The SNAP PAC S-series are standalone controllers. This series of controllers is good for distributed automation systems, systems with high point counts, and systems needing legacy support. The SNAP PAC R-series are rack-mounted controllers. These controllers are good for systems involving cell control, remote I/O, and data acquisition systems.

5 SNAP PAC Controller & Buskoppler
SNAP PAC S-Serie Controller Standalone Controller SNAP PAC R-Serie Controller Rack mounted Now, the software runs and communicates with SNAP PAC hardware. PAC Control strategies run on SNAP PAC controllers. Opto 22 currently offers two types of controllers: the SNAP PAC S-series and the SNAP PAC R-series. The SNAP PAC S-series are standalone controllers. This series of controllers is good for distributed automation systems, systems with high point counts, and systems needing legacy support. The SNAP PAC R-series are rack-mounted controllers. These controllers are good for systems involving cell control, remote I/O, and data acquisition systems. SNAP PAC EB-Serie Buskoppler Rack mounted Ethernet Buskoppler SNAP PAC SB-Serie Controller Rack mounted serieller RS485 Buskoppler

6 SNAP PAC S1 + S2 Technische Spezifikationen 32-bit ColdFire® 5475
Integrierter CO-Prozessor 32 MB RAM, 16 MB Flash, und 8 MB battery-backed RAM Dual Ethernet Anschluß Redundanz oder Switch Funktion Optional mit integriertem WLAN g 4 serielle Schnittstellen: 4x RS-485 (2- oder 4-Draht, keine Interrupts, mistic Support) oder 4x RS-232 mit Handshake Funktion (PPP) Remote E/A Unterstützung: Ethernet, seriell PAC Project: max. 32 PAC Control charts gleichzeitig 8-24 VDC Spannungsversorgung The SNAP PAC S-series controller has the most power of all Opto 22 controllers. The hardware is a 32-bit Coldfire 5475 and offers an integrated floating point unit, plus built-in dual Ethernet interfaces that can be used for link redundancy or segmented networking. The SNAP PAC S series has three serial ports: one RS-485 with serial mistic I/O support, one RS-232 with PPP handshaking, and another RS-232 port. The SNAP PAC S-series also offers the most memory of all Opto 22 controllers, with 32 MB RAM, 16 MB Flash memory, and 8 MB battery-backed RAM. The SNAP PAC S-series controllers can run up to 32 PAC Control charts simultaneously. The PAC S can connect to remote I/O racks over Ethernet or over serial, which provides mistic serial I/O support. Often, applications that use a PAC S will run PAC Control Professional.

7 SNAP PAC R1 & R2 Technische Spezifikationen
Controller/Buskoppler Kombination zur Montage auf SNAP PAC Grundträger 32-bit ColdFire® 5475 Prozessor 16 MB RAM, 8 MB Flash, und 2 MB battery-backed RAM Dual Ethernet Anschluß Redundanz oder Switch Funktion Optional mit integriertem WLAN g 1 serielle Schnittstelle: 1x RS-232 mit Handshake Funktion (PPP) Lokale E/A (Rack) und Remote E/A (Ethernet) Support PAC Project: max. 16 PAC Control charts gleichzeitig R1: max. Zähler 20 kHz, Digitale Funktionen, (Quadrature count, On-Off Pulse meas., TPO, etc.) R2: max. Zähler 10 Hz, keine digitalen Funktionen The SNAP PAC R-series controllers are rack-mounted controllers. They have the same base hardware as the PAC S, with a 32-bit Coldfire 5475, an integrated floating point unit, and built-in dual Ethernet interfaces. The R-series is a controller and brain combination and sits on a SNAP PAC rack. The PAC R-series has one serial port, a 232 port with PPP handshaking. The R-series memory is 16 MB RAM, 8 MB Flash memory, and 2 MB battery-backed RAM. The R-series can run up to 16 PAC Control charts simultaneously and communicates with local I/O on the rack and remote I/O via Ethernet. Often, in applications that use the PAC R as the controller, PAC Control Basic is used. Opto 22 currently offers two PAC R controllers, the PAC R1 and the PAC R2. The PAC R1 offers additional digital features such as high-speed counting, pulsing, and TPO. If you do not need high-speed digital functions, the PAC R2 should work for your application.

8 SNAP PAC Buskoppler EB1 & EB2
SNAP PAC EB Serie ETHERNET Prozessor mit integrierten Funktionen High/Low , Min/Max-Wert Analogfunktionen Watchdog, PID-Regler Digitale Funktionen (Latch, etc.) Optional mit integriertem WLAN g Kompatibel zu allen SNAP I/O und SNAP PAC Controllern EB1: max. Zähler 20 kHz, Digitale Funktionen, (Quadrature count, On-Off Pulse meas., TPO, etc.) EB2: max. Zähler 10 Hz, keine digitalen Funktionen Opto 22 controllers run the strategy that handles all the control processes. Controllers communicate with brains, which talk to the I/O. Opto 22’s Ethernet brain family is the SNAP PAC EB series (EB for Ethernet Brain). EB brains are I/O processors with local control functions. EBS work with all SNAP I/O and SNAP PAC controllers. They are the fastest brain Opto 22 has ever offered. Opto 22 currently offers two EB brains, the EB1 and the EB2. Just like the SNAP PAC R controllers, the EB1 has high-speed digital functions and the EB2 does not. Now, what is really neat about the EB brains is that they come with two switched Ethernet ports that can function as multi-drop Ethernet, so you can daisy-chain them and not need an additional Ethernet switch.

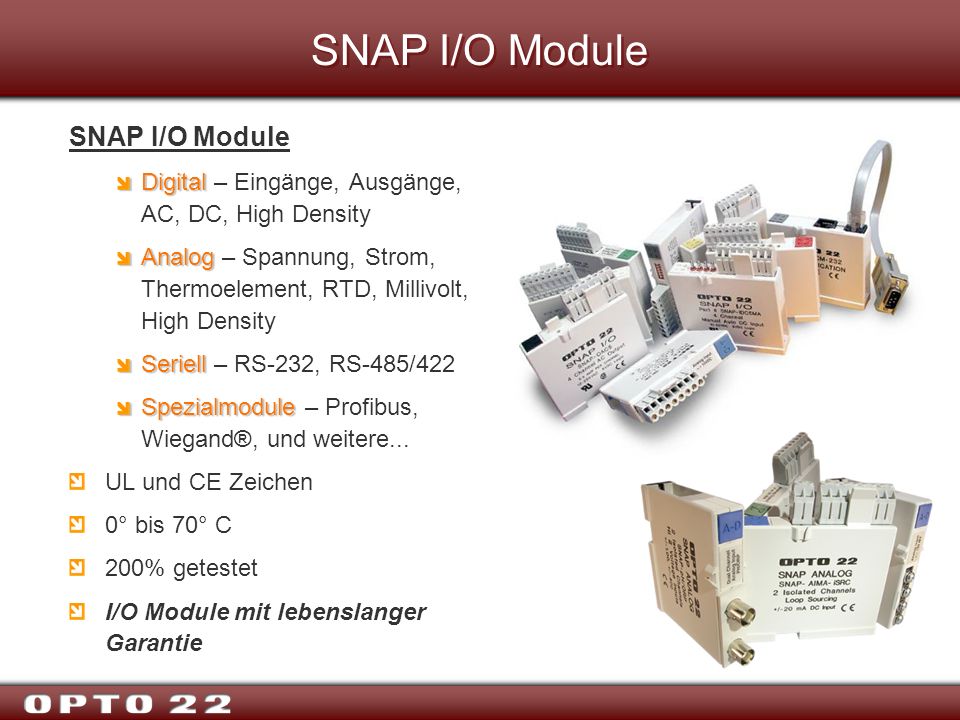

9 SNAP I/O Module SNAP I/O Module
Digital – Eingänge, Ausgänge, AC, DC, High Density Analog – Spannung, Strom, Thermoelement, RTD, Millivolt, High Density Seriell – RS-232, RS-485/422 Spezialmodule – Profibus, Wiegand®, und weitere... UL und CE Zeichen 0° bis 70° C 200% getestet I/O Module mit lebenslanger Garantie SNAP PAC brains communicate with SNAP I/O modules. All of Opto 22’s I/O terminate field devices. Opto 22 I/O can be separated into four categories: digital, analog, serial, and special purpose. The digital I/O group has modules for AC or DC inputs or outputs. The analog I/O group has modules for voltage, current, thermocouple, RTD, and millivolts. Serial modules include RS-232 and RS-485/422. The special-purpose group contains modules for communication with Profibus systems or Wiegand protocol devices, along with power monitoring and load cell modules.

10 SNAP High Density I/O SNAP high-density Digital I/O
16 oder 32 Kanäle im Standard SNAP-Modul Format Digital Eingang oder Ausgang, mit/ohne galv. Trennung Anschlußterminals und Kabel verfügbar SNAP high-density Analog I/O 8-Kanal Temperatur & Thermoelement 8/32-Kanal Spannung und Strom A newer addition to the SNAP I/O family is the high-density digital I/O group. High-density digital I/O offers 16 or 32 points of I/O in the space of a traditional 4-channel SNAP module. The 16-point modules even offer channel-to-channel isolation. Opto 22 also offers a breakout board to aid in high-density field wiring. Within the analog I/O group, Opto 22 offers an 8-point thermocouple module as well as 32-point voltage and current inputs. More 8-channel analog modules are being worked on now and will be released in the near future.

11 SNAP PAC Racks SNAP PAC Grundträger (Racks) SNAP-PAC-RCK4 SNAP-PAC-RCK8 SNAP-PAC-RCK12 SNAP-PAC-RCK16 bis zu 512 Kanäle !!! pro Grundträger mit gemischten E/A’s: digital, analog, seriell und High Density Modulen! All Opto 22 rack-mounted controllers, brains, and I/O modules are mounted on SNAP PAC racks. The I/O modules and brain placed on a rack make a complete I/O unit that is able to communicate back to a SNAP PAC S-series controller. SNAP PAC racks are available in different sizes to accommodate the number of I/O modules you plan to place on the rack. Racks are available in module sizes of 4, 8, 12, or 16. With channel modules mounted on a SNAP-PAC-RCK16, you can access up to 512 points of mixed I/O.

12 Motion Control SNAP Motion Achsensteuerung Schritt-Motorsteuerung
16 Achsen pro Modul 4 Racks pro Modul 4 Achsen pro Rack ASCII-Befehle zur Steuerung SNAP-SCM-MCH16 Host Steuermodul SNAP-SCM-BB4 Breakout board All Opto 22 rack-mounted controllers, brains, and I/O modules are mounted on SNAP PAC racks. The I/O modules and brain placed on a rack make a complete I/O unit that is able to communicate back to a SNAP PAC S-series controller. SNAP PAC racks are available in different sizes to accommodate the number of I/O modules you plan to place on the rack. Racks are available in module sizes of 4, 8, 12, or 16. With channel modules mounted on a SNAP-PAC-RCK16, you can access up to 512 points of mixed I/O.

13 OptoTerminals Qlarity Foundry Software OptoTerminals
OptoTerminal-G Farben, 5.7” 320 x 240 Passiv OptoTerminal-G Farben, 10.4” 640 x 480 Aktiv Qlarity Foundry Software Voll integriert mit SNAP PAC System Einfaches Bedienerinterface

14 SNAP PAC System Product Guide
SNAP PAC brains communicate with SNAP I/O modules. All of Opto 22’s I/O terminate field devices. Opto 22 I/O can be separated into four categories: digital, analog, serial, and special purpose. The digital I/O group has modules for AC or DC inputs or outputs. The analog I/O group has modules for voltage, current, thermocouple, RTD, and millivolts. Serial modules include RS-232 and RS-485/422. The special-purpose group contains modules for communication with Profibus systems or Wiegand protocol devices, along with power monitoring and load cell modules.

15 SNAP PAC System Product Guide
SNAP PAC brains communicate with SNAP I/O modules. All of Opto 22’s I/O terminate field devices. Opto 22 I/O can be separated into four categories: digital, analog, serial, and special purpose. The digital I/O group has modules for AC or DC inputs or outputs. The analog I/O group has modules for voltage, current, thermocouple, RTD, and millivolts. Serial modules include RS-232 and RS-485/422. The special-purpose group contains modules for communication with Profibus systems or Wiegand protocol devices, along with power monitoring and load cell modules.

16 SNAP PAC brains communicate with SNAP I/O modules
SNAP PAC brains communicate with SNAP I/O modules. All of Opto 22’s I/O terminate field devices. Opto 22 I/O can be separated into four categories: digital, analog, serial, and special purpose. The digital I/O group has modules for AC or DC inputs or outputs. The analog I/O group has modules for voltage, current, thermocouple, RTD, and millivolts. Serial modules include RS-232 and RS-485/422. The special-purpose group contains modules for communication with Profibus systems or Wiegand protocol devices, along with power monitoring and load cell modules.

17 Software PAC Project PAC Project - Lizenfreie, leistungs-fähige und kostengünstige Software: Programmieren PAC Control Visualisieren PAC Display Wartung & Pflege PAC Manager Datenaustausch OPCServer & OptoDataLink (SQL) ** DEMONSTRATION – Begin with PAC Control Configure Mode Show Strategy Tree – Easy access to all strategy variables and I/O points Show flowcharts – Show different kinds of blocks Show OptoScript blocks Show Subroutines ** Go into Debug Mode Show autostepping Active Debugging, forced inputs/ output Show PID loop control Show Watch Window

18 PAC Control PAC Control einfach zu erlernendes Interface
Flußdiagrammtechnik & OptoScript-Sprache Integrierte PID-Regler Point & click eine Datenbank ** DEMONSTRATION – Begin with PAC Control Configure Mode Show Strategy Tree – Easy access to all strategy variables and I/O points Show flowcharts – Show different kinds of blocks Show OptoScript blocks Show Subroutines ** Go into Debug Mode Show autostepping Active Debugging, forced inputs/ output Show PID loop control Show Watch Window

19 PAC Display PAC Display Visualisierung Alarme Trends Rezepte verwalten
lizenzfreie Symbolbibliotheken keine Hardware Schlüssel keine Variablen Begrenzung eine Datenbank Once your control system is up and running, the piece of software you will deal with the most is the HMI. Opto 22’s human machine interface software is called PAC Display. PAC Display is a full-featured HMI for Microsoft Windows PCs and IP networks. PAC Display offers everything you would expect from an operator interface, such as realtime and historical trending, alarming, security, and animation. All of this with no hardware keys. And PAC Display is tightly integrated with other PAC software, so PAC Display can access tags defined in PAC Control. One of the best things about PAC Display is how easy it is to use. Let me show you a quick demonstration so you can see how easy PAC Display is to use.

20 PAC Simulator SNAP PAC Sim PAC Simulator Software Controller
zum Testen von PAC Cotrol Strategien ohne Hardware-Controller keine Soft-SPS SNAP PAC Sim

21 PAC OptoOPCServer OptoOPC Server OPC Standard 2.0 Neues Design
OPC Browsing Echtzeit Monitor-funktionen von OPC-Items

22 PAC OptoDataLink OptoDataLink Einfacher Datenaustausch
SQL, MS-Access oder TXT eine Datenbasis

23 PAC Manager PAC Manager Controller & Buskoppler Konfiguration
Netzwerk Adresse, E/As,... Einfache I/O Darstellung als Diagnosefunktionen und zur Inbetriebnahme Ereignisse/Reaktionen konfigurieren FTP/PPP Management Firmware Update

24 OPTO 22 PAC – Automation leicht gemacht!
All Opto 22 rack-mounted controllers, brains, and I/O modules are mounted on SNAP PAC racks. The I/O modules and brain placed on a rack make a complete I/O unit that is able to communicate back to a SNAP PAC S-series controller. SNAP PAC racks are available in different sizes to accommodate the number of I/O modules you plan to place on the rack. Racks are available in module sizes of 4, 8, 12, or 16. With channel modules mounted on a SNAP-PAC-RCK16, you can access up to 512 points of mixed I/O.

25 Fragen / Questions? Thank you for your time. Are there any questions?
