Analytical Task Force for Chemical Distress
A T F Analytical Task Force for Chemical Distress BRA Bersuch
3
Task location devices Alarm
4

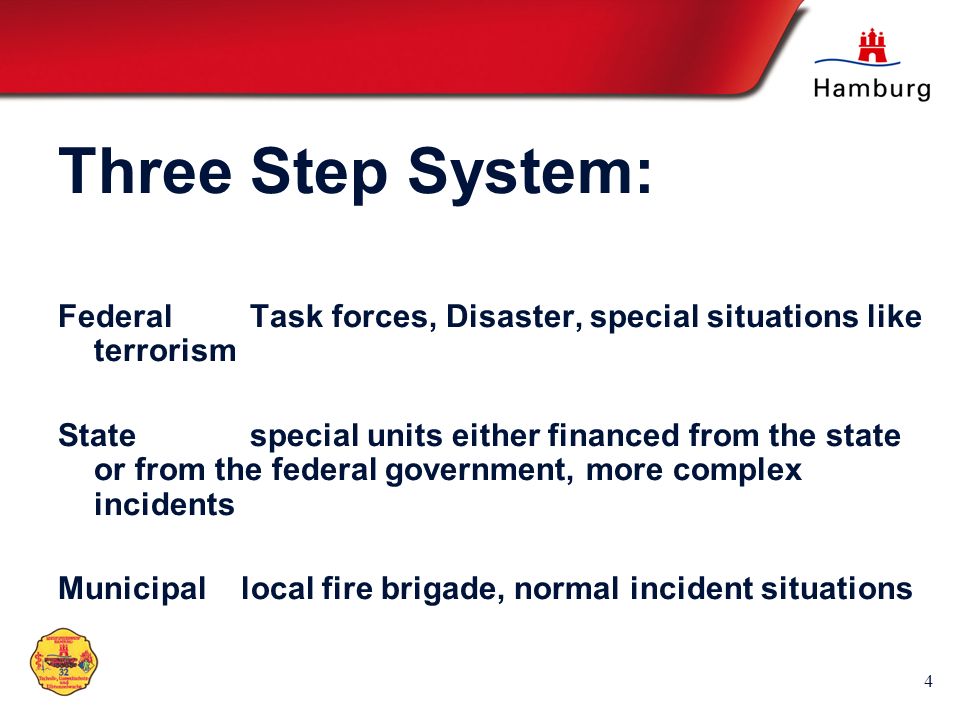

Three Step System: Federal Task forces, Disaster, special situations like terrorism State special units either financed from the state or from the federal government, more complex incidents Municipal local fire brigade, normal incident situations
5

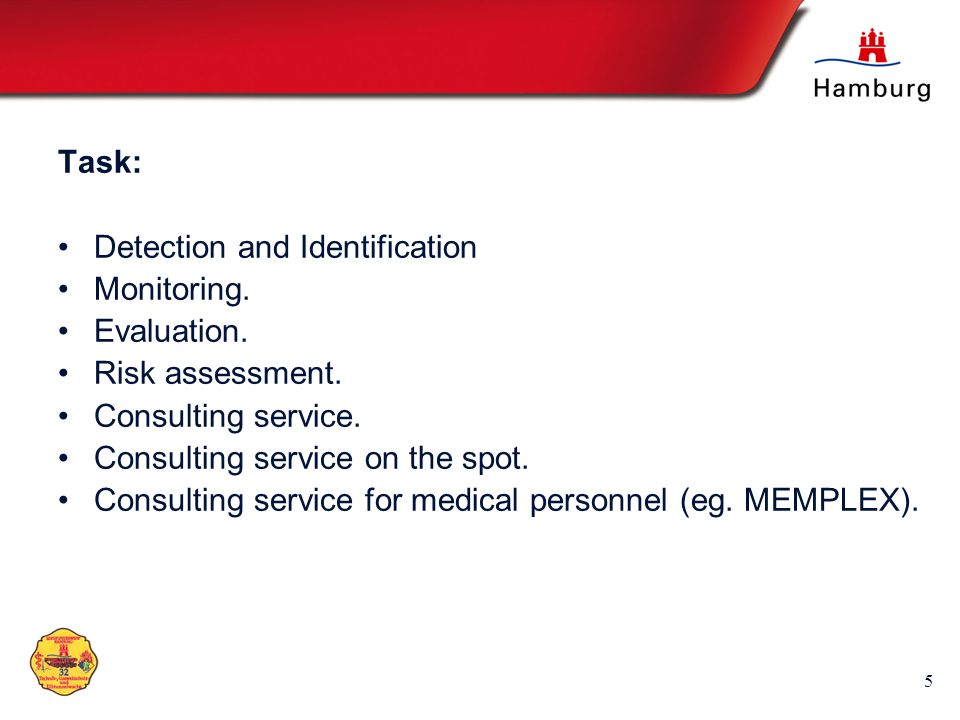

Task: Detection and Identification Monitoring. Evaluation. Risk assessment. Consulting service. Consulting service on the spot. Consulting service for medical personnel (eg. MEMPLEX).
6
ATF in Germany BF Hamburg BF Mannheim LKA Berlin (Police)
IdF Sachsen – Anhalt Three more locations in planning
7
(HGDA2) GDA2 Hazardous Goods Detection Array2
GC-MS Gaschromatograph-Massspectrometer FTIR Fourier-transformed-Infraredspectrometer SIGIS 2 HazMat ID
8

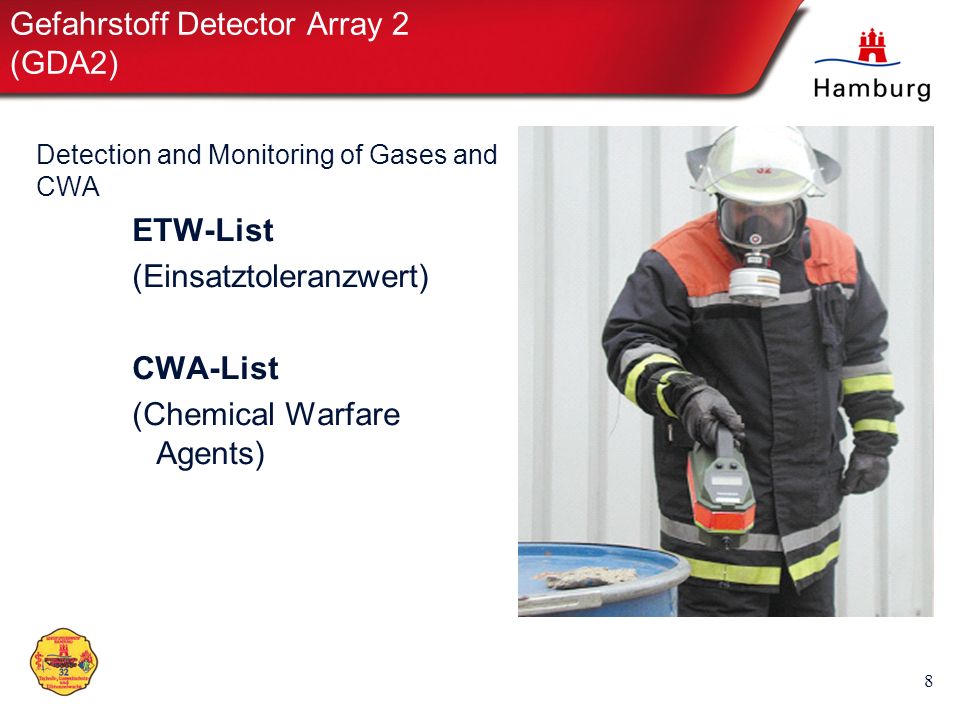

Gefahrstoff Detector Array 2 (GDA2)
Detection and Monitoring of Gases and CWA ETW-List (Einsatztoleranzwert) CWA-List (Chemical Warfare Agents)
9
Gaschromatograph-Massenspektrometer (GC-MS)
Gas chromatograph with Mass Spectrometer coupling Analyse of volatile Substances in: Air Water Soil
10
GCMS Parts Aufbau des GC-MS MS Mass Spectrometer GC Gas-Chromatograph
Electrical Power GCMS GCMS: Bauteile MS Mass Spectrometer Parts GC Gas-Chromatograph Gas- Supply- module Electronic-Module Computer TUHH
11
Analytische Bandbreite des GC-MS
Organic Chemicals Industrial Chemicals ETW-Substances Pesticides Smoke analytic Forge water analytic. Drug detection Explosives CWA More than Substances and mixtures from the area of the organic Chemistry (VOC).
12
Fourier-Infrarotspektrometrie (FTIR)
SIGIS II (Scanning Infrared Gas-Measurement Imaging System II) Passive Infrared Spectrometer Long distance detection of Hazardous goods (clouds) less than 5 km up to 17 Km (Etna), weather dependent Detection of all infrared active substances. Detection of abnormal air phenomena
13
Fourier-Infrarotspektrometrie FTIR

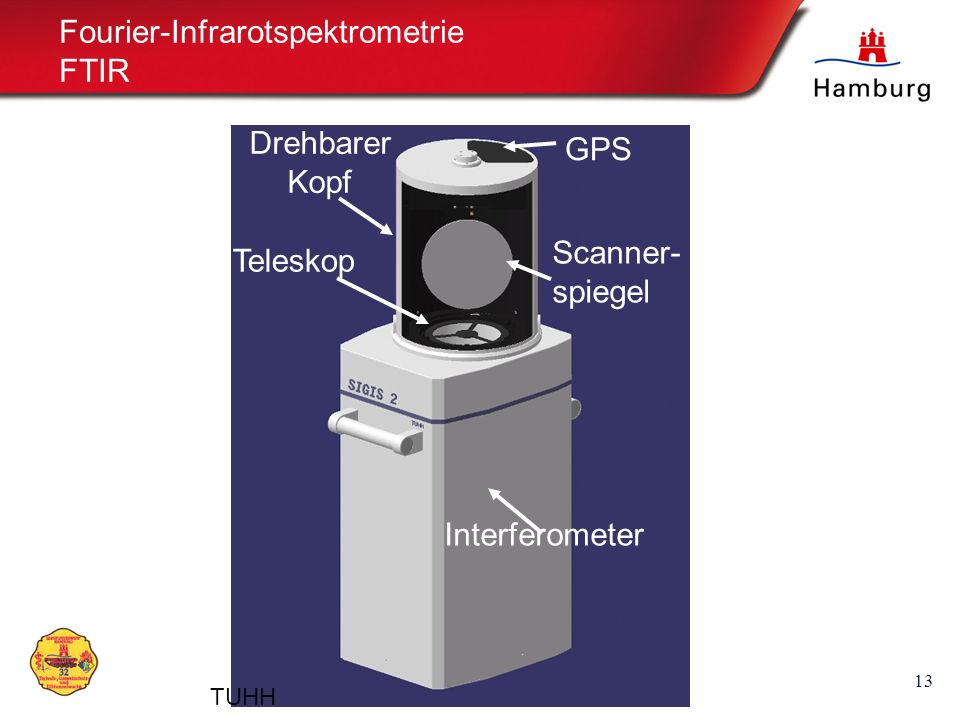

Teleskop GPS Scanner- spiegel Interferometer Drehbarer Kopf TUHH
14
Fourier-Infrarotspektrometrie FTIR
Identification of Ammonia TUHH
15
Active Infrared Spectrometer
HazMat ID Active Infrared Spectrometer HazMat ID (Hazardous Materials Identification) Identification of: Solid substances Liquid substances Limited usable for Biological substances
16
HazMat ID Display
17
Alarming and Request ATF
Decision on the spot GEL > GMLZ > ATF Evaluation by the ATF If necessary request for assistance !
18
Advice by telephone. Consulter to the Spot. Whole ATF to the spot. 3.1 Autarchy. 3.2 Transport to the spot. 3.3 leading structure on the spot.
19
Einsätze der ATF in Rhadereistedt - 4 Tote in Biogasanlage nach Austritt von H2S - Humanfreimessungen für das Gerichtsmedizinische Institut 2. WM 2006 in Deutschland - Monitoring der Stadien und der Versammlungs- stätten an Großveranstaltungsorten - ABC-Abwehrkonzept 3. Strahlsund - Monitoring beim Besuch des Amerikanischen Präsidenten
20
Einsätze der ATF in 4. Teilnahme der ATF an der Europäischen Übung EUDAN EX - Übung eines Bahnunglücks im Tunnel mit Austritt von gefährlichen Chemikalien - Analyse an einer schmutzigen Bombe mit realen Kampfstoffen 5. Bahnunglück in Tornesch - Monitoring des Areals - Analysen mit Feldversuchen vor Ort - Beratung des GEL und des Landkreises 6. ABC-Schule der Bundeswehr in Sonthofen - Identifikation und Vermessung von CWA
21
Einsätze der ATF in 7. ASEM-Gipfel in Hamburg - Monitoring der Unterkunfts- und Tagungsstätten der Staatsgäste 8. G8-Gipfel in Heiligendamm - Polizeiliche- und nichtpolizeiliche C-Abwehr - Monitoring der Demonstrations- und Eventstätten - Feldanalytik im AB-SM (Kontrollpunkte) - Probenvermessung mit GDA GCMS etc. - Beratung des Kavalla-, des NipoG-Stabes und der Kräfte vor Ort
22
Vielen Dank für Ihre Aufmerksamkeit!
