Veröffentlicht von:Raginwald Ladner Geändert vor über 10 Jahren
2
Übersicht Sprache 1K Kleb- und Dichstoffe 2K products Sammelpacker
Niederviskose Materialien Hochviskose Materialien Maschinenüberblick Vorteile Profil-Clip Maschinen Referenzen 2K products Verarbeitungshilfen Firmenstandort Sammelpacker Firmenhistorie Food, medical Produkte Verarbeitungshilfen Sprache
3
Maschinenüberblick Home SKT /H6 SKT /H6 TT
SKT / H SERIE HORIZONTALE- SCHLAUCHBEUTEL- ABFÜLLANLAGE SKT /H6 SKT /H6 TT Abfüllösungen für: 1K Klebstoffe und Dichtungsmassen Nieder viskose Materialien Hoch viskose Materialien 2K Produkte SKT / V SERIE VERTIKALE –SCHLAUCHBEUTEL- ABFÜLLANLAGE SKT /H6Hs SKT /H6 L SKT /H7 HS SKT /A 15 SKT /V5 SKT /H8 2K SKT /V1S Optionen / Funtionen SCHLAUCHBEUTEL SAMMELPACKER SP1 Home
4

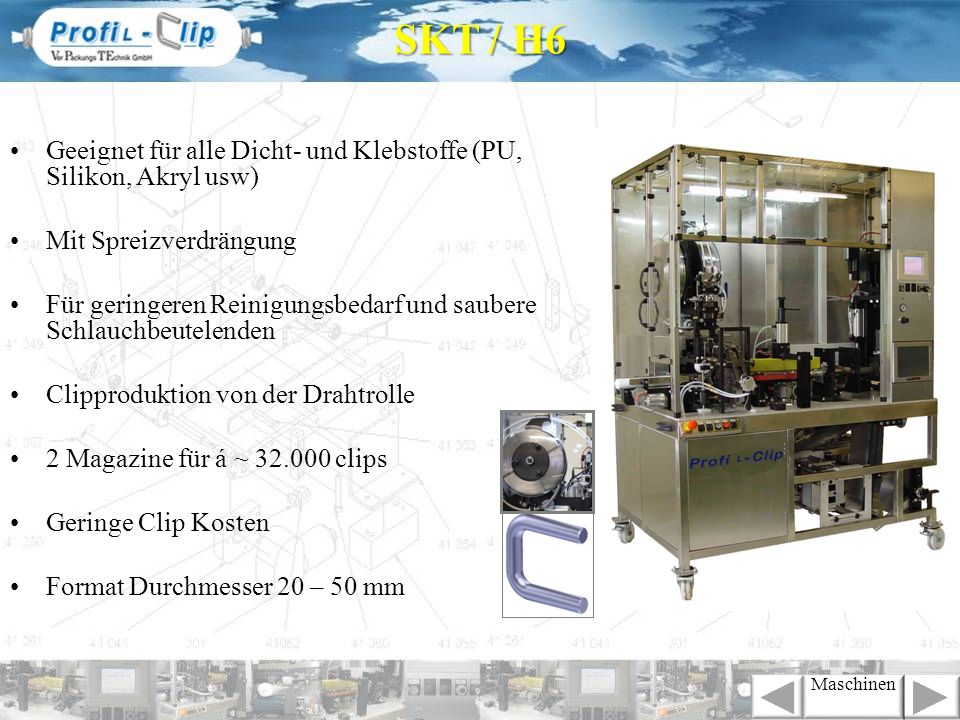

SKT / H6 Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Clipproduktion von der Drahtrolle 2 Magazine für á ~ clips Geringe Clip Kosten Format Durchmesser 20 – 50 mm Maschinen
5
SKT / H6 TT Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Vorgefertigte U-Clips mit 2 Magazinen á ~ 300 clips Format Durchmesser 46 – 50mm Günstiger Maschinen Grundpreis Nachrüstung auf SKT/ H6 möglich Maschinen
6
SKT / H6 L Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Clipproduktion von der Drahtrolle 2 Magazine für á ~ clips Geringe Clip Kosten Format Durchmesser 60 – 85 mm Wechselclipper für kleine Durchmesser verfügbar Maschinen
7
SKT / H6 HS Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Abfüllleistung bis zu 45 Takte/Minute Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Clipproduktion von der Drahtrolle 2 Magazine für á ~ clips Geringe Clip Kosten Format Durchmesser 20 – 50 mm Maschinen
8
SKT / H7 HS Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Abfüllleistung bis zu 45 Takte/Minute Folienbestückung von vorn Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Clipproduktion von der Drahtrolle 2 Magazine für á ~ clips Geringe Clip Kosten Format Durchmesser 20 – 50 mm Maschinen
9

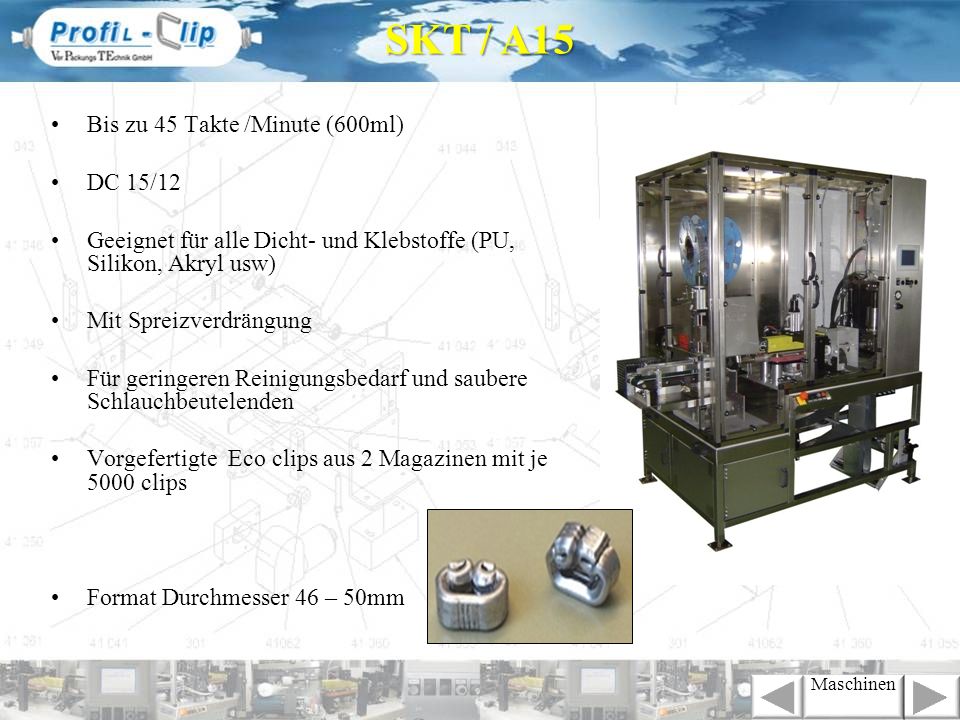

SKT / A15 Bis zu 45 Takte /Minute (600ml) DC 15/12
Geeignet für alle Dicht- und Klebstoffe (PU, Silikon, Akryl usw) Mit Spreizverdrängung Für geringeren Reinigungsbedarf und saubere Schlauchbeutelenden Vorgefertigte Eco clips aus 2 Magazinen mit je 5000 clips Format Durchmesser 46 – 50mm Maschinen
10
SKT / H8 2K • Für alle pastösen Produkte als Verbundmörtel im 2K Schlauchbeutel • Verschiedene Verhältnisse in 2 Kammern erhältlich z.B. 1:10, 1:4, 1:2 • Komplettlösung inclusive Dosierung, Folienabzug und Clipsystem • Volumensynchroner Folienabzug für geringste Belastung der Folie • geringer Wartungsaufwand durch Spreizsystem am Clipsystem • Standardanwendung d= 46 mm, auch andere Formate verfügbar Maschinen
11
SKT / V5 Kleb- und Dichtstoffe
Geeignet für alle niederviskosen Materialien wie Kleb- und Dichtstoffe Ausgestattet mit bewährtem System bestehend aus 8 Lamellenverdrängern. Ohne Spreizverdrängung Durchmesser Variabilität von 20 – 85mm Volumen Variabilität von 50 – 2500ml Doppelclipsystem DCIS Volumensynchroner Folienantrieb Kostengüsnstige Clipproduktion von Drahtrolle 2 Magazine for je á ~ clips Maschinen
12

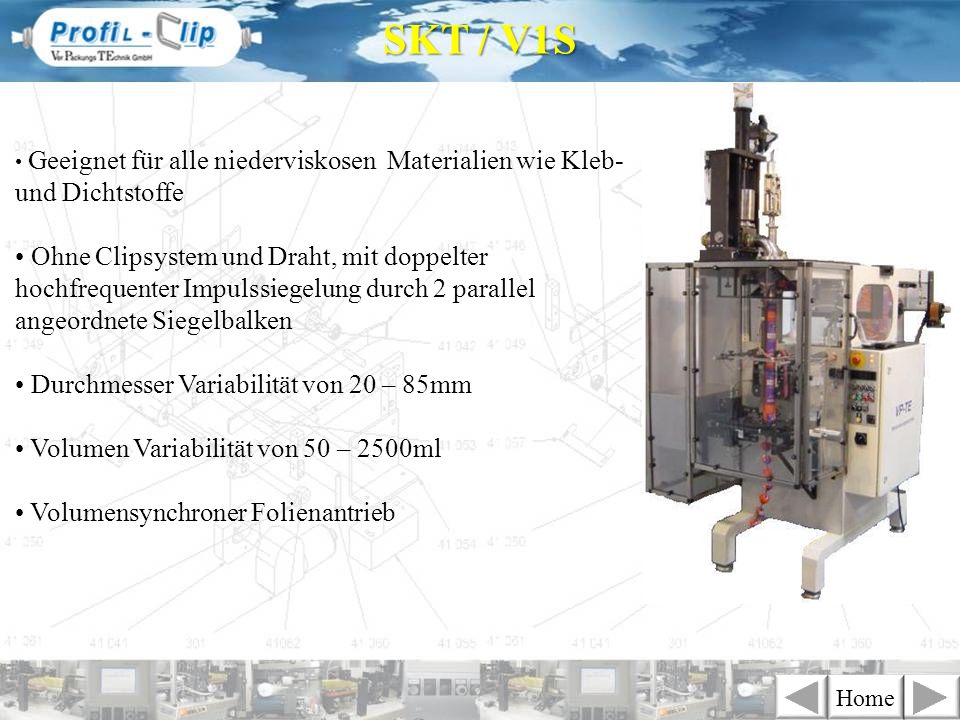

SKT / V1S Geeignet für alle niederviskosen Materialien wie Kleb- und Dichtstoffe Ohne Clipsystem und Draht, mit doppelter hochfrequenter Impulssiegelung durch 2 parallel angeordnete Siegelbalken Durchmesser Variabilität von 20 – 85mm Volumen Variabilität von 50 – 2500ml Volumensynchroner Folienantrieb Home
13

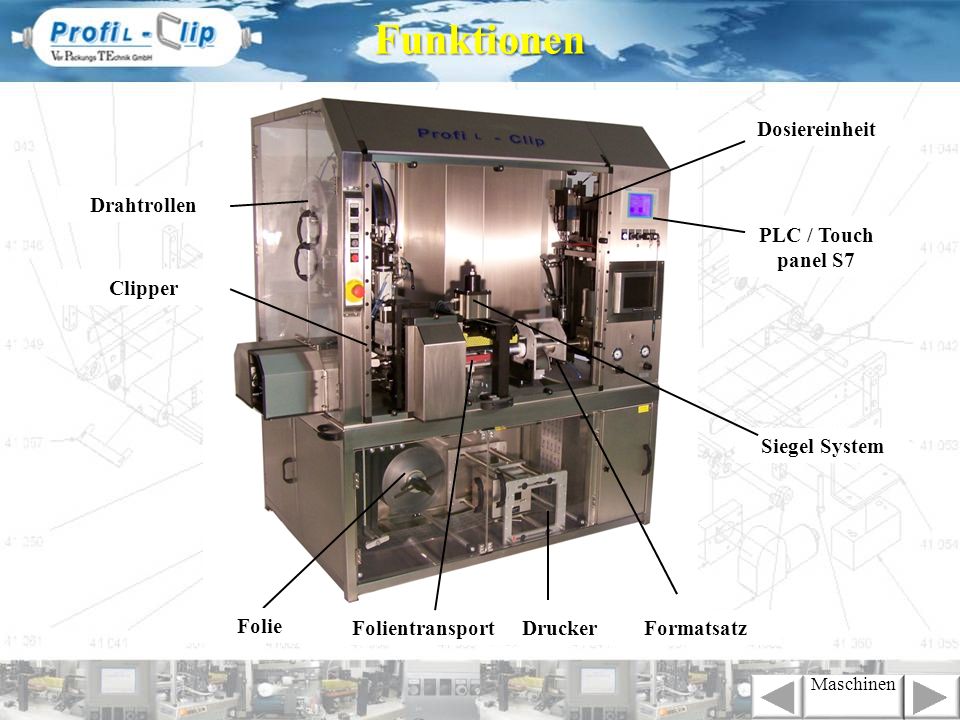

Funktionen Dosiereinheit Drahtrollen PLC / Touch panel S7 Clipper
Siegel System Folie Folientransport Drucker Formatsatz Maschinen
14
Dosierung 1K Dosier Zylinder - Werkstoff: Edelstahl
- Schnellwechselsystem 1K Pneumatik Zylinder nieder viskose produkte Elektronische Verstellung des Volumens möglich 1K Hydraulik Zylinder hoch viskose produkte Elektronische Verstellung des Volumens möglich Multi Dosier Verbindung -mit oder ohne 1K Dosiereinheit verfügbar Doppel 1K Dosier Zylinder - Werkstoff: Edelstahl Schnellwechselsystem Für Befüllung mit hoher Taktzahl pro Minute 1K Axial gesteuerter Hydraulik Zylinder hoch viskose produkte Volumen einstellung über plc Anbindung an z.B. Waage möglich Maschinen
15
Folie Dicke: 50 – 90 µm Lagen: 3 – 5 PP – AL - PP PE – AL - PE
Länge: ~ 1000 m Beutel pro Rolle: 300 ml ~ 5000pcs 400 ml ~ 4000pcs 600 ml ~ 2850pcs Coil Durchmesser: 76 mm SKT H6 Schnellwechselsystem SKT H7 Schnellwechselsystem Maschinen
16
Drucksysteme Heissprägedruckwerk Thermo Transfer Drucker
- Günstige Lösung - Variables Layout (Logo bis zu 6 Zeilen) - Diverse Farben verfügbar - Variabel durch Wechsel Stempelplatte - printing example Thermo Transfer Drucker - Variables Layout (Logo bis zu 6 Zeilen, Barcode) - Layout speicherbar in PLC - Druckbeispiel Maschinen
17
Patentierter Volumen-Synchroner Antrieb
Folienantrieb Patentierter Volumen-Synchroner Antrieb Mechanische Übersetzung zwischen Dosierung und Folienvorschub. Standard Anwendung für Einfachdosierung und max. 2 geringere Formatgrössen Elektronische Übersetzung zwischen Dosierung und Folienvorschub mit Servo betriebenem Folienvorschub. Anwendung für Anbindung zu Mehr Komponenten Dosier System, variabel bezüglich verschiedenen Formatgrössen Maschinen
18
Folienantrieb - Funktion
Durch Volumensynchronem Folienabzug wirken nur ~ 30% Produktdruck auf den Clip Bei Folienabzug durch den Produktdruck = 100% Druck auf den Clip Maschinen
19
Siegelsysteme Siegelsystem für Standard Anwendung
- Funktion: Taktweise Einstellbare Parameter: Druck Temperatur Zeit Siegelsystem für Doppeldosierung und Befüllung mit hoher Taktzahl Maschinen
20
Clip-System DC II S Clipsystem mit Spreizfunktion
- Folienschonende Raffung - Spiegelbildliche Anordnung möglich - Hohe Verschleissfestigkeit - Wirtschaftliches Clipsystem durch Clips von der Drahtrolle - Elektronisch geregelter Drahtabzug Maschinen
21
Clipkosten Clip Magazin: Drahtrolle: bis zu: 35000
Vorgefertigt: max. 5000 2. Kosten Maschinen
22

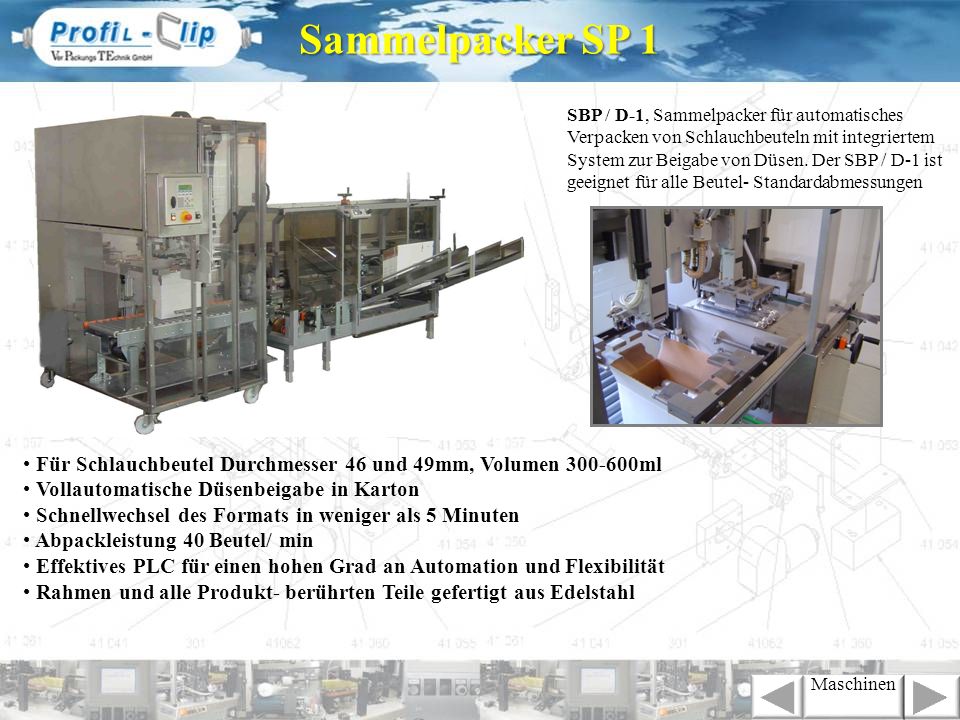

Sammelpacker SP 1 SBP / D-1, Sammelpacker für automatisches Verpacken von Schlauchbeuteln mit integriertem System zur Beigabe von Düsen. Der SBP / D-1 ist geeignet für alle Beutel- Standardabmessungen Für Schlauchbeutel Durchmesser 46 und 49mm, Volumen ml Vollautomatische Düsenbeigabe in Karton Schnellwechsel des Formats in weniger als 5 Minuten Abpackleistung 40 Beutel/ min Effektives PLC für einen hohen Grad an Automation und Flexibilität Rahmen und alle Produkt- berührten Teile gefertigt aus Edelstahl Maschinen
23
Referenzen ( >95 Maschinen) Home
24

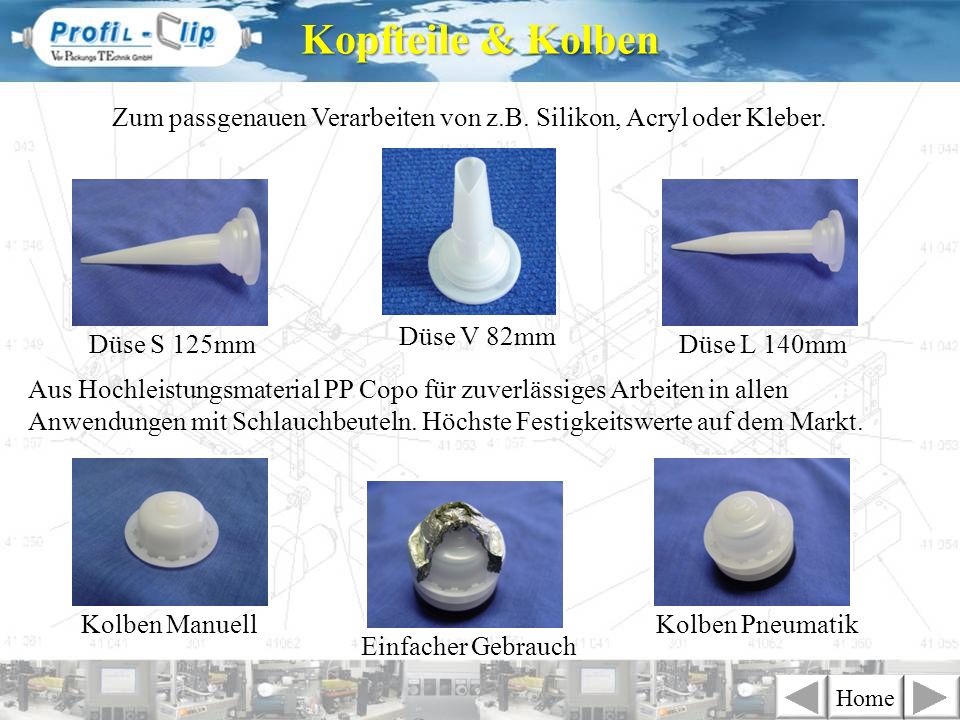

Kopfteile & Kolben Zum passgenauen Verarbeiten von z.B. Silikon, Acryl oder Kleber. Düse V 82mm Düse S 125mm Düse L 140mm Aus Hochleistungsmaterial PP Copo für zuverlässiges Arbeiten in allen Anwendungen mit Schlauchbeuteln. Höchste Festigkeitswerte auf dem Markt. Kolben Manuell Kolben Pneumatik Einfacher Gebrauch Home
25

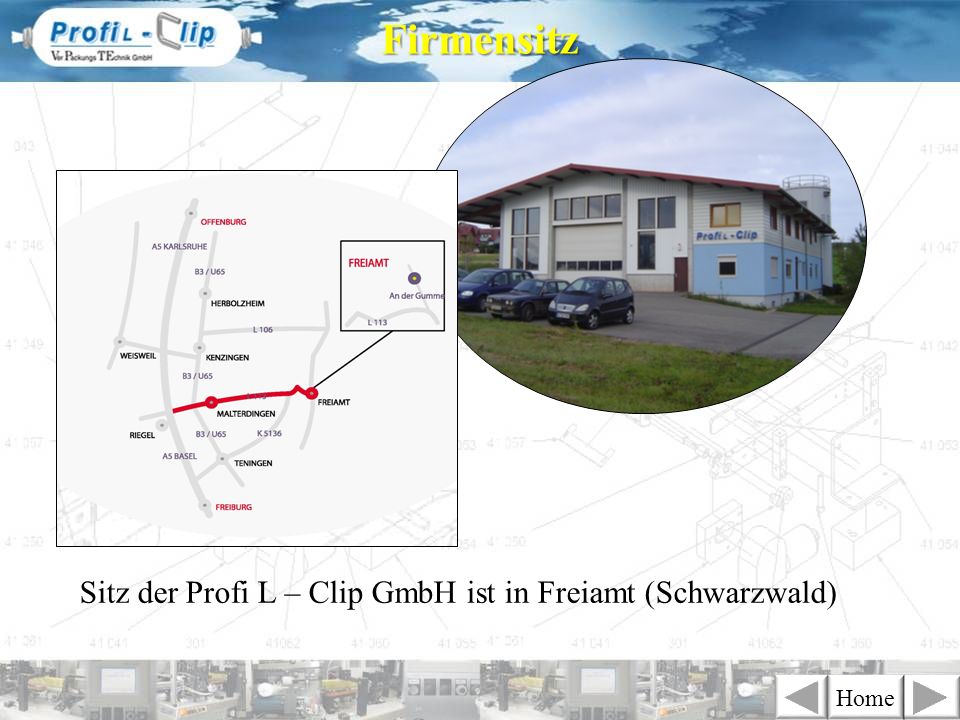

Firmensitz Sitz der Profi L – Clip GmbH ist in Freiamt (Schwarzwald)
Home
26
Historie 1987 Gründung VP-TE durch Hr. Knieriem († 2004) in Ladenburg bei Heidelberg. 1989 Präsentation der ersten Generation von Schlauchbeutelmachinen Typ SKT/H1 1997 Markteinführung Schlauchbeutelmachinen Typ SKT/H5 2003 Vorstellung der neuesten Generation Schlauchbeutelmachinen mit Spreizverdrängung Typ SKT/H6 2004 Verschmelzung zu Profi L- Clip und Umzug nach Freiamt 2007 Jubiläum 20 Jahre ProfiL Clip / VP-TE 2009 Vorstellung der neuesten Generation Schlauchbeutelmachinen mit Spreizverdrängung Typ SKT/H7 Home
27
Overview Language 1K adhesives and sealing compounds 2K products
Low and high viscose material Machines overview Advantages wire clip Worldwide references 2K products Packing aids Company location Company history Packing machines Food, medical products Packing aids Language
28
HORIZONTAL TUBULAR BAG TUBULAR BAG CASE PACKER
Machines Overview SKT/H SERIES HORIZONTAL TUBULAR BAG FILLING MACHINES SKT /H6 SKT /H6 TT Filling solutions for: 1K adhesives and sealing compounds Low viscose material High viscose material 2K products Food, medical products SKT /H6 HS SKT / V SERIES VERTICAL TUBULAR BAG FILLING MACHINE SKT /H6 L SKT / H7 HS SKT /A 15 SKT /V5 SKT / H8 2K SKT /V1S Options / Functions TUBULAR BAG CASE PACKER SP1 Home
29
SKT / H6 Application: Silicon, Acryl, PU and others
Equipped with a spread system Less cleaning and ends of sausages free from product Clips from wire Magazine for ~ clips Cheap clip costs Format diameter 20 – 50 mm Maschinen
30

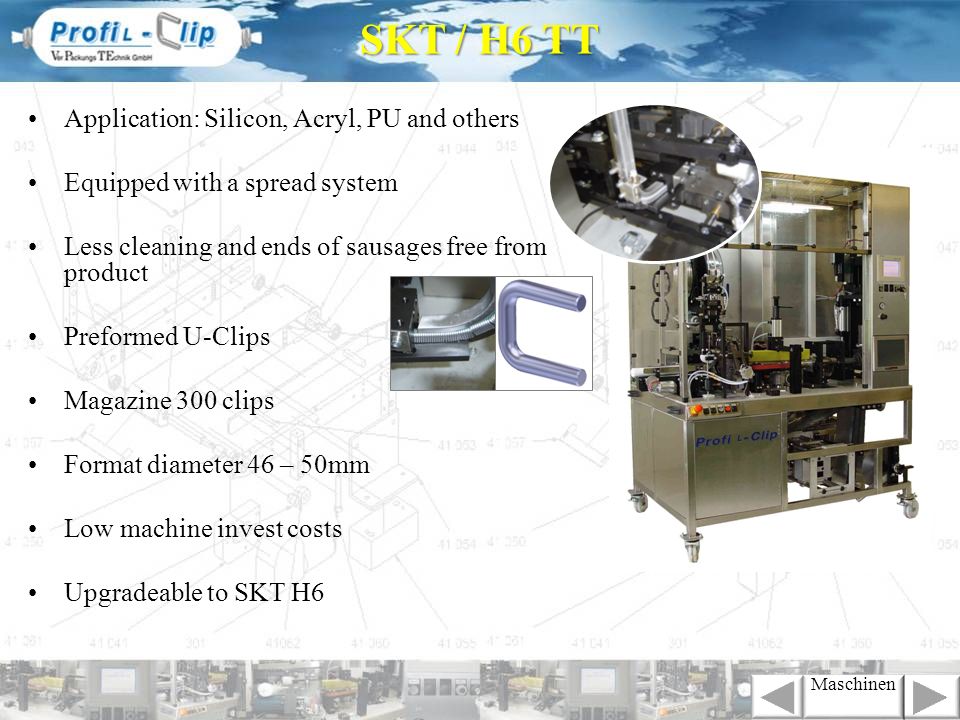

SKT / H6 TT Application: Silicon, Acryl, PU and others
Equipped with a spread system Less cleaning and ends of sausages free from product Preformed U-Clips Magazine 300 clips Format diameter 46 – 50mm Low machine invest costs Upgradeable to SKT H6 Maschinen
31
SKT / H6 HS High speed application: Silicon, Acryl, PU and others
Up to 45 pcs/minute Equipped with a spread system Less cleaning and ends of sausages free from product Clips from wire; Magazine for ~ clips Foil slip control system Cheap clip costs Format diameter 20 – 50 mm Maschinen
32
SKT / H6 L Application: Silicon, Acryl, PU and others
Equipped with a spread system Less cleaning and ends of sausages free from product Clips from wire Magazine for ~ clips Cheap clip costs Format diameter 60 – 85 mm Exchange clipping system for small Diameter available Maschinen
33

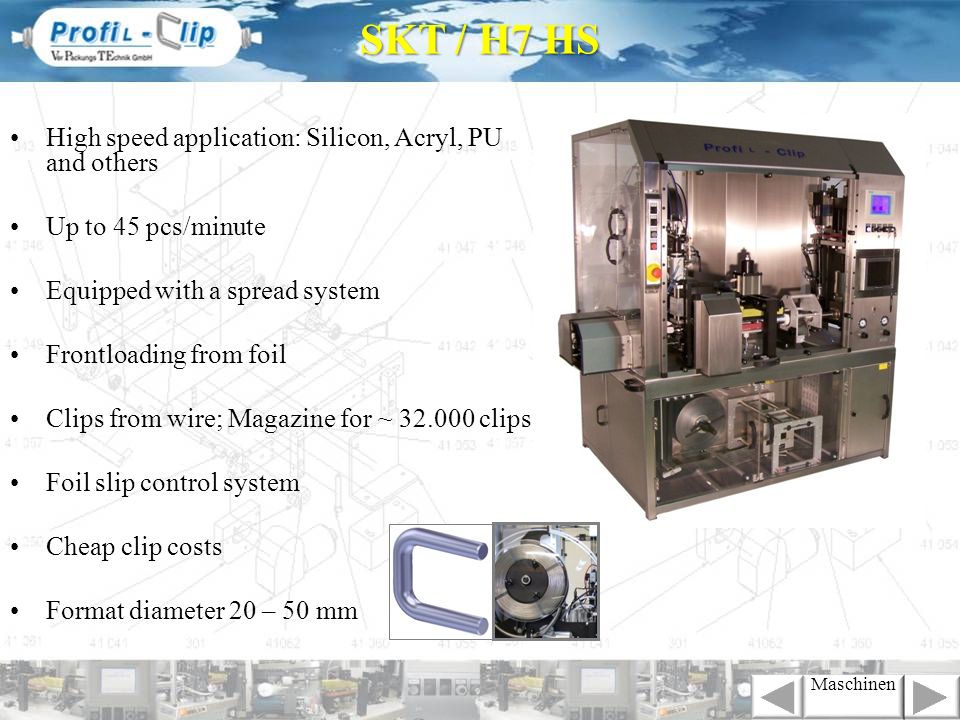

SKT / H7 HS High speed application: Silicon, Acryl, PU and others
Up to 45 pcs/minute Equipped with a spread system Frontloading from foil Clips from wire; Magazine for ~ clips Foil slip control system Cheap clip costs Format diameter 20 – 50 mm Maschinen
34
SKT / A15 Application: Silicon, Acryl, PU and others
Speed up to 45 /minute Equipped with a spread system Less cleaning and ends of sausages free from product Preformed eco clips from a magazine of 5000 clips Format diameter 46 – 50mm Maschinen
35
SKT / H8 2K • For all pasty products used as chemical anchors
2K sausages • Different ratios of 2K chamber sausage available i.e 1:10, 1:4, 1:2 etc. • Complete system including dosing, film drive, and dual-clip automaton • Volume-synchronous gentle film feeds to prevent damages to the film • Low-maintenance thanks to spreading-System • Packaging units with a diameter of 46, also other formats disposable Maschinen
36
SKT / V5 Application: Silicon, Acryl, others Suitable for all low viscose materials such as adhesives and sealing compounds Equipped with large-dimension prismatic lamellar displacer Diameter range from 20 – 85mm Volume range from 50 – 2500ml Double Clipping system DCIS Volume synchronized foil drive system Clips from wire to reduce costs Magazine for ~ clips Maschinen
37
SKT / V1S Suitable for all low viscose materials such as adhesives and sealing compounds Diameter range from 20 – 85mm Volume range from 50 – 2500ml Double cross impulse sealing system Volume synchronized foil drive system Maschinen
38

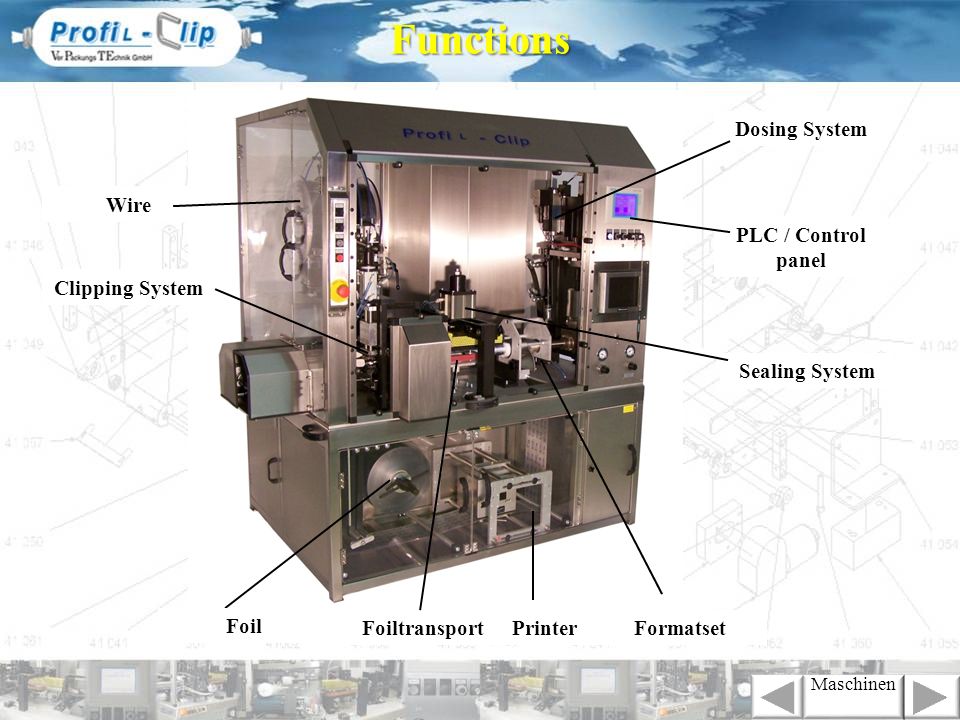

Functions Dosing System Wire PLC / Control panel Clipping System
Sealing System Foil Foiltransport Printer Formatset Maschinen
39
Dosing System 1K dosing cylinder - complete from stainless steel
- Quick exchange system 1K Pneumatic cylinder low viscose products Electronically adjustment of volume possible 1K Hydraulic cylinder high viscose products Electronically adjustment of volume possible Multi dosing connection -with or without 1K dosing unit combinable Double 1K dosing cylinder - complete from stainless steel Quick exchange system for high-speed application 1K Achsial controlled hydraulic cylinder high viscose products Volume adjustment at the plc Connection to checkweigher possible Maschinen
40
Aluminium foil Thickness: 50 – 90 µm Layer: 3 – 5 PP – AL - PP
PE – AL - PE Length: ~ 1000 m Pieces per roll: 300 ml ~ 5000pcs 400 ml ~ 4000pcs 600 ml ~ 2850pcs Coil Diameter: 76 mm SKT H6 Quick exchange System SKT H7 Quick exchange System Maschinen
41
Printing Systems Thermal marking printer Thermo transfer printer
- Cheap system - Variable Layout (Logo, up to 6 lines) - Different colors - Layout by changing marking plate Thermo transfer printer - Variable Layout (Logo, up to 6 lines, Barcode) - Layout saved in plc - Printing example Maschinen
42
Foilfeed system Mechanical gear ratio between product feed and foil feed. Standard application for single dosing system and max. two less different format sizes Electrical gear ratio between product feed and foil feed by servo driven foil feed. Application for coupling with more component dosing system, many different format sizes or big differences in format size Maschinen
43
Advantage foilfeed Volume synchronus foil movement thru foil belts and Product pressure ~ 30% pressure to the clip Foil movement thru product pressure = 100% pressure to the Clip Maschinen
44
Sealing system Sealing beam for standard application
- Function: Cycle wise Sealing beam for double dosing and high speed application Maschinen
45

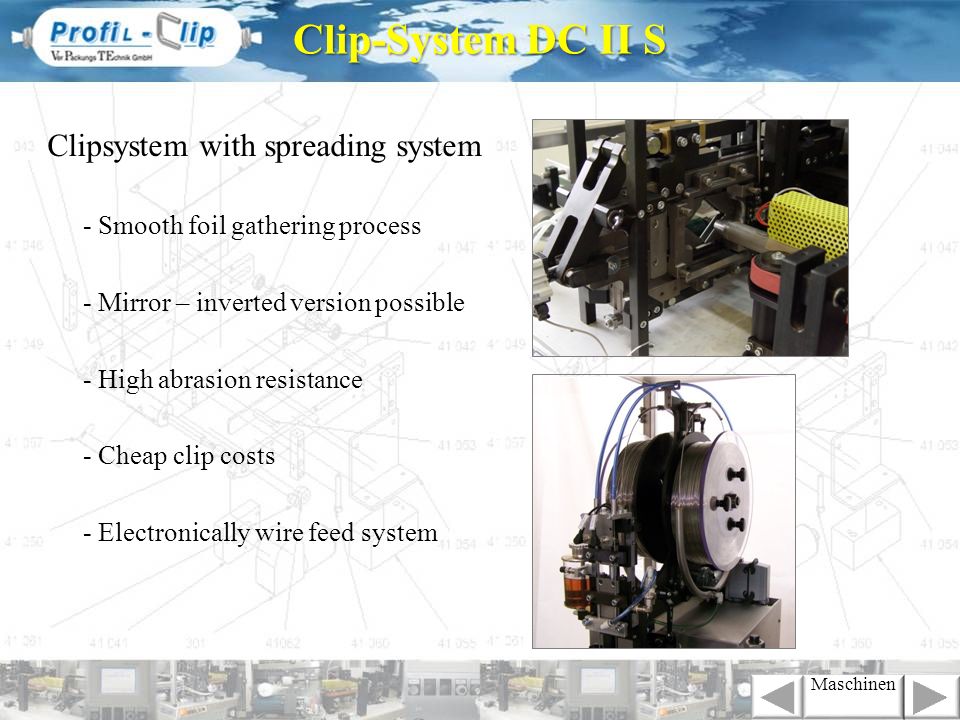

Clip-System DC II S Clipsystem with spreading system
- Smooth foil gathering process - Mirror – inverted version possible - High abrasion resistance - Cheap clip costs - Electronically wire feed system Maschinen
46
Case-Packer SP1 Full automatic nozzle adding station
SBP / D-1, bag packer for automatic packaging of tubular bags with integrated system for the addition of nozzles. This automaton is designed for all standard bag sizes For Sausages with diameter 46 and 49mm, Volume ml Full automatic nozzle adding station Quick format change within less than five minutes Packing speed 40p/min Highly efficient PLC for a high degree of automation and flexibility The frame and all process-contacted part consist of stainless steel Maschinen
47

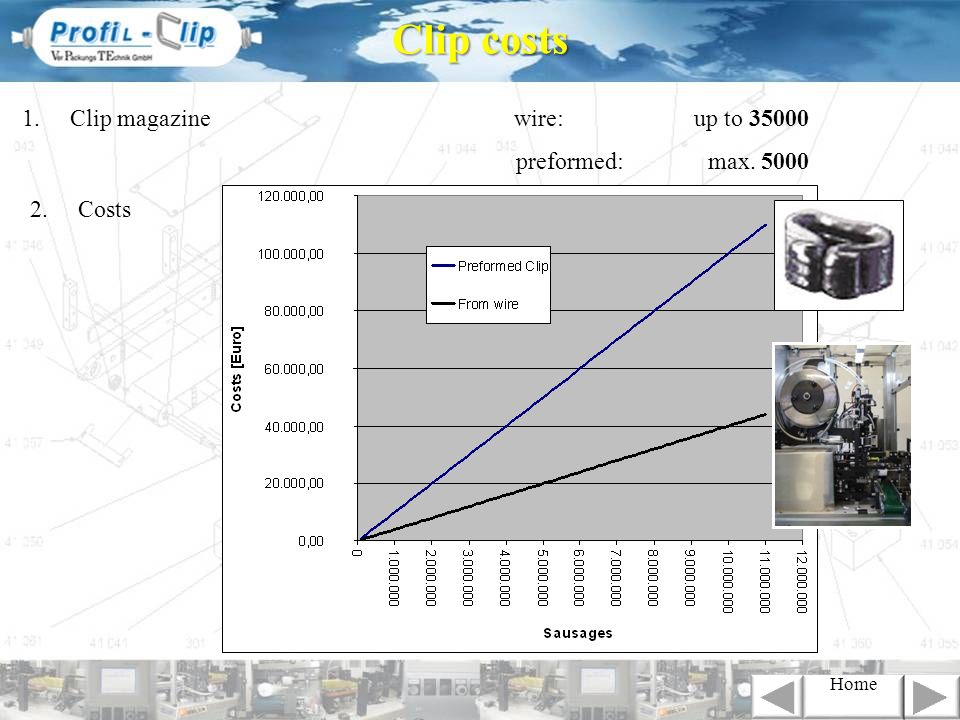

Clip costs 1. Clip magazine wire: up to 35000 preformed: max. 5000
Home
48
Advantages Clip technology (Clips made from wire)
1. Clip costs: Safe more the 50% compared to preformed clips 2. Clip magazine: Safe production time Wire clips ~ clips / roll preformed clips: 5000 clips / roll Patented foil drive system Less pressure to the clip while filling (70% less compared with others) Stable foil movement with slip control Flexible system Machine can be equipped with a lot of different options, so the for each Material the best set up is possible Home
49
Worldwide references ( >95 machines) Home
50

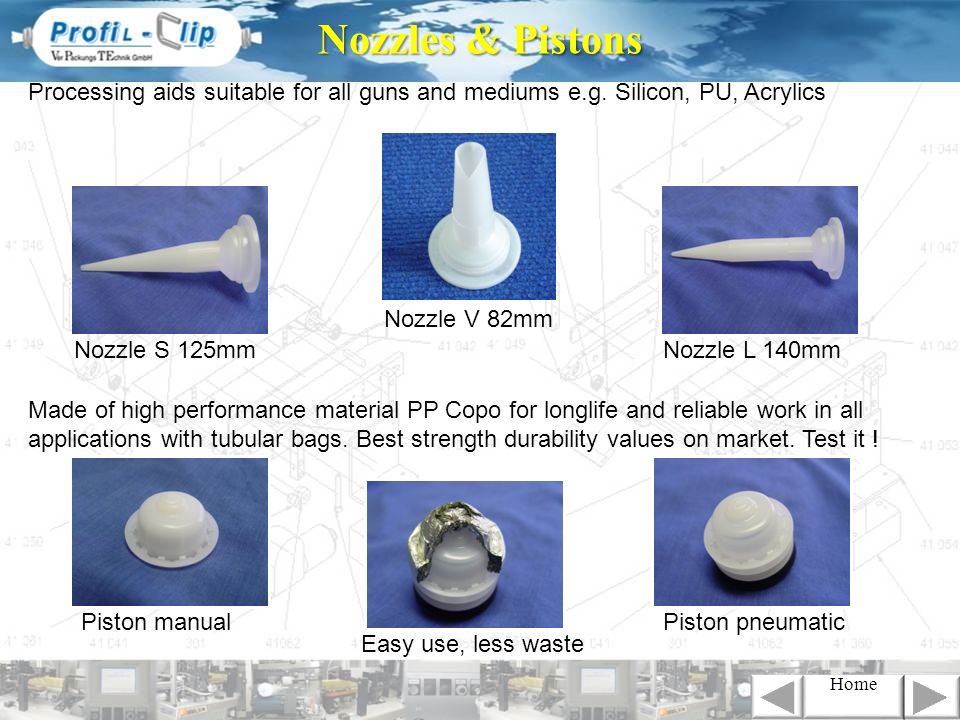

Nozzles & Pistons Processing aids suitable for all guns and mediums e.g. Silicon, PU, Acrylics Nozzle V 82mm Nozzle S 125mm Nozzle L 140mm Made of high performance material PP Copo for longlife and reliable work in all applications with tubular bags. Best strength durability values on market. Test it ! Piston manual Piston pneumatic Easy use, less waste Home
51

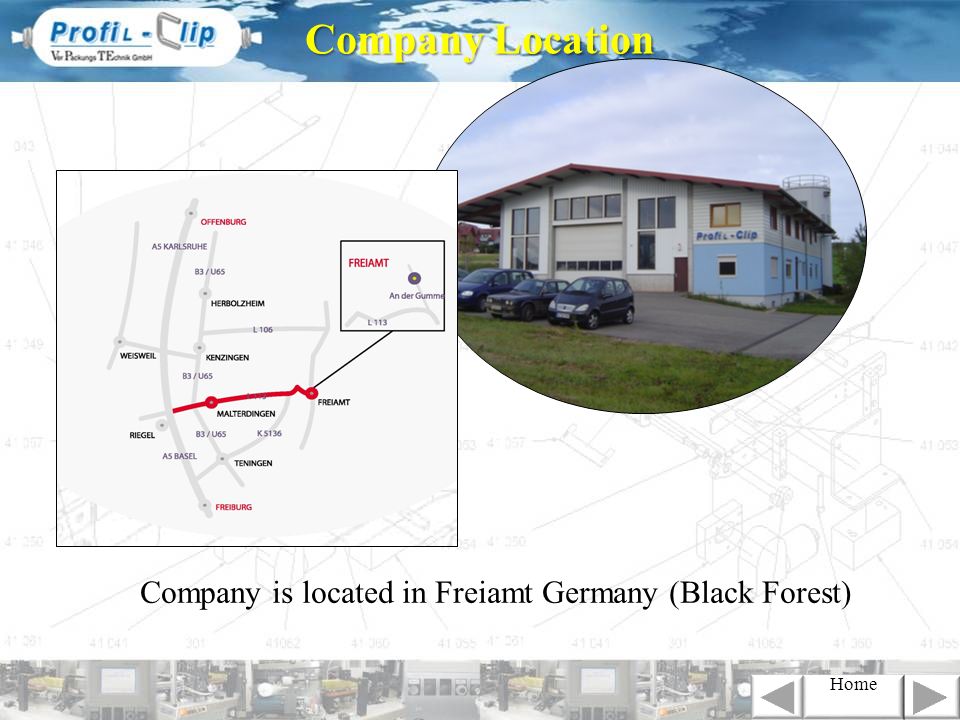

Company Location Company is located in Freiamt Germany (Black Forest)
Home
52
History 1987 Foundation of VP-TE by Mr. Knieriem († 2004) in Ladenburg by Heidelberg 1989 Start 1st generation of Sausage machine SKT/H1 1997 Start of sausage machine SKT/H5 2003 Start newest generation of sausage machine SKT/H6 2004 Foundation of ProfiL Clip and movement to Freiamt Years of ProfiL Clip / VP-TE 2009 Start newest generation of sausage machine SKT/H7 Home
