Institut für Kartographie und Geoinformation Prof. Dr. Lutz Plümer Diskrete Mathematik II Vorlesung 3 27.04.00 der Algorithmus von Floyd Foliendesign: cand. geod. Jörg Steinrücken
3
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.002 Übersicht letzte Stunden: –Algorithmus von Dijkstra –alle kürzesten Wege von einem Knoten (1:n) – Datenstrukuren für den Algorithmus von Dijkstra Datenstruktur für Graphen mit Kosten –Adjazenzliste –Adjazenzmatrix Datenstruktur für grüne Knoten Heute: –Algorithmus von Floyd –kürzeste Wege zwischen allen Paaren von Knoten (n:n)
4
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.003 Algorithmus von Floyd Problem: Bestimmung der kürzesten Wege zwischen allen Paaren von Knoten Lösung –iterative Anwendung des Algorithmus von Dijkstra –besser: Algorithmus von Floyd
5
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.004 Algorithmus von Floyd: Idee 20 Do Ha W 15 betrachteter Knoten Vorgänger Nachfolger 35 füge neue direkte Kante ein, wenn noch keine Kante vorhanden oder die neue Kante kürzer ist als eine vorhandene
6
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.005 Algorithmus von Floyd: Idee 20 Do Ha W 15 Für jeden Knoten 35 Für jedes Paar Vorgänger / Nachfolger
7
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.006 20 Do Ha W Du K D 15 80 20 30 15 150 betrachteter Knoten Vorgänger Nachfolger Algorithmus von Floyd (Beispiel)
8
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.007 Do Ha W Du K D 20 15 80 20 30 15 150 Algorithmus von Floyd (Beispiel)
9
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.008 Do Ha W Du K D 20 15 80 20 30 15 150 Knoten besitzt nur Nachfolger Algorithmus von Floyd (Beispiel) fangen wir wieder an mit Dortmund
10
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.009 Do Ha W Du K D 30 150 20 15 80 20 15 Do W 35 Algorithmus von Floyd (Beispiel) als nächstes Hagen
11
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0010 80 Do Ha W Du K D 30 150 20 15 80 20 15 35 Do Ha Du K D Algorithmus von Floyd (Beispiel) Jetzt haben wir 2 Vorgänge und 3 Nachfolger - wie viele Paare also?
12
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0011 65 Do Ha W Du K D 30 150 20 15 80 20 15 35 185 115 45 Algorithmus von Floyd (Beispiel)
13
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0012 115 Do Ha W Du K D 30 150 20 15 80 65 20 15 35 185 45 95 165 Algorithmus von Floyd (Beispiel)
14
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0013 115 Do Ha W Du K D 30 150 20 15 80 65 20 15 35 185 45 95 165 Do Ha WD Algorithmus von Floyd (Beispiel)
15
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0014 115 Do Ha W Du K D 30 150 20 15 80 65 20 15 35 185 45 95 165 Algorithmus von Floyd (Beispiel)
16
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0015 165 85 165 115 Do Ha W Du K D 30 150 20 15 80 65 20 15 35 45 95 Algorithmus von Floyd (Beispiel)
17
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0016 65 150 115 Do Ha W Du K D 30 20 15 80 65 20 15 35 85 45 95 Algorithmus von Floyd (Beispiel) 150
18
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0017 50 115 Do Ha W Du K D 30 20 15 80 65 20 15 35 85 45 95 65 Algorithmus von Floyd (Beispiel)
19
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0018 115 Do Ha W Du K D 30 50 20 15 80 65 20 15 35 85 45 95 65 Do Ha W Du K Algorithmus von Floyd (Beispiel)
20
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0019 115 Do Ha W Du K D 30 50 20 15 80 65 20 15 35 85 45 95 65 Algorithmus von Floyd (Beispiel)
21
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0020 100 95 Do Ha W Du K D 30 50 20 15 80 65 20 15 35 85 45 65 Algorithmus von Floyd (Beispiel) 95
22
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0021 80 100 Do Ha W Du K D 30 50 20 15 65 20 15 35 85 45 65 Algorithmus von Floyd (Beispiel) 80
23
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0022 65 100 Do Ha W Du K D 30 50 20 15 65 20 15 35 85 45 80 65 35 Algorithmus von Floyd (Beispiel)
24
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0023 100 Do Ha W Du K D 30 50 20 15 65 20 15 35 85 45 80 65 35 Algorithmus von Floyd (Beispiel)
25

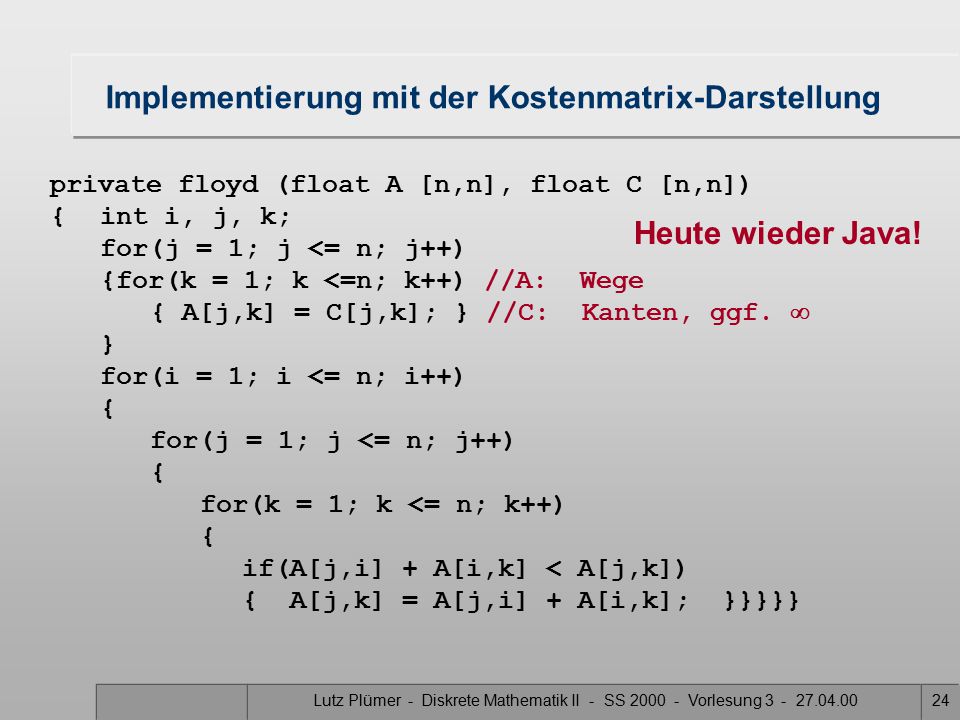

Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0024 Implementierung mit der Kostenmatrix-Darstellung private floyd (float A [n,n], float C [n,n]) {int i, j, k; for(j = 1; j <= n; j++) {for(k = 1; k <=n; k++) //A: Wege { A[j,k] = C[j,k]; } //C: Kanten, ggf. } for(i = 1; i <= n; i++) { for(j = 1; j <= n; j++) { for(k = 1; k <= n; k++) { if(A[j,i] + A[i,k] < A[j,k]) { A[j,k] = A[j,i] + A[i,k]; }}}}} Heute wieder Java!
26
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0025 Floyd-Erweiterung: Mitführung der kürzesten Wege private floyd (float A[n,n], float C[n,n], int W[n,n]) {int i, j, k; for(j = 1; j <= n; j++) {for(k = 1; k <=n; k++) { A[j,k] = C[j,k]; W[j,k] = } } for(i = 1; i <= n; i++) { for(j = 1; j <= n; j++) { for(k = 1; k <= n; k++) { if(A[j,i] + A[i,k] < A[j,k]) { A[j,k] = A[j,i] + A[i,k]; W[j,k] = i; }}}}}
27
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0026 Floyd (3) Beachten Sie: –Die Ausgabeprozedur setzt voraus, daß ein Weg zwischen 2 Knoten x und y existiert Übung: –Wie sehen Sie der Matrix A an, ob ein Weg zwischen 2 Knoten existiert –allgemeiner: Wie sehen Sie der Matrix A an, ob der Graph zusammenhängend ist –der Graph ist zusammenhängend, wenn zwischen jedem Paar (a,b) von Knoten ein Weg existiert –beachten Sie, dass wir von gerichteten Graphen sprechen, also (a,b) (b,a)
28
Lutz Plümer - Diskrete Mathematik II - SS 2000 - Vorlesung 3 - 27.04.0027 Ausgabe des kürzesten Weges public weg(int[][] W,int X,int Y) //gibt kürzesten Weg von X nach Y aus { weg_rekursiv(X,Y); gib Y aus; } private weg_rekursiv(int[][] W,int X,int Y) { if( W[X,Y] = ) then gib X aus; else {Z = W[X,Y]; weg_rekursiv(W,X,Z); weg_rekursiv(W,Z,Y);}
29
Schönen Dank für Ihre Aufmerksamkeit und Auf Wiedersehen
