1 TÜV Rheinland Consulting ENGAGE High Speed Broadband for Rural Europe County Donegal 12.02.2013
ENGAGE High Speed Broadband fur Rural Europe County Donegal

2 TÜV Rheinland Group. At home on all continents.
Services corporation active around the world: employees and € 1.4 bn turnover 500 locations in 65 countries 220 locations in Germany Independent cooperation: TÜV Rheinland AG is 100 %-owned by TÜV Rheinland e.V. Known for: Independence, neutrality and expertise Great reputation in matters of safety in quality Source: TÜV Rheinland Company Report 2011 ©TÜV Rheinland Consulting GmbH – Telco Solutions, 2012

3 TÜV Rheinland - Our 6 fields of business.

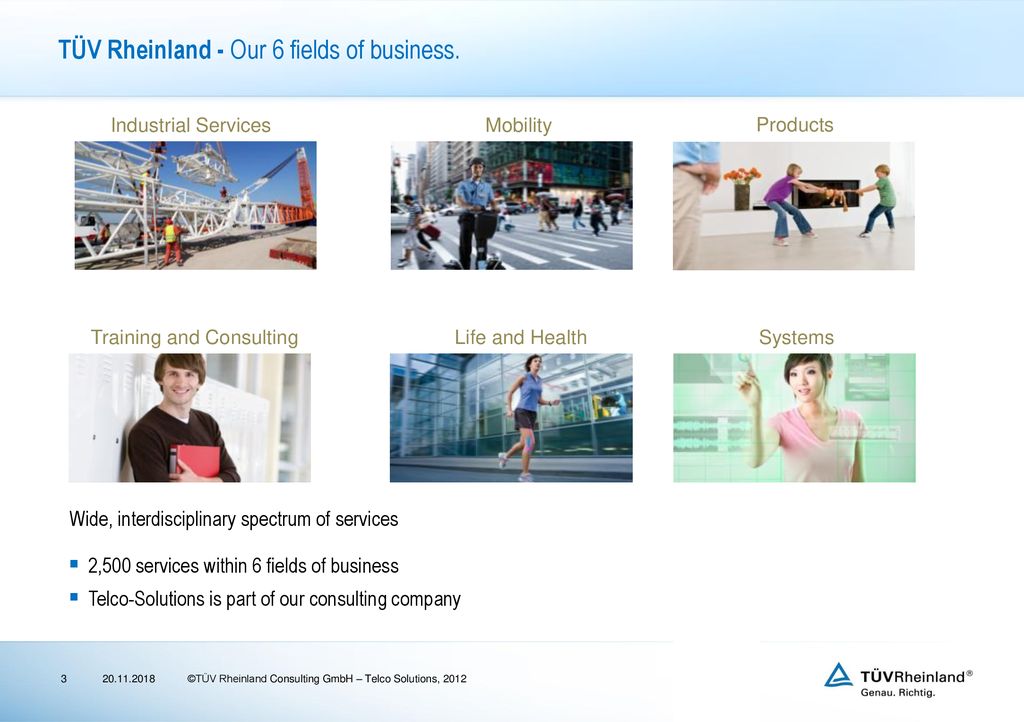

Industrial Services Mobility Products Training and Consulting Life and Health Systems Wide, interdisciplinary spectrum of services 2,500 services within 6 fields of business Telco-Solutions is part of our consulting company ©TÜV Rheinland Consulting GmbH – Telco Solutions, 2012

4 Topics covered by telco solutions - overview

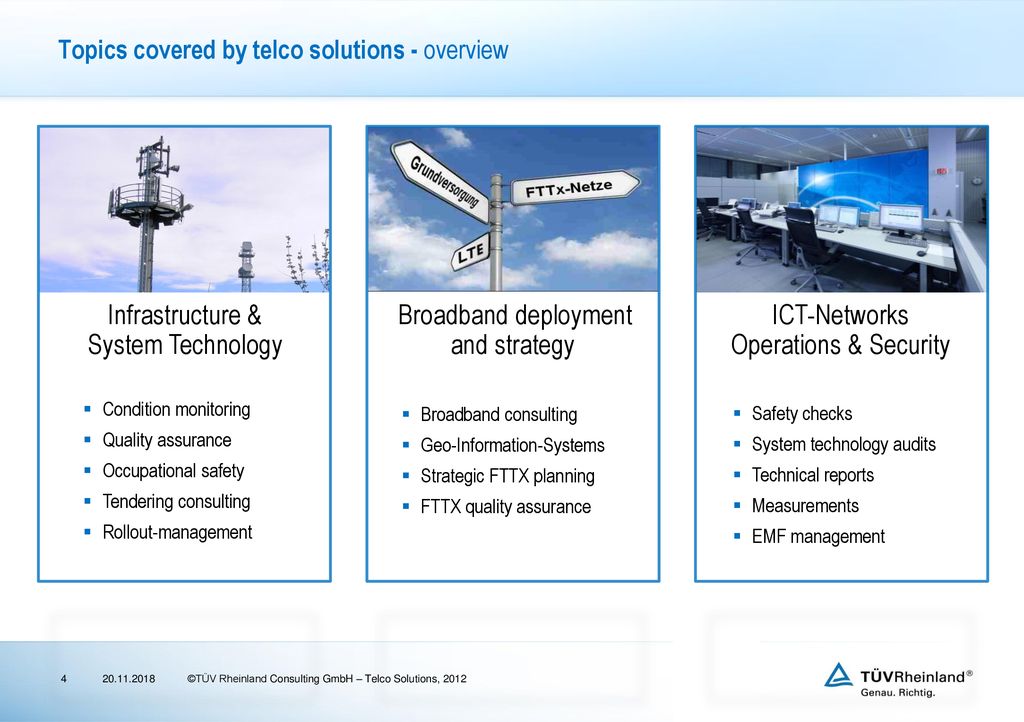

Infrastructure & System Technology Broadband deployment and strategy ICT-Networks Operations & Security Condition monitoring Quality assurance Occupational safety Tendering consulting Rollout-management Broadband consulting Geo-Information-Systems Strategic FTTX planning FTTX quality assurance Safety checks System technology audits Technical reports Measurements EMF management ©TÜV Rheinland Consulting GmbH – Telco Solutions, 2012

5 NGA Strategieberatung und Netzplanung

6 Scenario County Donegal: Copper-based basic ADSL
1. How would you upgrade this infrastructure to provide Next Generation Access (NGA) First step Focus on FTTC Average line length 1 km exchange-cabinet Conclusion distance is very short Compared to Germany: typical line length are up to 4km in rural areas Suggestion overbuild cabinets with outdoor DSLAMS Civil works needed to connect fiber to cabinet Alternatively via masts overground or wireless access links exchange – cabinet For final decision copper line structure needs to be analysed Possibly build one outdoor DSLAM collecting more than one cabinet Speeds depending on line length cabinet – premises ENGAGE High Speed Broadband fur Rural Europe County Donegal

7 Scenario County Donegal: Copper-based basic ADSL

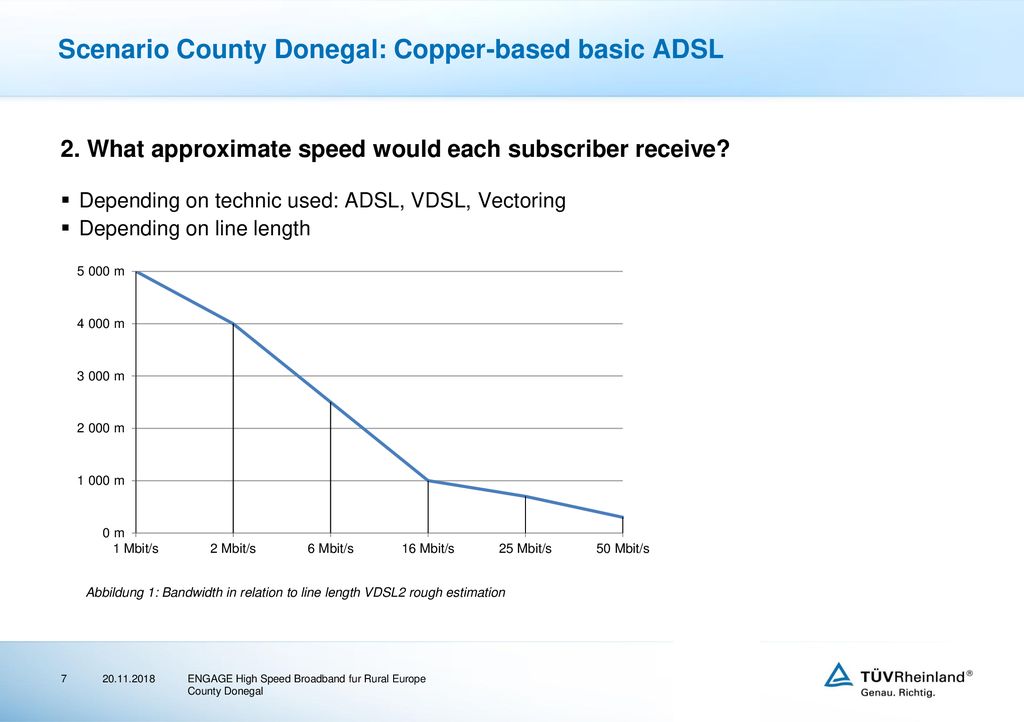

2. What approximate speed would each subscriber receive? Depending on technic used: ADSL, VDSL, Vectoring Depending on line length Abbildung 1: Bandwidth in relation to line length VDSL2 rough estimation ENGAGE High Speed Broadband fur Rural Europe County Donegal

8 Scenario County Donegal: Copper-based basic ADSL

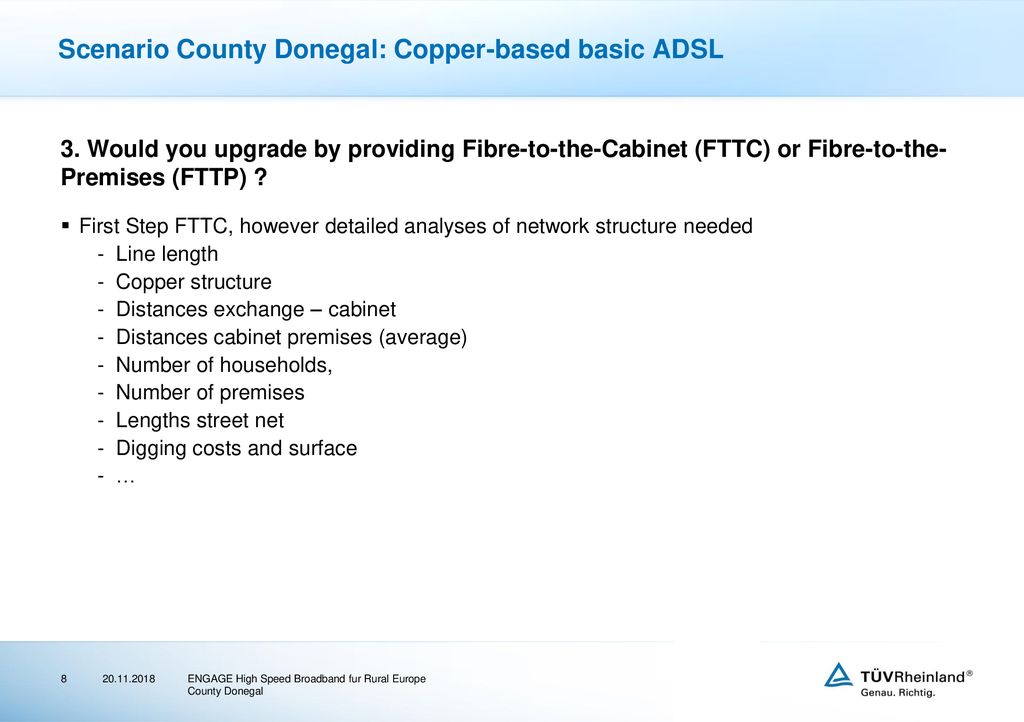

3. Would you upgrade by providing Fibre-to-the-Cabinet (FTTC) or Fibre-to-the-Premises (FTTP) ? First Step FTTC, however detailed analyses of network structure needed Line length Copper structure Distances exchange – cabinet Distances cabinet premises (average) Number of households, Number of premises Lengths street net Digging costs and surface … ENGAGE High Speed Broadband fur Rural Europe County Donegal

9 Scenario County Donegal: Copper-based basic ADSL

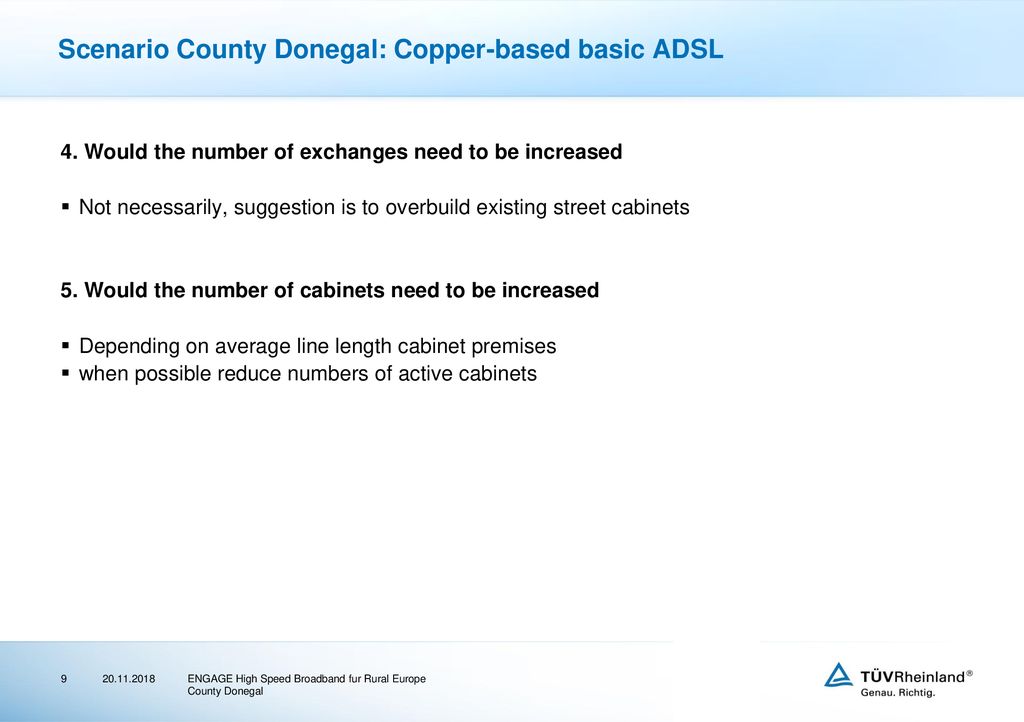

4. Would the number of exchanges need to be increased Not necessarily, suggestion is to overbuild existing street cabinets 5. Would the number of cabinets need to be increased Depending on average line length cabinet premises when possible reduce numbers of active cabinets ENGAGE High Speed Broadband fur Rural Europe County Donegal

10 Scenario County Donegal: Copper-based basic ADSL

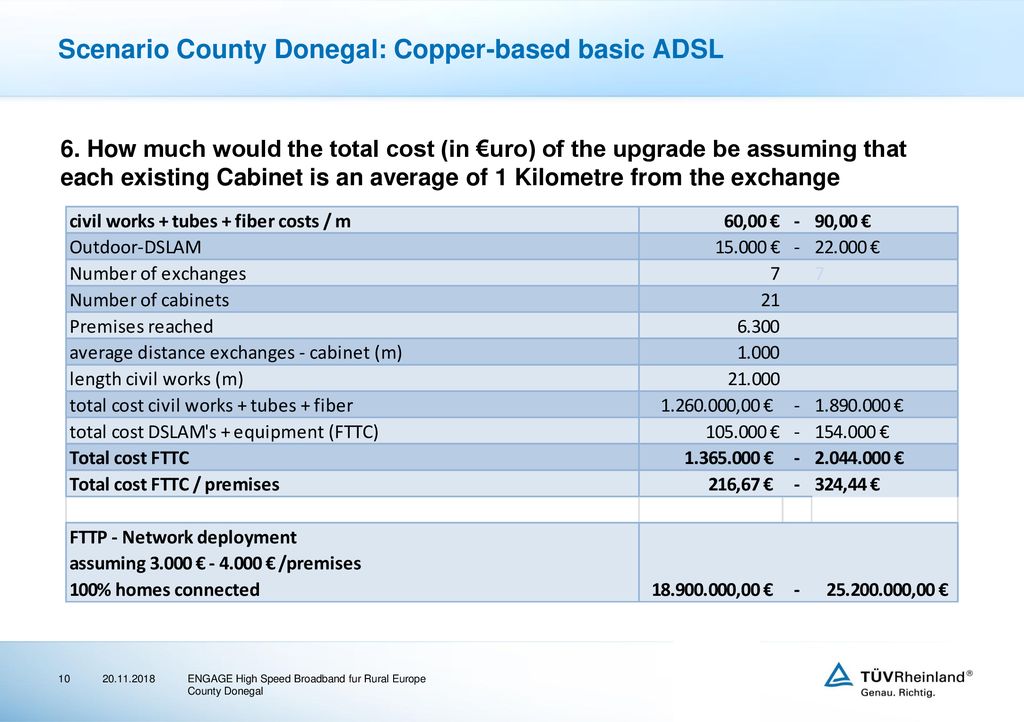

6. How much would the total cost (in €uro) of the upgrade be assuming that each existing Cabinet is an average of 1 Kilometre from the exchange ENGAGE High Speed Broadband fur Rural Europe County Donegal

11 Scenario County Donegal: Copper-based basic ADSL
7. Do you know of any alternative or new solutions that could applied to this ADSL access infrastructure VDSL2 Vectoring Masts for over ground fiber lines Wireless Access link between exchange and cabinet ENGAGE High Speed Broadband fur Rural Europe County Donegal

12 Scenario County Donegal: Copper-based basic ADSL
Alternative Infrastructure Electricity Network Clean Water Distribution Network Sewage Network ENGAGE High Speed Broadband fur Rural Europe County Donegal

13 Appendix ENGAGE High Speed Broadband fur Rural Europe County Donegal

14 NGA Strategie und Netzplanung

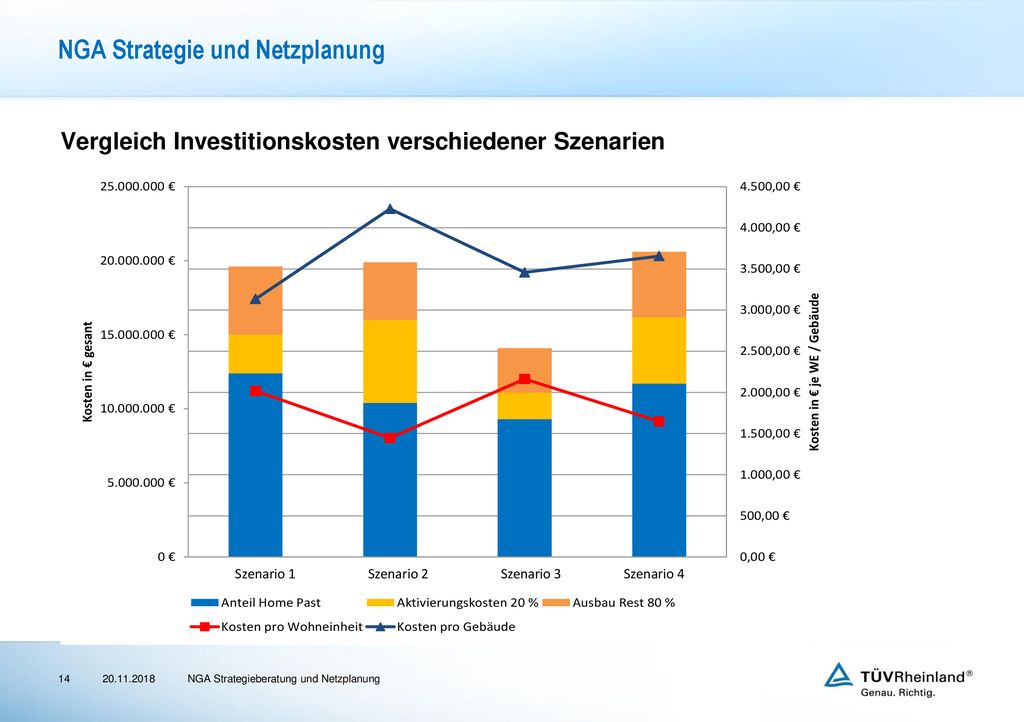

Vergleich Investitionskosten verschiedener Szenarien Szenario Szenario Szenario Szenario 4 NGA Strategieberatung und Netzplanung

15 Breitbandausbau - FTTX Planung.

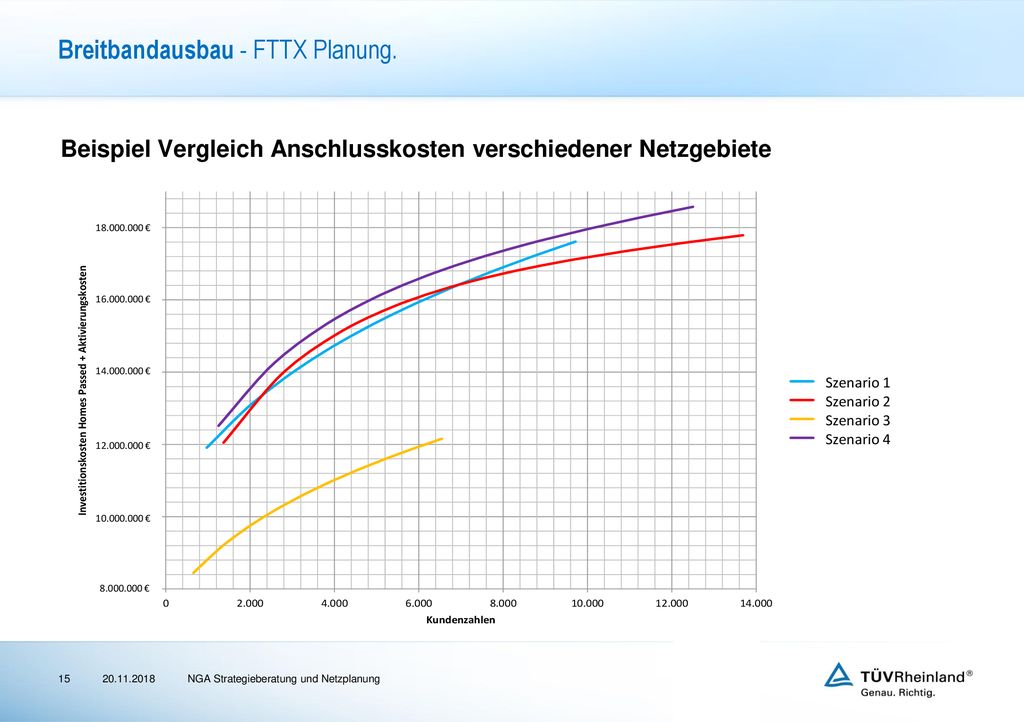

Beispiel Vergleich Anschlusskosten verschiedener Netzgebiete € € € Szenario 1 Szenario 2 Szenario 3 Szenario 4 € € € NGA Strategieberatung und Netzplanung

16 Technische und wirtschaftliche Grundlagen FTTx

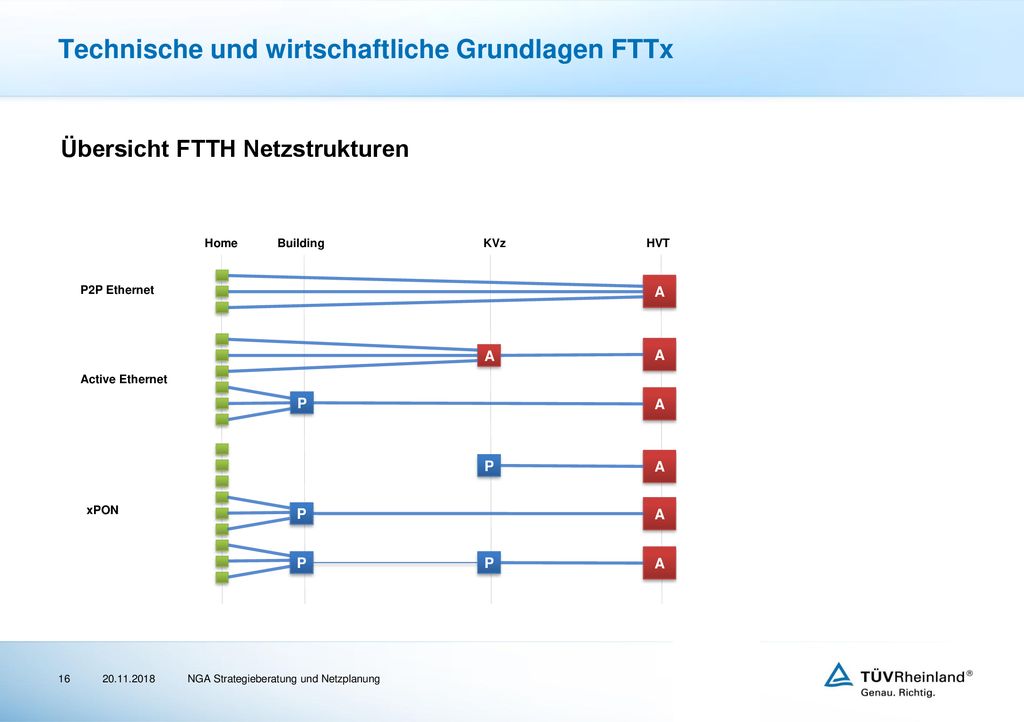

Übersicht FTTH Netzstrukturen Home Building KVz HVT P2P Ethernet A A A Active Ethernet P A P A xPON P A P P A NGA Strategieberatung und Netzplanung

17 Technische und wirtschaftliche Grundlagen FTTx

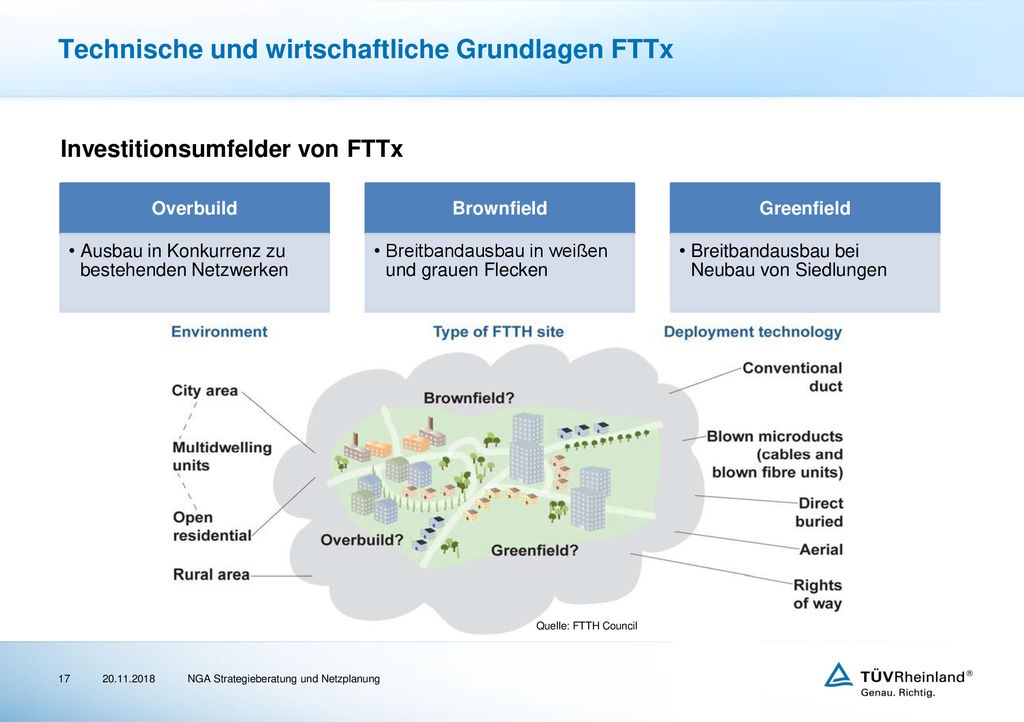

Investitionsumfelder von FTTx Overbuild Ausbau in Konkurrenz zu bestehenden Netzwerken Brownfield Breitbandausbau in weißen und grauen Flecken Greenfield Breitbandausbau bei Neubau von Siedlungen Quelle: FTTH Council NGA Strategieberatung und Netzplanung

18 FTTx Deployment and Strategy
Qualified and comprehensive consulting on strategy, analysis and planning of FTTx Networks In Kooperation mit: NGA Strategieberatung und Netzplanung 18
