Welcome to the Presentation of the Automatic Gearbox GA6HP26Z
Q076463: Welcome to the Presentation of the Automatic Gearbox GA6HP26Z Gernot Nehmeyer VS-12 Neues Automatikgetriebe von BMW und ZF mit Lebensdauerölfüllung Bezeichnung GA6HP26Z G = Getriebe A = Automatik 6 = Anzahl der Vorwärtsgänge HP = Hydraulisches Planentengetriebe 26 = Baugröße Z = Getriebehersteller ZF
2
GA6HP26Z G = Gearbox A Automatic 6 Number of gears (speeds) HP
Q076463: GA6HP26Z G = Gearbox A Automatic 6 Number of gears (speeds) HP Hydraulic planetary gear 26 Size Z Gearbox manufacture ZF (Zahnradfabrik Friedrichshafen) Neues Automatikgetriebe von BMW und ZF mit Lebensdauerölfüllung Bezeichnung GA6HP26Z G = Getriebe A = Automatik 6 = Anzahl der Vorwärtsgänge HP = Hydraulisches Planentengetriebe 26 = Baugröße Z = Getriebehersteller ZF
3
Half day / Block 1 Q076463: TA 1 Seminar opening
Introduction/Warming-up General Overview GA6HP26Z TA 2 Component and functional descriptions System design of the GA6HP26Z Component descriptions/handling TA 3 Electronic/adaptive transmission control Control unit/Electronic-hydraulic control Adaptive transmission control TA 4 Check control messages/troubleshooting and diagnosis Check control messages Emergency program and diagnosis GA6HP26Z TA 5 Seminar conclusion Summary Seminar feedback
4
Q076463:
5
Q076463:
6
Q076463:
7
Q076463:
8
Q076463:
9
Q076463: Clutch E
10
Single planetary gear train
Q076463: Single planetary gear train
11
Double planetary gear train
Q076463: Double planetary gear train
12
Q076463: 4 3 2
13
Q076463:
14

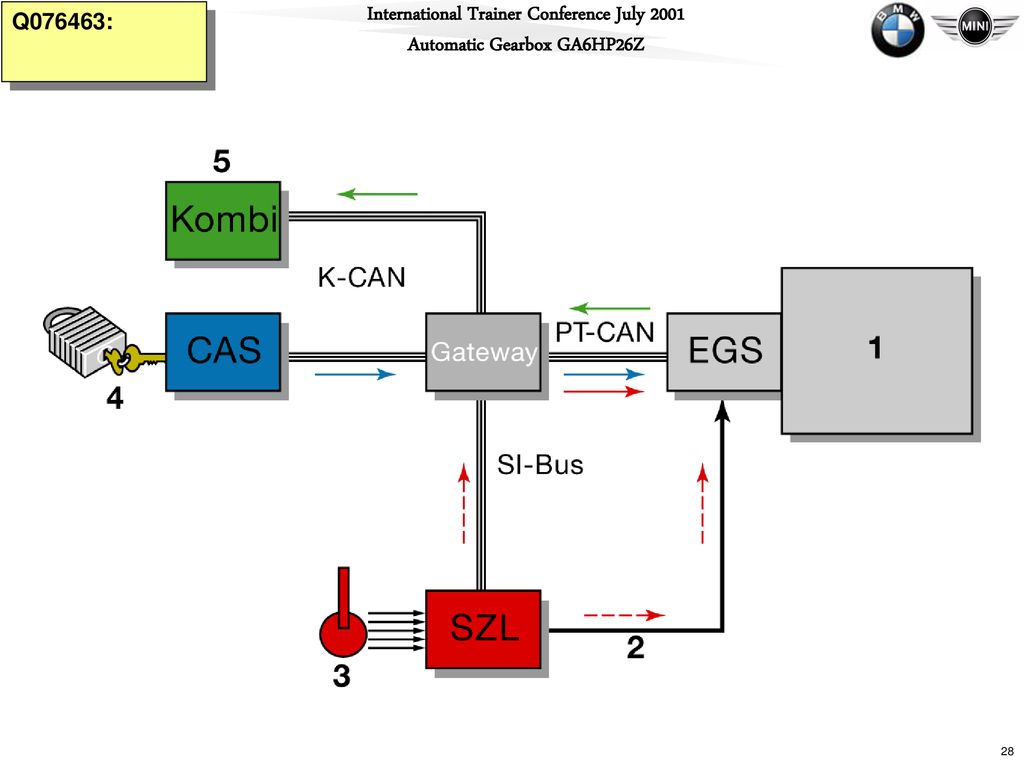

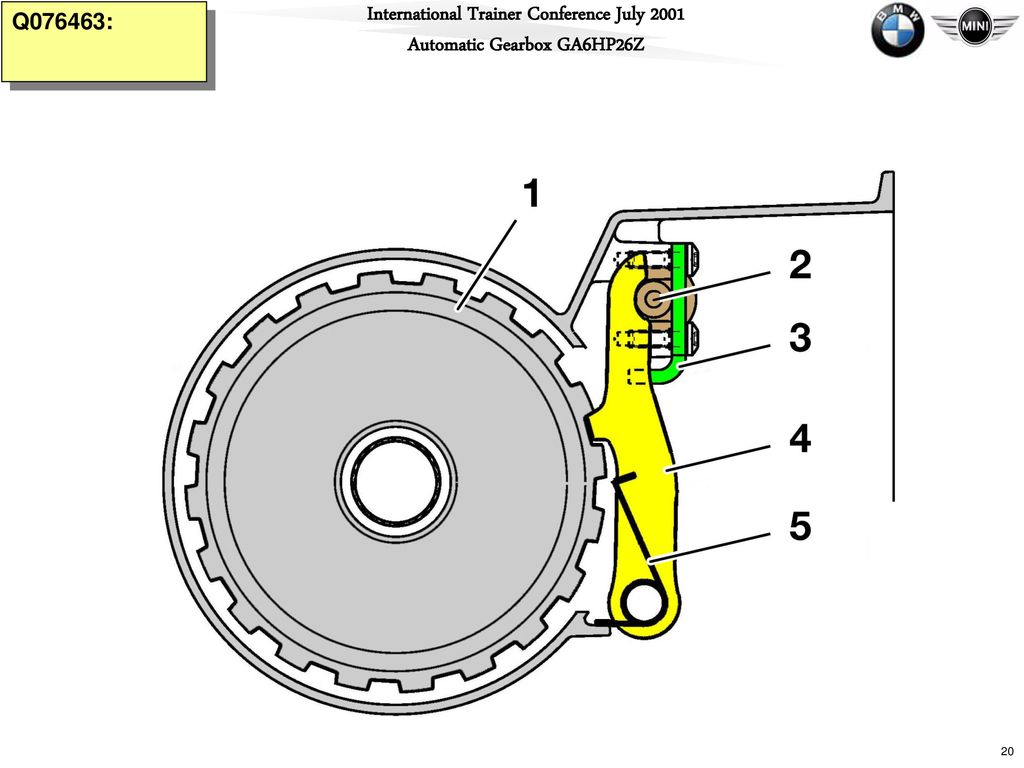

Function of the parking lock:
Q076463: Function of the parking lock: - active at zero pressure and de-energized - reliably held on downhill gradients of up to 32% and at a speed below 2 km/h - not engaged at driving speeds above 5 km/h Activation of the parking lock: - P-push button and speed signal less than 2 km/h engine on, gear position D, N or R, driver‘s door is open and the driver‘s seat ist not occupied - engine off, position N, fault in the EMF - ignition key removed and speed signal is 0 km/h - ignition off after 30 min. in position N - fault in the CAN bus, terminal 15 off and speed signal below 2 km/h Deactivation of the parking lock: - engine on + - foot brake pressed + - selector lever moved in position R, D or N
15
Q076463: Mechatronics module
16
Q076463:
17
Q076463:
18
Q076463:
19
Q076463:
20
Q076463:
21

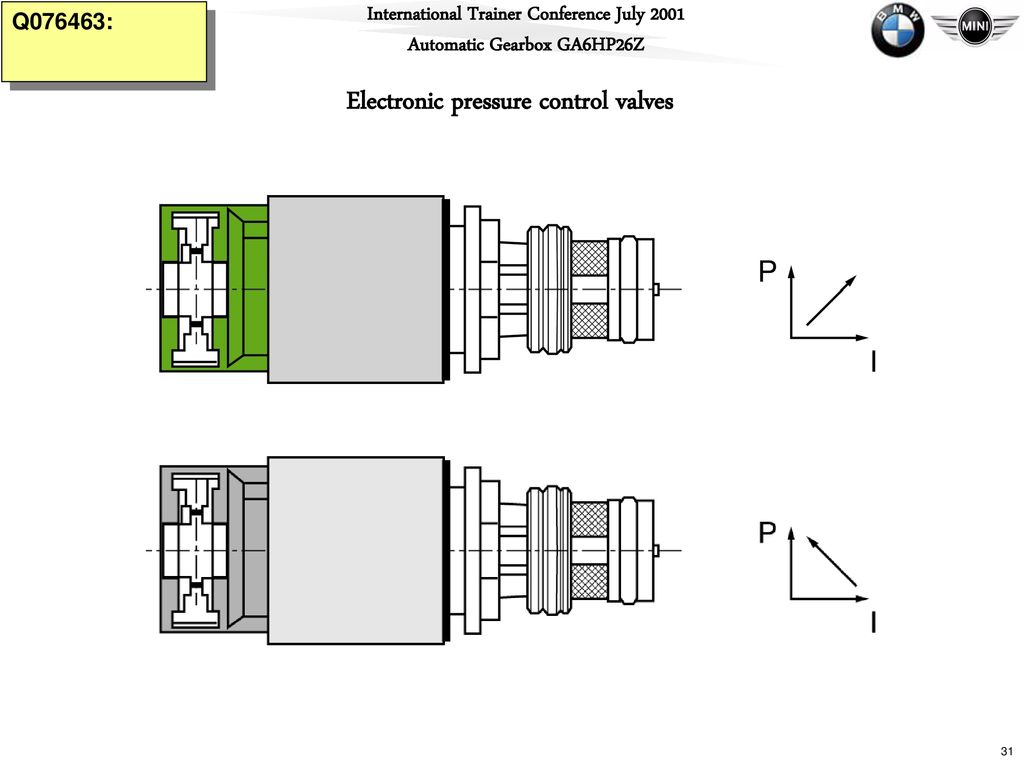

Electronic pressure control valves
Q076463: Electronic pressure control valves
22

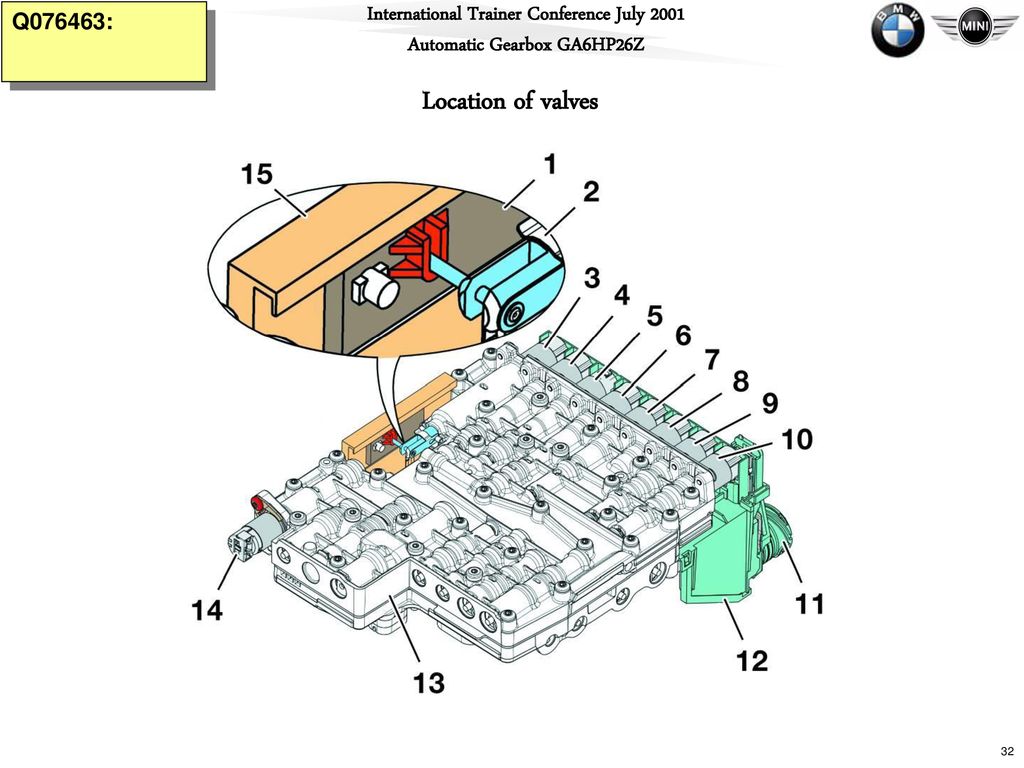

Q076463: Location of valves
23

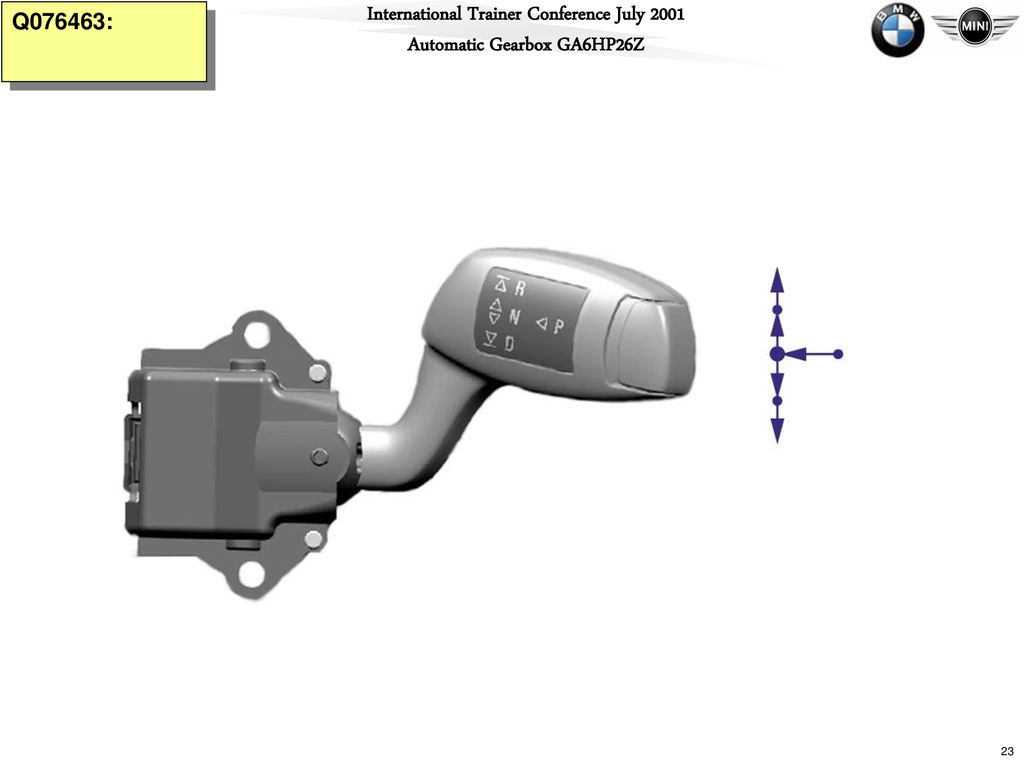

Q076463:
24
Screwing of mechatronics module
Q076463: Screwing of mechatronics module
