Molchbares VARIVENT® Doppelsitzventil Typ L
2

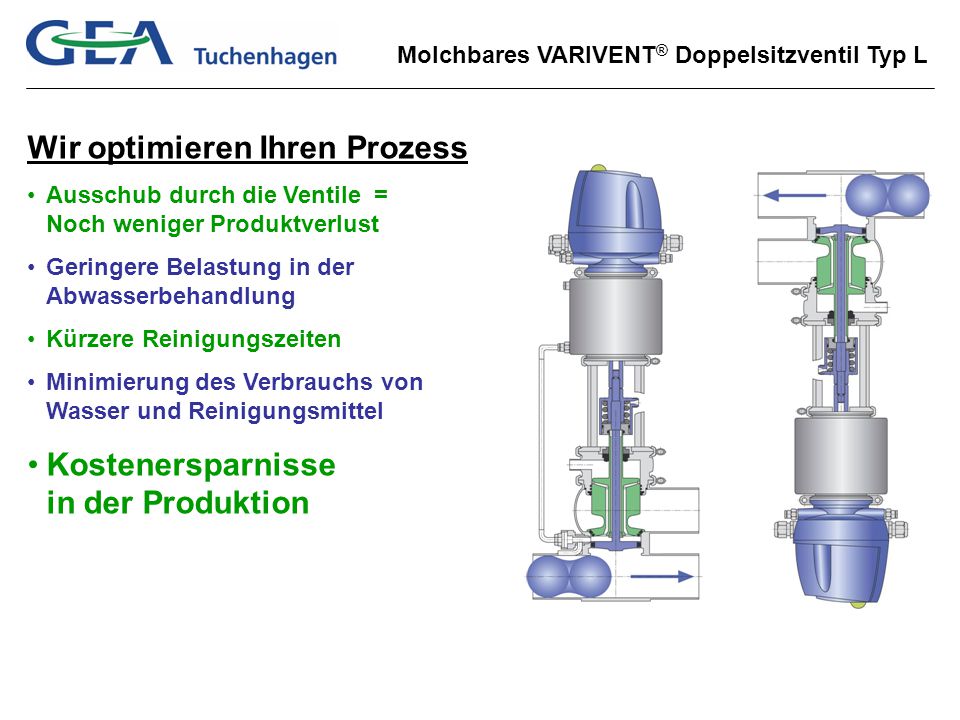

Wir optimieren Ihren Prozess
Ausschub durch die Ventile = Noch weniger Produktverlust Geringere Belastung in der Abwasserbehandlung Kürzere Reinigungszeiten Minimierung des Verbrauchs von Wasser und Reinigungsmittel Kostenersparnisse in der Produktion
3
Molchempfangsstation
Verfahrensablauf am Beispiel eines Tanklagers CIP+ K K K K Produkt CIP+ CIP+ U U U U CIP- Luft N N N N Füller L L Molchempfangsstation Füller L L Molchsendestation CIP- L L
4
Molchempfangsstation
Tank befüllen CIP+ K K K K Produkt CIP+ CIP+ U U U U CIP- Luft N N N N Füller L L Molchempfangsstation Füller L L Molchsendestation CIP- L L
5

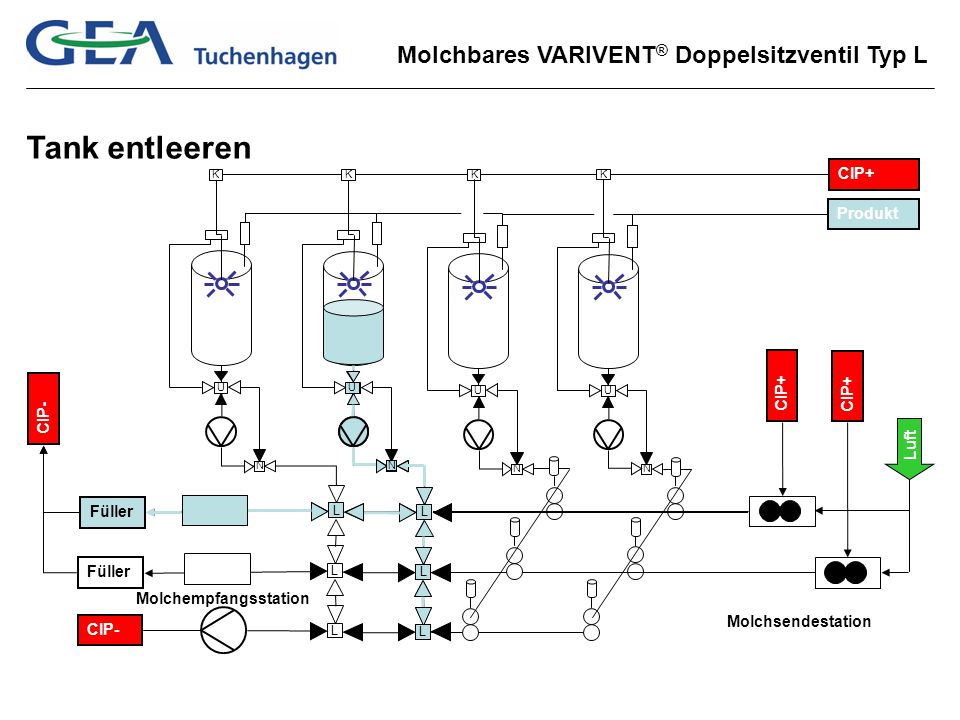

Molchempfangsstation
Tank entleeren CIP+ K K K K Produkt CIP+ CIP+ U U U U U CIP- Luft N N N N N Füller Füller L L L L Füller L L L Molchempfangsstation Molchsendestation CIP- L L L
6
Molchempfangsstation
Molchfahrt durch die Ventile und Molch zurück CIP+ K K K K Produkt CIP+ CIP+ Luft U U U U CIP- Luft N N N N N Füller Füller L L L L L Molchempfangsstation Füller L L L Molchsendestation CIP- L L L
7
Molchempfangsstation
Tankreinigung CIP+ K K K K K K K Produkt CIP+ CIP+ Luft U U U U U CIP- Luft N N N N N Füller Füller L L L L Molchempfangsstation Füller L L L Molchsendestation CIP- L L L L
8
Molchempfangsstation
CIP Produktleitung CIP+ K K K K K K K Produkt CIP+ CIP+ U U U U U CIP- Luft N N N N N Füller Füller L L L L Molchempfangsstation Füller L L L Molchsendestation CIP- L L L L
9
Ventilsitzreinigung Doppelsitzventil Doppelsitzventil (hängend)
CIP ein CIP aus CIP aus CIP aus CIP ein
10
Produktanbindung Doppelsitzventil (hängend) Doppelsitzventil (stehend)
leitung Produkttank Produkttank Produktleitung
11
Technische Daten Werkstoff 1.4404 (produktberührt)
Nennweiten: DN 40 bis DN 80, 11/2“ bis 3,0“ OD Produktdruck max. 16 bar Schaltdruck max. 6 bar Steuerluft mind. 6 bar Produktberührte Dichtungen EPDM, FKM (FDA-konform) Liftantrieb getrennt ansteuerbar für oberen und unteren Ventilteller (optional)
12
Anwendungsbereiche Kosmetische Industrie: Nahrungsmittelindustrie:
Creme Lotionen Rohstoffe Alkoholische Lösungen Nahrungsmittelindustrie: Joghurt Sahne Fruchtsaft Konzentrate
