Engineering and installation of jacketed pipelines
Planung und Herstellung von bemantelten Doppelrohrleitungen
3

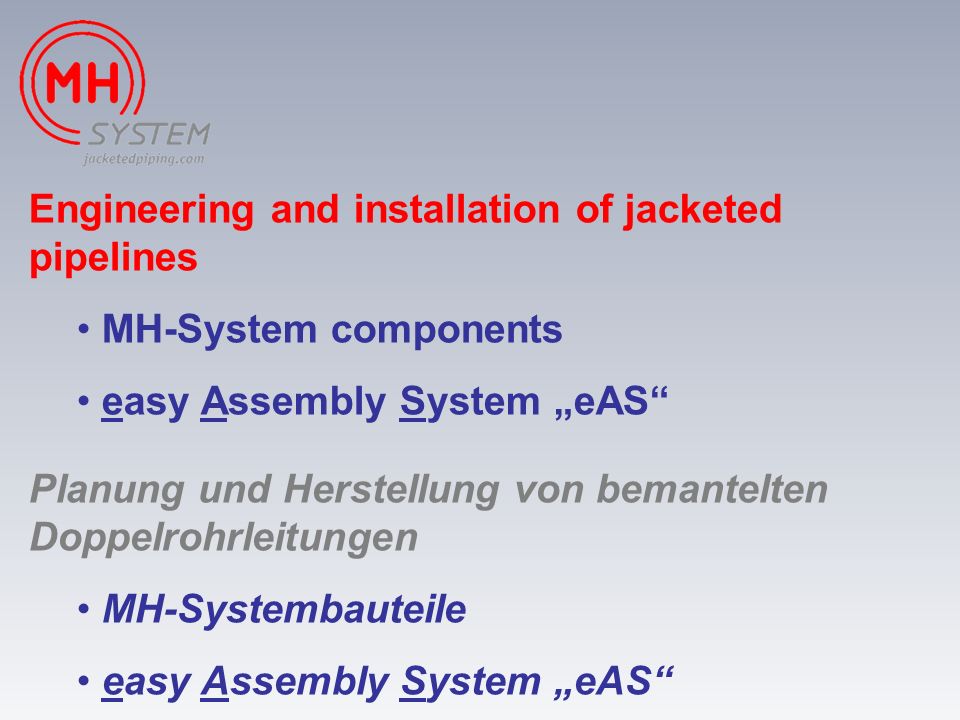

Engineering and installation of jacketed pipelines
MH-System components easy Assembly System „eAS“ Planung und Herstellung von bemantelten Doppelrohrleitungen MH-Systembauteile
4
MH-Double tube components System 2
MH-Doppelrohr-Systembauteile System 2
5
Positioning main equipment
Aufstellen Hauptkomponenten
6
MH-Flange heated type MHF2012
Beheizter MH-Flansch Typ MHF2012
7
MH-Flange adaptor type MHA202
MH-Flanschadapter Typ MHA202
10

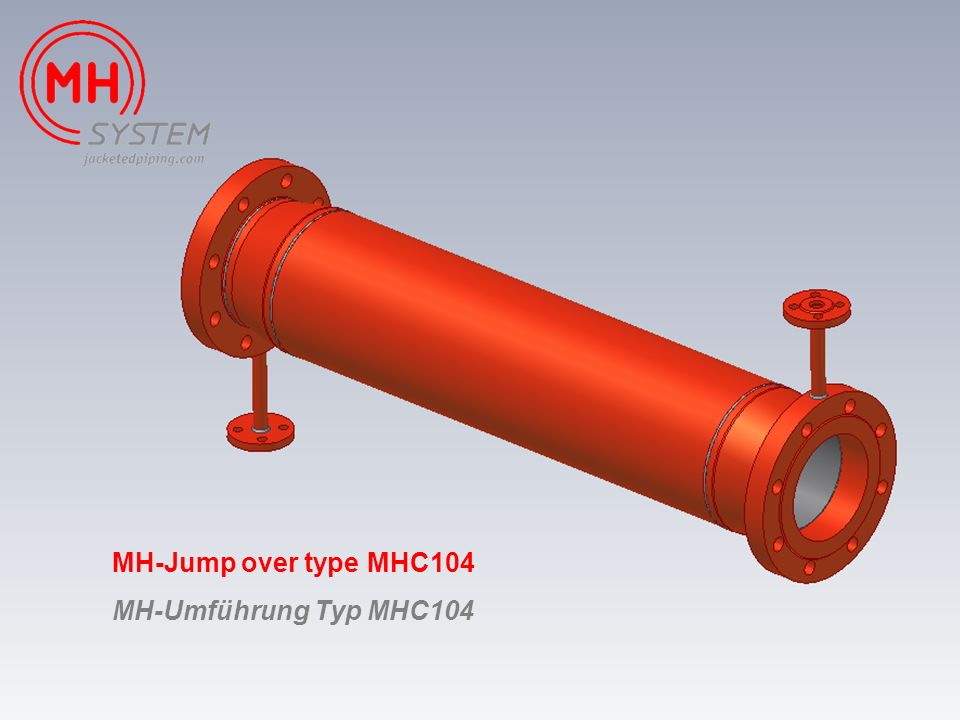

MH-Jump over type MHC104 MH-Umführung Typ MHC104
11
Installation jacketed pipe
Einbau Doppelrohr
13
MH-Elbow type MHE31_P2 MH-Bogen Typ MHE31_P2
14
MH-Tee type MHT51_P2 MH-T-Stück Typ MHT51_P2
15
Spacers MHA205D Distanzhalter MHA205D
16
Weld joint inner pipe Schweißverbindung Innenrohr
17
MH-Slip on sleeve type MHA201A
MH-Schiebemuffe MHA201A
18
Installation line 1 Einbau Leitung 1
29
Placement jump overs Anordnung Umführungen
30
Installation flange connections
Montage Flanschverbindungen
31
Finished line 1 Fertiggestellte Leitung 1
32
Installation line 2 Einbau Leitung 2
46
Finished line 2 Fertiggestellte Leitung 2
47
Installation line 3 Einbau Leitung 3
62
Finished line 3 Fertiggestellte Leitung 3
63
Placing supports Platzierung Halterungen
64
MH-Jump over type MHC107 MH-Umführung Typ MHC107
65
MH-Slip on sleeve type MHA201B
MH-Schiebemuffe MHA201B MH-Jump over type MHC108 MH-Umführung Typ MHC108
66
Finished jacketed piping system
Fertiggestelltes Doppelrohrsystem
67
MH-Double tube pipe classes
MH-Doppelrohr-Rohrklassen
68
MH-Double tube pipe classes
MH-Doppelrohr-Rohrklassen DIN / EN13480 / AD2000 / DGRL ASME B31.3 / ANSI / ASTM
69
Important documents for easy site installation
Wichtige Unterlagen für einfache Baustellen-Montage
70

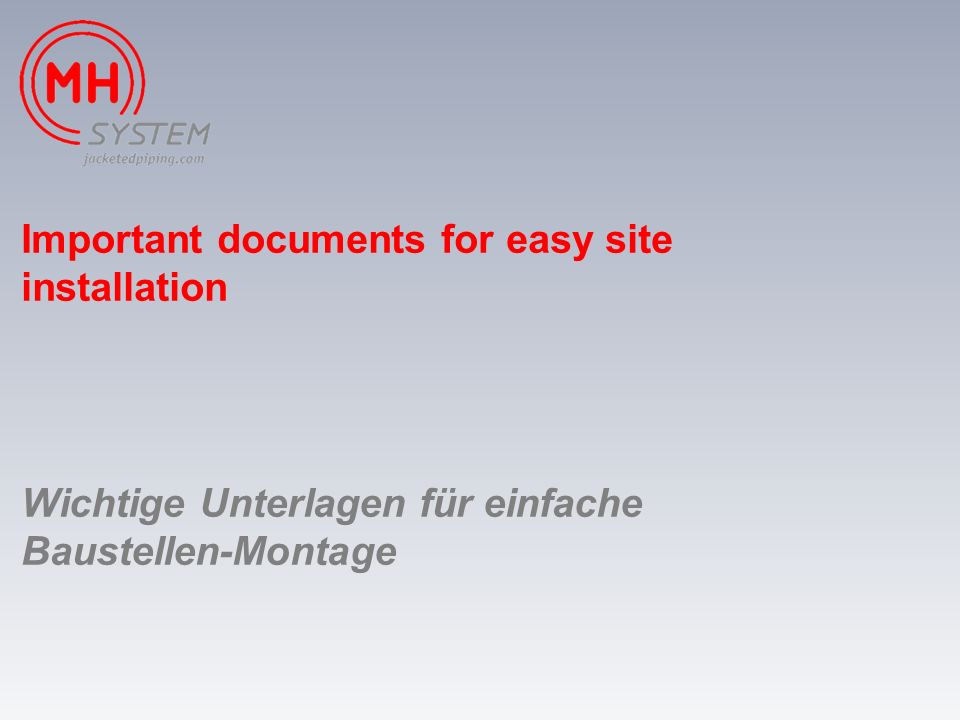

Important documents for easy site installation
MTO Summary lists Detailed isometrics Wichtige Unterlagen für einfache Baustellen-Montage Summen-Stücklisten Detaillierte Isometrien
71
MTO Summary List Stückliste
72
Double Tube Isometric Doppelrohr-Isometrie
73
Thank you for your interest
Vielen Dank für Ihr Interesse
74
MH-ROHR GMBH Otto-Hahn-Strasse 5 73230 Kirchheim/Teck – Germany Phone +49-(0) Fax +49-(0)
