1 Joint OECD/ ECMT Transportation Research Center Working Group on Transp. Infrastructure Investment April 25-26, 2006 Vienna, Austria Financing transp. Infrastructure under the paradigm shift from construction to operation Prof. Reinhart Kuhne, Ph.D. German Aerospace Center, Berlin Transportation Studies Group

2 Speed vs. Flow on I-10 westbound in 5 minute intervals from 4am to 6pm
Source: Varaiya Pravin: What we‘ve learned about Highway Congestion. Transportation Research at the University of California, Access 27, Fall 2005, S. 2-9

3 Results from Performance Monitoring System on Californias Highways
(data from sensors) 600 recurrent bottlenecks = 50% of weekday peak delays, 28% additionally peak-period congestion delay is caused by collisions, 10% of it accounting for 90% of all collision-induced delay Total vehicle-hours of travel (left) and sources of congestion (right) during peak periods Source: Varaiya Pravin: What we‘ve learned about Highway Congestion. Transportation Research at the University of California, Access 27, Fall 2005, S. 2-9

4 type of constructions site
Incident Balance in Germany Road accidents (in 1000) 2000 2002 2003 2004 personal injuries fatalities 382,9 6,8 362,1 6,2 354,9 6,6 440,1 5,8 heavy property damage 133,3 129,8 124,0 total 516,2 491,9 485,5 Each construction site a congestion site type of constructions site number remarks Duration <14 Tage (daytime construction site) 30 000 cause of 25% of all congestions Duration >14 Tage (continuous construction site) 700 total lenght: 2000 km concerns 6% average duration: 4 months of the complete network freeway construction sites in the complete network (2000)

5 Incident consequences and improved incident management
1min blockage cause 5 min add‘l blockage capacity reduction due to reduction by 1 lane 3lane road: 48% 2lane road: 79% original situation improved incident management cummulative distribution Quelle: Forschung, Straßenbau und Straßenverkehrstechnik, Überlastungswahrscheinlichkeiten und Verkehrsleistung als Bemessungskriterium für Straßenverkehrsanlagen; Heft 870, Hrsg: Bundesministerium für Verkehr, Bau- und Wohnungswesen duration of incident [min]

6 The main goals of effective Traffic Incident Management are to:
Protect both on-scene responders and the traveling public Reduce delays and associated impacts on travelers Reduce the possibility of secondary incidents Ensure that response resources tied up at incidents are put back into service quickly Top-of-the-line equipment such as the rotator pictured here enables towing and recovery companies to clear roads in minutes instead of hours. Source: David L. Helman: Traffic Incident Management, Public Roads Nov./ Dec. 2004, Vol. 68 (

7 Heavy Occupical Vehicle Tolling Lane
a high-occupancy vehicle lane (or HOV lane) is a lane for vehicles with a driver and one or more passengers Some HOV lanes are built on totally separate roadways from their corresponding general use lanes; are constructed on parallel roads separated by a concrete barrier, are built on grade-separated (i.e. elevated or underground) roadways. One example is the Harbor Freeway in Los Angeles, California, where four HOV lanes travel on the upper deck of the freeway. This type of construction is said to maintain optimal efficiency by keeping general use traffic from merging back and forth into the HOV lanes, and by maximizing space on the main roadway for general use traffic. Additionally, major interchanges on such routes are often equipped with HOV-only ramps, which minimizes haphazard cross-freeway merging. Four high-occupancy vehicle lanes are elevated over general-use lanes on the Harbor Freeway in Los Angeles, CA Some cities that use separated HOV lanes make them reversible; i.e. usable only by inbound traffic during the morning rush and usable only by outbound traffic during the evening rush. Quelle:

8 Temporary emergency lane opening
Emergency lanes increase the security on motorways Using the emergency lane means a higher security risk (about 25%) but increases also the road capacity with marginal costs Variable message signs variable message signs have to be used for lane allocation because of: shift in direction lane allocation on intersections lane allocation before and after a tunnel temporary emergency lane opening complete blocking of a tunnel Source: Hinweise zu variablen Fahrstreifenzuteilungen – Anwendungsbeispiele und Einsatzmöglichkeiten, Ausgabe 2003, FGSV e.V. Köln, ISBN:

9 Saisonale Wärmespeicher künftig für Energiespeicherstraße
Quelle: ITW, Universität Stuttgart

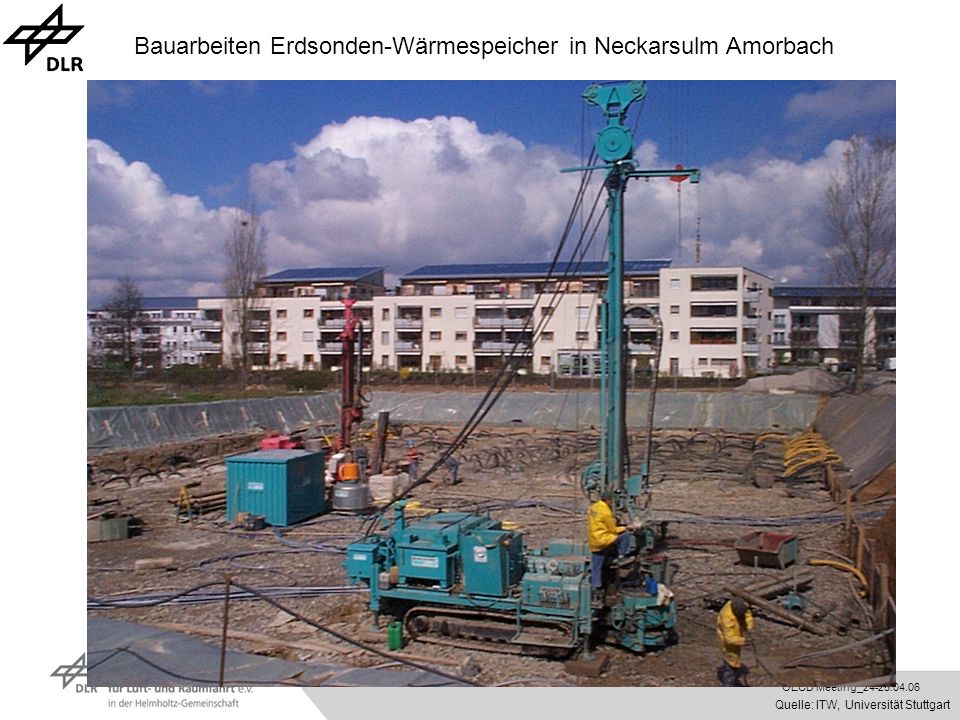

10 Bauarbeiten Erdsonden-Wärmespeicher in Neckarsulm Amorbach
Quelle: ITW, Universität Stuttgart

11 Bauteiltemperierung: Energie liegt auf der Straße

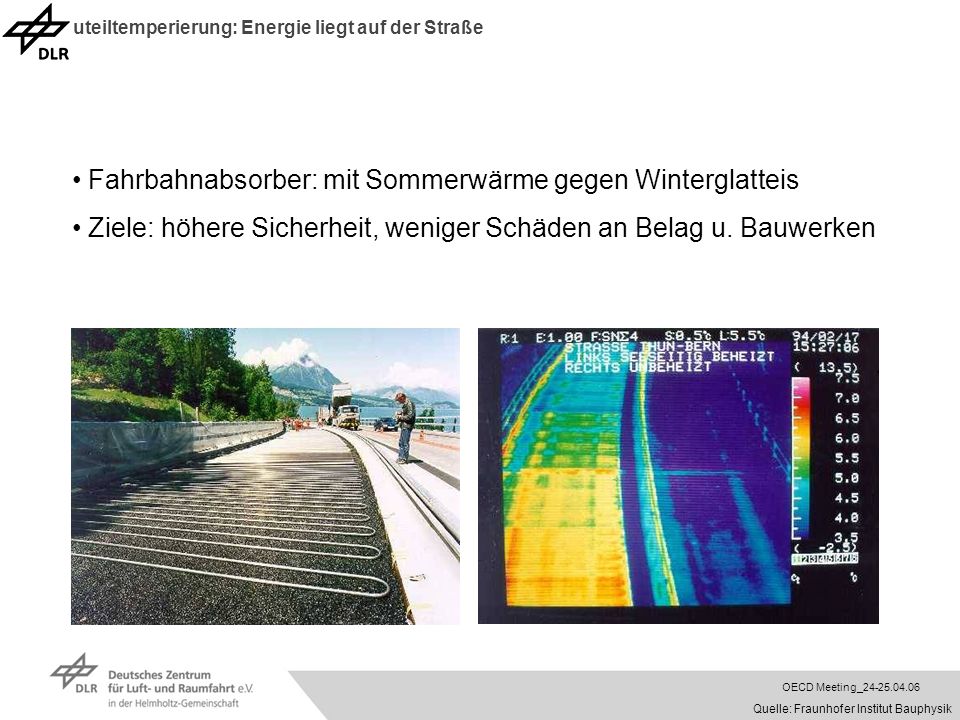

Fahrbahnabsorber: mit Sommerwärme gegen Winterglatteis Ziele: höhere Sicherheit, weniger Schäden an Belag u. Bauwerken Kombination von oberflächennaher Geothermie mit Massivabsorber. Nutzung des angrenzenden Erdreichs für saisonale Speicherung Ziele: Verminderung der Temperaturschwankungen => Winter: weniger Fortschäden, kein Blitzeis, weniger Schäden an Fahrbahn (und Karosserien nur relevant sofern irgendwann flächendeckend verfügbar) Sommer: bei Asphalt weniger Spurrillenbildung Energetisch: im von der Fa. Polydynamics umgestzten BVH wurden folgende Werte ermittelt: Heizleistung 260 W/m², Kühlleistung 100 W/m² Quelle: Fraunhofer Institut Bauphysik

12 projects by built operating and transfer due to the German private
freeway financing act Nr Straße Land Strecke 1 B 103 MV Warnowquerung Rostock 2 A 8 BW AS Mühlhausen- AS Hohenstedt (neu) 3 A 20 SH/ NI Elbequerung nordwestlich Hamburg 4 A 52 NW Verbindung der A 40 mit der A 42 (Essen) 5 A 100 BE AD Neukölln – AS Landsberger Allee 6 A 281 HB Weserquerung 7 B 21 BY Kirchholztunnel Bad Reichenhall 8 B 50n RP Hochmoselübergang Wittlich/Bernkastel 9 B 75/ B 104 SH Travequerung Lübeck

13 Anhalter Bahnhof – Gölitzer Bahnhof
UNIVERSITÄT STUTTGART INSTITUT FÜR STRASSEN- UND VERKEHRSWESEN (ISV) LEHRSTUHL VERKEHRSPLANUNG UND VERKEHRSLEITTECHNIK (VuV) Time Balance Bus Line 129 Anhalter Bahnhof – Gölitzer Bahnhof

14 Buslinie 65 zwischen Frankenstraße und Dutzendteich,
Bus Priority Measures Buslinie 65 zwischen Frankenstraße und Dutzendteich, Quelle: VAG

15 Travel times Volksfestplatz->Doku-Zentrum for selected days
1 Bus less = €/year savings Quelle: VAG

16 private financed infrastructure projects worldwide
road traffic rail traffic energy telecommunication gas inland traffic/ shipping traffic water/ severage air traffic Quelle: Finanzierung der Straßeninfrastruktur: Leitfaden für neue Methoden der Finanzierung und Public Private Partnership (Orig. eng/ frz.) PIARC World Road Association, La Defence, 2000
