1 FOOD AND FUEL Global Perspectives in Food and Agriculture Vienna, 15 March 2007 Alexander Müller Assistant Director-General Food and Agriculture Organization.

Präsentation zum Thema: "1 FOOD AND FUEL Global Perspectives in Food and Agriculture Vienna, 15 March 2007 Alexander Müller Assistant Director-General Food and Agriculture Organization."—  Präsentation transkript:

1 1 FOOD AND FUEL Global Perspectives in Food and Agriculture Vienna, 15 March 2007 Alexander Müller Assistant Director-General Food and Agriculture Organization of the United Nations Overview

2 2 1.Ein kurzer Rückblick Die Errungenschaften der modernen Landwirtschaft waren immens Rückblick auf das Erreichte Quelle: FAOSTAT

3 3... bei einem drastischen Verfall der Weltmarktpreise 0 200 400 600 800 1,000 1,200 1,400 196019651970197519801985199019952000 US/t (konstante Wechselkurse von 1990) 0 50 100 150 200 250 Index, 1990=100 Palmöl ($/ton) Sojabohnen ($/ton) Mais ($/ton) Reis ($/ton) Weizen ($/ton) Landwirtschaft (Index) Nahrung (Index) Quelle: Weltbank, Pink Sheets 1.Ein kurzer Rückblick Rückblick auf das Erreichte

4 4 World population: 1750 – 2050 0.0 3.0 6.0 9.0 12.0 1750180018501900195020002050 Total population (billions) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Annual increments (billions) Assumptions Further growth, but at drastically declining rates Source: UN, 2003

5 5 Population growth is concentrated in developing countries Assumptions

6 6 Urban and Rural Population – 1950-2030 Source: UN, World Population Assessment 2002 Assumptions

7 7 -2.0 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 World Industrial EU-15 Ex-USSR E. Europe Developing s.S. Africa L-America NENA South Asia East Asia Percent p.a. 1986-1998*1998*-20152015-2030 GDP growth – per capita - by region Source: World Bank, GEP 2003 1. The main determinants Assumptions

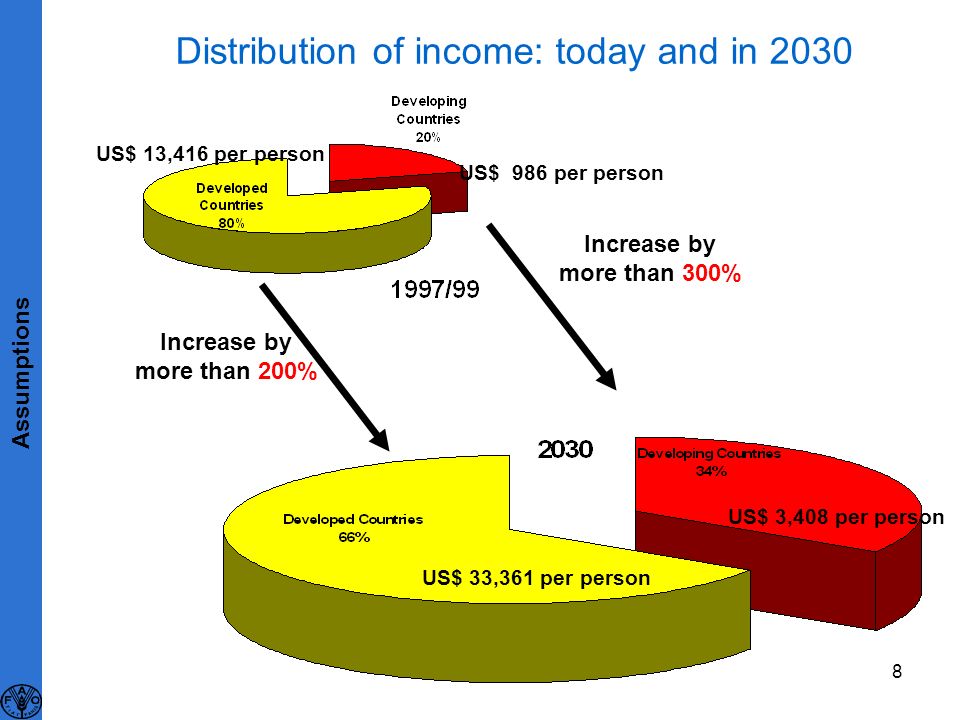

8 8 Distribution of income: today and in 2030 US$ 986 per person US$ 13,416 per person US$ 33,361 per person US$ 3,408 per person Increase by more than 200% Assumptions Increase by more than 300%

9 9 Improvements in sight, but hardly enough to meet the target of the WFS 0 200 400 600 800 1000 1200 1969/711999/0120152030 Unterernährte in Millionen OstasienSüdasiens.S-Afrika Latein Amerika Naher Osten-Nordafrika EntwicklungsländerWFS-Ziel Quelle: FAO 2003 MDG 1990/92 Food and nutrition

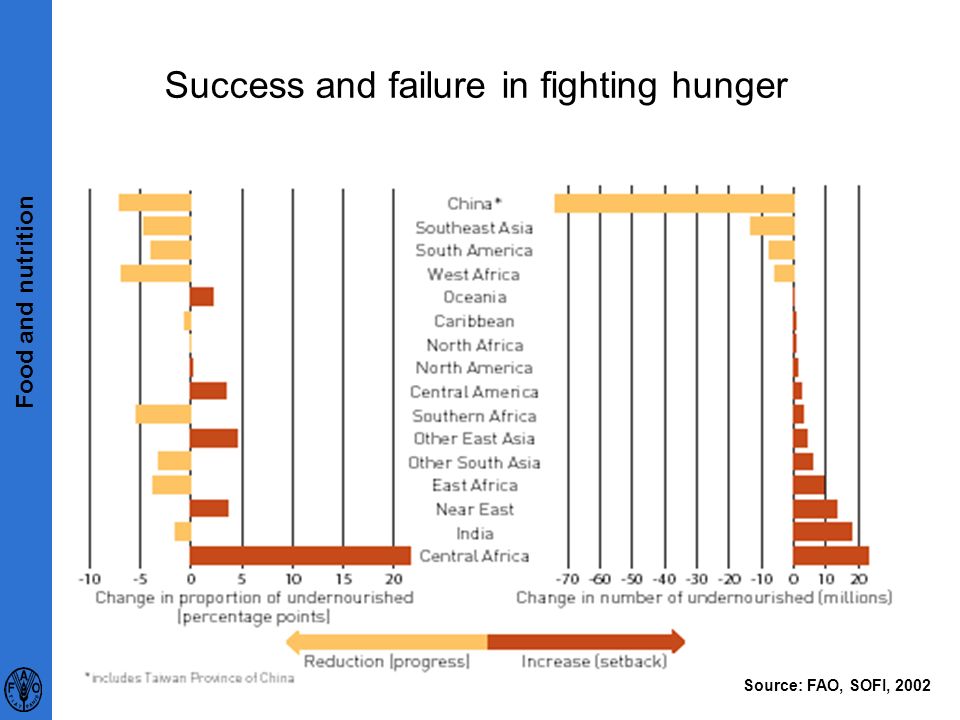

10 10 Success and failure in fighting hunger Source: FAO, SOFI, 2002 Food and nutrition

11 11 Developing countries will remain big grain importers Die Exportmärkte

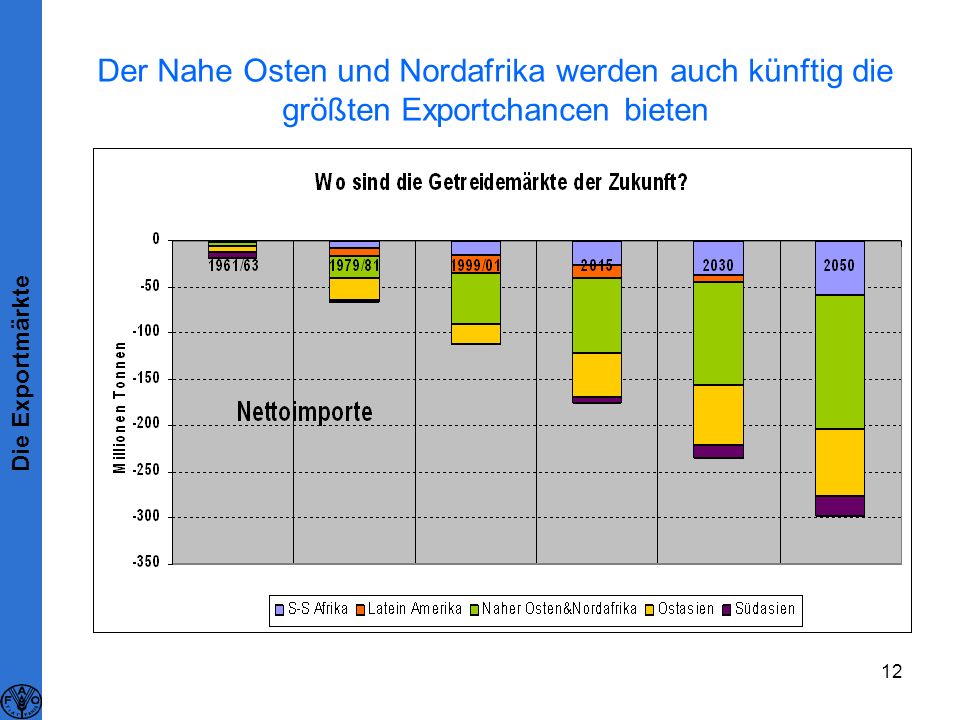

12 12 Der Nahe Osten und Nordafrika werden auch künftig die größten Exportchancen bieten Die Exportmärkte

13 13 Die Fleischimporte der EL werden stark ansteigen … aber auch die Konkurrenz aus Lateinamerika Die Exportmärkte

14 14 Land in use versus suitable area for crop production 1066 1031 366 220 99 874 497 203 228 232 207 86 387 265 0 200 400 600 800 1000 1200 Latin America and Caribbean sub-Saharan Africa East AsiaSouth AsiaNear East/North Africa Industrialized countries Transition Economies million ha Suitable for rainfed crop production Arable land use, 1997/99 The resource base

15 15 Irrigation water withdrawal as a share of renewable water resources (%) 0 10 20 30 40 50 60 70 sub-Saharan Africa Latin America Near East/North Africa South Asia East Asia All developing countries Todayin 2030 4. What challenges for the resource base? The resource base

16 16 9 Exajoule/a [10 18 Joule]/aMillionen ha Energiequelle: Potenzial und VerbrauchJahrWeltOECDnicht-OECDWelt Alle Quellen (TPES)1973 2 253157 (62.3%) 95 (37.7%) 2004 2 463231 (49.8%) 232 (50.2%) 2030 2 691285 (41.2%) 406 (58.8%) 2050 9 594-1038 9 Biomasse Aktueller Verbrauch2004 2 49 11 841 Theoretisches Potenzial>>2000Globale Photosynthese: ~ 4000 EJ Technisches Potenzial1990 1 22548 12 177 12 2050 1 40080 12 320 12 Ökonomisches Potenzial2050 1 158 Biotreibstoffe Ethanol 7 (aktuell)2004 3 0.840.340.519.52 4 Biodiesel 7 (aktuell)2003 3 0.060.040.020.47 4 Potenzial 1 2050 1 53 10 Verbrauch20304.8(8.4) 13 2.3(4.0) 13 2.5(4.4) 13 Ressourcen: Millionen ha Agricultural land 8 Genutzte Ackerflächen 1997-99 1506658848850 4/5 Geeignete Ackerflächen41881406 6 2782 6 (4730) Ackerflächen für Biotreibstoffe 200414 =1% of land 203032.5 (57) =2% (3.4%) land 1.) Potential based on Schrattenholzer and Fischer, IIASA, 2000 2.) Based on IEA: Key energy statistics, 2006 (TPES), EIA (US) projections for 2030 are 684 EJ, 721 Q (BTU 1 British thermal unit (Btu) = 1,055.05585262 joules (J)) 3.) Derived from http://www.earth-policy.org/Updates/2005/Update49.htm, Earth Policy Institute 4.) Assuming an average yield per hectare for ethanol of 4200 l (3000 l US maize, 5500 l Brazil cane, 6900 l France sugar beet) and of 3800 l/ha for biodiesel (average). Most recent yields are about 10% higher for cane and 20% higher for maize. 5.) 850 million ha would be required to meet 2002 road transportation fuels needs (77 EJ) at current yields (l biofuel/ha), technology, and crop composition. 6.) Area for developing and developed countries, not OECD and non OECD 7.) Assuming an energy content of 34 MJ/l for biodiesel and 21.1 MJ/l for ethanol 8.) Bruinsma (ed), World agriculture: towards 2015/2030, An FAO Perspective, 2003, total suitable land for rainfed agriculture 9.) WEC/ IIASA Scenarios: 620 EJ for Scenario C1-C2, 1084 EJ for Scenario A1-A3, 23.8845 Mtoe = 1 EJ 10.) IEA (2003), Biofuels for Transport, table 6.8.; road transportation in 2030 about 120 EJ; total transport: 132 EJ; EIA. 11.) 15-60 EJ: most biomass fuels are not traded on world markets, estimates of consumption are highly uncertain. 12.) Based on regional estimates from Schrattenholzer and Fischer, IIASA, 2000 13) The IEA Energy Outlook 2006 assumes a 4% share in road transportation in 2030 in the reference case, 7% in the alternative scenario Wie groß ist der Markt für Biomasse und Biotreibstoffe? Das Potenzial

17 17 Bioenergy potential per region: different scenarios, year 2050 Exajoules/yr Source: Juergens and Mueller forthcoming 2007, based on data from WWI 2006)

18 18 Bioenergy potential per type of biomass: different scenarios, year 2050 Exajoules/yr Source: Juergens and Mueller forthcoming 2007, based on data from Faaij 2006

19 19 Daten: Nymex and EIA, J. Schmidhuber (2007) Die Bioenergiemärkte - Preiseffekte Wettbewerbsfähigkeit und Mindestpreiseffekt

20 20 Märkte im Umbruch Zyklische Effekte überlagern von strukturellen Umbruch

21 21 Parity prices: Petrol–Crude oil – Ethanol Various feedstocks and farming/production systems 0 20 40 60 80 100 120 00.10.20.30.40.50.60.70.8 Petrol, US$/l Crude, US$/bbl Gasoline-Crude US$Cane Brazil, top producers Cane, Brazil, average Cassava, Thaioil, 2 mio l/d Cassava, Thailand, OTC joint venture Maize, US Mixed feedstock Europe Palmoil, MPOB project The competitiveness Competitiveness by feedstock Josef Schmidhuber (2005) BTL: Synfuel/Sunfuel

22 22 Wettbewerbsfähig als Heiz- und Brennstoffe? Quelle: Eigene Berechnungen auf Basis von EIA, IEA, FAO Daten. J. Schmidhuber (2005) Die Bioenergiemärkte

23 23 Reicht der Zollschutz für Ethanol? t US t EU-40% t EU Zölle, Preise und Produktionskosten für Ethanol 0 0.1 0.2 0.3 0.4 0.5 0.6 Weizen Mais Zuckerrüben Zuckerrohr Mais EUBRAUSA /l P-kosten CIF US CIF EU FOB BRA MP US Ct/l MP EU t EU t US t EU-40% Die Bioenergiemärkte – Preiseffekte und Risiken

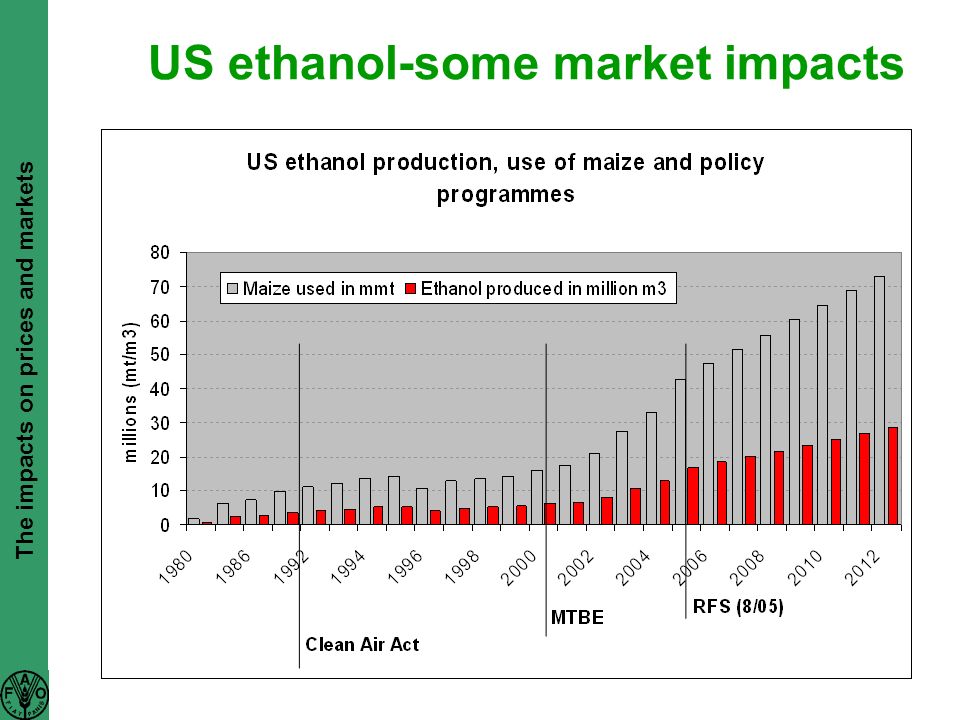

24 24 US ethanol-some market impacts The impacts on prices and markets

25 25 Cross links: Impacts on international commodity prices An additional 10 million tonnes of … SugarMaizeSugar and Maize Soybeans and Maize Sugar, Maize and Soybeans Corresponding energy [biofuels] 0.195 EJ0.087 EJ0.282 EJ0.167 EJ0.349 EJ Commodity… used for biofuels would change international prices (percent) in the long-run by : Sugar+9.8+1.1+11.3+2.3+13.8 Maize+0.4+2.8+3.4+4.0+4.2 Vegetable oils+0.3+0.2 +7.6+7.8 Protein+0.4-1.2 -8.1-7.6 Wheat+0.4+0.6+0.9+1.8+2.0 Rice+0.5+1.0+1.2+1.1+1.4 Beef+0.0+0.2 +0.4 Poultry+0.0-0.4 -2.1-2.0 Source: @2030 simulation results The impacts on prices and markets

26 26 Bioenergy and Land Use Scenarios (2050) : IPCC Third Assessment Report (2001) Scenario / Biomass Energy Requirement Bioenerg y % Primary Energy Supply Land for Bioma ss EJ%Mha Sørensen (1999) - bottom up assessment17874- IPCC (2001) - TAR - AIM - A1M19314418 - TAR - A2 - ASF7127 - TAR - B1 - Image9513268 - TAR - B2 - Message10512288 - TAR - A1F1 (A1G) - Minicam52468 - TAR - A1T - Message18371418 IPCC (1996) – Second Assessment Report280 Average14531292 Max28074418 Min52468

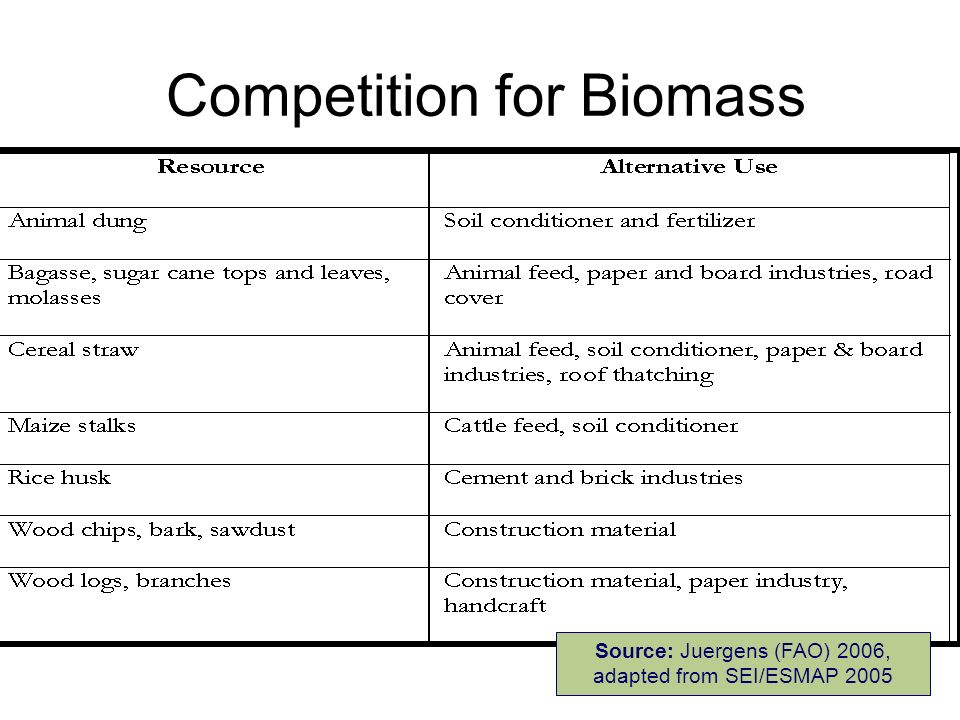

27 27 Competition for Biomass Source: Juergens (FAO) 2006, adapted from SEI/ESMAP 2005

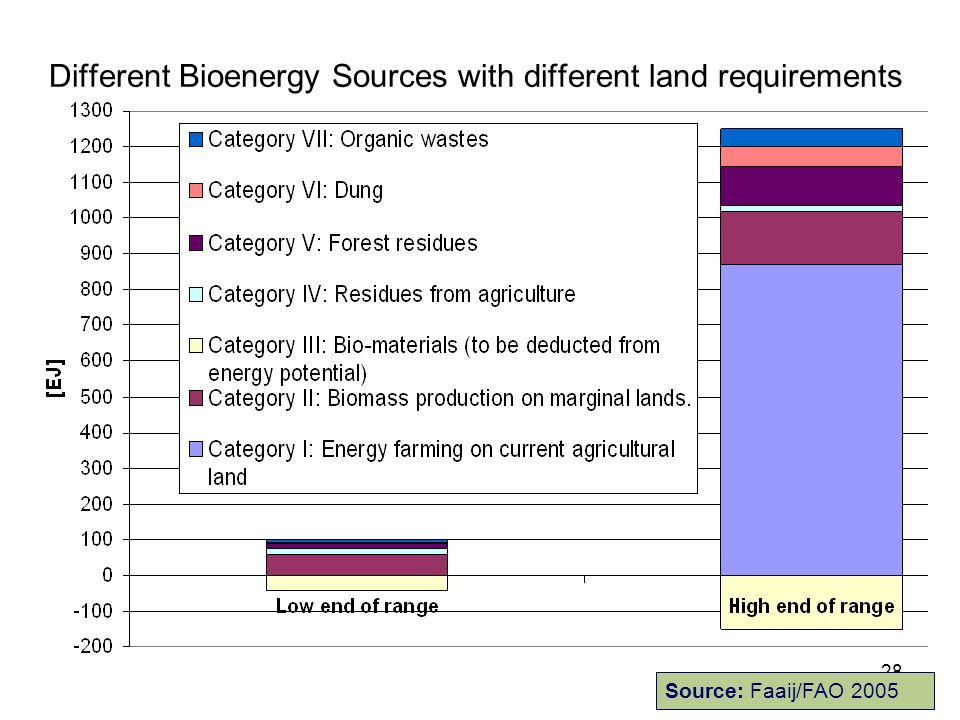

28 28 Different Bioenergy Sources with different land requirements Source: Faaij/FAO 2005

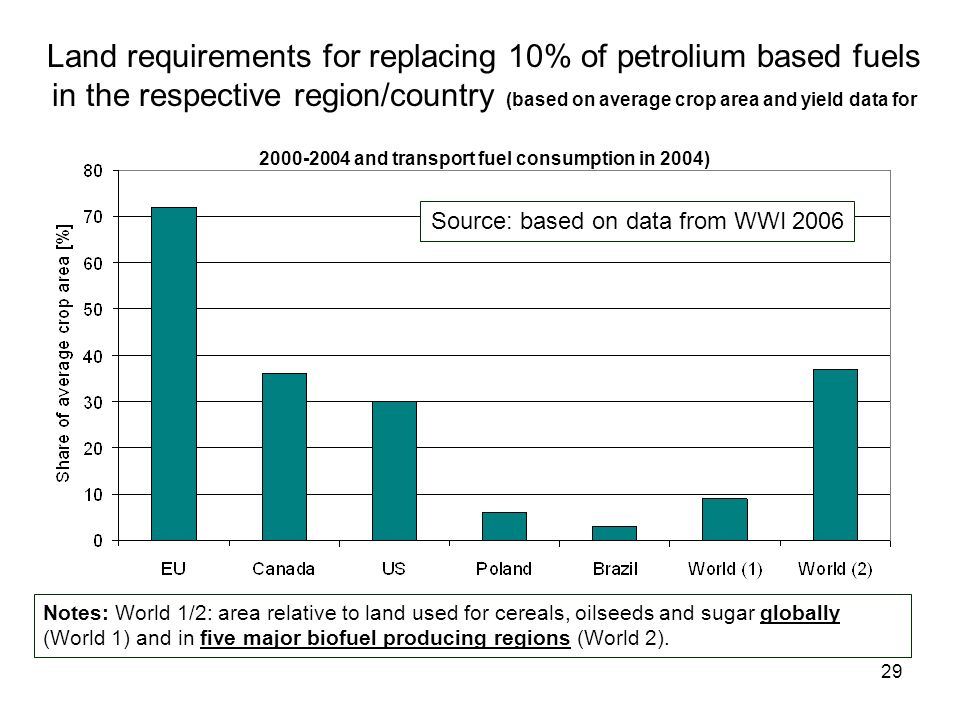

29 29 Land requirements for replacing 10% of petrolium based fuels in the respective region/country (based on average crop area and yield data for 2000-2004 and transport fuel consumption in 2004) Source: based on data from WWI 2006 Notes: World 1/2: area relative to land used for cereals, oilseeds and sugar globally (World 1) and in five major biofuel producing regions (World 2).

30 30 Availability of land for bioenergy plantations in the EU and the US Source: Schlamadinger et al. 2002, p.63

31 31 Land available for biomass production for energy in the EU Source: EEA Report No 7/2006

32 32 Environmentally-compatible bioenergy potential from forests in the EU Source: EEA Report No 7/2006 Notes: Calculations cover EU-25 Member States without Cyprus, Greece, Luxembourg and Malta

33 33 Determinants of Bioenergy Production Population growth and economic development Energy prices Food consumption: per capita calorie intake and composition of diet Land use patterns (feasibility of marginal/degraded lands) Efficiency of food production: crop yields, livestock production Forest productivity and sustainable harvest levels. Competing demands for land: nature reserves, endangered/protected ecosystems, recreation, amenity Competing demands for wood and agriculture based bio- materials.
