1 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 1 New observation strategies with e-control Alexander Neidhardt (FESG) neidhardt@fs.wettzell.de Martin Ettl (FESG), Helge Rottmann (MPIfR), Christian Plötz (BKG), Matthias Mühlbauer (BKG), Hayo Hase (BKG), Walter Alef (MPIfR), Sergio Sobarzo (Udec), Cristian Herrera (Udec), Ed Himwich (NASA/GSFC/NVI)

2 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 2 An almost given situation for the VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción TIGO Concepción/Chile GARS OHiggins/Antarctica RT Wettzell/ Germany TTW Wettzell/ Germany Remote Control on Site Communication Tele-working

3 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 3 Future visions with (globally) distributed systems GGOSSKA See: http://www.smh.com.au/news/national/astronomers-bid-for-a-quiet-space-in-the-country/2006/09/28/1159337280513.html, Download 2011-03-23 See: http://hea-www.harvard.edu/~psr_snr/research.html, Download 2011-03-23 See: http://www.amazon.de/Global-Geodetic-Observing-System-Requirements/dp/3642026869/ref=sr_1_1?ie=UTF8&qid=1300913444&sr=8-1, Download 2011-03-23

4 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 4 And new ideas are on the way …

5 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 5 And new ideas are on the way … RTW TTW1 TTW2 OHIGGINS TIGO SOSWWLRSDatenzentren Similar to: Hase, Hayo; et. al.: Twin Telescope Wettzell (TTW) – a VLBI2010 Radio Telescope Project. IVS General Meeting 2008

6 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 6 New control strategies

7 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 7 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción Local - Standard operations - Local operator

8 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 8 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción LocalRemote - Check system states from everywhere at the observatory - Tele-working - Remote assistance and diagnostics - Control very remote, inaccessible telescopes - Standard operations - Local operator Internet

9 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 9 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción SharedLocalRemote Internet - Check system states from everywhere at the observatory - Tele-working - Remote assistance and diagnostics - Control very remote, inaccessible telescopes - Standard operations - Local operator - Save, passive data live monitoring - Dedicated control access by responsible person - Shared access from different observatories - Shared night shifts Internet

10 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 10 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción SharedLocalRemoteUnattended Internet - Check system states from everywhere at the observatory - Tele-working - Remote assistance and diagnostics - Control very remote, inaccessible telescopes - Standard operations - Local operator - Save, passive data live monitoring - Dedicated control access by responsible person - Shared access from different observatories - Shared night shifts - Observations run autonomous, (semi-) automated and unattended Internet

11 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 11 A possible basis for such strategies: e-control and SysMon

12 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 12 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción SharedLocalRemoteUnattended Internet - Check system states from everywhere at the observatory - Tele-working - Remote assistance and diagnostics - Control very remote, inaccessible telescopes - Standard operations - Local operator - Save, passive data live monitoring - Dedicated control access by responsible person - Shared access from different observatories - Shared night shifts - Observations run autonomous, (semi-) automated and unattended eControl* * per system with individual restrictions and only with reliable, well educated personnel staff on site Internet

13 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 13 New observation strategies for VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción SharedLocalRemoteUnattended Internet - Check system states from everywhere at the observatory - Tele-working - Remote assistance and diagnostics - Control very remote, inaccessible telescopes - Standard operations - Local operator - Save, passive data live monitoring - Dedicated control access by responsible person - Shared access from different observatories - Shared night shifts - Observations run autonomous, (semi-) automated and unattended eControl* * per system with individual restrictions and only with reliable, well educated personnel staff on site SysMon Internet

14 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 14 The idea: remote attendance and control of VLBI telescopes Wettzell, OHiggins/Antarctica and TIGO/Concepción FS Monitor Client GUI Network FS Monitor Client Communication FS Monitor Server Communication FS Monitor Server Functionality FS Monitor Device … Server functionality Communication Graphical User Interface (GUI) Client FS e-control Interface definition

15 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 15 The client – graphical, textual or browser based Logbook Chat Remote program startup SSH Graphic and Classic main interface Complete remote access

16 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 16 System Monitoring: SysMon Local safety for people and systems in combination with reliability in operations Data for science and analysis Data for system operations Data for diagnosis Meteo, WVR, Clock offsets, … => low sampling rates => as scheduled Power supply, wind uploads, emergency stops, rack temp., … => medium sampling rates => permanently Servo currents, contouring errors, … => high sampling rates => on demand See also: Monitoring and Control Interface Collaboration Group

17 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 17 Optimization of workflows over system borders

18 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 18 The workflows on a technical point of view VLBI Schedule Session Storage e-control/VLBI System Monitoring e-VLBI e-Transfer Shipment Quality Feedback e-Transfer (of scans)

19 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 19 The workflows on a technical point of view e.g. SLR Predictions Ranging Storage/ Screening e-control/SLR* System Monitoring EUROLAS status FTP-Transfer Quality Feedback * adapted from VLBI

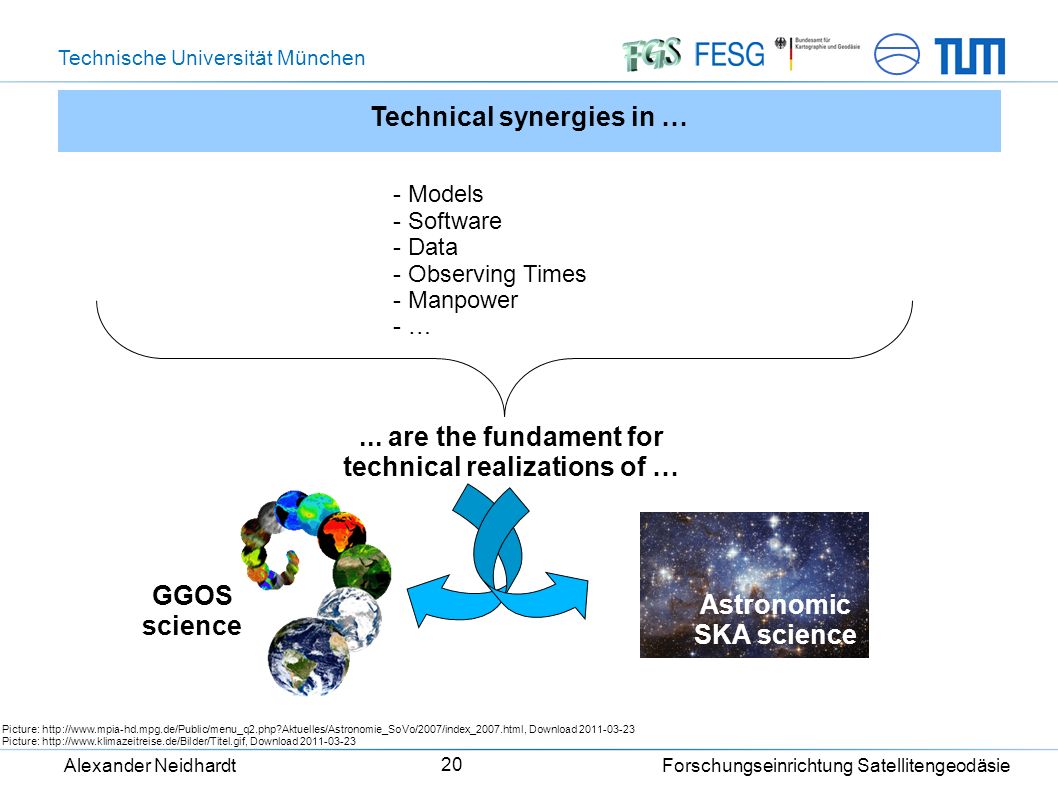

20 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 20 Technical synergies in … - Models - Software - Data - Observing Times - Manpower - … Picture: http://www.mpia-hd.mpg.de/Public/menu_q2.php?Aktuelles/Astronomie_SoVo/2007/index_2007.html, Download 2011-03-23 Picture: http://www.klimazeitreise.de/Bilder/Titel.gif, Download 2011-03-23 GGOS science... are the fundament for technical realizations of … Astronomic SKA science

21 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 21 But it wont avoid this …

22 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 22 The Radio Telescope Wettzell (RTW): impressions of a maintenance

23 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 23 The Radio Telescope Wettzell (RTW): impressions of a maintenance

24 Technische Universität München Alexander Neidhardt Forschungseinrichtung Satellitengeodäsie 24 Thank you! View from my new command room... View from my new sky-deck...
