Präsentation zum Thema: "SOP through Long Term Planning Transfer to LIS/PIS/Capacity SAP Best Practices Baseline Package SAP Best Practices."—  Präsentation transkript:

1 SOP through Long Term Planning Transfer to LIS/PIS/Capacity SAP Best Practices Baseline Package SAP Best Practices

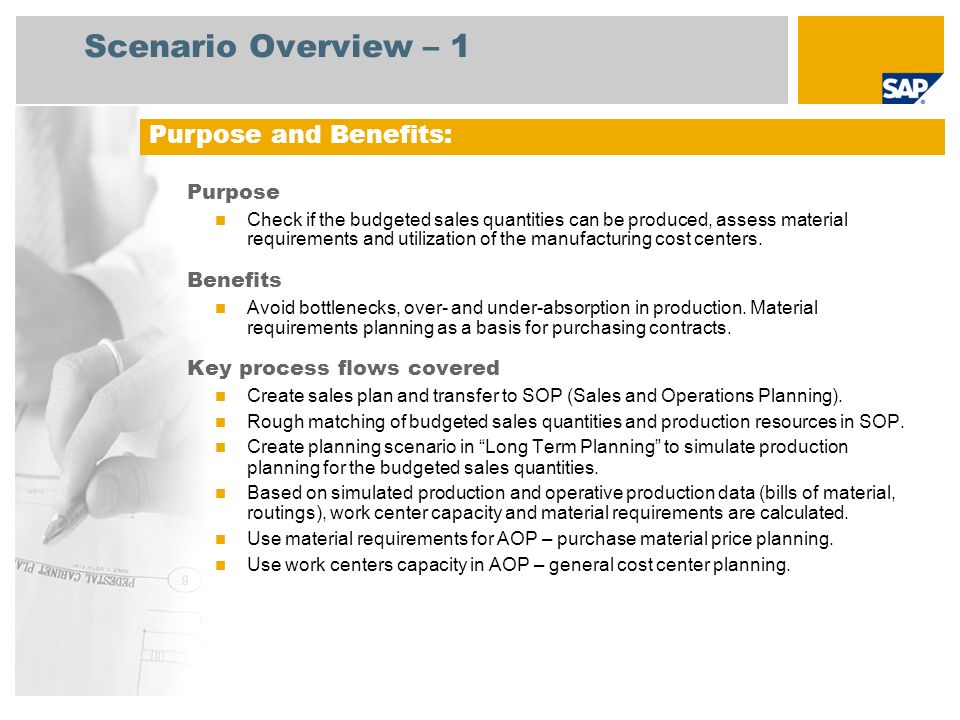

2 Scenario Overview – 1 Purpose Check if the budgeted sales quantities can be produced, assess material requirements and utilization of the manufacturing cost centers. Benefits Avoid bottlenecks, over- and under-absorption in production. Material requirements planning as a basis for purchasing contracts. Key process flows covered Create sales plan and transfer to SOP (Sales and Operations Planning). Rough matching of budgeted sales quantities and production resources in SOP. Create planning scenario in Long Term Planning to simulate production planning for the budgeted sales quantities. Based on simulated production and operative production data (bills of material, routings), work center capacity and material requirements are calculated. Use material requirements for AOP – purchase material price planning. Use work centers capacity in AOP – general cost center planning. Purpose and Benefits:

3 Scenario Overview – 2 Required SAP enhancement package 4 for SAP ERP 6.0 Company roles involved in process flows Revenue Planner Logistics Planner SAP Applications Required:

4 Scenario Overview – 3 AOP – SOP through Long Term Planning Transfer to LIS/PIS/Capacity Please refer to specification 172 – AOP - Sales Quantity Budget and Transfer to SOP for all steps concerning the planning of sales quantities. The current specification starts with the transfer of confirmed sales quantities to Sales and Operations Planning (SOP). In SOP rough cut capacity planning is carried out in order to verify whether the goods planned to be sold can run through the companys bottleneck resources needed for production. After the production plan has been proven feasible by SOP, it is passed on to a planning scenario in Long Term Planning module (LTP). In LTP, planned independent requirements (PIR) are created. Based on these PIRs, Materials Requirements Planning (MRP) is simulated to create and review planned requirements for all the materials (components, raw materials) and resources. Simulation of MRP also allows review of capacities of the plants. Capacity leveling can then be carried out to smooth out the bottlenecks. After having run MRP as described above, one of the key objectives of the logistics part of AOP is achieved: calculate the total utilization of the activity types assigned to the manufacturing work centers needed to produce the budgeted sales quantities. The utilization is based on the consumption of activity types indicated in the routings of the (semi finished and finished) products of the production plan. Detailed Process Description:

5 Process Flow Diagram SOP through Long Term Planning Transfer to LIS/PIS/Capacity Logistics Planner Event Revenue Planner AOP - Sales Quantity Budget and Transfer to SOP (172) Capacity Planning Annual Operating Plan Operative Production Data AOP= Annual Operating PlanningLTP= Long Term Planning SOP= Sales and Operations PlanningMRP= Materials Requirements Planning Yes No LTP MRPLTP Transfer to Inactive Demand Management SOP Verification AOP - Purchased Material Price Planning (174) AOP - Manufacturing Cost Center Planning (176) Accepta ble Plan? AOP – Standard Cost Calculation (178)

6 Legend SymbolDescriptionUsage Comments Band: Identifies a user role, such as Accounts Payable Clerk or Sales Representative. This band can also identify an organization unit or group, rather than a specific role. The other process flow symbols in this table go into these rows. You have as many rows as required to cover all of the roles in the scenario. Role band contains tasks common to that role. External Events: Contains events that start or end the scenario, or influence the course of events in the scenario. Flow line (solid): Line indicates the normal sequence of steps and direction of flow in the scenario. Flow line (dashed): Line indicates flow to infrequently- used or conditional tasks in a scenario. Line can also lead to documents involved in the process flow. Connects two tasks in a scenario process or a non-step event Business Activity / Event: Identifies an action that either leads into or out of the scenario, or an outside Process that happens during the scenario Does not correspond to a task step in the document Unit Process: Identifies a task that is covered in a step-by-step manner in the scenario Corresponds to a task step in the document Process Reference: If the scenario references another scenario in total, put the scenario number and name here. Corresponds to a task step in the document Sub-Process Reference: If the scenario references another scenario in part, put the scenario number, name, and the step numbers from that scenario here Corresponds to a task step in the document Process Decision: Identifies a decision / branching point, signifying a choice to be made by the end user. Lines represent different choices emerging from different parts of the diamond. Does not usually correspond to a task step in the document; Reflects a choice to be made after step execution SymbolDescriptionUsage Comments To next / From last Diagram: Leads to the next / previous page of the Diagram Flow chart continues on the next / previous page Hardcopy / Document: Identifies a printed document, report, or form Does not correspond to a task step in a document; instead, it is used to reflect a document generated by a task step; this shape does not have any outgoing flow lines Financial Actuals: Indicates a financial posting document Does not correspond to a task step in a document; instead, it is used to reflect a document generated by a task step; this shape does not have any outgoing flow lines Budget Planning: Indicates a budget planning document Does not correspond to a task step in a document; instead, it is used to reflect a document generated by a task step; this shape does not have any outgoing flow lines Manual Process: Covers a task that is manually done Does not generally correspond to a task step in a document; instead, it is used to reflect a task that is manually performed, such as unloading a truck in the warehouse, which affects the process flow. Existing Version / Data: This block covers data that feeds in from an external process Does not generally correspond to a task step in a document; instead, this shape reflects data coming from an external source; this step does not have any incoming flow lines System Pass / Fail Decision: This block covers an automatic decision made by the software Does not generally correspond to a task step in the document; instead it is used to reflect an automatic decision by the system that is made after a step has been executed. External to SAP Business Activity / Event Unit Process Process Reference Sub- Process Reference Proces s Decisio n Diagram Connection Hardcopy / Document Financial Actuals Budget Planning Manual Proces s Existing Version / Data System Pass/F ail Decisio n

7 Copyright 2008 SAP AG All rights reserved No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of SAP AG. The information contained herein may be changed without prior notice. Some software products marketed by SAP AG and its distributors contain proprietary software components of other software vendors. SAP, R/3, xApps, xApp, SAP NetWeaver, Duet, SAP Business ByDesign, ByDesign, PartnerEdge and other SAP products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of SAP AG in Germany and in several other countries all over the world. All other product and service names mentioned and associated logos displayed are the trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary. The information in this document is proprietary to SAP. This document is a preliminary version and not subject to your license agreement or any other agreement with SAP. This document contains only intended strategies, developments, and functionalities of the SAP® product and is not intended to be binding upon SAP to any particular course of business, product strategy, and/or development. SAP assumes no responsibility for errors or omissions in this document. SAP does not warrant the accuracy or completeness of the information, text, graphics, links, or other items contained within this material. This document is provided without a warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. SAP shall have no liability for damages of any kind including without limitation direct, special, indirect, or consequential damages that may result from the use of these materials. This limitation shall not apply in cases of intent or gross negligence. The statutory liability for personal injury and defective products is not affected. SAP has no control over the information that you may access through the use of hot links contained in these materials and does not endorse your use of third-party Web pages nor provide any warranty whatsoever relating to third-party Web pages. Weitergabe und Vervielfältigung dieser Publikation oder von Teilen daraus sind, zu welchem Zweck und in welcher Form auch immer, ohne die ausdrückliche schriftliche Genehmigung durch SAP AG nicht gestattet. In dieser Publikation enthaltene Informationen können ohne vorherige Ankündigung geändert werden. Einige von der SAP AG und deren Vertriebspartnern vertriebene Softwareprodukte können Softwarekomponenten umfassen, die Eigentum anderer Softwarehersteller sind. SAP, R/3, xApps, xApp, SAP NetWeaver, Duet, SAP Business ByDesign, ByDesign, PartnerEdge und andere in diesem Dokument erwähnte SAP-Produkte und Services sowie die dazugehörigen Logos sind Marken oder eingetragene Marken der SAP AG in Deutschland und in mehreren anderen Ländern weltweit. Alle anderen in diesem Dokument erwähnten Namen von Produkten und Services sowie die damit verbundenen Firmenlogos sind Marken der jeweiligen Unternehmen. Die Angaben im Text sind unverbindlich und dienen lediglich zu Informationszwecken. Produkte können länderspezifische Unterschiede aufweisen. Die in diesem Dokument enthaltenen Informationen sind Eigentum von SAP. Dieses Dokument ist eine Vorabversion und unterliegt nicht Ihrer Lizenzvereinbarung oder einer anderen Vereinbarung mit SAP. Dieses Dokument enthält nur vorgesehene Strategien, Entwicklungen und Funktionen des SAP®-Produkts und ist für SAP nicht bindend, einen bestimmten Geschäftsweg, eine Produktstrategie bzw. -entwicklung einzuschlagen. SAP übernimmt keine Verantwortung für Fehler oder Auslassungen in diesen Materialien. SAP garantiert nicht die Richtigkeit oder Vollständigkeit der Informationen, Texte, Grafiken, Links oder anderer in diesen Materialien enthaltenen Elemente. Diese Publikation wird ohne jegliche Gewähr, weder ausdrücklich noch stillschweigend, bereitgestellt. Dies gilt u. a., aber nicht ausschließlich, hinsichtlich der Gewährleistung der Marktgängigkeit und der Eignung für einen bestimmten Zweck sowie für die Gewährleistung der Nichtverletzung geltenden Rechts. SAP übernimmt keine Haftung für Schäden jeglicher Art, einschließlich und ohne Einschränkung für direkte, spezielle, indirekte oder Folgeschäden im Zusammenhang mit der Verwendung dieser Unterlagen. Diese Einschränkung gilt nicht bei Vorsatz oder grober Fahrlässigkeit. Die gesetzliche Haftung bei Personenschäden oder die Produkthaftung bleibt unberührt. Die Informationen, auf die Sie möglicherweise über die in diesem Material enthaltenen Hotlinks zugreifen, unterliegen nicht dem Einfluss von SAP, und SAP unterstützt nicht die Nutzung von Internetseiten Dritter durch Sie und gibt keinerlei Gewährleistungen oder Zusagen über Internetseiten Dritter ab. Alle Rechte vorbehalten.


Herunterladen ppt "SOP through Long Term Planning Transfer to LIS/PIS/Capacity SAP Best Practices Baseline Package SAP Best Practices."
