2 microScan3 – A NEW GENERATION OF SAFETY LASER SCANNERS
The microScan3 complements the safety laser scanner portfolio The other safety laser scanner families will remain on the market Over the coming years, the portfolio will be extended from the microScan3 platform In the long term, the microScan3 variants are the successors to the S3000

3 microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS
Value S3000 4 m / 5.5 m Expert S3000 4 m / 5.5 m Professional S3000 4 m / 5.5 m Advanced microScan3 4 m / 5.5 m Core S3000 4 m / 5.5 m Standard Performance

4 microScan3 Core - A New Generation of Safety Laser Scanner
Innovative safeHDDMTM scanning technology Robust design Smart connectivity Intuitive use

5 microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS

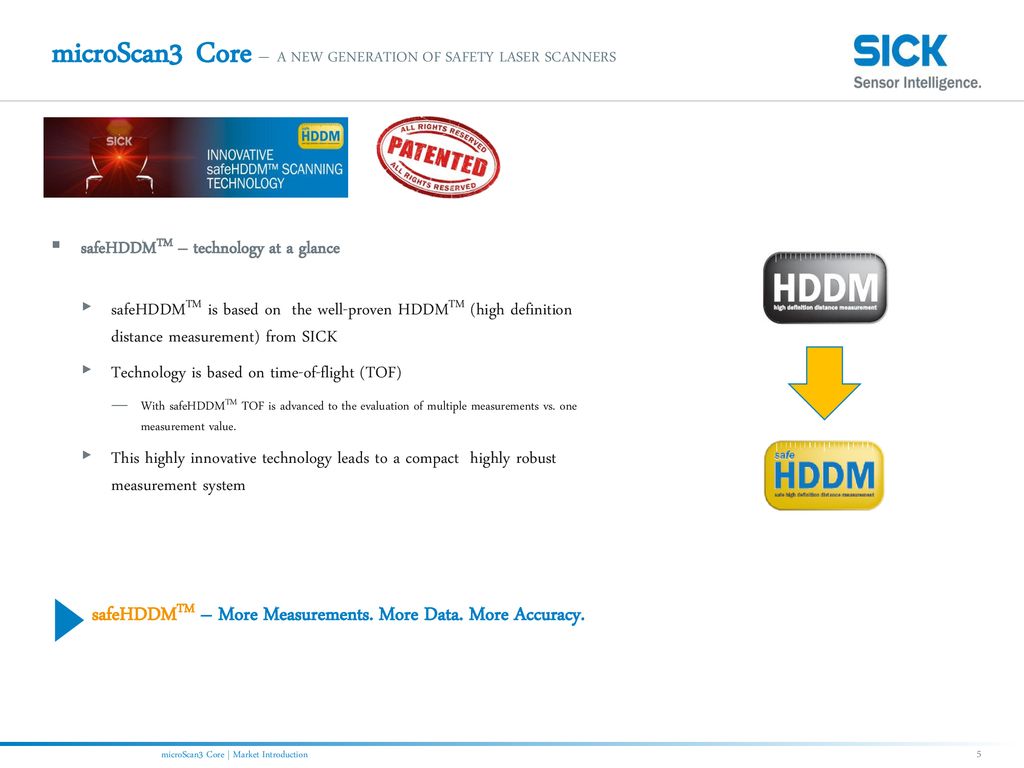

safeHDDMTM – technology at a glance safeHDDMTM is based on the well-proven HDDMTM (high definition distance measurement) from SICK Technology is based on time-of-flight (TOF) With safeHDDMTM TOF is advanced to the evaluation of multiple measurements vs. one measurement value. This highly innovative technology leads to a compact highly robust measurement system safeHDDMTM – More Measurements. More Data. More Accuracy.

6 microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS

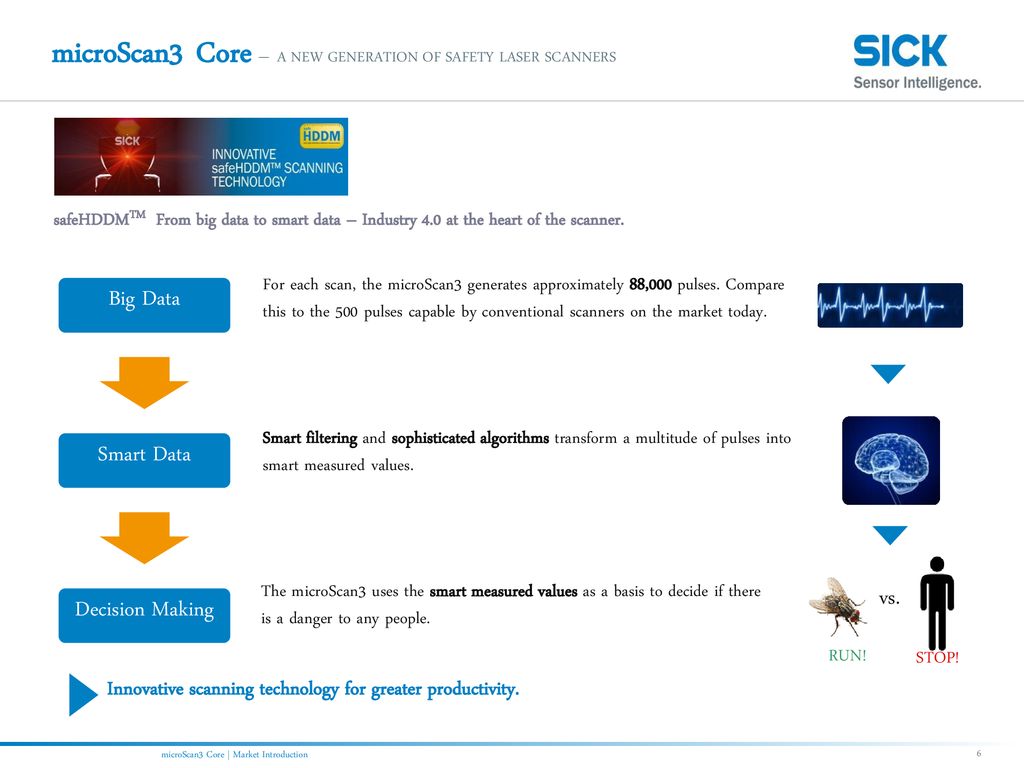

Datum microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS safeHDDMTM From big data to smart data – Industry 4.0 at the heart of the scanner. For each scan, the microScan3 generates approximately 88,000 pulses. Compare this to the 500 pulses capable by conventional scanners on the market today. Big Data Smart Data Decision Making Smart filtering and sophisticated algorithms transform a multitude of pulses into smart measured values. Wie erreichen wir die beindruckende Performance des microScan3 - Die ist durch das neue Messverfahren safeHDDM (safe high definition distance measurement) möglich - Eine neue Technologie, die neue Maßstäbe für Sicherheits-Laserscanner setzen wird Messverfahren erklärt in Analogie zu Industrie 4.0. Die Scantechnologie bildet das „Herz“ des Scanners Was bei safeHDDM passiert ist vergleichbar mit dem Prozess von der Einzelinformation zu Smart Data – Industrie 4.0 im Herzen des Scanners Wie funktionier das Prinzip von der Einzelinformation zu Smart Data generell Eine Vielzahl von Informationen wird zusammen als Big Data bezeichnet Viele Informationen alleine reichen jedoch noch nicht aus Durch intelligente Filterung und Berechnung werden smarte Daten ermittelt Auf Basis dieser smarten Daten werden Entscheidungen getroffen. Im Sinne des microScan3 bedeutet das Big Data: Pro Scan sind das Pulse (oder Einzelinformationen) im Vergleich zu 500 heute Smart Data: Jeder Puls wird nach einem patentierten Verfahren intelligent gefiltert. Ausgefeilte Algorithmen erzeugen aus vielen Pulsen smarte Messwerte Decision Making: Auf Basis der smarten Messwerte entscheidet der microScan3 ob Gefahr für eine Person besteht oder nur ein Störeinfluss vorliegt. Bei der Fliege läuft die Maschine weiter, bei einem Menschen wird ein Mensch im Gefahrbereich detektiert wird die Maschine gestoppt. vs. RUN! STOP! The microScan3 uses the smart measured values as a basis to decide if there is a danger to any people. Innovative scanning technology for greater productivity. Name

7 Sicherheits-Laserscanner

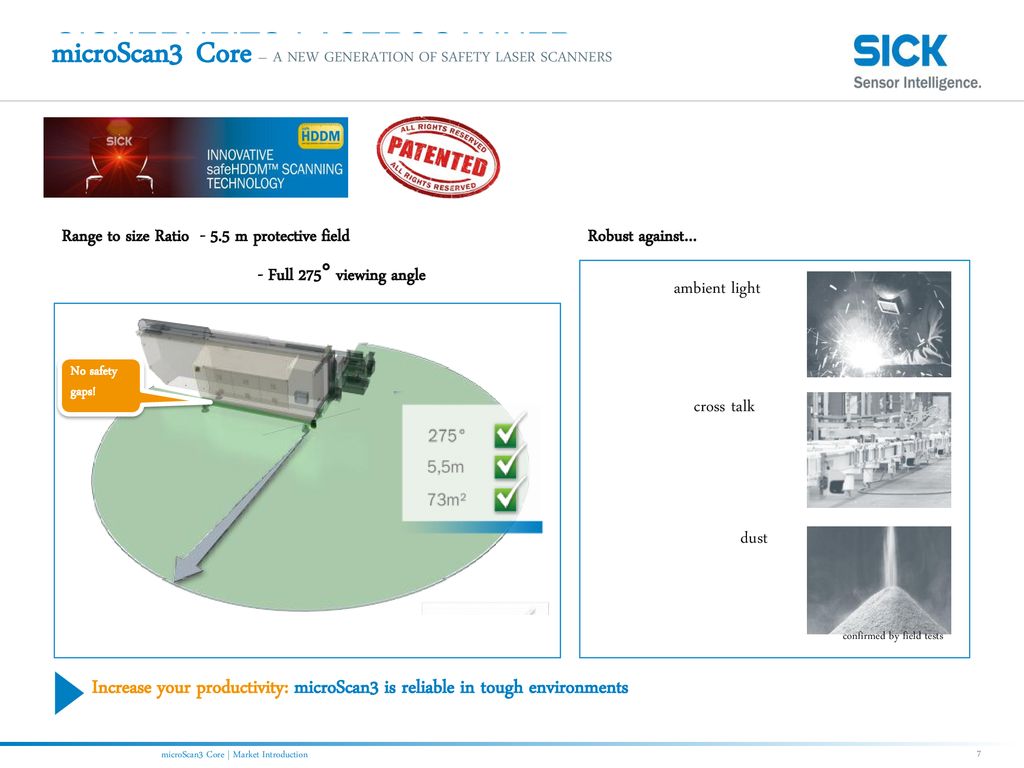

Datum microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS Sicherheits-Laserscanner Range to size Ratio m protective field - Full 275° viewing angle Robust against… ambient light No safety gaps! cross talk dust confirmed by field tests Increase your productivity: microScan3 is reliable in tough environments Name

8 New ‘grooved’ mounting concept Improved electronics to withstand EMC
microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS Compact, metal housing New ‘grooved’ mounting concept Improved electronics to withstand EMC Keep your machine up and running: microScan3, every detail is made for tough industry applications

9 microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS
Datum microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS M12 standard plugs with flexible pigtail Mini USB interface for configuration and diagnostics System plug with integrated configuration memory Reduce costs for machine integration: Standardized interfaces mean less cabling efforts Quick device exchange: System plug means plug-and-play exchange with automatic reconfiguration Name

10 microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS
Datum microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS Clear text display Easy-to-understand status indication and messages via brilliant, clear text display. Push buttons LED rim Key to get additional information on device LED indicator for status indication from different perspectives. Intuitive use – during the whole life cycle: Intuitive maintenance diagnostics with buttons and display. Name

11 microScan3 Core – A NEW GENERATION OF SAFETY LASER SCANNERS
Safety Designer – new configuration software Step by step navigation with visuals. New configuration functions Import background image of machine Visuals Step-by-step navigation Masking areas, i.e, columns

12 Applications

13 microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS
Date microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS Target Applications Area Guarding Turn Tables Area Guarding Safety Mat Replacement Vertical Guarding Entry–Exit w/ Field Switching Improvements for applications with key messages Vertical Guarding Entry–Exit w/ Field Switching Area Guarding Field Switching Area Guarding Presence Detection microScan3 fits many known applications Solve existing applications with increased performance. Raise the bar for competitors Name

14 Ordering Information

15 Scanner is delivered with system plug pre-mounted
microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS Order numbers Safety Laser Scanner (Scanner + System plug) Scanner with system plug Description Type Code Order number microScan3 | CORE I/O | 4 m | package 1 MICS3-AAAZ40AZ1P01 microScan3 | CORE I/O | 5.5 m | package 1 MICS3-AAAZ55AZ1P01 Scanner is delivered with system plug pre-mounted One order number for the complete device makes it easier for our customers

16 Scanner and system plug delivered in separate boxes
microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS Order numbers Spare parts Scanner Description Type Code Part number microScan3 Core I/O 4 m MICS3-AAAZ40AZ1 microScan3 Core I/O 5.5 m MICS3-AAAZ55AZ1 Scanner and system plug delivered in separate boxes System plug Description Type Code Part number system plug Core I/O MICSX-ABIZZZZZ1

17 microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS

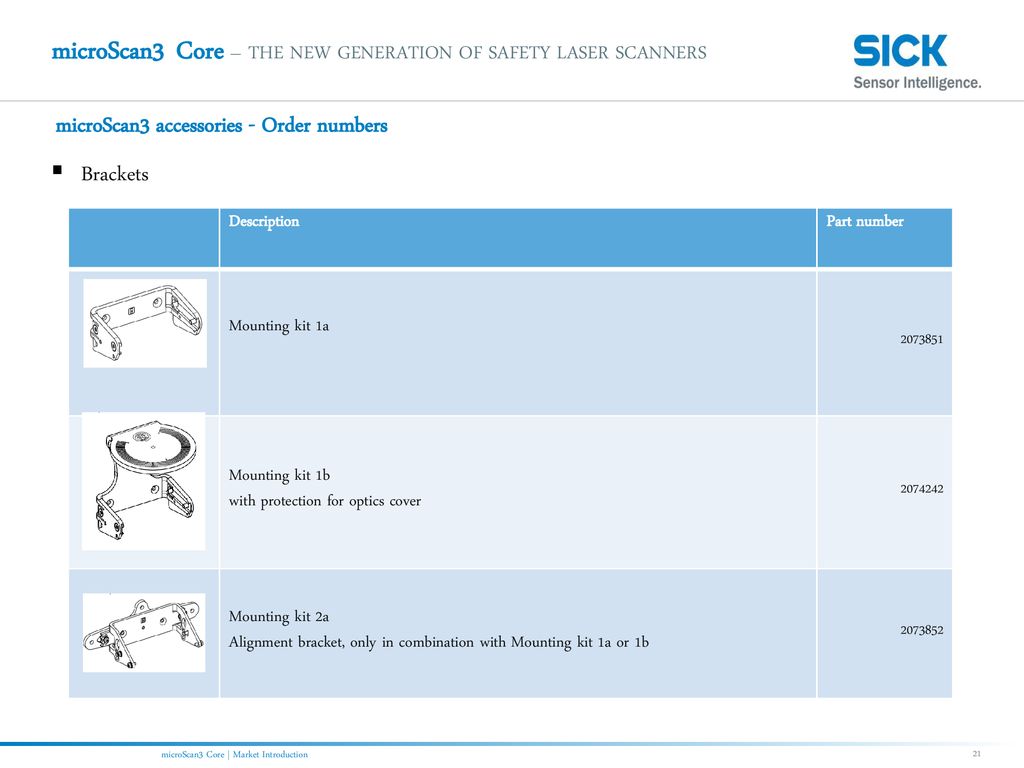

microScan3 accessories - Order numbers Brackets Description Part number Mounting kit 1a Mounting kit 1b with protection for optics cover Mounting kit 2a Alignment bracket, only in combination with Mounting kit 1a or 1b

18 microScan3 Core – THE NEW GENERATION OF SAFETY LASER SCANNERS
microScan3 accessories - Order numbers Cabels Description Type Code Part number Connecting cable M12, 8-pin, unshielded socket straight with 2 m cable, open end DOL-1208G02MD25KM1 socket straight with 5 m cable, open end DOL-1208G05MD25KM1 socket straight with 10 m cable, open end DOL-1208G10MD25KM1 Configuration cable USB mini-B-Plug, 3 m cable, USB-A-Plug

19 FAQs

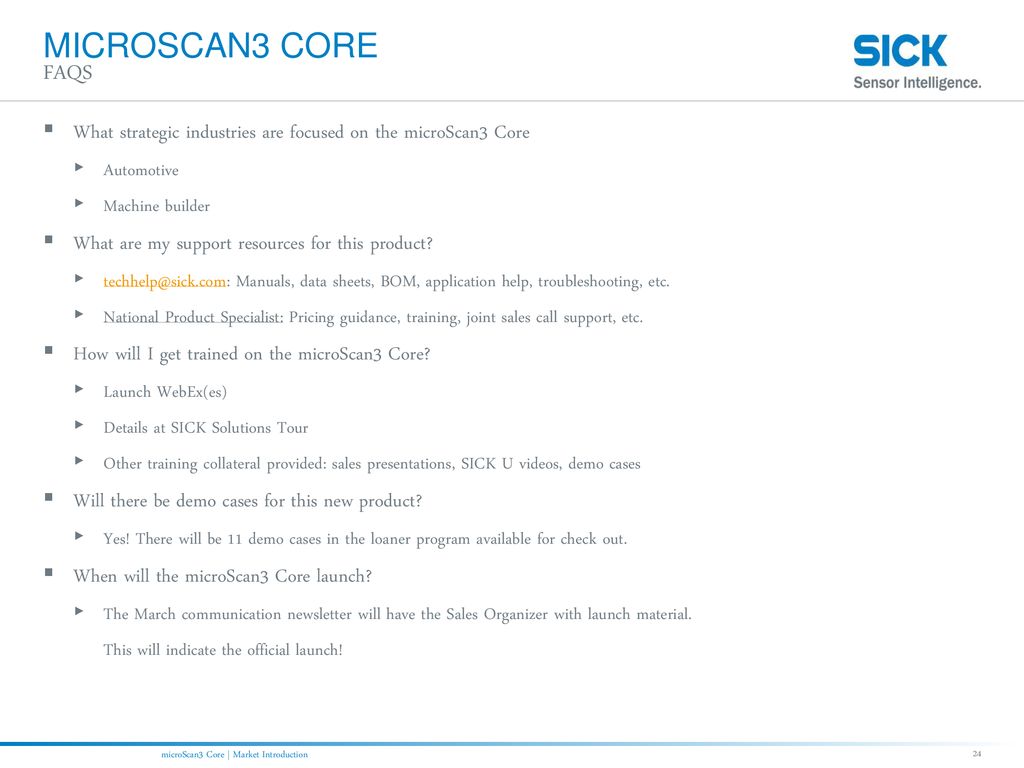

20 Microscan3 Core Faqs What strategic industries are focused on the microScan3 Core Automotive Machine builder What are my support resources for this product? Manuals, data sheets, BOM, application help, troubleshooting, etc. National Product Specialist: Pricing guidance, training, joint sales call support, etc. How will I get trained on the microScan3 Core? Launch WebEx(es) Details at SICK Solutions Tour Other training collateral provided: sales presentations, SICK U videos, demo cases Will there be demo cases for this new product? Yes! There will be 11 demo cases in the loaner program available for check out. When will the microScan3 Core launch? The March communication newsletter will have the Sales Organizer with launch material. This will indicate the official launch!
