Enhancement Request Define Real Standard Motor Profils (Asynchron-Motor) Definition von realen Standardmotoren (Asynchronmotor) Pro/Engineer – Mechanism MDO / MDX / Animation standard motor profiles (as asynchron motor) Prof. Dr.-Ing. Paul Th. Wyndorps Reutlingen University
2

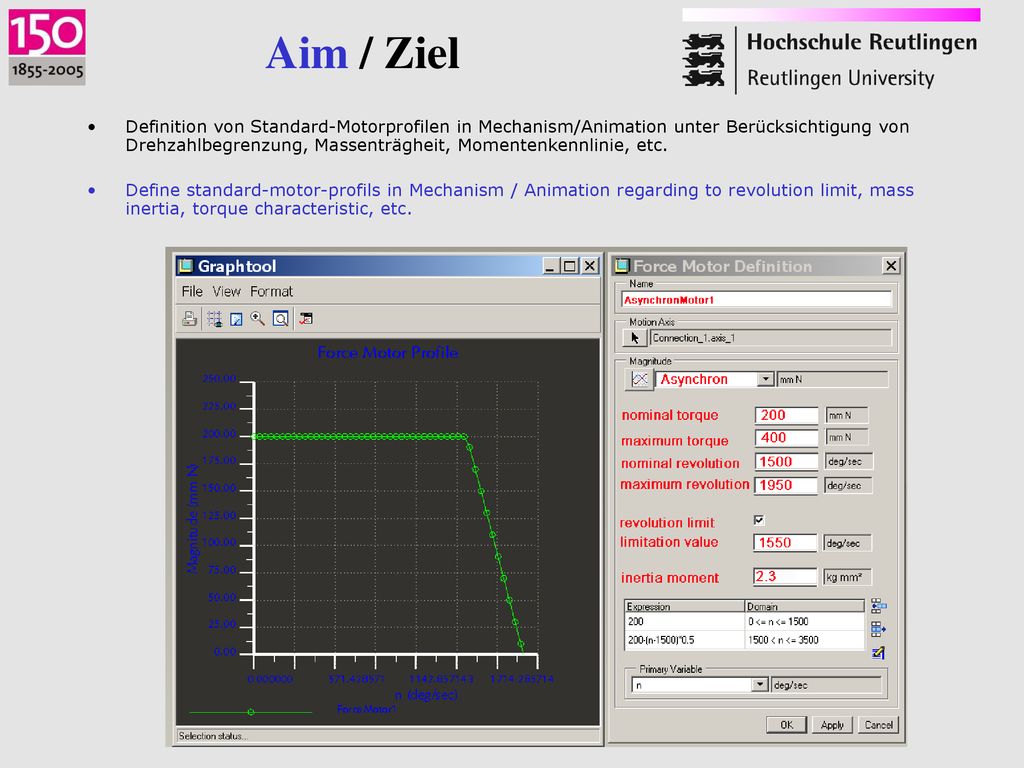

Aim / Ziel Definition von Standard-Motorprofilen in Mechanism/Animation unter Berücksichtigung von Drehzahlbegrenzung, Massenträgheit, Momentenkennlinie, etc. Define standard-motor-profils in Mechanism / Animation regarding to revolution limit, mass inertia, torque characteristic, etc.
3

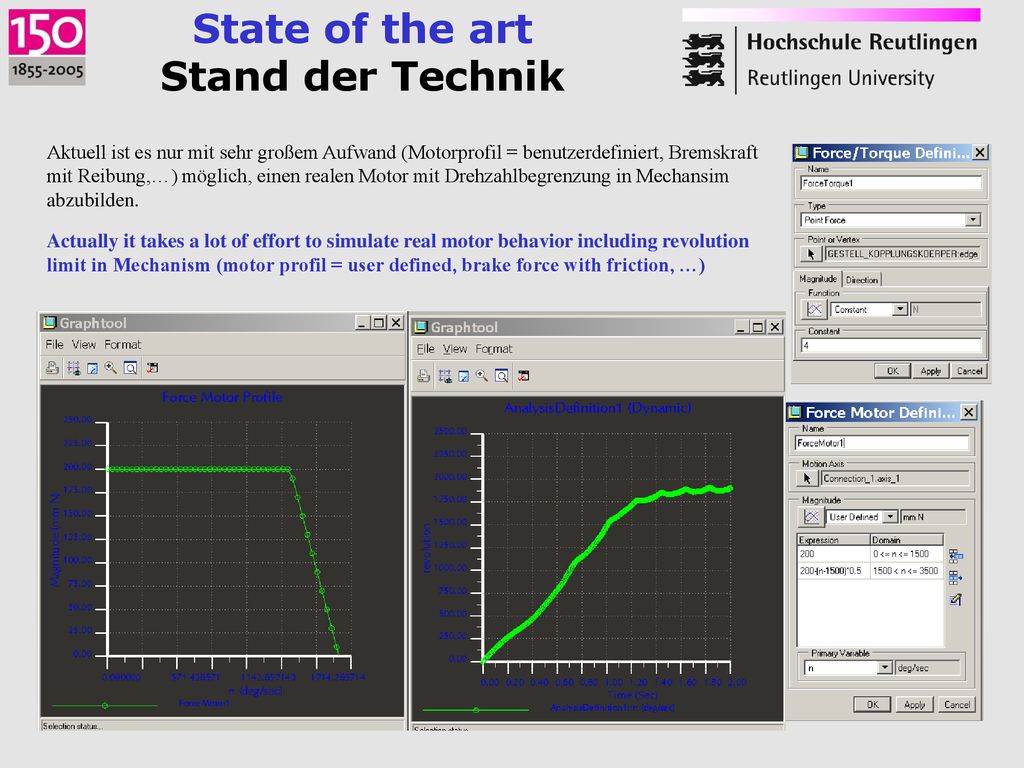

State of the art Stand der Technik
Aktuell ist es nur mit sehr großem Aufwand (Motorprofil = benutzerdefiniert, Bremskraft mit Reibung,…) möglich, einen realen Motor mit Drehzahlbegrenzung in Mechansim abzubilden. Actually it takes a lot of effort to simulate real motor behavior including revolution limit in Mechanism (motor profil = user defined, brake force with friction, …)
