Collaborative Webmeeting November 24th, 2010 Geneve / Darmstadt
Calculation of Beam Coupling Impedance for ferrite loaded kickers: Studies for the SIS-100 kicker system Lukas Hänichen Collaborative Webmeeting November 24th, 2010 Geneve / Darmstadt 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 1 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
2
Coupling Impedance calculation Hysteresis losses Thermal loading
Outline Introduction Core tasks Coupling Impedance calculation Hysteresis losses Thermal loading Conclusive Remarks 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 2 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
3
Introduction: Kicker principle
Provide transverse kick to extract particle beam from synchrotron ring Multiple units in a single vessel Ferrite block Coil Pulse former (PFN) Support structures Strong beam coupling also in idle state PFN 0.8 m 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 3 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
4
Core tasks Coupling Impedance calculation
Ferrite modeling of hysteresis Sensitivity on ferrite data Beam induced hysteresis losses Beam current spectrum Heat energy Thermal loading Heat distribution Nonlinearity 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 4 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
5
Coupling Impedance calculation (1) : Ferrite hysteresis
Material datasheet provides complex permeability as a function of frequency Complex permeability maintains a linear dependency “Tilted ellipse” approximates hysteresis loop 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 5 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
6

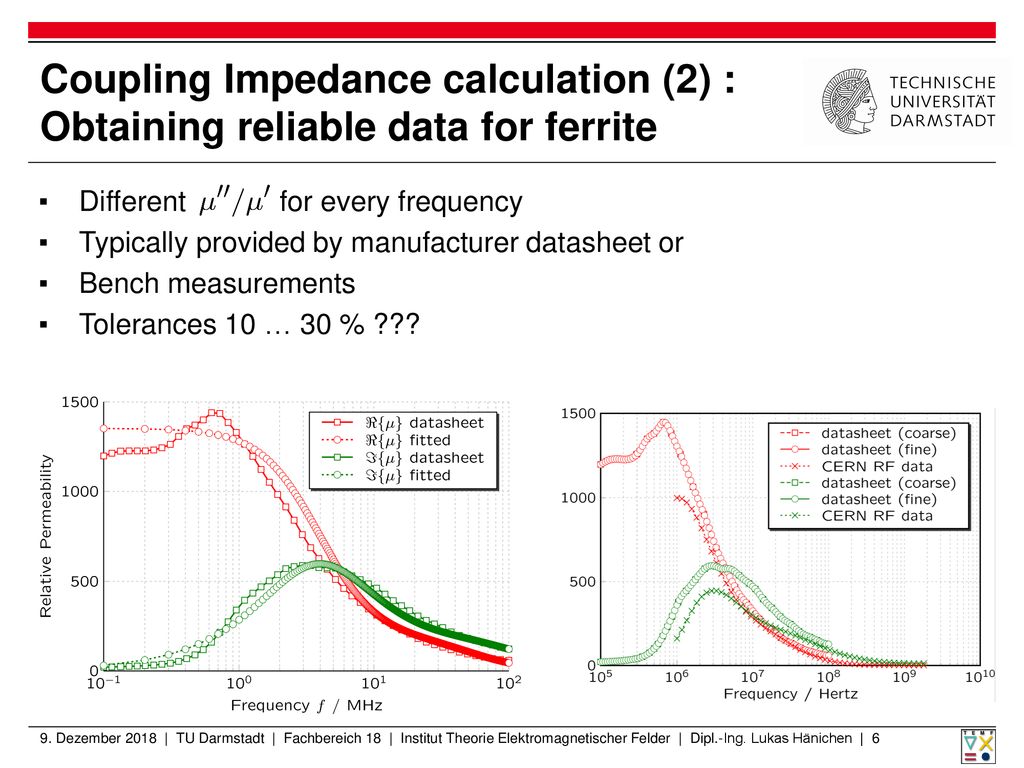

Coupling Impedance calculation (2) : Obtaining reliable data for ferrite
Different for every frequency Typically provided by manufacturer datasheet or Bench measurements Tolerances 10 … 30 % ??? 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 6 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
7
Coupling Impedance calculation (3) : Sensitivity analysis
High computational accuracy is of no use when material parameters have high uncertainty influence has to be studied Recomputing for altered material data is costly Use perturbation approach with reference solution instead Calculate tolerances from reference solution reference case perturbed case Using a suitable expansion for Matrix A yields 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 7 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
8
Hysteresis losses : For a given beam current spectrum the total heat power is given by In progress: impedance calculation including recent changes applying reference bunch scenarios studying influence / effectiveness of geometry and eddy current traps 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 8 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
9
Thermal loading (1) : Total absorbed power
Non-linear coupled problem since Heat energy is not equally distributed (FOURIER heat equation) Common approximation: assuming a constant average q to calculate the temperature increase This “0D” Model predicts a linear temperature increase 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 9 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
10
Thermal loading (2) : Alternate approaches
A more accurate approach would be to use the local losses from EM simulation Assumptions can be made for the temperature dependence in the longitudinal direction 1D Model: Temperature gradient for wall cross-section of ferrite 2D Model: Temperature gradient for kicker cross-section 3D Model Coupled Simulation 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 10 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
11
Conclusive remarks Everything strongly depends on the material data
Studies are required how much tolerances reflect on the results Electromagnetic-Thermal Coupled problem Still in progress : Achieve higher computational headroom for more more complicated structures Calculation for full SIS-100 kicker geometry Questions, Remarks, Discussion welcome… thank you ! 9. Dezember | TU Darmstadt | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Dipl.-Ing. Lukas Hänichen | 11 9. Dezember 2018 | Fachbereich 18 | Institut Theorie Elektromagnetischer Felder | Prof. Dr.-Ing. Thomas Weiland
