PC2 PC1 Router IP: MAC: AA:AA:AA:11:11:11

Präsentation zum Thema: "PC2 PC1 Router IP: MAC: AA:AA:AA:11:11:11"—  Präsentation transkript:

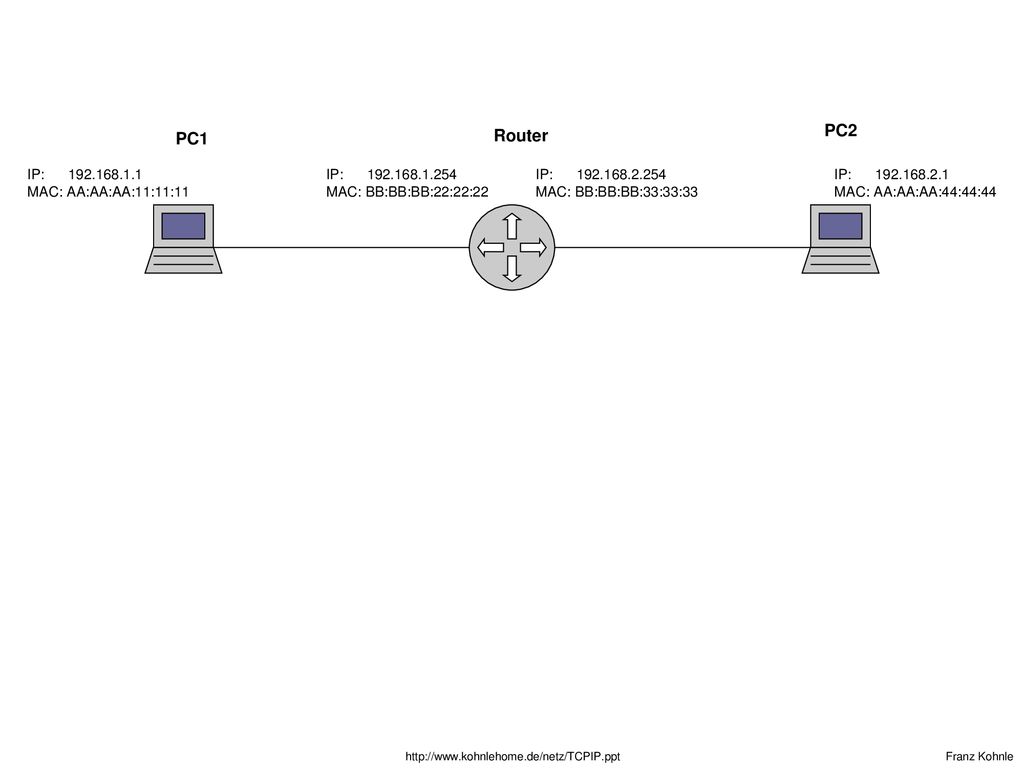

1 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Franz Kohnle

2 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Daten Franz Kohnle

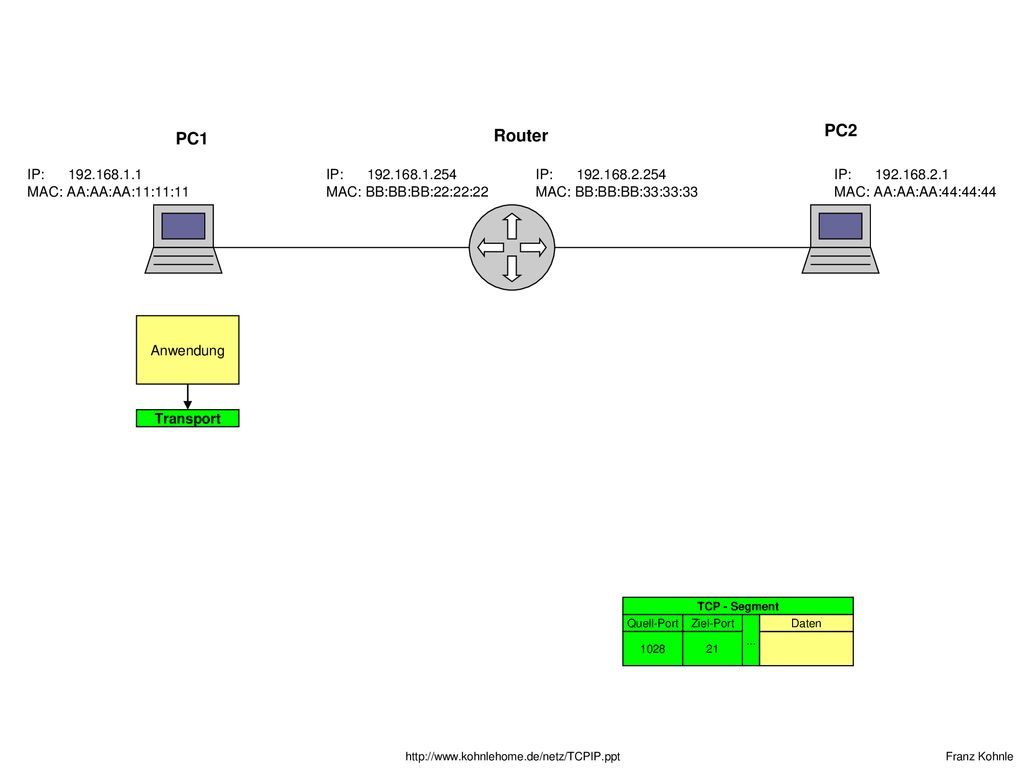

3 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

4 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

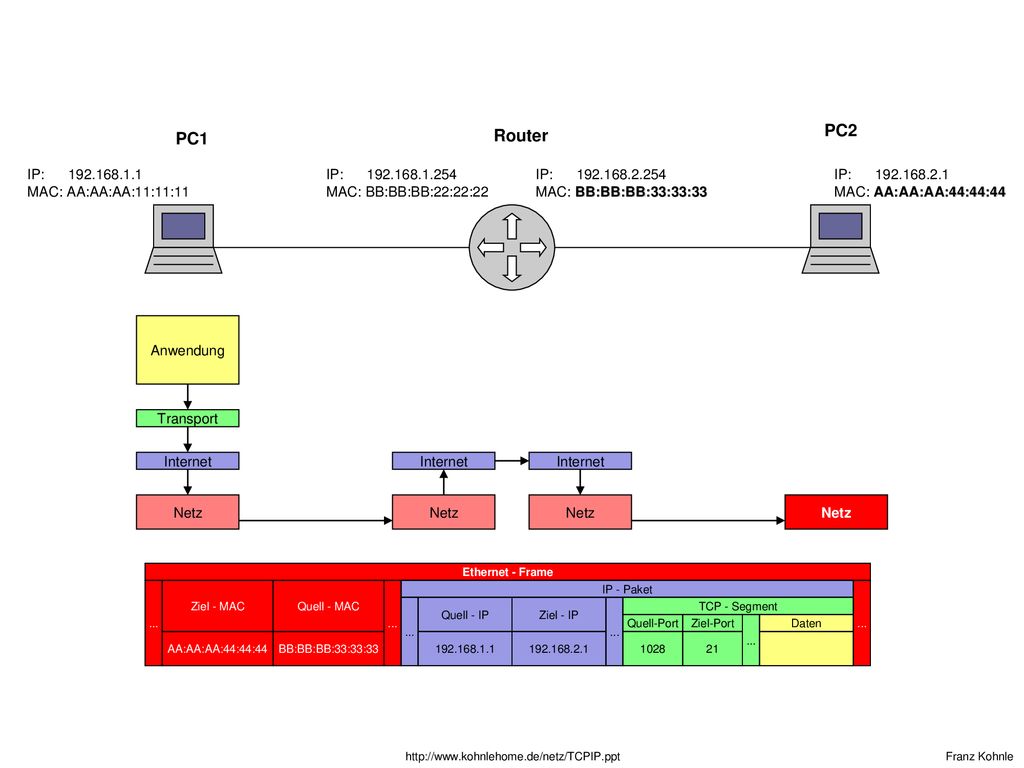

5 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Netz ... AA:AA:AA:11:11:11 BB:BB:BB:22:22:22 Ziel - MAC Quell - MAC Ethernet - Frame ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

6 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Netz Netz ... AA:AA:AA:11:11:11 BB:BB:BB:22:22:22 Ziel - MAC Quell - MAC Ethernet - Frame ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

7 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Internet Netz Netz ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

8 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Internet Internet Netz Netz ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

9 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Internet Internet Netz Netz Netz ... BB:BB:BB:33:33:33 AA:AA:AA:44:44:44 Ziel - MAC Quell - MAC Ethernet - Frame ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

10 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Internet Internet Netz Netz Netz Netz ... BB:BB:BB:33:33:33 AA:AA:AA:44:44:44 Ziel - MAC Quell - MAC Ethernet - Frame ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

11 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Internet Internet Internet Internet Netz Netz Netz Netz ... Ziel - IP Quell - IP IP - Paket Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

12 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Transport Transport Internet Internet Internet Internet Netz Netz Netz Netz Quell-Port Ziel-Port ... TCP - Segment 1028 21 Daten Franz Kohnle

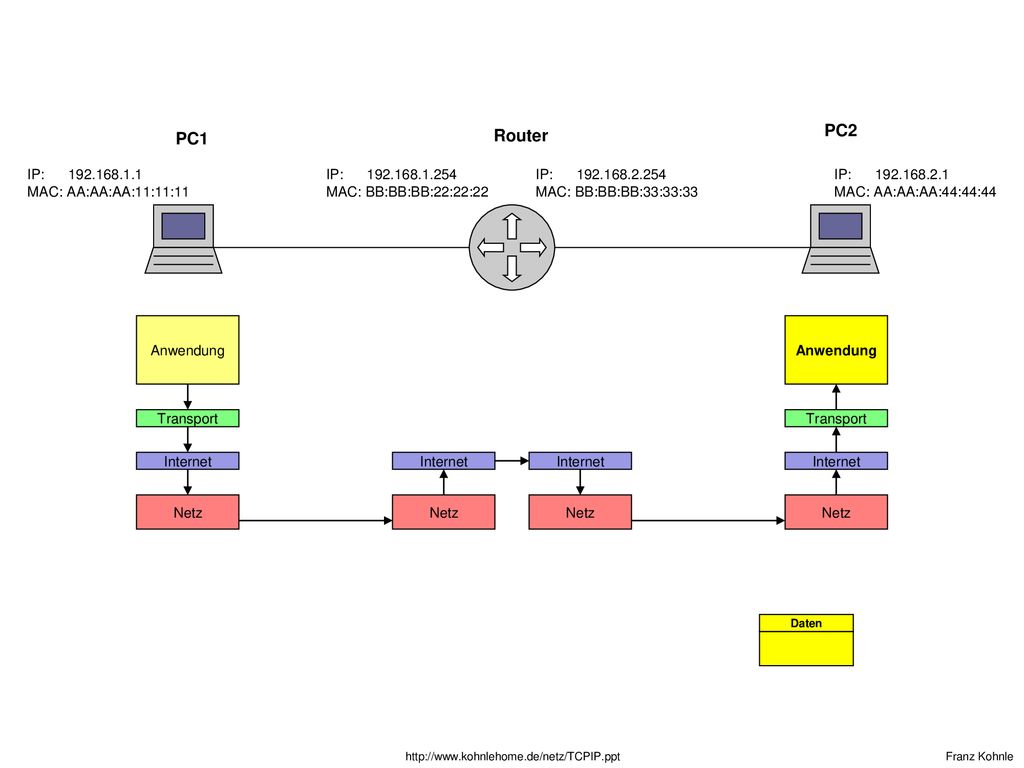

13 PC2 PC1 Router IP: 192.168.1.1 MAC: AA:AA:AA:11:11:11
MAC: BB:BB:BB:22:22:22 IP: MAC: BB:BB:BB:33:33:33 IP: MAC: AA:AA:AA:44:44:44 Anwendung Anwendung Transport Transport Internet Internet Internet Internet Netz Netz Netz Netz Daten Franz Kohnle
