2 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Standstill is a step back The Triflow product line is designed for the conveying of air an netural gases. A standard product for special applications. Applications Waste water plants Electronics Basin aeration Food manufacturing Plastic forming Feeding of burners Welding Vacuum cleaning Filter cleaning TriFlow. The Dependable.

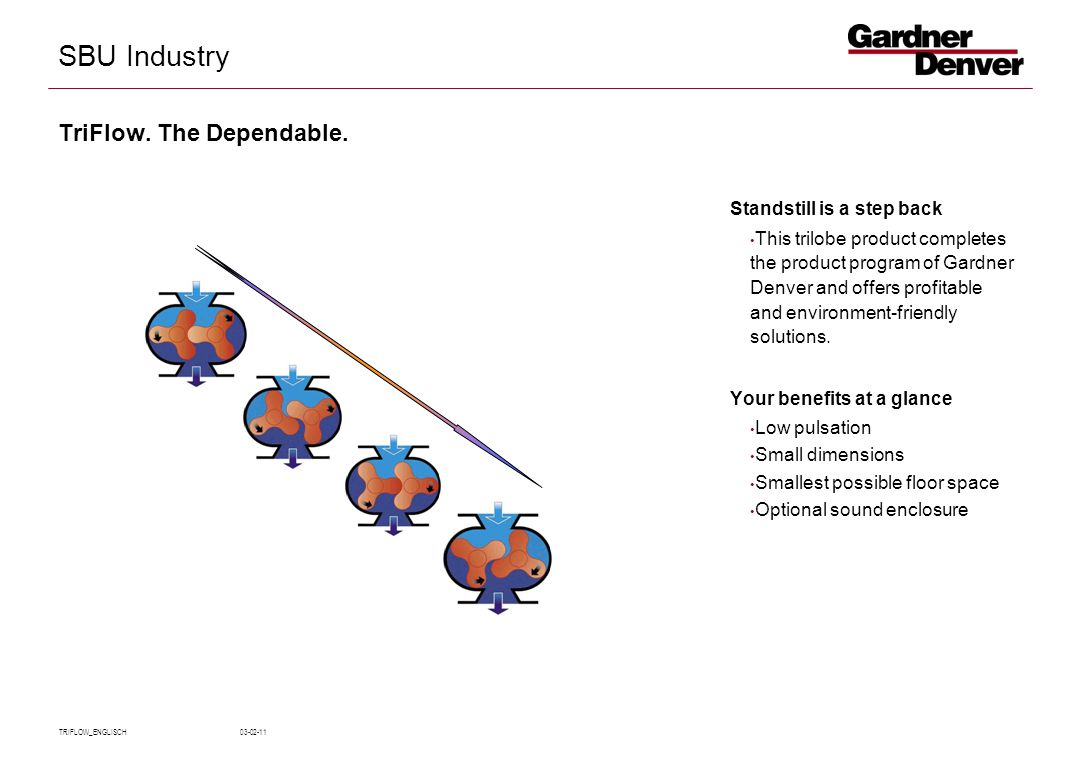

3 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Standstill is a step back This trilobe product completes the product program of Gardner Denver and offers profitable and environment-friendly solutions. Your benefits at a glance Low pulsation Small dimensions Smallest possible floor space Optional sound enclosure TriFlow. The Dependable.

4 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Leistungsdiagramm Volumenstrom 30 – 8.500 m³/h DrucK 1.000 – 900 mbar Vakuum 500 mbar Performance Volume flow 30 – 8.500 m³/h Pressure 1.000 – 900 mbar Vacuum 500 mbar TriFlow. Der Konstante. - TriFlow. The Dependable.

5 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Betriebsdaten Max. Drehzahl / Max. Wellenleistung (bis zu angegebener max. Druckdifferenz) Max. speed / speed shaft power (up to specified max. pressure difference) TF 20LD, 30LD, 20LD-V, 30LD-V direktangetrieben direct drive TriFlow. Der Konstante. - TriFlow. The Dependable.

6 SBU Industry TRIFLOW_ENGLISCH 03-02-11 TriFlow. Der Konstante. - TriFlow. The Dependable. Getriebe Gear Antriebswelle Driven shaft Rollenlager Roller bearing Kolbenring Abdichtung Piston ring sealing Getriebeseitige Lagerung Gear side bearing Innenleben - Inside

7 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Aggregat TF 70L TriFlow. Der Konstante. - TriFlow. The Dependable.

8 SBU Industry TRIFLOW_ENGLISCH 03-02-11 TriFlow. Der Konstante. - TriFlow. The Dependable. Aggregat TF 70L Belüftungseinheit Aeration unit Ansaug-/Filterschalldämpfer Suction silencer/filter Keilriemenschutz Belt guard Gebläsestufe Blower stage Kombiniertes Anfahr-/Sicherheitsventil Combined safety/ starting valve Druckbehälter/ Schalldämpfer Pressure vessel/ silencer Rückschlagkappe Non-return valve Kompensator Compensator

9 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Aggregat TF 70L TriFlow. Der Konstante. - TriFlow. The Dependable.

10 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Schallschutzhaube Acoustic enclosure 70L Druckanwendung Pressure application TriFlow. Der Konstante. - TriFlow. The Dependable.

11 SBU Industry TRIFLOW_ENGLISCH 03-02-11 Safety starting valve Starting function Pressure raise from P0 to P1, A1>A0, F1(A1 x P1) > F0(A0 x P1) -> Valve closed. Safety function When the pressure raises to P2>P1, the control plunger moves to the right and liberates the outlet, air from the inside flows out of the expansion bellows to atmosphere, opening th outlet A0. TriFlow. The Dependable. Membran Diaphragm Steuerkolben Control plunger Einstellschraube Abblasdruck Settig screw Discharge pressure Faltenbalg Expansion bellows

12 SBU Industry TRIFLOW_ENGLISCH 03-02-11
