2 Motivation Programming guidelines Source code model checking Java PathFinder (JPF) Bandera, Kansas State University... Proposed approach Formalize programming guidelines as temporal properties Checking whether the programming guidelines are followed by source code model checking

3 © SAP 2008 / Standard Presentation / Page 3 1.Motivation 2.Security programming guidelines Secure logging Cross Site Scripting 3.Source code modeling checking Bandera tool set Temporal property specification in Bandera 4.Property Specification Secure logging Cross Site Scripting 5.Conclusion Overview

4 Secure logging Before sensitive information is logged, it must be encrypted in order to prevent information leakage Logging APIs Category myCat = Category.getCategory("/System/Database"); myCat.warningT("Sample message" + password); /* fatalT() ; errorT() ; infoT() ; pathT() ; debugT() ; */ Encryption APIs ISsfData data; profile = new SsfProfileKeyStore(keyStore, alias, null); result = data.encrypt(profile); © SAP 2009 / Page 4

5 Cross Site Scripting Cross-Site Scripting (XSS) attacks SAP Output Encoding Framework Four different cases

6 Case 1: string from a user is output between tags HTML Example [CASE1-A] Username [CASE1-B] © SAP 2007 / QUB Presentation / Page 6 Attack Example alert(); Encoding functions to be used static String escapeToHTML(String input); static String escapeToHTML(StringBuffer sb, String input, int maxLength); static String escapeToHTML(String input, int maxLength);

7 Case 1: Sample program © SAP 2007 / QUB Presentation / Page 7 public void doContent(String title) { String my_title, my_user; my_title = StringUtils.escapeToHTML(title); response.write( + my_title + ); if ((my_user = getUsernameByID(userid)) != null) { my_user = StringUtils.escapeToHTML(my_user, 30); response.write( Username + my_user + ); }

8 Case 2: string from a user is output inside tags, and the output is not a URL or style HTML Example © SAP 2007 / QUB Presentation / Page 8 Encoding functions to be used static String escapeToAttributeValue(String input); static String escapeToAttributeValue(StringBuffer sb, String input, int maxLength); static String escapeToAttributeValue(String input, int maxLength);

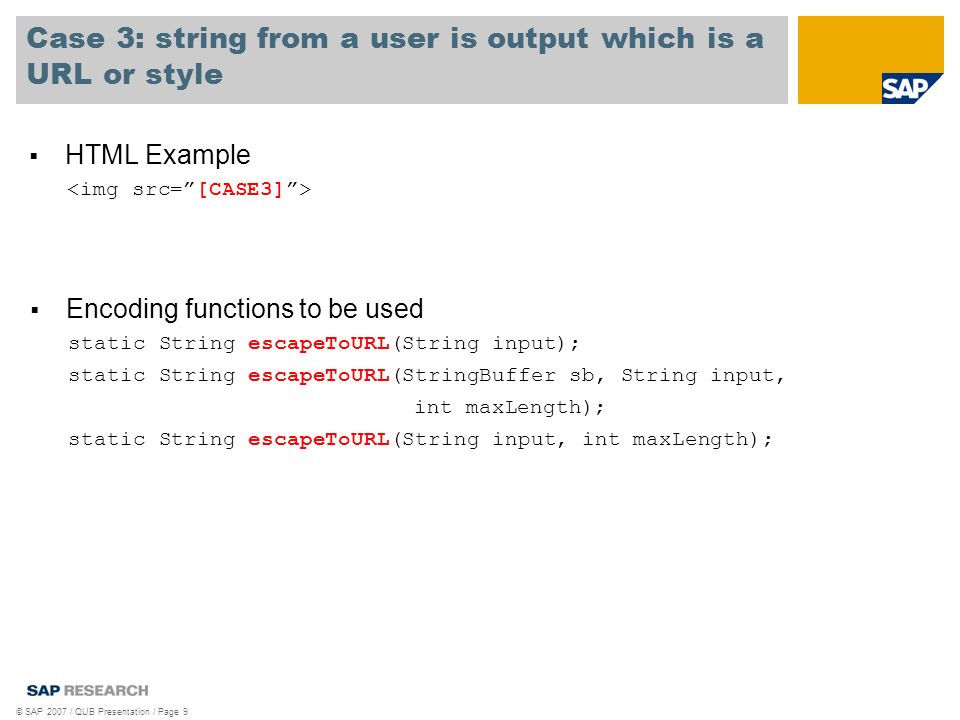

9 Case 3: string from a user is output which is a URL or style HTML Example © SAP 2007 / QUB Presentation / Page 9 Encoding functions to be used static String escapeToURL(String input); static String escapeToURL(StringBuffer sb, String input, int maxLength); static String escapeToURL(String input, int maxLength);

10 Case 4: string from a user is output inside a SCRIPT context HTML Example var a = [CASE4]; © SAP 2007 / QUB Presentation / Page 10 Encoding functions to be used static String escapeToJS(String input); static String escapeToJS(StringBuffer sb, String input, int maxLength); static String escapeToJS(String input, int maxLength);

11 © SAP 2008 / Standard Presentation / Page 11 Bandera Tool Set

12 Predicates in BSL © SAP 2008 / Standard Presentation / Page 12 Location insensitive Expression predicate EXP : Location sensitive defined in method header documentation Invocation predicate INVOKE [: ] Location predicate LOCATION [ ] [: ] ? Return predicate RETURN [: ]

13 Example © SAP 2007 / QUB Presentation / Page 13 expression predicate return predicate invocation predicate

14 Specifying temporal property © SAP 2007 / QUB Presentation / Page 14

15 © SAP 2008 / Standard Presentation / Page 15 Temporal property pattern Absence: A given state/event does not occur within a scope Existence: A given state/event must occur within a scope Universality: A given state/event occurs throughout a scope Precedence: A state/event P must always be preceded by a state/event Q within a scope Response: A state/event P must always be followed by a state/event Q within a scope...

16 Scopes © SAP 2007 / QUB Presentation / Page 16

17 http://patterns.projects.cis.ksu.edu/ © SAP 2007 / QUB Presentation / Page 17

18 Syntax © SAP 2007 / QUB Presentation / Page 18 Over the 555 example specifications we collected, 511 (92%) matched one of our patterns

19 Secure logging: target program © SAP 2007 / QUB Presentation / Page 19 void main () { String secret = new String() ; ISsfProfile profile = new ISsfProfile() ; /* secret.encrypt( profile ) ; */ Category myCat = new Category() ; myCat.warningT( secret ); }

20 Secure logging: auxiliary file © SAP 2007 / QUB Presentation / Page 20 Class String { public boolean isConf ; public String() { isConf = false ; } /** * @observable * INVOKE call(this, ISsfProfile profile ) ; */ public void encrypt ( ISsfProfile profile ) { } class Category { /** * @observable * INVOKE call(this, String m) ; */ public void errorT( String m ) { } /** * @observable * INVOKE call(this, String m ; */ public void warningT( String m ) { } a string is encrypted String mystr ; /* confidential */ => String mystr ; mystr.isConf = true ; a string is logged a string is confidential

21 Property formalization Informally If a string s is confidential, before errorT(s) or warningT(s) is called, s.encrypt() should be called Using LTL P = s.isConf ( Category.errorT.call(c, s) Category.warningT.call(c, s) ) S = String.encrypt.call(s, prof) F P ( P U (S P))) Using BSL S proceeds P globally © SAP 2007 / QUB Presentation / Page 21

22 F P ( P U (S P))) © SAP 2007 / QUB Presentation / Page 22 s1s1 s2s2 s3s3 s4s4 s5s5 s6s6 P FPFP S P P U (S P) Confidential string is logged Confidential string is encrypted

23 Procedure © SAP 2007 / QUB Presentation / Page 23... String str; /* confidential */... Pre-processor... String str; str.isConf = true;... Model Checker (Bandera)... S proceeds P globally... result... /** * @observable * INVOKE call(this, String m) ; */ public void errorT( String m ) { }...

24 Cross Site Scripting: target program © SAP 2007 / QUB Presentation / Page 24 public class SampleServlet extends HttpServlet { public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // Use "request" to read incoming HTTP headers and HTML form data String input = request.getParameter(Input"); // Use "response" to specify the HTTP response line and headers PrintWriter out = response.getWriter(); // case 1 out.write(" "); // input = StringUtils.escapeToHTML(input); out.write(input); out.write(" "); // case 4 out.write(" ); // input = StringUtils.escapeToJS(input); out.write(input); out.write(" "); } }

25 Cross Site Scripting: auxiliary file class HttpServletRequest { public HttpServletRequest() { } /** * @observable * RETURN from_input(this, String str): ( $ret == str ) ; */ public String getParameter( String field ) { String temp_str = new String() ; return temp_str ; } class PrintWriter { public boolean js = false ; public PrintWriter() { } /** * @observable * INVOKE js_begin(this, String str): ( str == " " ) ; * INVOKE js_end(this, String str): ( str == " " ) ; * INVOKE call(this, String str); */ public void write( String str ) { if( str == ) js = true ; if( str == ) js = false ; } A string is obtained from user input JavaScript tags are output A string is output Output is between JavaScript tags

26 Continue © SAP 2007 / QUB Presentation / Page 26 class StringUtils { /** * @observable * INVOKE call(this, String str); */ static String escapeToHTML( String str ) { String temp_str = new String() ; return temp_str ; } /** * @observable * INVOKE call(this, String str); */ static String escapeToJS( String str ) { String temp_str = new String() ; return temp_str ; } Encoding function for CASE 1 is called Encoding function for CASE 4 is called

27 Property formalization 1 Informally If a string s is obtained from user input, before write(s) is called, escapeToHTML(s) or escapeToJS(s) should be called Using LTL R = HttpServletRequest.getParameter.from_input(s) S = StringUtils.escapeToHTML.call(s) StringUtils.escapeToJS.call(s) P = PrintWriter.write.call(s) F P (R (!P U (S !P))) U P Using BSL S responds to R before P © SAP 2007 / QUB Presentation / Page 27

28 F P (R (!P U (S !P))) U P © SAP 2007 / QUB Presentation / Page 28 s1s1 s2s2 s3s3 s4s4 s5s5 s6s6 User input is output P FPFP User input is obtained R User input is encoded S P !P U (S !P) (R (!P U (S !P))) U P ???

29 F P (R (!P U (S !P))) U P © SAP 2007 / QUB Presentation / Page 29 s1s1 s2s2 s3s3 s4s4 s5s5 s6s6 P FPFP R S P !P U (S !P) R (!P U (S !P)) (R (!P U (S !P))) U P

30 Property formalization 2 Informally If a string s is obtained from user input, and write(s) is called between write( ) and write( ), escapeToJS(s) should be called Using LTL R = HttpServletRequest.getParameter.from_input(s) S = StringUtils.escapeToJS.call(s) P = PrintWriter.write.call(s) (PrintWriter.js == true) F P (R (!P U (S !P))) U P Using BSL S responds to R before P © SAP 2007 / QUB Presentation / Page 30

31 Conclusion The first step Auxiliary files are made Properties are specified Benefits seen Additional effort needed for developers are minor Auxiliary files and property specification are provided by security and formal method experts, and could be used across projects Next steps Consider string assignment, concatenation, etc. Try bigger programs Improve Bandera 0.3 or find something else Try more programming guidelines

32 Thank you!

33 Background: Linear-time temporal logic © SAP 2007 / QUB Presentation / Page 33 Syntax ϕ ::= p | ( ϕ ) | ( ϕ ϕ ) | (G ϕ ) | (F ϕ ) | (X ϕ ) | ( ϕ U ϕ ) Evaluation An LTL formula is evaluated on a path, or a set of paths A set of paths satisfies ϕ if every path in the set satisfies ϕ Consider the path = s 1 s 2... ; we write i for the suffix starting at s i, i.e., i is s i s i+1...

34 Background: Semantics © SAP 2007 / QUB Presentation / Page 34 Using a model M = (S,, L), we define when a path satisfies an LTL formula via the satisfaction relation as follows p iff p L(s 1 ) ϕ iff ( ϕ ) ϕ 1 ϕ 2 iff ϕ 1 and ϕ 2 X ϕ iff 2 ϕ G ϕ iff for all i 1, i ϕ F ϕ iff for some i 1, i ϕ ϕ 1 U ϕ 2 iff there is some i 1 such that i ϕ 2 and for all j = 1,..., i – 1 we have j ϕ 1 An LTL formula ϕ is satisfied in a state s of a model M if ϕ is satisfied on every path starting at s ϕ 1 W ϕ 2 = ϕ 1 U ϕ 2 G ϕ 1

35 Secure logging © SAP 2007 / QUB Presentation / Page 35 Class String { public boolean isConf ; public boolean isEncrypted ; public String() { isConf = false ; isEncrypted = false ; } public void encrypt ( ISsfProfile profile ) { isEncrypted = true ; } class Category { /** * @observable * INVOKE call(this, String m) : * ( ( m.isConf == true ) * && ( m.isEncrypted == false ) ) ; */ public void errorT( String m ) { } /** * @observable * INVOKE call(this, String m): * ( ( m.isConf == true ) * && ( m.isEncrypted == false ) ) ; */ public void warningT( String m ) { } invocation predicate String mystr ; /* confidential */ => String mystr ; mystr.isConf = true ;

36 Formalization Using LTL G ( Category.errorT.call(c, s) Category.warningT.call(c, s) ) Using BSL forall[c: Category].forall[s: String] { Category.errorT.call(c, s) || Category.warningT.call(c, s) } is absent globally © SAP 2007 / QUB Presentation / Page 36
