PSP ECO II Inspektionssystem
Stereo-Zoom mit 5-fach Wechsler 3,2x bis 20x 10 Vergrößerungsbereiche 35 Watt Kaltlichtbeleuchtung mit Schwanenhalslichtleiter ergonomisch höhenverstellbares Stativ Granitgrundplatte 40 x 60 cm Video nachrüstbar Option: 3D Kugeltische by JATRONIC GmbH
5
PSP ECO II mit Videosystem
Stereo-Zoom mit 5-fach Wechsler 3,2x – 20x 10 Vergrößerungsbereiche 35 Watt Kaltlichtbeleuchtung mit Schwanenhalslichtleiter Ergonomisch höhenverstellbares Stativ Granitgrundplatte 40 x 60 cm CCD Farbkamera mit 330 Linien Auflösung und 14“ Farbmonitor Option: 3D Kugeltische by JATRONIC GmbH
6
PSP Falcon Reparatursystem
Stereo-Zoom-Optik, stufenlos verstellbar 3,5x bis 22,5x 100 Watt Kaltlichtbeleuchtung mit Ringlichtlichtleiter Ergonomisch höhenverstellbares Stativ Granitgrundplatte 40 x 60 cm Option: Reparaturkugeltisch mit Vakuum-Festhaltung, Magnet-Leiterplattenhaltern und beweglichen Handauflagen Option: Löt/Entlötstation by JATRONIC GmbH
7
PSP Falcon mit Videosystem
Stereo-Zoom-Optik, stufenlos verstellbar 3,5x bis 22,5x 100 Watt Kaltlichtbeleuchtung mit Ringlichtlichtleiter Ergonomisch höhenverstellbares Stativ Granitgrundplatte 40 x 60 cm CCD-Farbkamera mit 330 bzw. 450 Linen Auflösung und 14“ bzw. 17“ Farbmonitor Option: 3D-Reparaturkugeltisch oder 3D-Granitkugeltisch by JATRONIC GmbH
8

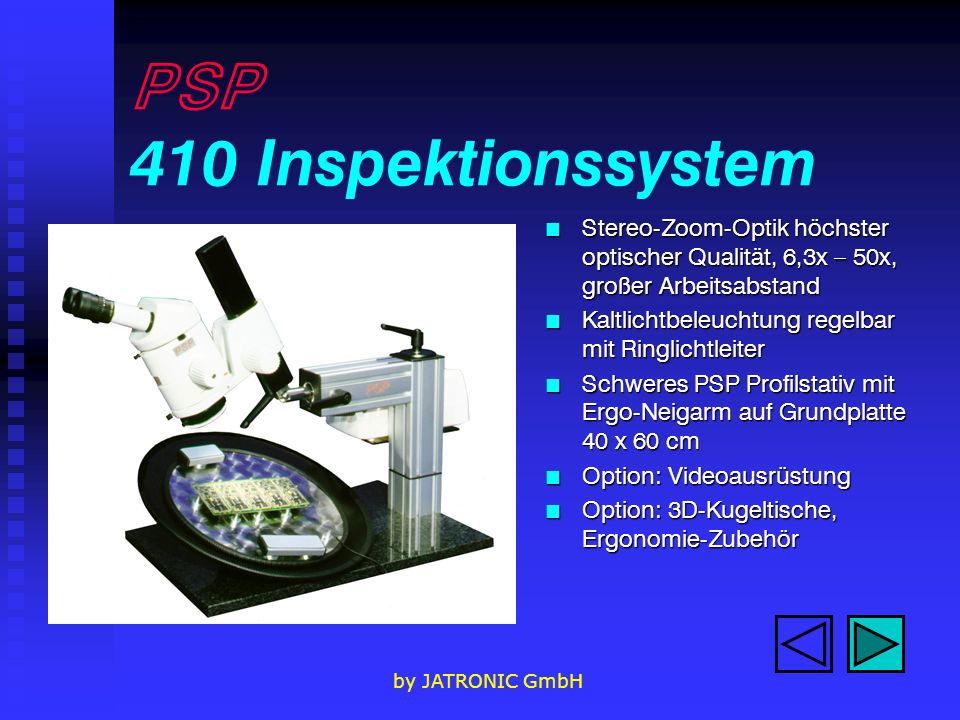

PSP 410 Inspektionssystem
Stereo-Zoom-Optik höchster optischer Qualität, 6,3x – 50x, großer Arbeitsabstand Kaltlichtbeleuchtung regelbar mit Ringlichtleiter Schweres PSP Profilstativ mit Ergo-Neigarm auf Grundplatte 40 x 60 cm Option: Videoausrüstung Option: 3D-Kugeltische, Ergonomie-Zubehör by JATRONIC GmbH
9
PSP 430 Inspektionssystem
Makro-Zoom-Optik höchster optischer Qualität, großer Arbeitsabstand Für z. B. Bohrlochinspektion Kaltlichtbeleuchtung regelbar mit Ringlichtleiter Schweres PSP Profilstativ mit Ergo-Neigarm auf Granitgrundplatte 40 x 60 cm Videoausrüstung Option: 3D-Kugeltische by JATRONIC GmbH
10
PSP 450 Inspektionssystem
Stereo-Zoom-Optik höchster optischer Qualität, 6,3x – 50x, großer Arbeitsabstand Kaltlichtbeleuchtung regelbar mit Ringlichtleiter Schweres PSP Profilstativ mit Ergo-Neigarm auf Granitgrundplatte 40 x 60 cm CCD Farbkamera 450 Linien und hochauflösender Professional-Farbmonitor 17“ Option: 3D-Kugeltische, Ergonomiezubehör by JATRONIC GmbH
11
PSP 450 PC Inspektionssystem
Stereo-Zoom-Optik höchster optischer Qualität, 6,3x – 50x, großer Arbeitsabstand Kaltlichtbeleuchtung regelbar mit Ringlichtleiter Schweres PSP Profilstativ mit Ergo-Neigarm auf Granitgrundplatte 40 x 60 cm CCD Farbkamera 450 Linien und hochauflösender Professional-Farbmonitor 17“ PSP Image-Log Bilddatenbank mit Messsoftware inkl. PC by JATRONIC GmbH
12
PSP 460 Inspektionssystem
12,5x Stereo-Zoom-Optik höchster optischer Qualität. Vergrößerung 6,3 - 80x Kaltlichtbeleuchtung 150 W regelbar mit Ringlichtleiter Schweres PSP Profilstativ 12 x 12 cm mit Ergo-Neigarm auf Granitgrundplatte 45 x 70 cm CCD Farbkamera 450 Linien und hochauflösender Professional-Farbmonitor 21“ Option: PSP Image-Log, D Kugeltische, Ergonomie-Zubehör. by JATRONIC GmbH
13
PSP Image-Log Bilddatenbank
Die Bilddatenbank für die Elektronik Industrie zum erfassen, editieren und archivieren von Video-Images Alle Funktionen leicht und ohne Vorkenntnisse bedienbar Echtzeit-Livebilddarstellung 4 versch. Berichtsformulare 8 Fehlerklassen Für Windows 9x bis NT inklusive PSP Messmodul mit diversen Messmöglichkeiten by JATRONIC GmbH
14
PSP Messsoftware PSP Mess
Die Messsoftware für die Vermessung von Objekten in digitalisierten Videobildern Messen von Distanzen, Winkeln, Radien, Flächen, Kreisen u.a. Verschiedene Einstellmöglichkeiten Einfache Kalibrierung Echtzeit-Livebilddarstellung Für Windows 9X, NT 4.0 und Windows 2000 by JATRONIC GmbH
15
PSP 500 SMD-Workstation Die PSP 500 SMD Workstation unterstützt die folgenden Arbeiten: Inspektion Dispensen von Paste + Kleber Bestückung, mit Autopick Finepitch-Bestückung Nacharbeit Reparatur Diverses Zubehör lieferbar by JATRONIC GmbH
16
PSP 3D-Kugeltische und Stative :
Alle PSP-Stative einzeln erhältlich, vorhandene Optiken können an unsere ergonomischen Stative adaptiert werden! by JATRONIC GmbH
17
Installation PSP Image-Log Demo:
- Bitte beenden Sie diese Präsentation mit ESC oder Stop - Starten Sie Setup.EXE aus dem Image-Log Verzeichnis der CD. Image-Log Demo muss in das vom Programm vorgeschlagene Verzeichnis Image-Log Installiert werden ! - Folgen Sie den Installations-Anweisungen von Windows - Bei Fragen wenden Sie sich bitte an unseren Software Support ( Adresse unter Kontakt) by JATRONIC GmbH
18
PSP ECO II Inspection System
Fivefold change stereo microscope 3,2x – 20x 10 magnification areas 35 watt coldlight with gooseneck lightconductor Ergonomic adjustable stand Baseplate granite 40 x 60 cm Option: 3D turntables, video equipment by JATRONIC GmbH
19
PSP ECO II with Video Fivefold change stereo microscope 3,2x – 20x
10 magnification areas 35 watt coldlight with gooseneck lightconductor Ergonomic adjustable stand on baseplate granite 40 x 60 cm CCD color camera resolution 330 lines 14“ color monitor by JATRONIC GmbH
20
PSP Falcon Repair System
Stereo zoom optic, magnifi-cation variable 4x to 23x Large working distance 100 watt coldlight source adjustable with ringlight Ergonomic adjustable stand Baseplate granite 40 x 60 cm Option: 3D turntable for repair with vacuum-fastening, 8 magnetic pcb-holder and 2 moveable handrests Option: Soldering station by JATRONIC GmbH
21
PSP Falcon Video Stereo zoom optic, variable magnification 4x to 23x
100 Watt coldlight source adjustable with ringlight Ergonomic adjustable stand Baseplate granite 40 x 60 cm CCD color camera resolution 330 or 450 lines and 14“ or 17“ color monitor Option: 3D turntable for repair or 3D turntable granite for inspection by JATRONIC GmbH
22
PSP 410 Inspection System Stereo-zoom optic with highest optical quality, 6,3x – 50x, large working distance Coldlight source adjustable with ringlight Heavy PSP stand with ergonomic inclination arm on baseplate granite 40 x 60 cm Option: Video equipment Option: 3D turntables and ergo- nomic add ons by JATRONIC GmbH
23
PSP 430 Inspection System Macro-zoom objective with highest optical quality For drill-hole inspection Coldlight source adjustable with ringlight Heavy PSP stand with inclination arm on granite baseplate 40 x 60 cm Video add on Option: 3D turntables by JATRONIC GmbH
24
PSP 450 Inspection System Stereo zoom optic with highest optical quality, 6,3x – 50x, large working distance Coldlight source adjustable with ringlight Heavy PSP stand with ergonomic inclination arm, baseplate granite 40 x 60 cm CCD color-camera 450 lines and high resolution color professional monitor 17“ Option: 3D turntables, ergonomic add ons by JATRONIC GmbH
25
PSP 450 PC Inspection System
Stereo zoom optic with highest optical quality, 6,3x – 50x, large working distance Coldlight source adjustable with ringlight Heavy PSP stand with ergonomic inclination arm on baseplate granite 40 x 60 cm CCD color camera 450 lines, high resolution monitor 17“ PSP Image-Log: image docu-mentation with measuring tool by JATRONIC GmbH
26
PSP 460 Inspection System 12,5x Stereo zoom optic with highest optical quality, standard magnification 6,3 - 80x Coldlight source 150 W adjustable with ringlight Heavy PSP stand profile 12 x 12 cm with ergonomic inclination arm on granite baseplate 45 x 70 cm CCD color-camera 450 lines and high resolution color monitor 21“ Option: PSP Image Log, D-turntables by JATRONIC GmbH
27
PSP Image-Log Image Databank
The image databank for the electronic industry to record, edit and archieve video images Easy to use without previous knowledge Realtime live-image 4 different report forms 8 failiure classes For Windows 9X and NT Inclusive PSP Measuring Tool with many different measuring possibilities by JATRONIC GmbH
28
PSP Measuring Tool The measuring software to measure objects in digitalized video images Measuring of distances, angles circles, radius and much more Text entry with circle or arrow Easy to use without previous knowledge Realtime live picture, true color Easy calibration Windows 9X, NT 4.0 and Windows 2000 compatible by JATRONIC GmbH
29
PSP 500 SMD Pick and Place System
The PSP 500 SMD Station facilitates the following tasks: Inspection Distribution of flux, adhesive Component placement with optional auto-pick Fine-pitch-placement Refinishing Repair by JATRONIC GmbH
30
PSP 3D-Turntables and Stands :
All PSP stands separate available, we can adapt your Microscope to our ergonomic stands! by JATRONIC GmbH
31

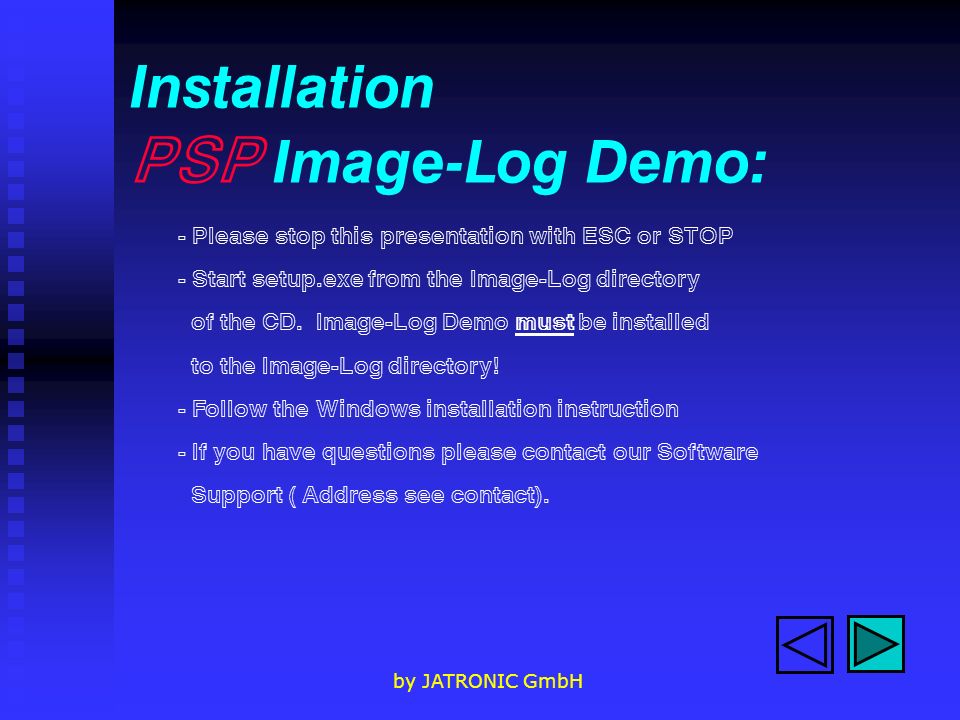

Installation PSP Image-Log Demo:
- Please stop this presentation with ESC or STOP - Start setup.exe from the Image-Log directory of the CD. Image-Log Demo must be installed to the Image-Log directory! - Follow the Windows installation instruction - If you have questions please contact our Software Support ( Address see contact). by JATRONIC GmbH
