1 TechNet 64-Bit Exchange Server – optimale Vorbereitung Ihrer Hardware Infrastruktur Bernhard Brandwitte Hannover, CeBIT 2006

2 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 2

3 Microsoft TechNet TechNet Online Website für alle IT-Pros TechNet Newsflash 14-tägig erscheinender Newsletter für IT-Pros (deutschsprachig, kostenlos) TechNet Veranstaltungen kostenfreie Veranstaltungen und Seminare die technisches Tiefenwissen vermitteln TechNet Webcasts

4 Microsoft TechNet TechNet CD- / DVD-Jahresabo Das Abo bietet Ihnen: Die Microsoft Knowledge Base Resource Kits/ Deployment Guides Whitepapers und Fallstudien Patches, Treiber, Service Packs und vieles mehr… englische Microsoft Beta-Versionen 2 kostenlose Support Anfragen 20% Preisrabatt auf alle weiteren Anfragen Unterstützung in Managed Newsgroups innerhalb von 48h Kostenfreie E-learning Kurse (Schwerpunkt Windows XP) bis

5 Windows Server System Security Infrastructure IT Operations Infrastructure Applications Infrastructure Collaboration Infrastructure

6 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 6 64 bit Exchange Server Why 64bit Hardware? Exchange 12 and 64bit Hardware Dual Core Requirement for mail server infrastructures I/O Virtualisation

7 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 7 Why 64bit Hardware?

8 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 8 32bit Architecture memory addressing limitation of ~4GB available address space devided in 2 GB for kernel 2 GB for every application each application gets 2GB of virtual address space all applications have to share 2GB of kernel space each user and each process requires kernel address space AWE is no solution for exchange 32bit memory space 2GB kernel 2GB per application

9 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 9 X-64 changes Basics

10 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 10 Paths to the 64-Bit World Most of todays server install base are purely 32-bit With the x64 release of different OS, customers will start combining 32-bit and 64-bit applications on the same system Over time, customers will increasingly use pure 64-bit stacks based on x64 and Itanium Net result is a smooth transition path to 64-bit computing 32-bit Server Hardware 32-bit Device Drivers 32-bit OS 32-bit Applications Pure 32-bit Stack x64 32-bit x64 Itanium x64 Pure 64-bit Stack 32-bit x

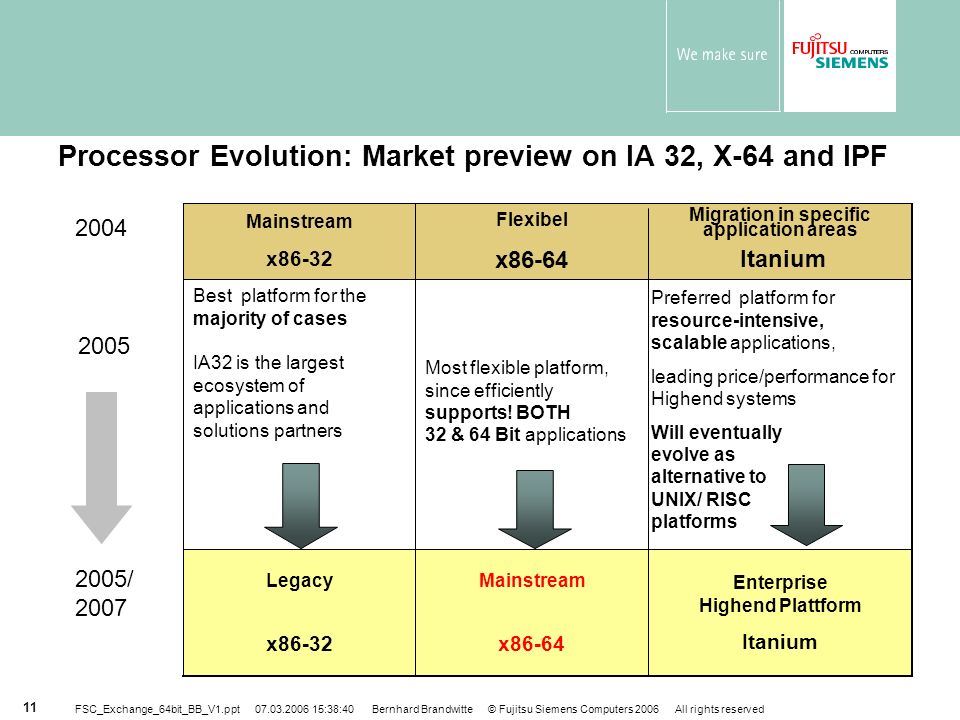

11 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 11 Processor Evolution: Market preview on IA 32, X-64 and IPF Enterprise Highend Plattform Itanium Mainstream x86-64 Legacy x86-32 Migration in specific application areas Itanium Flexibel x86-64 Mainstream x86-32 Preferred platform for resource-intensive, scalable applications, leading price/performance for Highend systems Will eventually evolve as alternative to UNIX/ RISC platforms Most flexible platform, since efficiently supports! BOTH 32 & 64 Bit applications Best platform for the majority of cases IA32 is the largest ecosystem of applications and solutions partners /

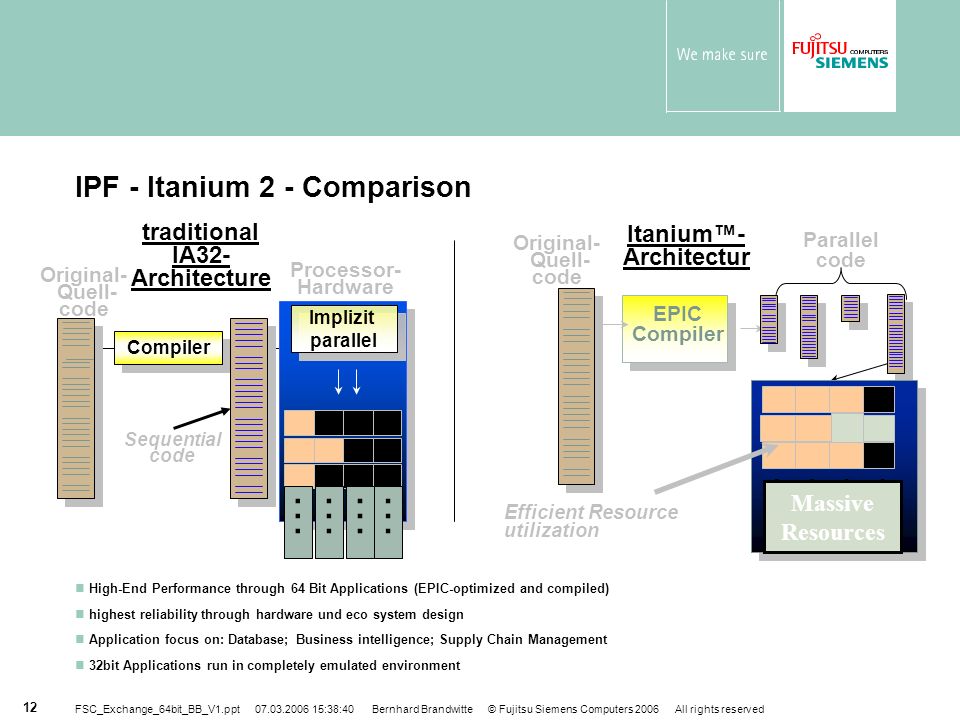

12 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 12 IPF - Itanium 2 - Comparison Processor- Hardware Original- Quell- code Compiler Sequential code Implizit parallel Implizit parallel traditional IA32- Architecture Original- Quell- code EPIC Compiler Efficient Resource utilization Parallel code Itanium- Architectur Massive Resources High-End Performance through 64 Bit Applications (EPIC-optimized and compiled) highest reliability through hardware und eco system design Application focus on: Database; Business intelligence; Supply Chain Management 32bit Applications run in completely emulated environment

13 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved Bit native Applications X-64 Verfügbarkeit 1 Itanium Verfügbarkeit 1 SQL Server 2000Not availableMarch 2003 SQL Server 2005H Visual Studio 2005H Exchange Server Not planned Commerce Server 2006H2 2006Not planned Biztalk Server 2006H2 2006Not planned Host Integration Server 2005Q1 2006Not planned Microsoft Operations Manager (MOM V3)2007Not planned Services for UNIX2005 Virtual Server 2005H1 2006Not planned (1) Availability dates reflect current plans and are subject to change without notice. Microsofts Support Plan for native 64 Bit Solutions

14 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 14 Exchange 12 and 64bit Hardware

15 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 15 PRIMERGY: Full line server portfolio Blade Server BX Tower/Rack Server TX Rack Server RX Industrie Standard Server for the DDC BladeFrame BF DDC Solution Tower Server Econel Econel100 Econel200 TX150, TX200 TX300, TX600 RX100, RX200 RX220, RX300, RX600, RX800 BX600 Chassis BX620, BX630 BF200 BF400 Certification for Operating Systems & Applications ServerView Management Suite Components, PRIMECENTER Rack, Storage Common Infrastructure

16 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 16

17 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 17 Flexible Scalability with BX = 8

18 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 18 Flexible Scalability with BX = 16

19 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 19 Dual-Core Technology

20 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 20 Dual Core - Basic Considerations Implementation of higher processor frequencies gets more difficult Form factors of servers are decreasing Heat dissipation rapidly increased in the past Both Processor vendors offer dual-core CPUs in every server product range SocketsIntelAMD 1 Pentium DOpteron 1xx >= XEON 50xx (Paxville) Opteron 2xx >= 265 multi XEON >= 7020 (Paxville) Opteron 8xx >= 865

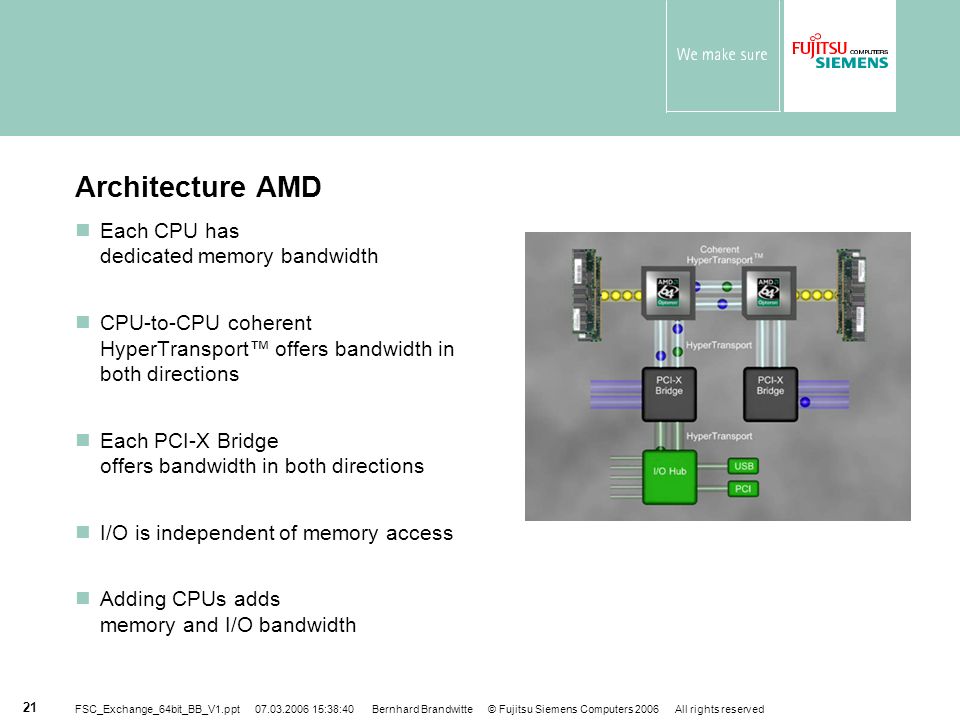

21 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 21 Architecture AMD Each CPU has dedicated memory bandwidth CPU-to-CPU coherent HyperTransport offers bandwidth in both directions Each PCI-X Bridge offers bandwidth in both directions I/O is independent of memory access Adding CPUs adds memory and I/O bandwidth

22 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 22 Architecture Intel Memory and I/O share the same Front-side Bus Each CPU gets ½ of the Front-side Bus bandwidth More CPUs aggravates the bottleneck situation Scalability is limited

23 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 23 Possible Bottlenecks in Exchange Server Environments MemoryLANCPU OS ArchitectureHard Disk Subsystem

24 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 24 Possible Bottlenecks in Exchange Server Environments x64 ArchitectureGbit LanDual Core exchange 12SAN/NAS Subsystems

25 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 25 Requirement for mail server infrastructures

26 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 26 Network Clients Clustered MS Exchange Messaging Servers Application availability 1 - Exchange servers Tape library Data availability 2 - Backup NAS RAID MOD Tape library Lifecycle management 3 - Archiving Meet legal requirements for retention Full solution 1.Content & messaging 2.Automated backup 3.Information protection easyXchange Building Blocks

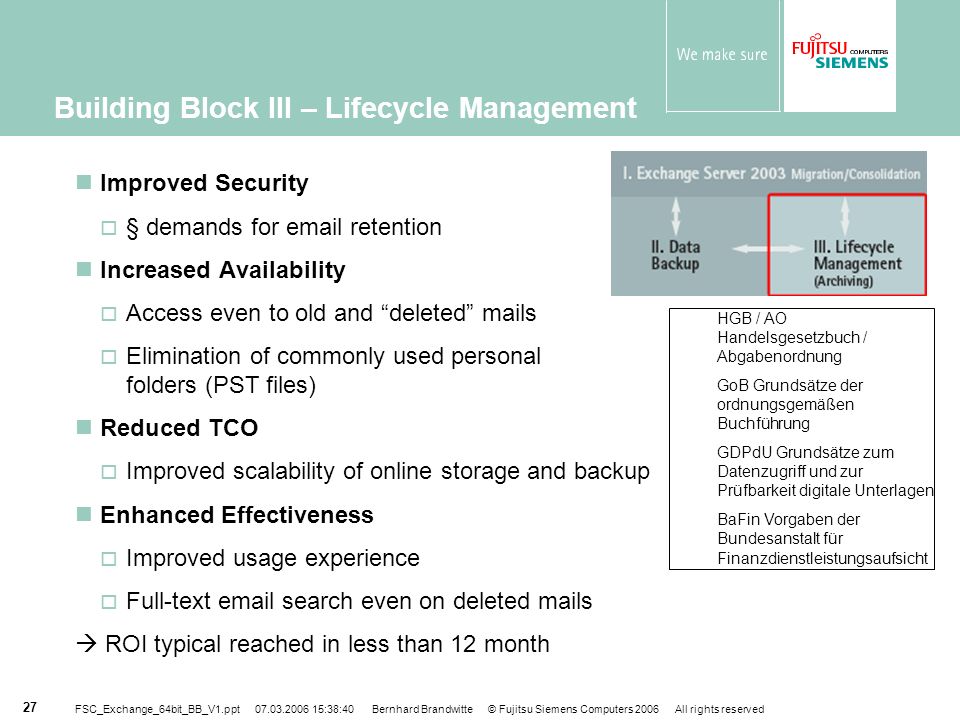

27 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 27 Building Block III – Lifecycle Management Improved Security § demands for retention Increased Availability Access even to old and deleted mails Elimination of commonly used personal folders (PST files) Reduced TCO Improved scalability of online storage and backup Enhanced Effectiveness Improved usage experience Full-text search even on deleted mails ROI typical reached in less than 12 month HGB / AO Handelsgesetzbuch / Abgabenordnung GoB Grundsätze der ordnungsgemäßen Buchführung GDPdU Grundsätze zum Datenzugriff und zur Prüfbarkeit digitale Unterlagen BaFin Vorgaben der Bundesanstalt für Finanzdienstleistungsaufsicht

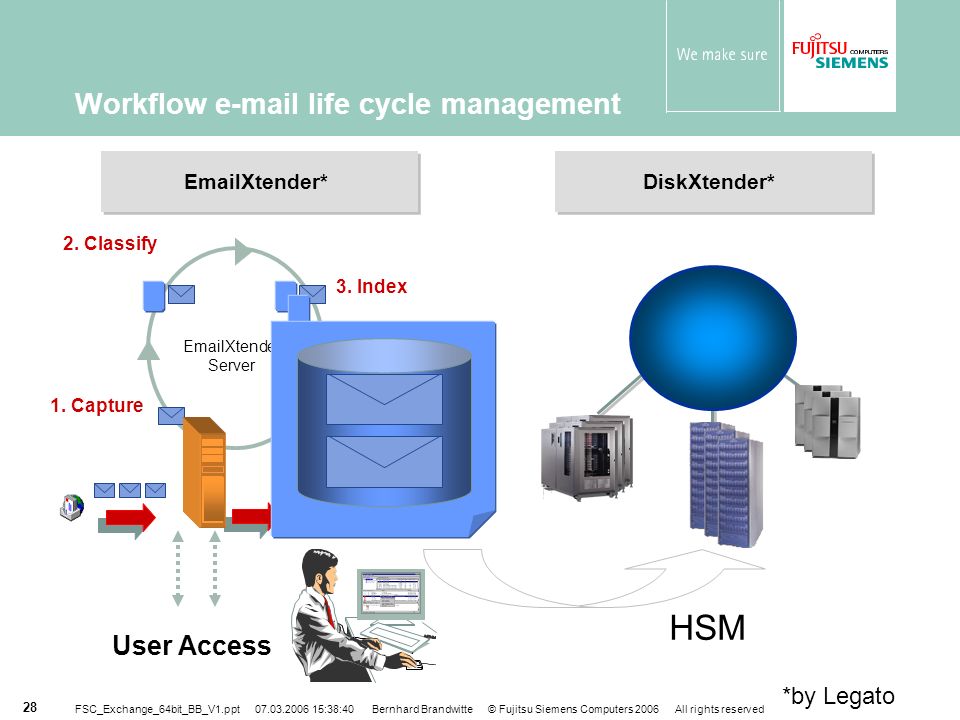

28 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 28 Xtender Server 2. Classify 3. Index 4. Archive 1. Capture DiskXtender* HSM Xtender* User Access Workflow life cycle management *by Legato

29 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 29 Deutsche Messe AG consolidates Mailserver infrastructure with easyXchange Project: Reduction of the administrative effort for operation of the mail server infrastructure Solution: Mail server consolidation with easyXchange on a PRIMERGY RX300 platform Customer Benefits: Concentration in a single mail server location Reduction of the administration and service effort Improved cost-benefit relationship »With easyXchange from Fujitsu Siemens Computers we have concentrated on what is essential. The result is just one exchange location and much less administrative effort.« Michael Bouda, IT director, Deutsche Messe AG

30 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 30 I/O Virtualization

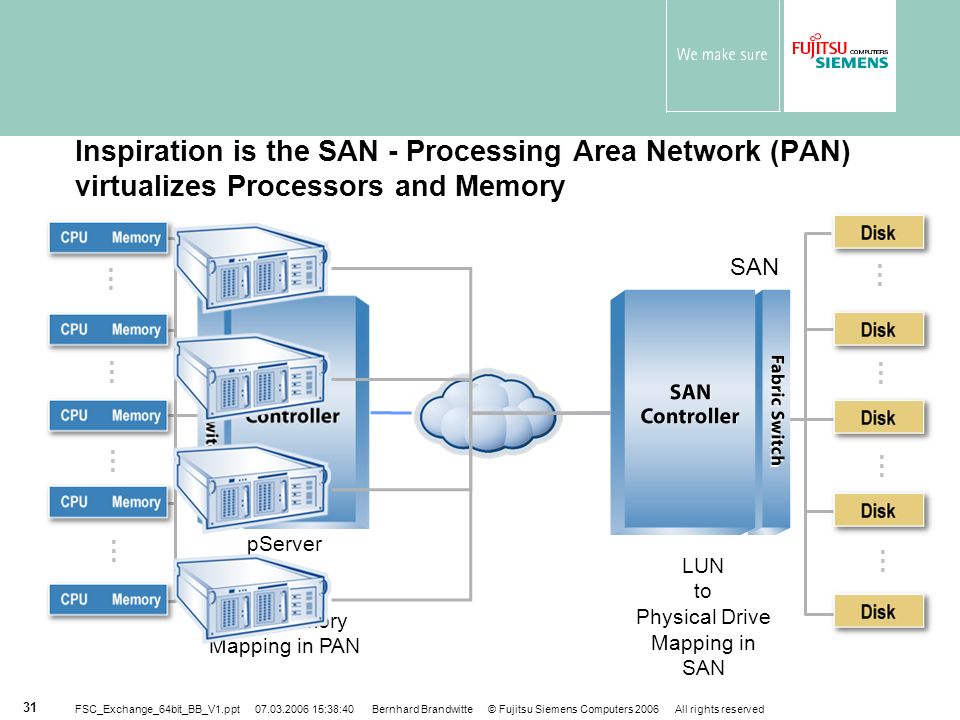

31 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 31 Inspiration is the SAN - Processing Area Network (PAN) virtualizes Processors and Memory SAN … … … … … … … … pServer to Physical CPU/Memory Mapping in PAN LUN to Physical Drive Mapping in SAN

32 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 32 Places pure processor and memory capacity on high speed, switched fabric Moves all points of state and identity to switch layer Implements physical components in software How BladeFrame is different and in which way it is unique Processing Area Networks (PAN) enable utility computing Stateless Blades … … … … … … … … SAN

33 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 33 BladeFrame Architecture Implements Virtualization Today Processing resources on hot-pluggable blades Diskless for unprecedented flexibility Consistent form factor Intel & AMD for price/performance Mix and match configurations Image repository on Control Blades Multi-OS support Red Hat Linux Novell SuSE Linux MS Windows Unmodified Applications Automatically deployed on demand

34 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 34 Summary

35 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 35 64bit Exchange Server - summary 64 bit is a must and a standard in the future x64 for most of the applications IPF for Database and mission critical App. Industry Standard Server are already on x86, dual core provides benefits also for exchange 12 Reduce implementation risks by working together with experienced partners Meet legal requirements for retention Check out what PRIMERGY BladeFrame has to offer We make sure.

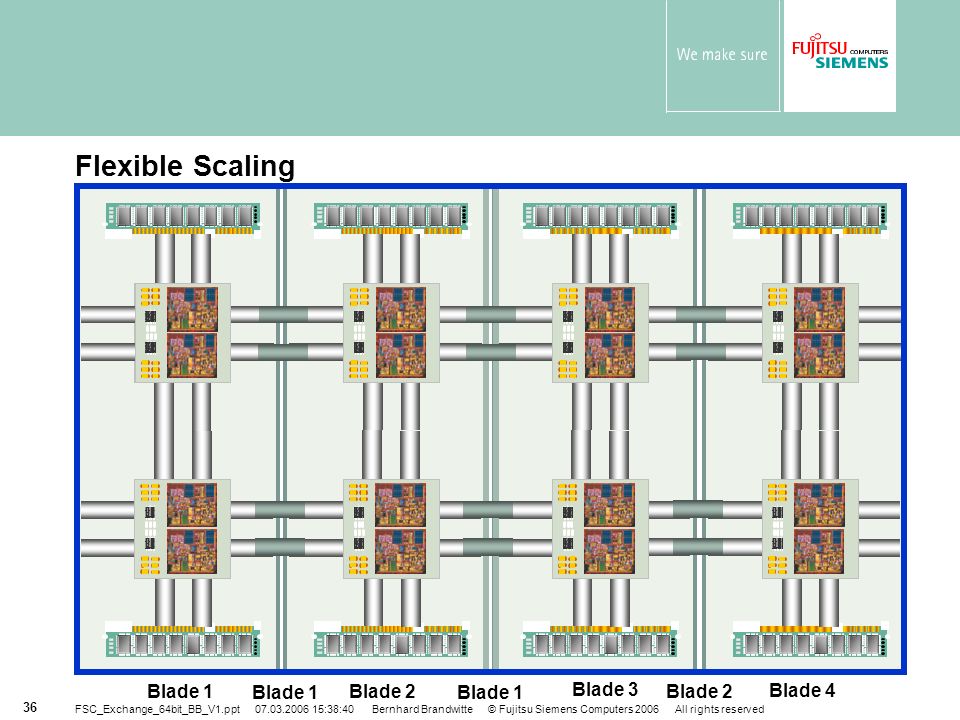

36 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 36 Flexible Scaling Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Dies ist mal ein ganz kleiner Chip mit ganz kleiner Schrift Hommel Blade 1 Blade 2 Blade 3 Blade 4 Blade 1 Blade 2 Blade 1

37 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 37 Chassis Automation: Management KVM Infrastructure: Gigabit/FC Switch & Pass Thru Blades Virtualization: Server Blades High availability: end-to-end redundancy Freedom of choice: PRIMERGY BX600

38 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 38 Comparison Single Core / Dual Core Test Configuration Software Windows 2003 Enterprise Edition SP1 MS Office FSC Test Toolkit Hardware Configuration PRIMERGY BX GB RAM Price standard configuration 01/06 single core: 4226,-- dual core: 5925,-- Results Dual Core performs better if CPU is limiting factor

39 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 39 Summary Dual Core – THE Solution for Exchange? Dual or Multi-Core CPUs are standard in upcoming servers Improved performance with dual-core CPUs whenever CPU is limiting factor Smaller / Medium Environments Mono-Socket Servers (dual core) get more attractive as second core compensates CPU peaks However 2-socket server will stay as standard hardware Medium / Enterprise Environments Multi-Core provides CPU power for serving more users Could be good combination: 64bit multi-core Good price/performance ratio of 2 socket servers will stay or even gets better

40 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 40 PRIMERGY Product Line (exchange related) 64bit EM64T / AMD64 Dual core 1U, 1 socket RX1xx 1U, 2 socket RX2xx 2U, 2 socket RX3xx 4 socket RX6xx Blades BX6xx

41 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 41 Award easyXchange - Winner in the Messaging and Mobility category I was impressed by the completeness of the easyXchange solution. It includes on-site hardware, software, backup and archiving for a price comparable to a hosted service. Adam Carheden, Products and Technology Editor, Windows IT Pro. The prestigious Windows IT Pro 2004 Editors Choice Award recognizes outstanding vendors who have developed products and services that make a difference in the IT community. Windows IT Pro subscription base IT professionals reached every month Published in 13 languages Reach into 160 countries

42 FSC_Exchange_64bit_BB_V1.ppt :38:40 Bernhard Brandwitte © Fujitsu Siemens Computers 2006 All rights reserved 42 easyXchange – Building Blocks
