1 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 S. Noël, K. Bramstedt, C. v. Savigny IFE/IUP SCIAMACHY Performance after the ENVISAT Orbit Change

2 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 ENVISAT Orbit Change Required because original orbit is booked for other missions New orbit: About 17 km lower, slightly shorter orbital period Drifting inclination and local time of equator crossing (about ± 10 min around 22:00 until 2013) New repeat cycle and cycle length of 30 days / 431 orbits Time for orbit change has been chosen to optimally use remaining fuel Schedule: First manoeuvre 22 October 2010 Most instruments switched off until 27 October 2010 Between 27 October and 2 November YSM instead of SYSM (reduced pointing accuracy) Last orbit change manoeuvre 4 November 2010 Quasi-nominal service until end of 2010 (data to users with quality disclaimer) From January 2011 on everything nominal again

3 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Impact on SCIAMACHY SCIAMACHY operations had to be slightly adapted to new orbit: Updated limb states: One horizontal scan less to guarantee limb-nadir matching Planned: Skip first tangent height (~3 km) and start at ~0 km Updated timelines Some discussion about possible contamination before orbit change due to thrusters exhaust (but considered low risk at that time) Main performance checks after the orbit change: Thermal performance Geolocation performance (esp. limb and occultation measurements) Optical performance (throughput)

4 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Temperatures SCIAMACHY detector temperatures increased by about 0.5 K after the orbit change Related to higher ENVISAT temperatures, caused by permanent use of KBS1 and KBS3 after Ka band antenna anomaly (not related to orbit change) ENVISAT temperatures will remain higher Adaptation of SCIAMACHY detector temperatures planned

5 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Limb nadir matching Limb nadir matching OK Minor problem: Limb corner co-ordinates are flipped in L1b states ADS (NOT in measurement dataset!) due to removed limb level. Red: Nadir state Green: Limb State Corners from states ADS 10 Oct 27 Oct

6 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Limb THs in L1 product -1- Changes in limb state: – Continuation of limb-nadir matching with changed orbit required modification – One horizontal scan less (removal of -3 km scan). General Scan Sequence: – General OK. – Step size OK. – Altitudes not changed? Not OK! Red : before mission extension Green : during mission extension Based on L1b geolocation!

7 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Limb THs in L1 product -2- TH first readout: Still at ~-4.2 km TH last readout (dark meas.) Moved from 263km 269km Note: NRT data, no AUX_FRAs! Red : before mission extension Green : during mission extension TH first readout TH last readout (dark meas.)

8 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Limb Geolocation: AUX_FRAs AUX_FRA files contain attitude correction Orbit Oct-31 no AUX_FRAs : Geolocation as given in NRT product with AUX_FRAs : Re-calculated with CFIs using AUX_FRAs No larger change in tangent height. AUX_FRAs will not correct for too low limb TH ! Lowest tangent altitude for each vertical profile (Up-down pattern is horizontal scan)

9 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Accuracy of L1 Geolocation: Limb TH from TRUE version 1.8 retrievals YSM Method: – Determine tangent height from UV knee – Compare with L1 altitudes Altitudes during YSM ~1.8 km too low About zero offset in SYSM, also after orbit change. OK!

10 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Accuracy of L1 Geolocation: Solar Occultation TH: -Measure centre of sun- Method: – Fit center of sun from scans over solar disk – Compare with TH in product Altitudes during YSM ~3km too low, with large scatter. Back to previous values with SYSM. In line with state 47 analysis (jump of elevation mirror after switch to sun-follower) OK! Note: NRT data, no AUX_FRAs! SYSM YSM

11 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 SCIAMACHY Degradation Monitoring Main method: –Ratio (calibrated) signal of well known source (sun above atmosphere, internal white light source (WLS)) at time t to corresponding measurement at reference time t 0 –Reference time for SCIAMACHY: 2 August 2002 (begin of nominal meas.) –Performed for different light paths, corresponding to different viewing geometries –Degradation correction factors (m-factors) are regularly produced and used in operational 1-2 processing (see: Limitations: –No polarised light source available, therefore no monitoring of changing polarisation sensitivity possible –Scan angle dependent degradation correction in preparation

12 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 SCIAMACHY Light Path Monitoring The different SCIAMACHY light paths are regularly monitored using measurements of the unobscured sun above the atmosphere and the internal WLS

13 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring results (L1b / m-factors) General: Slightly enhanced variability during YSM period Throughput slightly affected by higher detector temperatures (caused by higher ENVISAT temperatures) Limb light path: – No significant effect. – Very slightly throughput loss in channel 2. Calibration light path: – No significant effect. Nadir light path: – Reduced signal for 27/28 Oct sub-solar (pointing mode) due to YSM (excluded from operational m-factor calculation) – No signal for 27 Oct sub-solar (fast-sweep mode), due to blocking by Ka-band antenna – Very slightly enhanced throughput for channel 3,4,5 Conclusion: No significant throughput changes.

14 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Orbit change

15 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Orbit change

16 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Summary Limb states: – Limb nadir matching: OK! – Limb sequence (with 30 levels) and stepping: OK! – Limb tangent height: First horizontal scan at -4 km, not ~0 km! To be adapted in the near future – TRUE: ~-1.8 km TH offset during YSM period, later (SYSM) OK. Solar occultation TH/elevation angles: – Reduced performance during YSM (~-3km TH offset) – Back to nominal with SYSM (since 2 Nov 2010) Throughput monitoring: – No significant changes. Status of other instruments and platform: – No major problems – ENVISAT temperature increased due to permanent use of KBS1 & KBS3 after Ka antenna anomaly

17 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Backup slides

18 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 1 Orbit change

19 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 2 Orbit change

20 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 3 Orbit change

21 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 4 Orbit change

22 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 5 Orbit change

23 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 6 Orbit change

24 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 7 Orbit change

25 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Nadir, ch. 8 Orbit change

26 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 1 Orbit change

27 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 2 Orbit change

28 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 3 Orbit change

29 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 4 Orbit change

30 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 5 Orbit change

31 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 6 Orbit change

32 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 7 Orbit change

33 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Limb, ch. 8 Orbit change

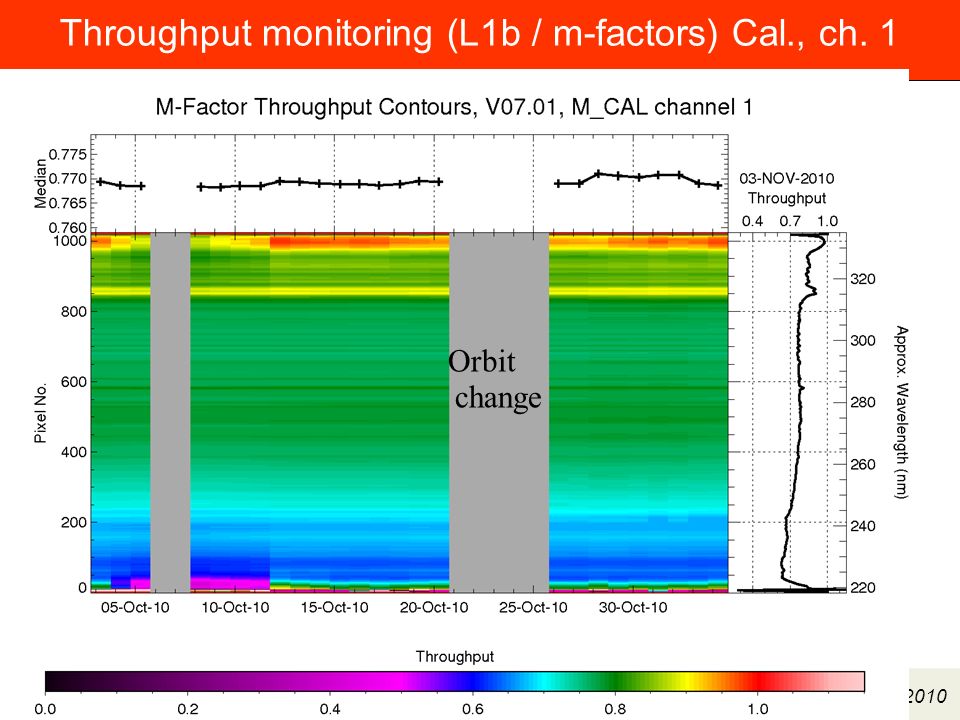

34 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 1 Orbit change

35 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 2 Orbit change

36 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 3 Orbit change

37 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 4 Orbit change

38 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 5 Orbit change

39 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 6 Orbit change

40 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 7 Orbit change

41 Institut für Umweltphysik/Fernerkundung Physik/Elektrotechnik Fachbereich 1 ENVIVAL-LIFE Meeting 6/7 Dec 2010 Throughput monitoring (L1b / m-factors) Cal., ch. 8 Orbit change
