1 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten.siemens.de/sce Lecture slides for Training Curriculum TIA Portal Siemens Automation Cooperates with Education To be used only at educational and R&D institutions

2 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 2DF FA S EUR&AFR SCE Training Curriculum TIA Portal Table of contents Module overview Process description Reference list Simulation Process description of sorting station (TIA Portal)

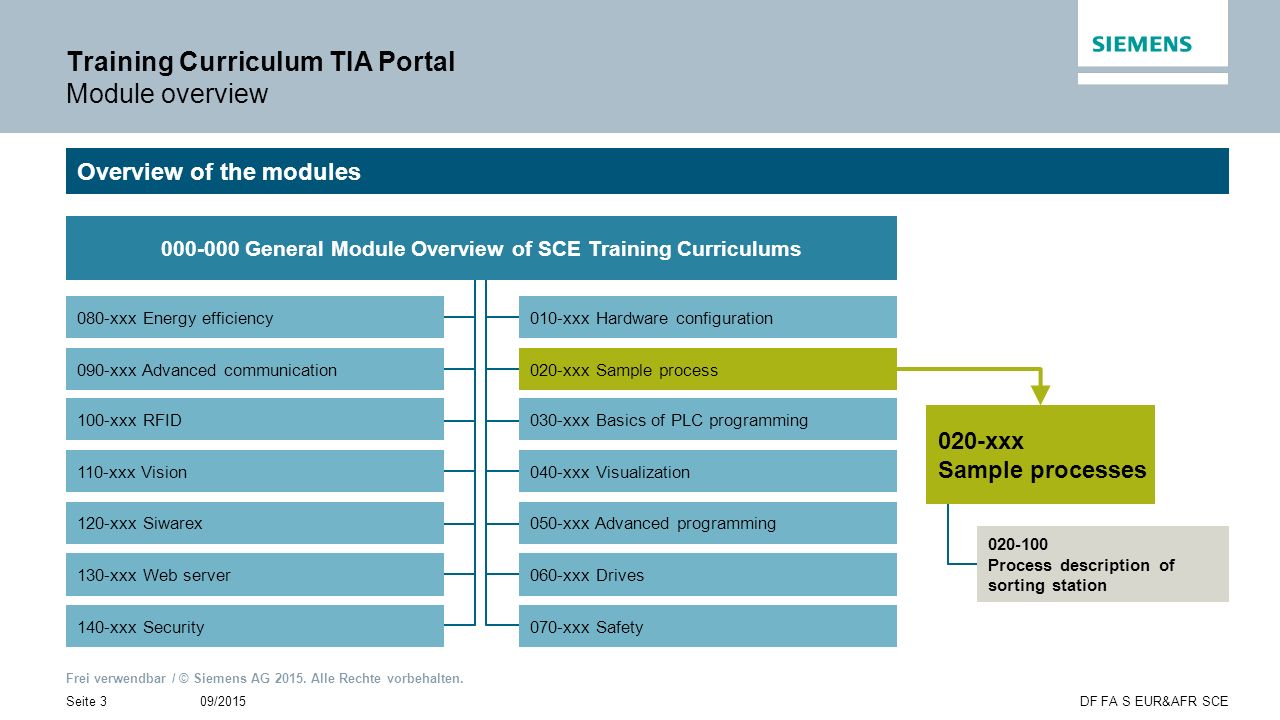

3 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 3DF FA S EUR&AFR SCE Training Curriculum TIA Portal Module overview Overview of the modules General Module Overview of SCE Training Curriculums 030-xxx Basics of PLC programming 020-xxx Sample process 010-xxx Hardware configuration 040-xxx Visualization 050-xxx Advanced programming 060-xxx Drives 070-xxx Safety 100-xxx RFID 090-xxx Advanced communication 080-xxx Energy efficiency 110-xxx Vision 120-xxx Siwarex 130-xxx Web server 140-xxx Security Process description of sorting station 020-xxx Sample processes

4 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 4DF FA S EUR&AFR SCE Training Curriculum TIA Portal Process description Automated sorting station for separating plastic and metal components A component is fed to the conveyor via a chute  The conveyor starts after detection of a component. Metallic component (gray): Transport to height of metal magazine, cylinder pushes it into the metal magazine Non-metallic component (orange): Transport to the end of the belt, where it falls into the plastic magazine. As soon as a component is sorted, the next component can be fed Process description of sorting station

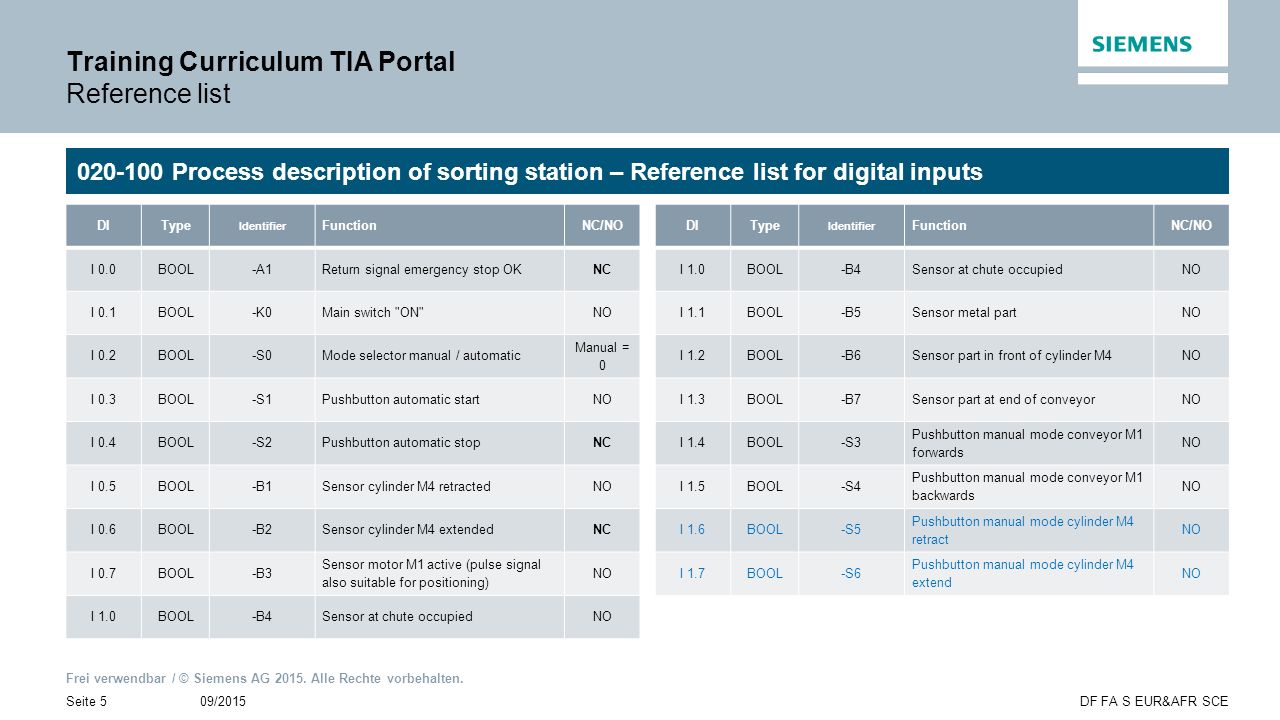

5 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 5DF FA S EUR&AFR SCE Training Curriculum TIA Portal Reference list Process description of sorting station – Reference list for digital inputs DIType Identifier FunctionNC/NO I 0.0BOOL-A1Return signal emergency stop OKNC I 0.1BOOL-K0Main switch "ON"NO I 0.2BOOL-S0Mode selector manual / automatic Manual = 0 I 0.3BOOL-S1Pushbutton automatic startNO I 0.4BOOL-S2Pushbutton automatic stopNC I 0.5BOOL-B1Sensor cylinder M4 retractedNO I 0.6BOOL-B2Sensor cylinder M4 extendedNC I 0.7BOOL-B3 Sensor motor M1 active (pulse signal also suitable for positioning) NO I 1.0BOOL-B4Sensor at chute occupiedNO DIType Identifier FunctionNC/NO I 1.0BOOL-B4Sensor at chute occupiedNO I 1.1BOOL-B5Sensor metal partNO I 1.2BOOL-B6Sensor part in front of cylinder M4NO I 1.3BOOL-B7Sensor part at end of conveyorNO I 1.4BOOL-S3 Pushbutton manual mode conveyor M1 forwards NO I 1.5BOOL-S4 Pushbutton manual mode conveyor M1 backwards NO I 1.6BOOL-S5 Pushbutton manual mode cylinder M4 retract NO I 1.7BOOL-S6 Pushbutton manual mode cylinder M4 extend NO

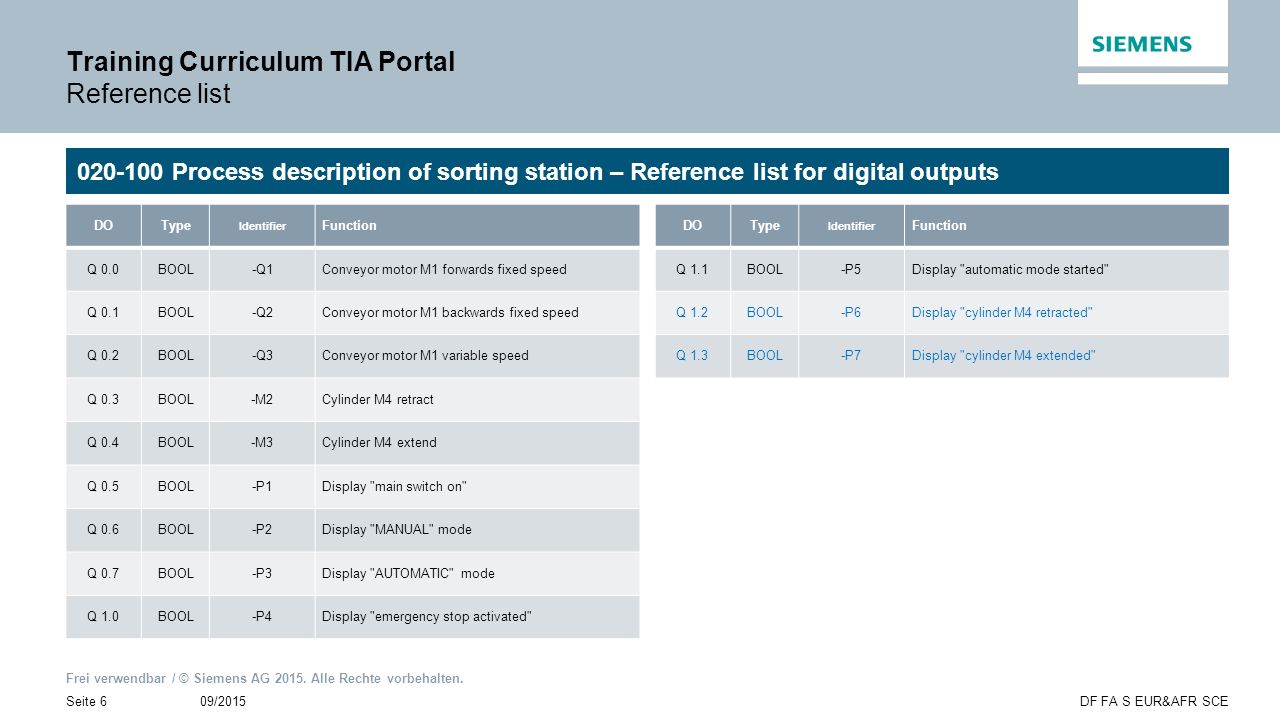

6 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 6DF FA S EUR&AFR SCE Training Curriculum TIA Portal Reference list Process description of sorting station – Reference list for digital outputs DOType Identifier Function Q 0.0BOOL-Q1Conveyor motor M1 forwards fixed speed Q 0.1BOOL-Q2Conveyor motor M1 backwards fixed speed Q 0.2BOOL-Q3Conveyor motor M1 variable speed Q 0.3BOOL-M2Cylinder M4 retract Q 0.4BOOL-M3Cylinder M4 extend Q 0.5BOOL-P1Display "main switch on" Q 0.6BOOL-P2Display "MANUAL" mode Q 0.7BOOL-P3Display "AUTOMATIC" mode Q 1.0BOOL-P4Display "emergency stop activated" DOType Identifier Function Q 1.1BOOL-P5Display "automatic mode started" Q 1.2BOOL-P6Display "cylinder M4 retracted" Q 1.3BOOL-P7Display "cylinder M4 extended"

7 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 7DF FA S EUR&AFR SCE Training Curriculum TIA Portal Reference list Process description of sorting station – Reference list for analog inputs and outputs AIType Identifier Function IW 64INT-B8Sensor actual value of motor speed +/- 10V IW 66INT-B9Setpoint specification via potentiometer +/- 10V AOType Identifier Function QW 64INT-U1 Manipulated value speed of motor in 2 directions +/- 10V

8 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 8DF FA S EUR&AFR SCE Training Curriculum TIA Portal Simulation Process description of sorting station – SIMIT simulation SIMIT Simulation together with PLCSIM or a controller via PRODAVE (currently for S7-300 only) SIMIT V8.1 Demo 01_Operating screen Violet area: Representation of the current state of the simulated station Gray area: Additional values Green area: Control panel of the simulated station

9 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 9DF FA S EUR&AFR SCE Training Curriculum TIA Portal Simulation Process description of sorting station – SIMIT simulation 02_SimControl serves some settings of the simulation Upper areas: Create components Automatic or manual creation of components Automatic (default setting) Manual Type of created components: Metal components only Plastic components only Random metal or plastic components (default setting) Center area: Manual specification of setpoint B9 Lower area: Reset component position

10 Frei verwendbar / © Siemens AG Alle Rechte vorbehalten. 09/2015Seite 10DF FA S EUR&AFR SCE Comprehensive Support for Educators and Learners in Educational Institutions S iemens Automation C ooperates with E ducation siemens.com/sce Thank you for your attention.
