SAP TechEd 08 LCM 260 Administering SAP NetWeaver Java 7.1 A hands-on session to try out the latest features of SAP NetWeaver Administrator 7.1 Hristo.

Ähnliche Präsentationen


Präsentation zum Thema: "SAP TechEd 08 LCM 260 Administering SAP NetWeaver Java 7.1 A hands-on session to try out the latest features of SAP NetWeaver Administrator 7.1 Hristo."—  Präsentation transkript:

1 SAP TechEd 08 LCM Administering SAP NetWeaver Java 7.1 A hands-on session to try out the latest features of SAP NetWeaver Administrator 7.1 Hristo Dobtchev, Lifecycle Management - SPM Tarun Luthra, AGS

2 SAP TechEd 08 Disclaimer This presentation outlines our general product direction and should not be relied on in making a purchase decision. This presentation is not subject to your license agreement or any other agreement with SAP. SAP has no obligation to pursue any course of business outlined in this presentation or to develop or release any functionality mentioned in this presentation. This presentation and SAP's strategy and possible future developments are subject to change and may be changed by SAP at any time for any reason without notice. This document is provided without a warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. SAP assumes no responsibility for errors or omissions in this document, except if such damages were caused by SAP intentionally or grossly negligent.

3 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail Summary

4 SAP TechEd 08 SAP NetWeaver Administrator 7.1 How does it fit in system administration? Central Administration and monitoring now integrated into Solution Manager Work Centers Possible to drill down from Solution Manager Work center to SAP NetWeaver Administrator SAP NetWeaver Administrator 7.1 completely replaces Visual Administrator SAP NetWeaver Administrator used as the tool for Java system administration and monitoring SAP NetWeaver Administrator 7.1 has many cool features from a usability as well as semantic point of view Work Centers CE 7.1 AS Java Future … Portal 7.0 NWA 7.0 NWA 7.1 NWA 7.0 NWA *.* In this slide we describe the past “mistakes” and how we learnt from them to “improve” in the present and future. Past: Difficult to explain to customers why we had 2 tools/products with central capability like Solution Manager and Central NetWeaver Administrator. Customers had to install the Solution Manager and the Central NWA on separate boxes. Up to SAP NetWeaver 7.0, Visual Administrator was a major tool used for Java System Administration. Today and the Future: There is no Central NWA. Solution Manager has a new functionality (introduced in SP15) called Work Centers. There are two work centers called System Administration and System Monitoring which show overview aggregated information of systems in the landscape. It is possible to drill down to the NetWeaver Administrator of the individual systems.

5 The Administration Scenarios Start Central, work Local
SAP TechEd 08 The Administration Scenarios Start Central, work Local System task list System status list System status based on CCMS information Status overview Important links Solution Manager 7.0 (Landscape Administration/Monitoring from the managing system’s work centers)  Prerequisite: connect managed systems to SLD System status list Common administration transactions SAP NetWeaver Administrator Work Center (System Administration) SAP NetWeaver Administrator 7.1 (System Administration on the managed system)  Clusters with multiple instances are managed as a single entity – a system SolMan in the centre, work on local systems Here we describe how it is possible to do administration using the “System Administration” and “System Monitoring” work centers. Also describe how one can navigate from central administration in Solution Manager workcenters to the local NWA on the monitored systems Pre-requisite for the Central: connecting the system to the SLD. Mention that this will be covered in the hands on session LCM260.

6 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail Summary

7 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail 2.1 System Administration without Visual Administrator 2.2 Start & Stop systems: The heart of Java System Administration 2.3 Connectivity between Systems 2.4 Logging and Troubleshooting 2.5 Application Centric Administration 3. Summary

8 NetWeaver Administrator and Visual Administrator: Key Differences
Functionality Visual Administrator SAP NetWeaver Administrator Selection of systems to manage Separate instances are managed separately All instances managed as one entity Navigation to tools Selection of service followed by selection of tool Selection of tasks followed by selection of tool Search for tools Not available Search by keyword available Role specific navigation Reduced set of tools visible based on user role Access to tools Standalone application Web-based

9 Navigation tools in SAP NetWeaver Administrator
Main NWA Navigation Navigate to different tools/functionalities of the NetWeaver Administrator Search functionality simplified finding the desired tool/functionality Main Navigation in the NetWeaver Administrator Tool search by keyword Tool specific navigation Navigation within the launched tool „History“, „Home“, „Back“, Forward“ links used to naviagate between tool and main navigation Navigation in the tool

10 Hands-On: Transition from VA to SAP NetWeaver Administrator
SAP TechEd 08 Hands-On: Transition from VA to SAP NetWeaver Administrator

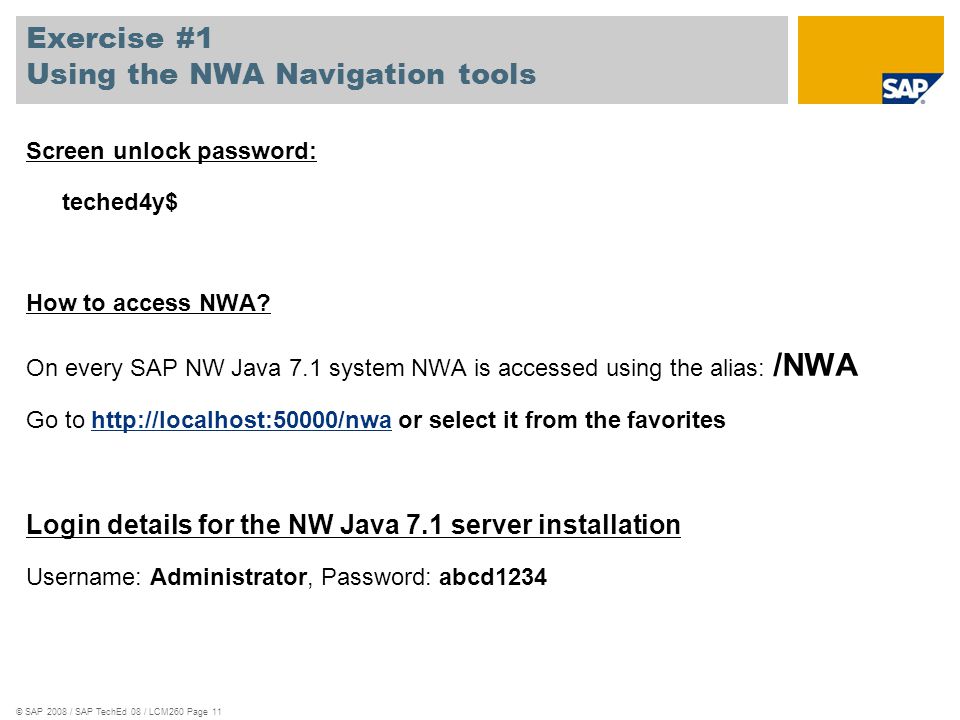

11 Exercise #1 Using the NWA Navigation tools
Screen unlock password: teched4y$ How to access NWA? On every SAP NW Java 7.1 system NWA is accessed using the alias: /NWA Go to or select it from the favorites Login details for the NW Java 7.1 server installation Username: Administrator, Password: abcd1234

12 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail 2.1 System Administration without Visual Administrator 2.2 Start & Stop systems: The heart of Java System Administration 2.3 Connectivity between Systems 2.4 Logging and Troubleshooting 2.5 Application Centric Administration 3. Summary

13 Starting & Stopping in Java
SAP TechEd 08 Starting & Stopping in Java Cluster wide aggregated status Non technical functionalities Persistence of the desired state Status per Instance Start/stop all parts of the system: Instances and Nodes (you can also enable instances for debugging here) J2EE engine services J2EE Applications Use cases: State of applications and services in the cluster Start/stop/restart – the beginning of the lifecycle Differences to 7.0: Cluster-wide operations Persistence of the desired state Human-understandable functionalities

14 Hands-On: Start & Stop of Java Systems
SAP TechEd 08 Hands-On: Start & Stop of Java Systems

15 Exercise #2 Understanding your system’s overall state
How to access NWA? On every SAP NW Java 7.1 system NWA is accessed using the alias: /NWA Go to or select it from the favorites Login details for the NW Java 7.1 server installation Username: Administrator, Password: abcd1234

16 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail 2.1 System Administration without Visual Administrator 2.2 Start & Stop systems: The heart of Java System Administration 2.3 Connectivity between Systems 2.4 Logging and Troubleshooting 2.5 Application Centric Administration 3. Summary

17 Managing Connectivity between systems
SAP NetWeaver is all about integration and connecting different systems Connectivity managed through the Connectivity Workcenter in the SAP NetWeaver Administrator RFC as well as HTTP connections configured using the NetWeaver Administrator Configuration of connectivity is done using the „Destinations“ tool CTC templates available for complex and long configurations

18 Hands-On: Connectivity
SAP TechEd 08 Hands-On: Connectivity

19 Exercise #3 Managing connectivity
Login details for the NW Java 7.1 server installation Username: Administrator, Password: abcd1234 Login details for the central SLD server SLD HTTP Host: iwdf4398 SLD HTTP Port: 51000 Data Supplier User: j2ee_admin Data Supplier Password: Teched08 SLD Client User: j2ee_admin SLD Client Password: Teched08

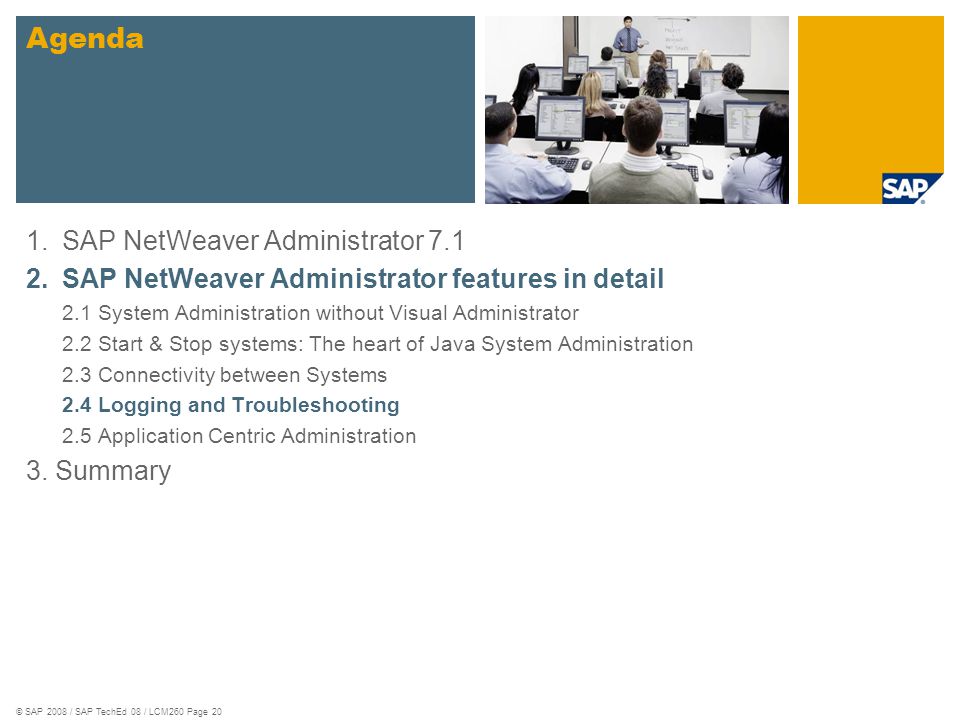

20 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail 2.1 System Administration without Visual Administrator 2.2 Start & Stop systems: The heart of Java System Administration 2.3 Connectivity between Systems 2.4 Logging and Troubleshooting 2.5 Application Centric Administration 3. Summary

21 Why Logging? The unquestioned top troubleshooting entry point
Importance: Entry point to troubleshooting  errors and error context found in the logs Two general use cases for logging: Logs: target group  administrators (for diagnosing and problem localization) Traces: target group  developers (for detailed analysis and debugging) Issues: Volume  many log records are written by the many components Many physical files in a cluster  separate set of files for every node of every instance 6.40 & 7.0 issues in Logging: Poor performance of the advanced log viewing tools Usable tools were not cluster-aware (i.e. OS-level file viewers, etc) No connection between log records and actual component /application which has a problem

22 Using the log viewer to view the logs as configured.
SAP TechEd 08 How Logging – best practices in 7.1 The complete workflow, from configuration to viewing Physical log destinations configuration Comes pre-configured. Can be changed in ConfigTool, but not advised. Log and Trace Severities Again, preconfigured. Can be changed for the whole cluster through Log Configurator for the debugging use case. Log Viewing Use NWA Log viewer 7.1: Improved performance and usability (demo follows) Merges all log files from the whole cluster into one view Has quick filtering New log format now includes the CSN component and development component of the failing application and message ID of the problem to improve supportability. … or if you need to stick with individual files: date and time are now human-readable  (optional, ISVs) Using the config tool to decide which logs should go where. (optional, i.e. if needed for debug)Using the log configurator to decide the severity we need of logs. Using the log viewer to view the logs as configured. Use cases: monitor system state, debug problems Differences to 7.0: Performance Human-readable logs The following demo should show the above use case.

23 Hands-On: Logging & Troubleshooting
SAP TechEd 08 Hands-On: Logging & Troubleshooting

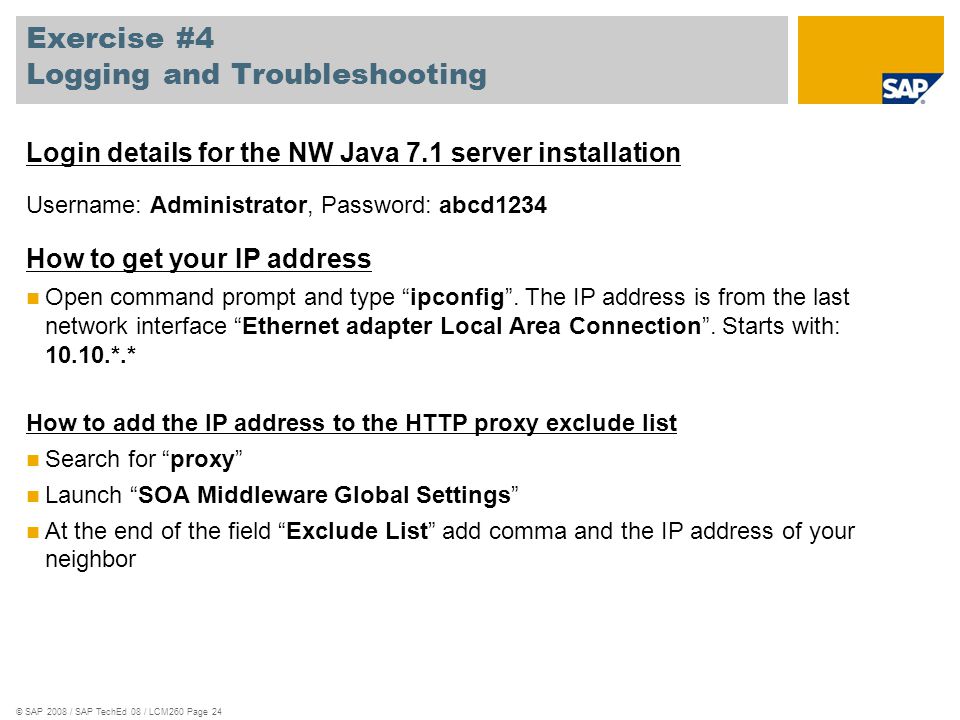

24 Exercise #4 Logging and Troubleshooting
Login details for the NW Java 7.1 server installation Username: Administrator, Password: abcd1234 How to get your IP address Open command prompt and type “ipconfig”. The IP address is from the last network interface “Ethernet adapter Local Area Connection”. Starts with: *.* How to add the IP address to the HTTP proxy exclude list Search for “proxy” Launch “SOA Middleware Global Settings” At the end of the field “Exclude List” add comma and the IP address of your neighbor

25 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail 2.1 System Administration without Visual Administrator 2.2 Start & Stop systems: The heart of Java System Administration 2.3 Connectivity between Systems 2.4 Logging and Troubleshooting 2.5 Application Centric Administration 3. Summary

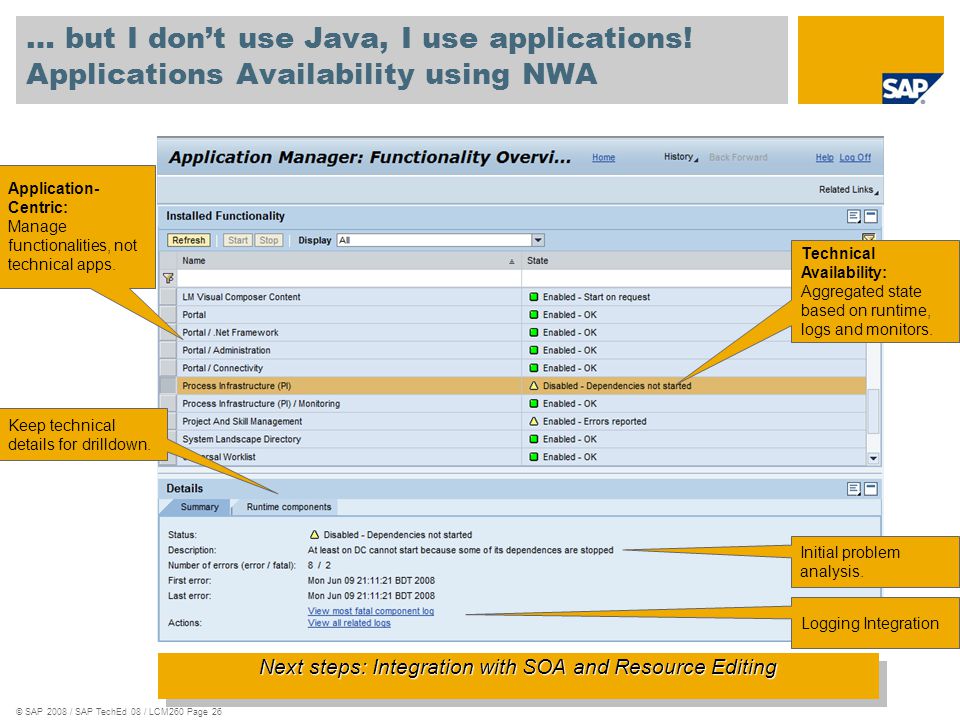

26 Next steps: Integration with SOA and Resource Editing
SAP TechEd 08 … but I don’t use Java, I use applications! Applications Availability using NWA Application-Centric: Manage functionalities, not technical apps. Technical Availability: Aggregated state based on runtime, logs and monitors. Keep technical details for drilldown. Initial problem analysis. Use cases: See application state (human-understandable applications) Entry point for application troubleshooting Highlights: Lower knowledge entry barrier – human-understandable functionality Aggregated state: takes into account different sources of information – runtime state, logs, monitors, etc. Drilldown still possible Integrated with other tools: log viewer, configuration tools Logging Integration Next steps: Integration with SOA and Resource Editing

27 Hands-On: Application Centric Administration
SAP TechEd 08 Hands-On: Application Centric Administration

28 Exercise #5 Application-Centric Administration
How to start Application Management service? Search for “start” Launch “Start & Stop” Select “Java EE Services” tab Find and start “Application Management” service Find and stop “XPI Service: AF Core” (hint: filter for “XPI”) How to start Application Manager UI? Launch from the browser Favorites “Application Manager” Login details for the NW Java 7.1 server installation Username: Administrator, Password: abcd1234

29 Agenda SAP NetWeaver Administrator 7.1
SAP TechEd 08 Agenda SAP NetWeaver Administrator 7.1 SAP NetWeaver Administrator features in detail Summary

30 Summary New and cool features in SAP NetWeaver 7.1
SAP TechEd 08 Summary New and cool features in SAP NetWeaver 7.1 Full coverage of VA functionality in SAP NetWeaver Administrator Additional monitoring capabilities: PI, SOA, Archiving, Connectivity Management Improved Log Viewer: performance and usability Improved overall usability: profiles, search, filters, context navigation, online help Improved supportability: human-readable logs, message IDs, logs cleanup New and cool features in SAP NetWeaver 7.0 Session Monitoring: monitor the current activity and user sessions on the system Destinations management: manage the Web Service, HTTP and RFC destinations from a single UI. Also includes connection tests. Failed Applications and Services monitor: Shows how many applications have failed on the system. The data is also reported to CCMS. Context navigation from Java System Reports to Start & Stop to see the failing applications Session Monitoring Destinations management Failed Applications and Services monitor

31 Further Information SAP Public Web:
SAP TechEd 08 Further Information è SAP Public Web: SAP Developer Network (SDN): https://www.sdn.sap.com/irj/sdn/lcm Business Process Expert (BPX) Community: è Related SAP Education and Certification Opportunities è Related Workshops/Lectures at SAP TechEd 2008 LCM210, Java Administration in SAP NetWeaver 7.1, Lecture

32 SAP TechEd 08 Thank you!

33 Please complete your session evaluation.
SAP TechEd 08 Feedback Please complete your session evaluation. Be courteous — deposit your trash, and do not take the handouts for the following session. Thank You !

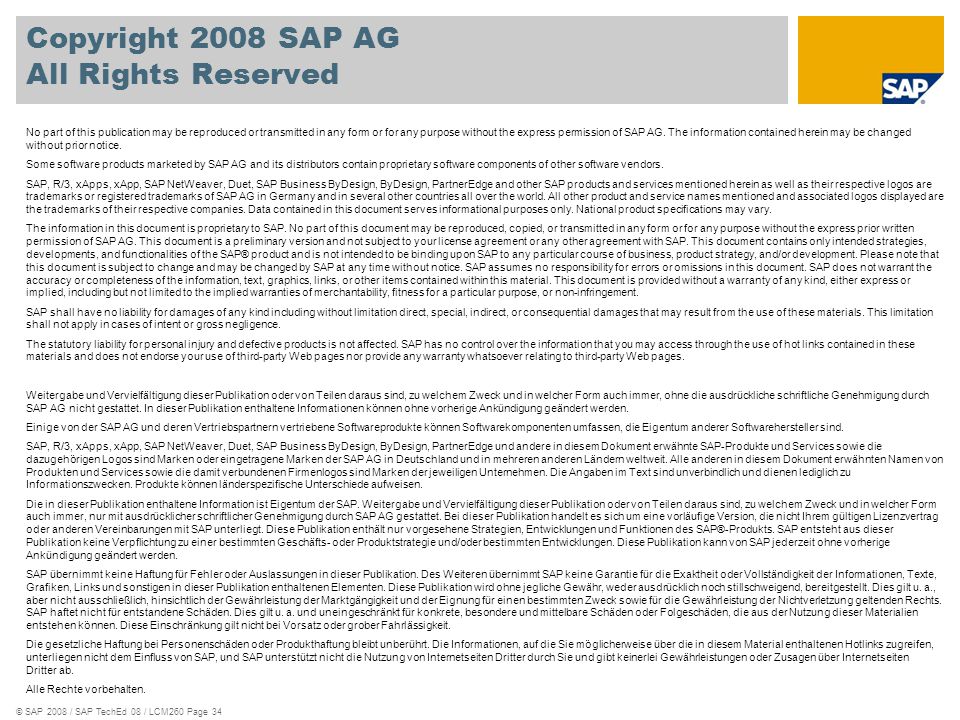

34 Copyright 2008 SAP AG All Rights Reserved
SAP TechEd 08 Copyright 2008 SAP AG All Rights Reserved No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of SAP AG. The information contained herein may be changed without prior notice. Some software products marketed by SAP AG and its distributors contain proprietary software components of other software vendors. SAP, R/3, xApps, xApp, SAP NetWeaver, Duet, SAP Business ByDesign, ByDesign, PartnerEdge and other SAP products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of SAP AG in Germany and in several other countries all over the world. All other product and service names mentioned and associated logos displayed are the trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary. The information in this document is proprietary to SAP. No part of this document may be reproduced, copied, or transmitted in any form or for any purpose without the express prior written permission of SAP AG. This document is a preliminary version and not subject to your license agreement or any other agreement with SAP. This document contains only intended strategies, developments, and functionalities of the SAP® product and is not intended to be binding upon SAP to any particular course of business, product strategy, and/or development. Please note that this document is subject to change and may be changed by SAP at any time without notice. SAP assumes no responsibility for errors or omissions in this document. SAP does not warrant the accuracy or completeness of the information, text, graphics, links, or other items contained within this material. This document is provided without a warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. SAP shall have no liability for damages of any kind including without limitation direct, special, indirect, or consequential damages that may result from the use of these materials. This limitation shall not apply in cases of intent or gross negligence. The statutory liability for personal injury and defective products is not affected. SAP has no control over the information that you may access through the use of hot links contained in these materials and does not endorse your use of third-party Web pages nor provide any warranty whatsoever relating to third-party Web pages. Weitergabe und Vervielfältigung dieser Publikation oder von Teilen daraus sind, zu welchem Zweck und in welcher Form auch immer, ohne die ausdrückliche schriftliche Genehmigung durch SAP AG nicht gestattet. In dieser Publikation enthaltene Informationen können ohne vorherige Ankündigung geändert werden. Einige von der SAP AG und deren Vertriebspartnern vertriebene Softwareprodukte können Softwarekomponenten umfassen, die Eigentum anderer Softwarehersteller sind. SAP, R/3, xApps, xApp, SAP NetWeaver, Duet, SAP Business ByDesign, ByDesign, PartnerEdge und andere in diesem Dokument erwähnte SAP-Produkte und Services sowie die dazugehörigen Logos sind Marken oder eingetragene Marken der SAP AG in Deutschland und in mehreren anderen Ländern weltweit. Alle anderen in diesem Dokument erwähnten Namen von Produkten und Services sowie die damit verbundenen Firmenlogos sind Marken der jeweiligen Unternehmen. Die Angaben im Text sind unverbindlich und dienen lediglich zu Informationszwecken. Produkte können länderspezifische Unterschiede aufweisen. Die in dieser Publikation enthaltene Information ist Eigentum der SAP. Weitergabe und Vervielfältigung dieser Publikation oder von Teilen daraus sind, zu welchem Zweck und in welcher Form auch immer, nur mit ausdrücklicher schriftlicher Genehmigung durch SAP AG gestattet. Bei dieser Publikation handelt es sich um eine vorläufige Version, die nicht Ihrem gültigen Lizenzvertrag oder anderen Vereinbarungen mit SAP unterliegt. Diese Publikation enthält nur vorgesehene Strategien, Entwicklungen und Funktionen des SAP®-Produkts. SAP entsteht aus dieser Publikation keine Verpflichtung zu einer bestimmten Geschäfts- oder Produktstrategie und/oder bestimmten Entwicklungen. Diese Publikation kann von SAP jederzeit ohne vorherige Ankündigung geändert werden. SAP übernimmt keine Haftung für Fehler oder Auslassungen in dieser Publikation. Des Weiteren übernimmt SAP keine Garantie für die Exaktheit oder Vollständigkeit der Informationen, Texte, Grafiken, Links und sonstigen in dieser Publikation enthaltenen Elementen. Diese Publikation wird ohne jegliche Gewähr, weder ausdrücklich noch stillschweigend, bereitgestellt. Dies gilt u. a., aber nicht ausschließlich, hinsichtlich der Gewährleistung der Marktgängigkeit und der Eignung für einen bestimmten Zweck sowie für die Gewährleistung der Nichtverletzung geltenden Rechts. SAP haftet nicht für entstandene Schäden. Dies gilt u. a. und uneingeschränkt für konkrete, besondere und mittelbare Schäden oder Folgeschäden, die aus der Nutzung dieser Materialien entstehen können. Diese Einschränkung gilt nicht bei Vorsatz oder grober Fahrlässigkeit. Die gesetzliche Haftung bei Personenschäden oder Produkthaftung bleibt unberührt. Die Informationen, auf die Sie möglicherweise über die in diesem Material enthaltenen Hotlinks zugreifen, unterliegen nicht dem Einfluss von SAP, und SAP unterstützt nicht die Nutzung von Internetseiten Dritter durch Sie und gibt keinerlei Gewährleistungen oder Zusagen über Internetseiten Dritter ab. Alle Rechte vorbehalten.
