1 Balver Zinn Josef Jost GmbH & Co.KG Cobar Solder paste SCAN-Ge 071

2 Content Solder paste alloy Melting range Soldering properties Reliability: adding Ni+Ge Reduces intermetallic Cu 3 Sn Finer crystalline structure Reduce Cu leaching Anti-oxidant low Ag content Drop test reliability Creep rate

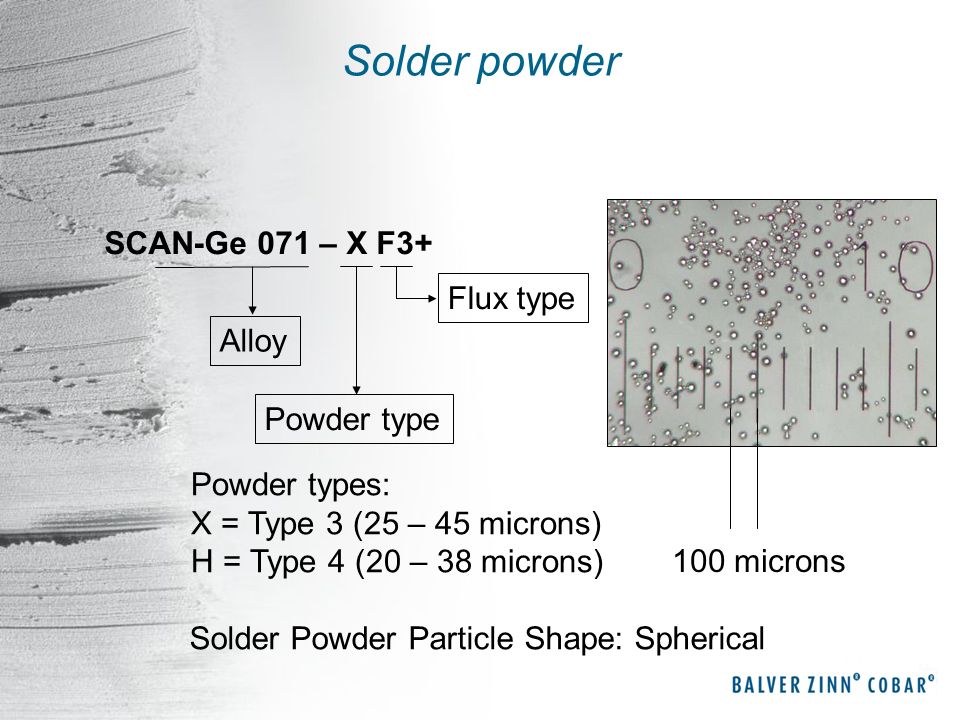

3 Solder powder 100 microns SCAN-Ge 071 – X F3+ Alloy Powder type Flux type Powder types: X = Type 3 (25 – 45 microns) H = Type 4 (20 – 38 microns) Solder Powder Particle Shape: Spherical

4 Melting point (range) - DSC SCAN-Ge 071 = Sn0.7%Cu1.0%Ag %Ni %Ge SCAN-Ge 071 has a melting range ºC

5 Wetting: SAC-Paste Prozessierung und Zuverlässigkeit von SAC-Loten mit reduziertem Silbergehalt M. Nowottnick, Rostock, und J. Trodler, Hanau

6 Wetting: SAC-Paste Prozessierung und Zuverlässigkeit von SAC-Loten mit reduziertem Silbergehalt M. Nowottnick, Rostock, und J. Trodler, Hanau

7 Wetting: SAC-Paste Prozessierung und Zuverlässigkeit von SAC-Loten mit reduziertem Silbergehalt M. Nowottnick, Rostock, und J. Trodler, Hanau

8 Wetting on Cu-FR4 boards SCAN-Ge 071 SAC305 Reflowed with same profile at the same time (Profile 4 Siemens)

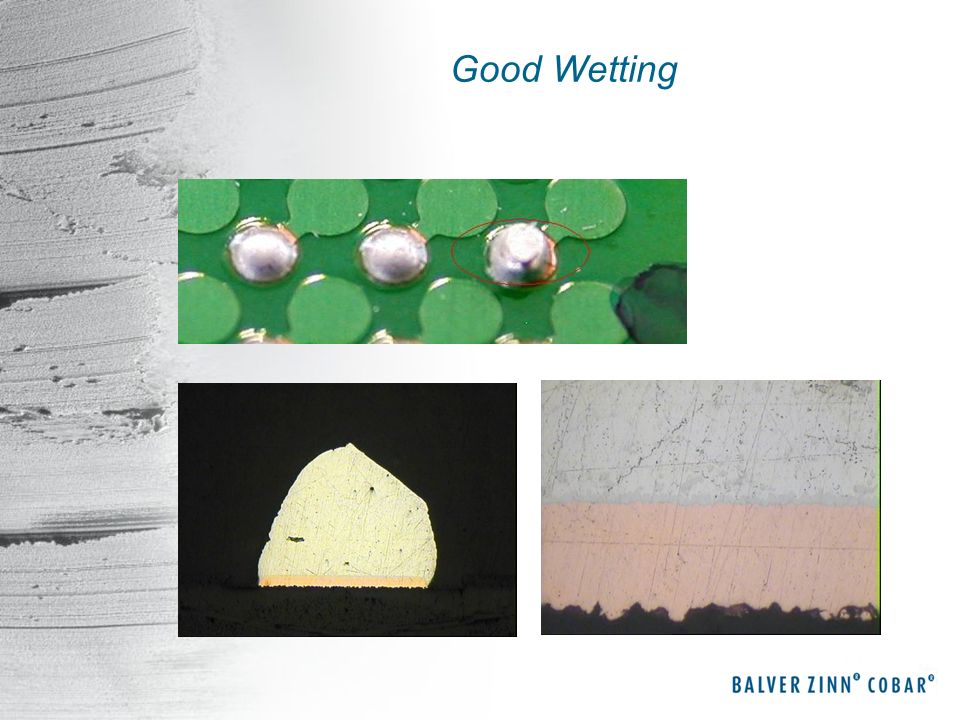

9 Good Wetting (angle) Solder filler smooth and exhibits a good wetting. Cu pad complete covered with paste – no exposed copper SCAN-Ge on OSP board finish:

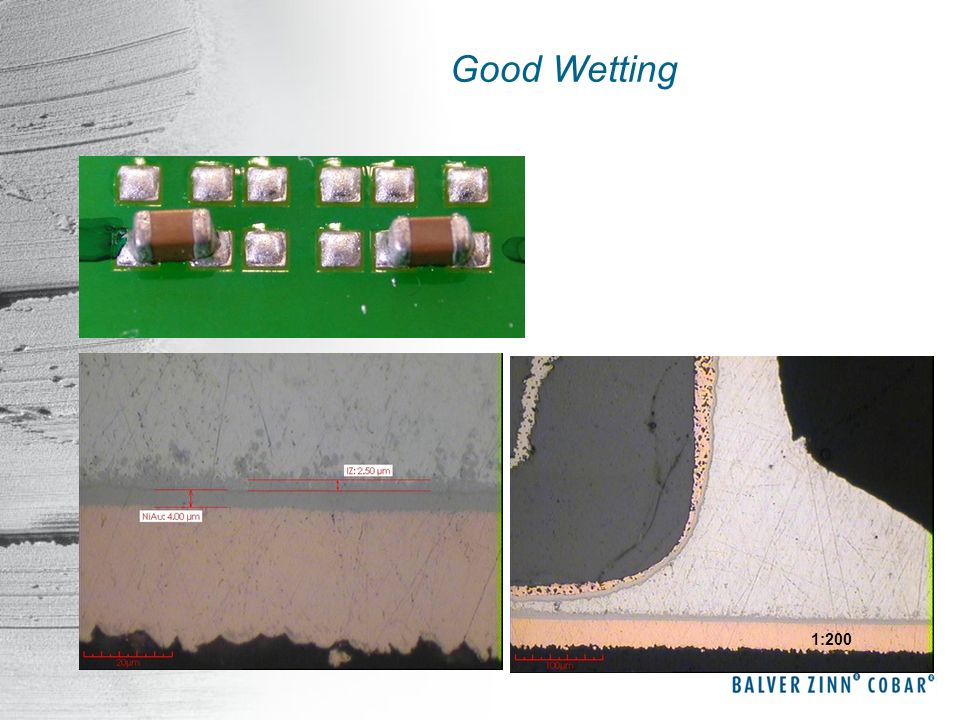

10 1:200 Good Wetting

11

12 Anti-tombstoning / self aligment Before soldering – misplaced component After soldering – component centered SCAN-Ge on NiAg board finish Due to melting range of SCAN-Ge 071:

13 Impact of Ni on the IMC Cu 6 Sn 5 IMC (Cu,Ni) 6 Sn 5 At ~ 3% Ni in (Cu,Ni) 6 Sn 5 Sn-0.7Cu+NiGe Sn-0.7Cu

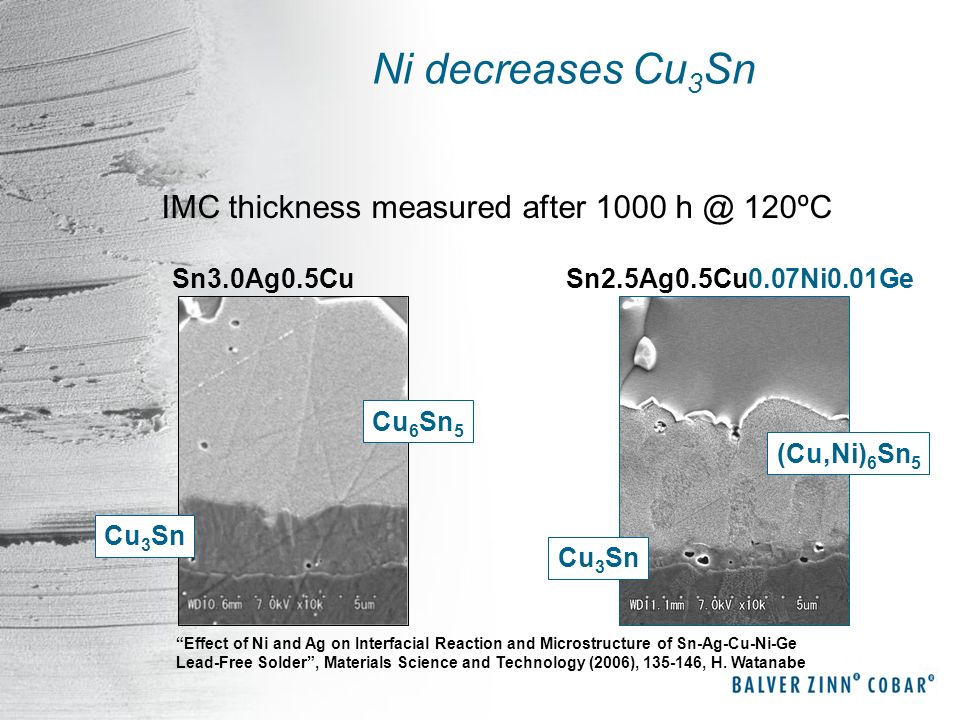

14 Ni decreases Cu 3 Sn Effect of Ni and Ag on Interfacial Reaction and Microstructure of Sn-Ag-Cu-Ni-Ge Lead-Free Solder, Materials Science and Technology (2006), , H. Watanabe IMC thickness measured after ºC Sn3.0Ag0.5CuSn2.5Ag0.5Cu0.07Ni0.01Ge Cu 3 Sn Cu 6 Sn 5 (Cu,Ni) 6 Sn 5

15 Ge anti-oxidant Ge acts as an antioxidant and surface active agent K Watling, A Chandler, K Nogita. A Dahle, University of Queensland, Submitted for publication SnCuNi SnCuNiGe 15 minutes ramp up to 340 ºC 30 minutes cooling

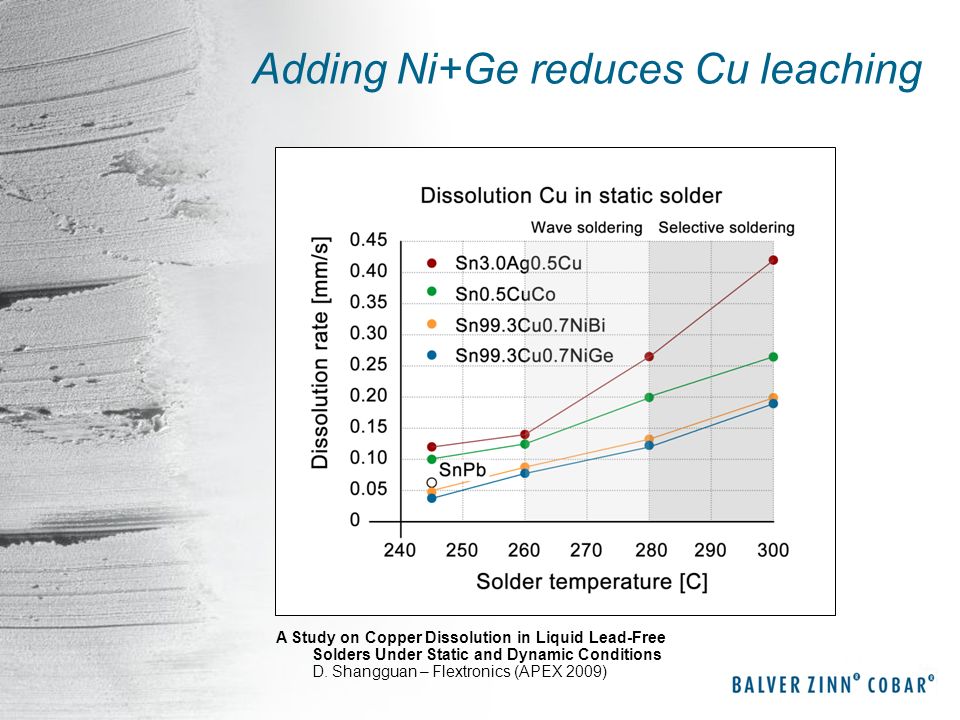

16 Adding Ni+Ge reduces Cu leaching A Study on Copper Dissolution in Liquid Lead-Free Solders Under Static and Dynamic Conditions D. Shangguan – Flextronics (APEX 2009)

17 Reliability drop test – low Ag Increased ductility of lower-Ag alloys is desirable for high strain rate shock loading

18 Reliability drop test – Ni-content

19 Mechanical Properties – low Ag iNEMI PB-FREE ALLOY ALTERNATIVES PROJECT REPORT: STATE OF THE INDUSTRY – Gregory Henshall, PH.D. Hewlett-Packard Co. Palöo Alto, CA USA

20 Creep Rate – low Ag Impact of Long Term Aging of SAC Solder for Harsh Environment Applications - John L. Evans, Ph.D. Associate Director Center for Advanced Vehicle Electronics (CAVE)

21 Creep Rate – low Ag

22 Shear-Test: SAC-Paste Prozessierung und Zuverlässigkeit von SAC-Loten mit reduziertem Silbergehalt M. Nowottnick, Rostock, und J. Trodler, Hanau

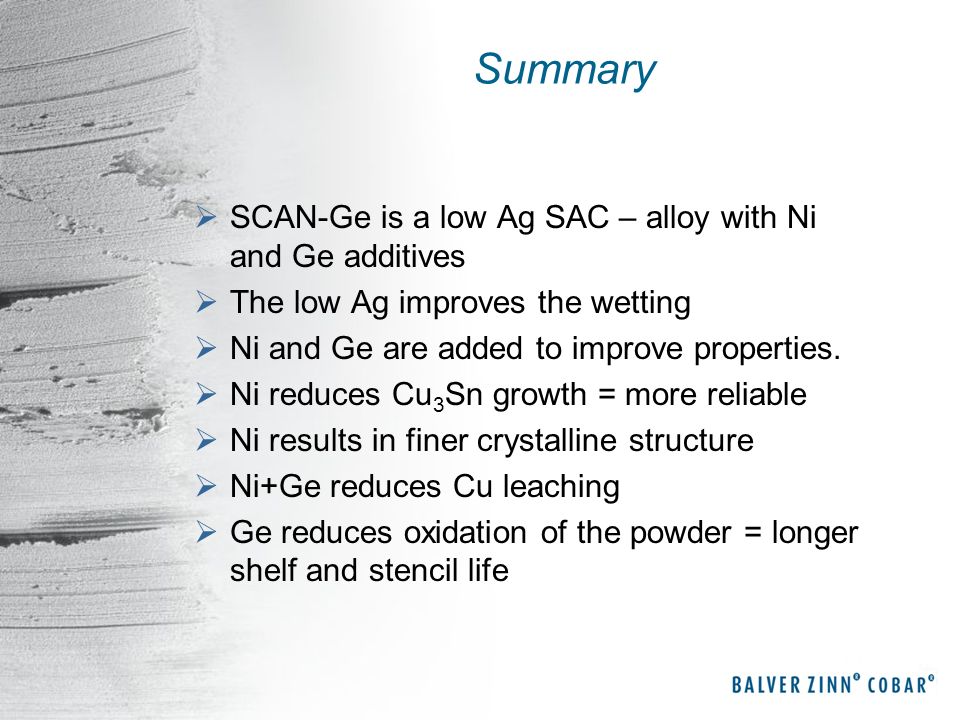

23 Summary SCAN-Ge is a low Ag SAC – alloy with Ni and Ge additives The low Ag improves the wetting Ni and Ge are added to improve properties. Ni reduces Cu 3 Sn growth = more reliable Ni results in finer crystalline structure Ni+Ge reduces Cu leaching Ge reduces oxidation of the powder = longer shelf and stencil life
