1 How To Guide – Workflow BCS
Lars Lobe SAP AG

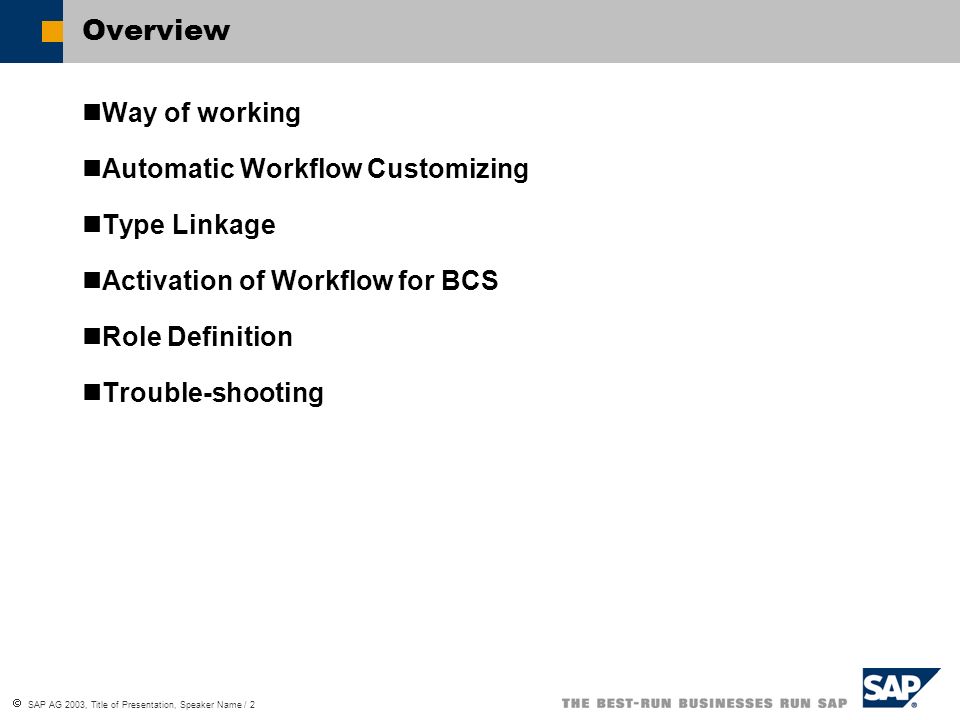

2 Overview Way of working Automatic Workflow Customizing Type Linkage
Activation of Workflow for BCS Role Definition Trouble-shooting

3 Automatic Workflow Customizing
Execution: The user has to belong to user group for authorization check ‘SUPER’ (to maintain in transaction ‘User Maintenance’; tcode SU01) Transaction SWU3 Press ‘Perform Automatic Workflow Customizing’

4 Type Linkage I Transaction Workflow Builder Transaction code: SWDD
Workflow template WS Workflow template WS Press Basic Data

5 Type Linkage II Press these icon Press this Icon

6 Type Linkage III Task is active

7 Maintain Tasks I Assigning agents to the tasks
TS FMBCS: Decision about Budget TS FMBCS: Create a pre-posted document TS Decision to create a new doc with ref Use Transaction PFTC to add the correct agents.

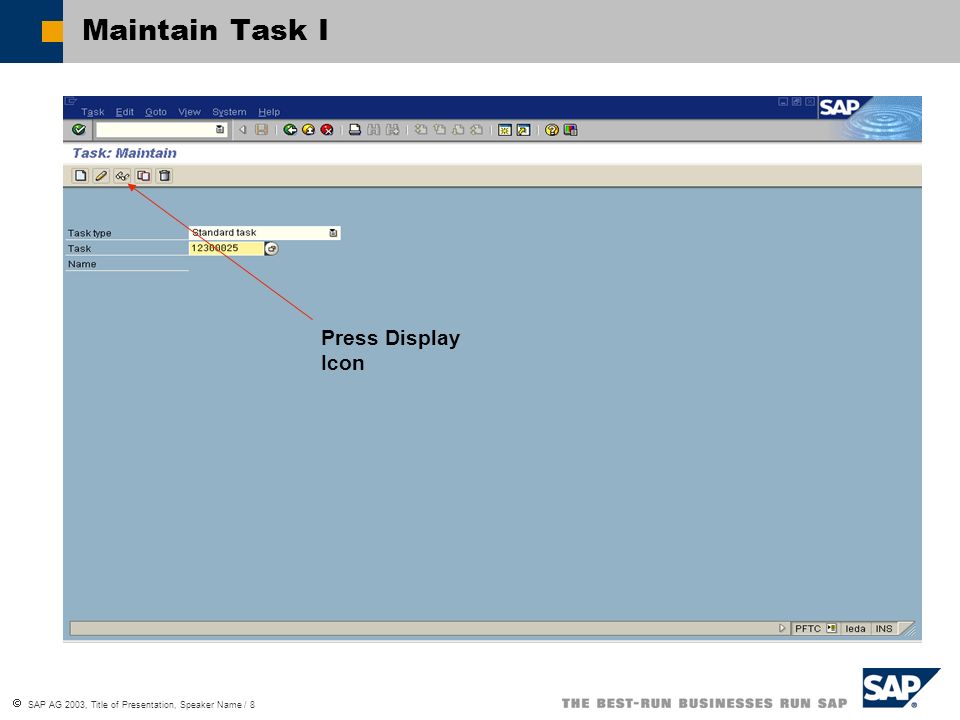

8 Maintain Task I Press Display Icon

9 Maintain Tasks II Choose ‘Additional Data->Agent assignment->Maintain’

10 Maintain Agents Choose ‘Create agent assignment…’
and assign all responsible users, org-units… to this task

11 Role Definition – Accounting III
Maintenance of role definition for accounting in customizing for Public Sector Management

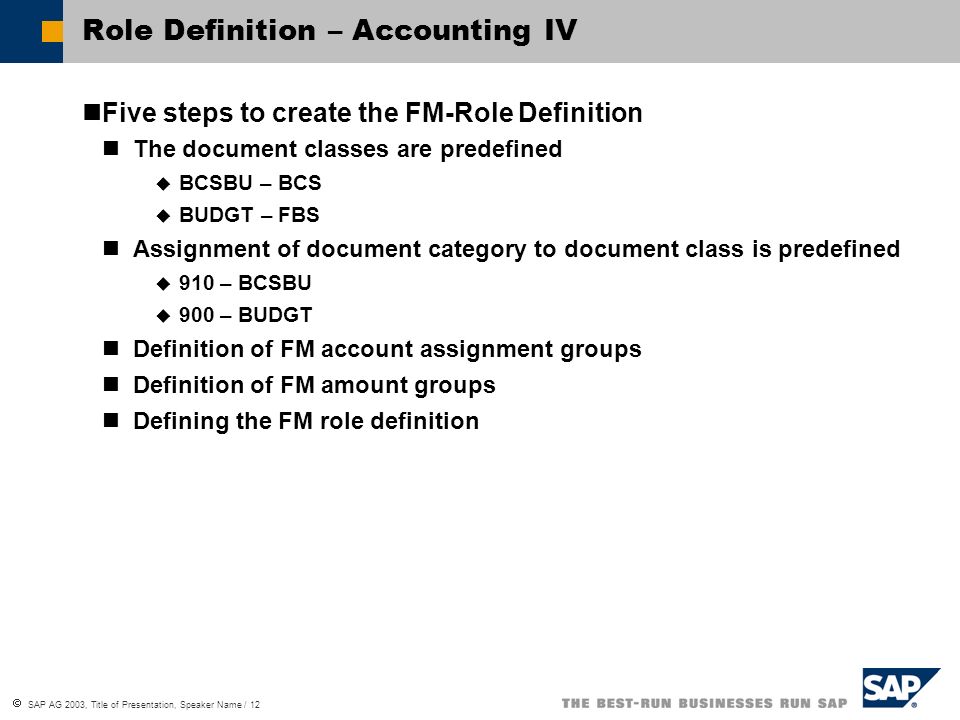

12 Role Definition – Accounting IV
Five steps to create the FM-Role Definition The document classes are predefined BCSBU – BCS BUDGT – FBS Assignment of document category to document class is predefined 910 – BCSBU 900 – BUDGT Definition of FM account assignment groups Definition of FM amount groups Defining the FM role definition

13 Role Definition – Accounting V
Definition of FM Document Classes

14 Role Definition – Accounting VI
Assign FM Document Category to the Document Class

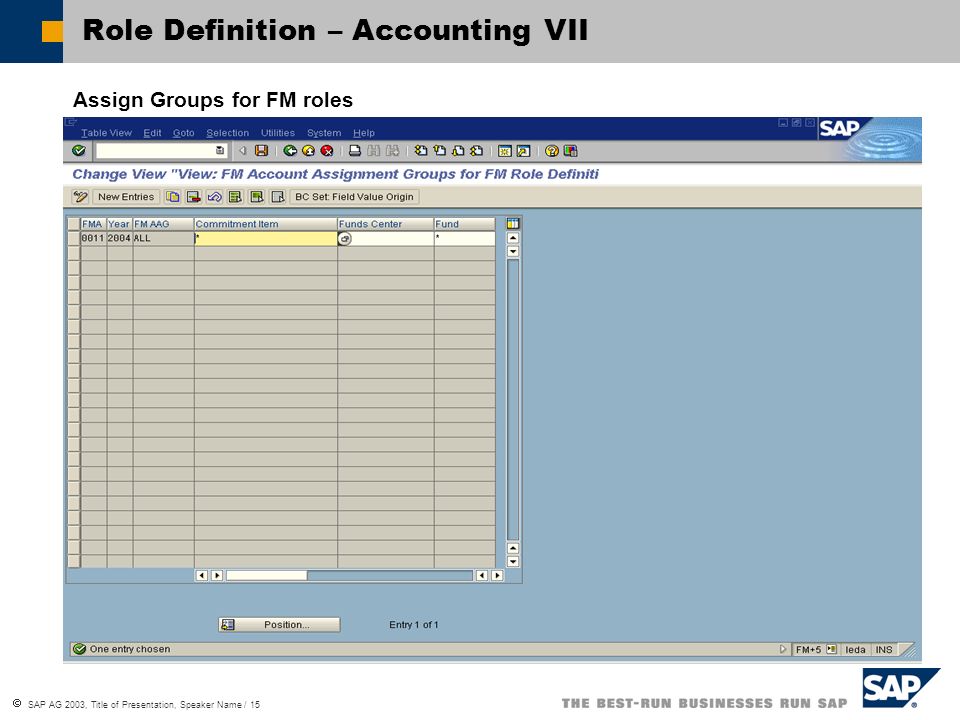

15 Role Definition – Accounting VII
Assign Groups for FM roles

16 Role Definition – Accounting VIII
Definition of FM amount groups

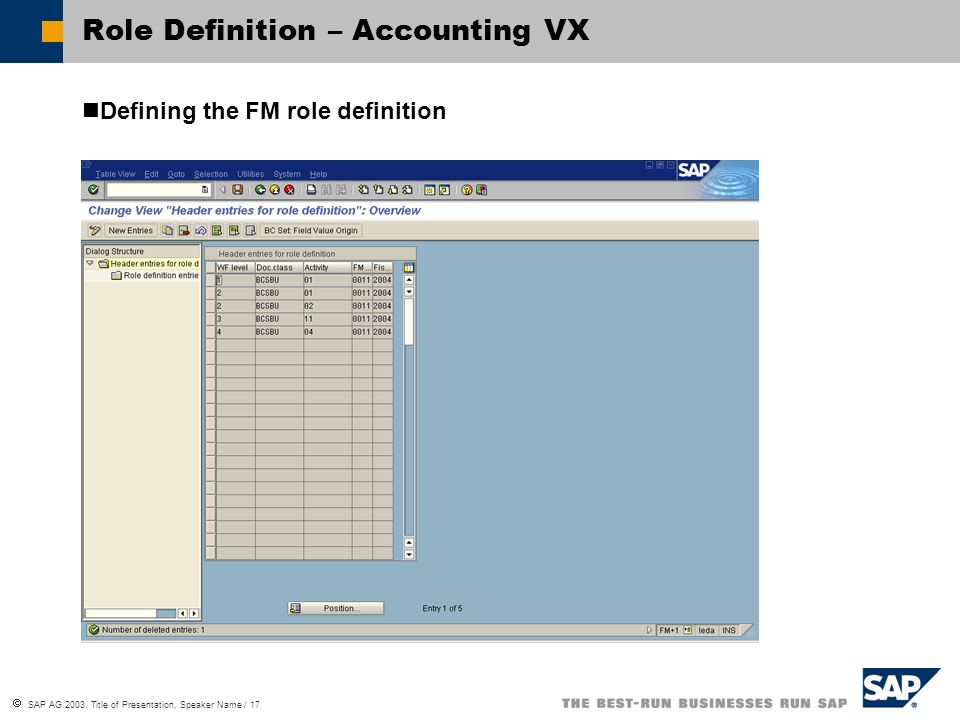

17 Role Definition – Accounting VX
Defining the FM role definition

18 Role Definition – Accounting X
Assigning an org unit, a job or a position to the FM account assignments

19 Result I After doing all these settings and creating preposted documents, items should appear in the workflow inbox. Transaction Business Workflow; tcode SBWP

20 Trouble Shooting I Events
Check, whether events are created correctly and an receiver was maintained correctly in the type linkage Switch the event trace on/off: tcode SWELS Display the event trace: tcode SWEL

21 Trouble Shooting II Workflow Log
Displaying the workflow log to analyse other workflow errors: Transaction Work Item Selection; tcode SWI1
